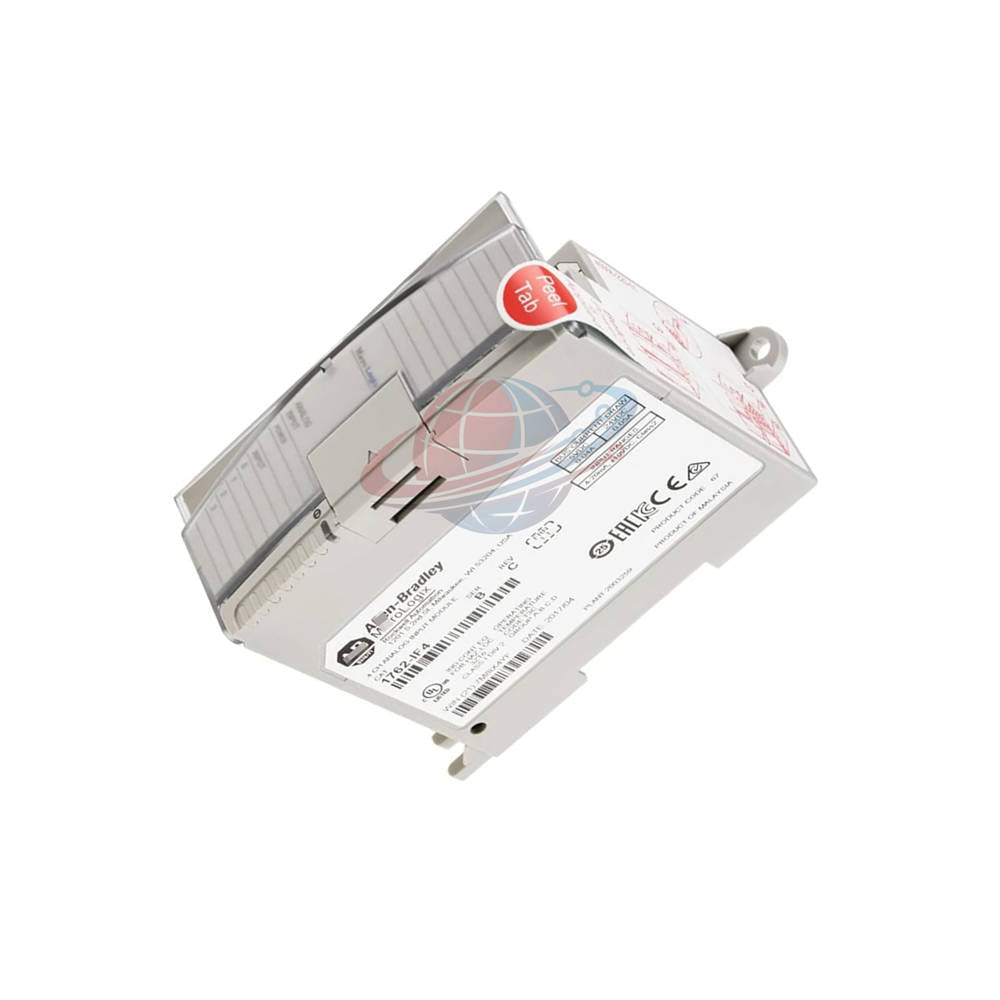

1762-IF4 Allen-Bradley MicroLogix 4-Channel Analog Input Module New

Engineering Overview

• The 1762-IF4 is a high-density analog expansion module providing precision sensing for MicroLogix 1100, 1200, and 1400 systems.
• Utilizing a sophisticated Delta-Sigma converter, this module delivers 15-bit resolution across four differential (bipolar) input channels.
• It supports versatile signal ranges, including voltage from -10.5 to +10.5V DC and current from 4 to 20 mA.
• The rackless design integrates seamlessly via a flat ribbon cable bus, maximizing I/O density in compact enclosures.

Global PLC Spare HUB's Insight

• Our specialists recommend the 1762-IF4 for applications requiring high-accuracy PID loops where "Scaled for PID" data formatting is essential.
• A key mechanical advantage is the integrated finger-safe cover, protecting terminal connections during maintenance and commissioning.
• Configuration Tip: Signal type selection (Current vs. Voltage) is determined by internal DIP switches; ensure these are set prior to powering the 1762 bus.
• The differential input design is specifically engineered to cancel out common-mode noise, making it ideal for long-distance sensor runs.

Hardware Performance Matrix

• Manufacturer: Allen-Bradley / Rockwell Automation
• Model: 1762-IF4
• Series: MicroLogix Expansion I/O
• Inputs: 4 Differential (Bipolar)
• Resolution: 15-bit Analog-to-Digital Conversion
• Voltage Range: -10.5V to +10.5V DC (Normal: -10 to 10V)
• Current Range: -21 mA to +21 mA (Normal: 4 to 20 mA)
• Converter Type: Delta-Sigma
• Repeatability: ±0.12%
• Update Rate: Optimized for real-time process monitoring
• Mounting: 35mm DIN Rail or Panel Mount
• Enclosure: IP20 Open-style

Advanced Diagnostic Capabilities

• Status Monitoring: A single-source LED provides instant visual confirmation of module power and bus health.
• Data Formatting: Converted data can be stored as Raw/Proportional or Scaled for PID, simplifying software-side diagnostics.
• OS Versatility: Field-upgradable flash operating system ensures the module supports the latest MicroLogix firmware features.
• Signal Integrity: Designed for use with Belden 8761 shielded cabling to ensure maximum EMC protection.

Target Systems and Application Scenarios

• MicroLogix Compatibility: Connects up to 4 modules (ML1100), 6 modules (ML1200), or 7 modules (ML1400).
• Water Treatment: Precision level sensing and chemical flow rate monitoring.
• Pneumatic Control: Feedback loops for high-accuracy pressure transducers.
• Thermal Management: Interfacing with 2, 3, or 4-wire temperature transmitters in industrial kilns.

Global Logistics and Support

• Warranty: Protected by a professional 12-month quality guarantee on all units.
• Express Delivery: Global shipping supported via FedEx, UPS, and DHL.
• Order Fulfillment: Rapid dispatch within 24 to 48 hours from our central stock.
• Package Contents: One (1) 1762-IF4 Analog Input Module and Bus Cable.

Selection Guide & FAQ

• Selection Advice: Use the "Differential" mode to minimize errors caused by ground potential differences between the sensor and PLC.
• Selection Advice: Verify your total system current draw; the module is powered via the 5V/24V DC 1762 bus interface.

• Question: How do I physically set the channel for 4-20mA current input?
• Answer: You must toggle the internal DIP switches located under the ventilation slots to the "Current" position before installation.

• Question: Can I mix voltage and current signals on the same 1762-IF4?
• Answer: Yes, each channel is independently configurable via its respective DIP switch, allowing for hybrid signal types.

• Question: Does this module require a separate power terminal connection?
• Answer: No, the 1762-IF4 receives all necessary power through the flat ribbon cable connected to the MicroLogix base unit.

• Question: What happens if my sensor exceeds the 10.5V limit?
• Answer: The module will report an overflow condition in the controller's data table and the resolution may clip at the maximum value.

• Question: Is the ribbon cable included with the module?
• Answer: Yes, every expansion module comes with a pre-attached ribbon cable for connecting to the next module or the PLC.
