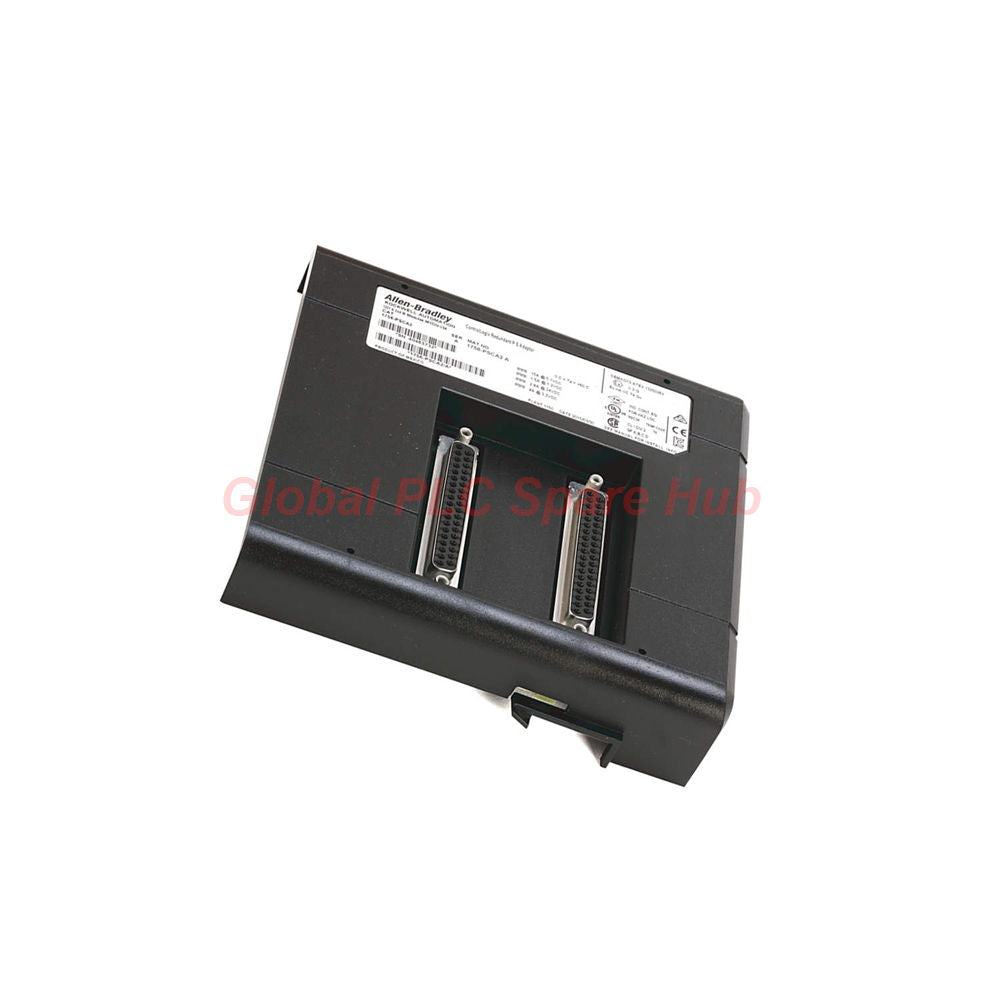

1756-PSCA2 Allen-Bradley ControlLogix Redundant Power Chassis Adapter

Global PLC Spare HUB's Insight

The Allen-Bradley 1756-PSCA2 is a critical passive hardware bridge engineered for high-availability ControlLogix architectures. Unlike standard power supplies that plug directly into the backplane, the 1756-PSCA2 acts as a centralized "funnel," consolidating power from external redundant supplies (1756-PA75R or 1756-PB75R) into the chassis backplane connector. This module is essential for Series B chassis where zero-downtime power transitions are required. Its open-type design focuses on high-current throughput, managing up to 15A at the 5.1V DC logic level. We recommend the 1756-PSCA2 for mission-critical industrial applications where a power supply failure cannot be allowed to halt the controller's execution. Ensure the 1756-CPR2 cables maintain their 12.7 cm bend radius to prevent mechanical stress on the adapter’s high-density connectors.

Technical Specification Matrix

• Brand: Allen-Bradley / Rockwell Automation
• Model: 1756-PSCA2
• Series: ControlLogix
• Module Type: Redundant Power Supply Chassis Adapter
• Backplane Current: 125mA @ 24V DC
• Current Capacity (By Rail):
  • 5.1V DC: 15 A
  • 24V DC: 2.8 A
  • 3.3V DC: 4 A
  • 1.2V DC: 1.5 A
• Max Power Dissipation: 25.7 Watts (at 30°C)
• RTB Compatibility: 1756-TBSH or 1756-TBNH
• Mounting: Horizontal, Left side of chassis
• Hazardous Certification: Ex nA IIC T4 Gc (EN 60079-15)

Application Scenarios & Compatibility

• Continuous Process Control: Essential for oil refineries and chemical plants where PLC power interruption results in massive financial loss.
• Supply Redundancy: Specifically designed to pair with Bulletin 1756-PA75R (AC) and 1756-PB75R (DC) redundant supplies.
• Chassis Integration: Mounts on the far-left side of standard Series B ControlLogix chassis, effectively replacing the standard power supply slot.
• Hazardous Areas: Suitable for Zone 2 environments requiring T4 temperature class compliance and IECEx certification.

Diagnostic & Integration Capabilities

• Passive Load Balancing: Facilitates the hardware link required for redundant supplies to balance the chassis load without active electronics.
• Thermal Management: Designed for efficient heat dissipation (up to 21.3W at 60°C) to maintain stable voltage rails under full load.
• Grounding Integrity: Features a dedicated ground link architecture to minimize common-mode noise across the backplane.
• System Monitoring: Works in conjunction with the 1756-PA75R/PB75R status indicators to ensure the backplane is receiving dual-sourced power.

Global Logistics & Service Excellence

• Warranty Policy: Includes a full 12-month industrial warranty.
• Global Shipping: Priority express delivery via FedEx, UPS, and DHL.
• Dispatch Timeline: Orders are typically prepared and shipped within 24-48 hours.
• Condition: New & Original in factory-sealed industrial packaging.

Selection & Buying Guide

• Chassis Verification: Ensure your chassis is a Series B model; the adapter geometry is specifically keyed for these units.
• Cable Standards: It is critical to use the official 1756-CPR2 cable; using non-standard cabling will compromise the hazardous area rating.
• Layout Planning: Factor in a 5-inch (12.7 cm) clearance on the left side of the chassis for cable routing and bend radius requirements.

Professional FAQ

Does the 1756-PSCA2 actually convert or regulate any power?

No, the 1756-PSCA2 is a passive device. It serves as a specialized electrical junction that routes pre-regulated power from redundant supplies into the backplane.

Is it possible to use this adapter with a standard 1756-PA72 power supply?

No, this adapter is exclusively designed for use with redundant-capable power supplies (1756-PA75R or 1756-PB75R). Standard supplies plug directly into the chassis.

Why is wire length emphasized in the installation instructions for this module?

Because the adapter manages high-current rails (up to 15A), keeping wire lengths short minimizes voltage drops and EMI that could destabilize sensitive I/O modules.

Can I hot-swap the 1756-PSCA2 while the system is running?

No. While the redundant supplies themselves are hot-swappable, the 1756-PSCA2 is the single point of entry to the chassis; removing it will kill power to the entire rack.

What is the significance of the "Ex nA" rating for this adapter?

The "Ex nA" rating (Non-Sparking) indicates the device is certified for use in Class I Zone 2 hazardous locations where explosive vapors are not normally expected.
