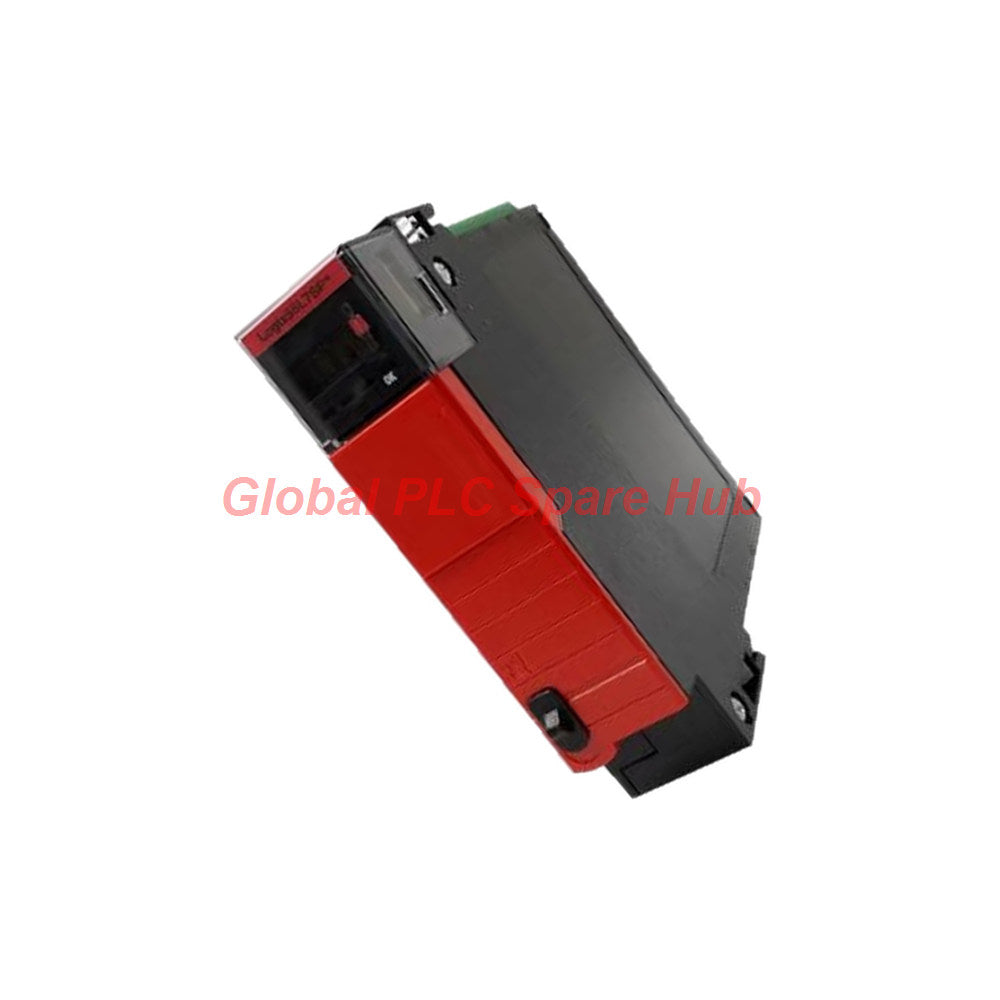

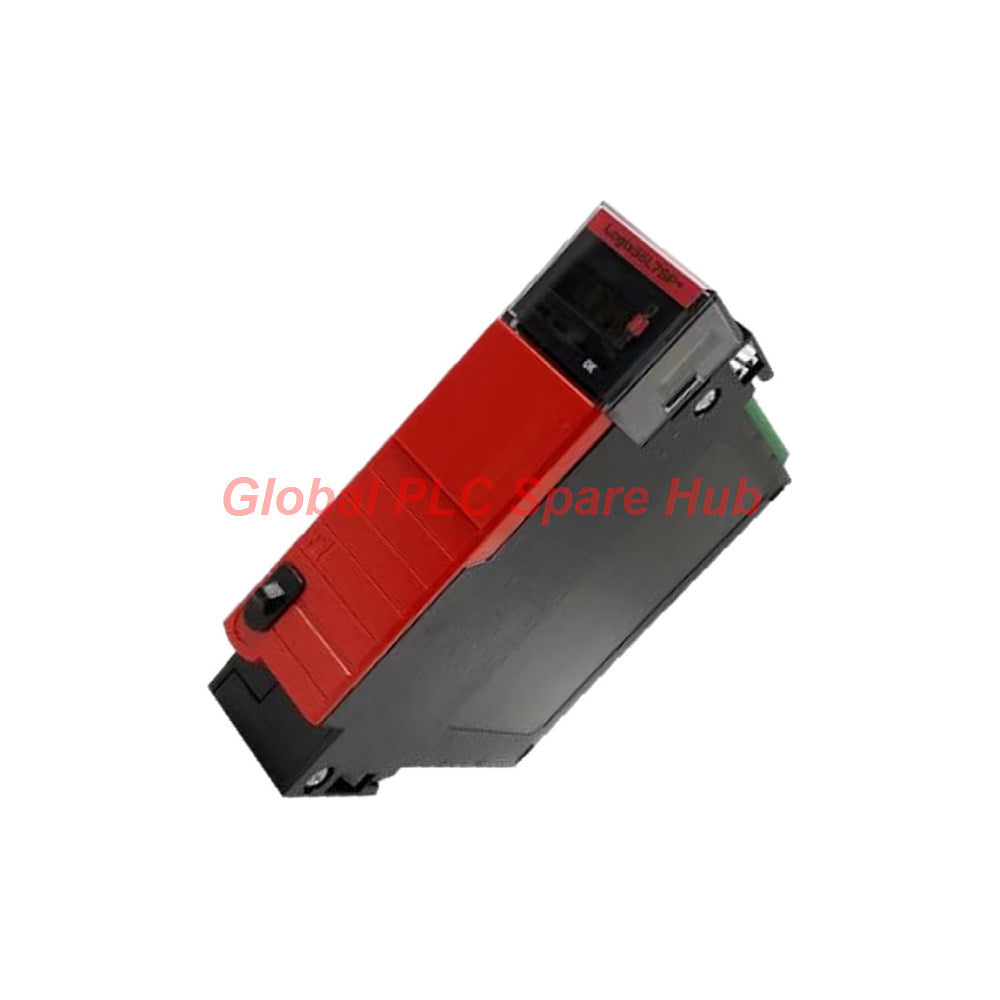

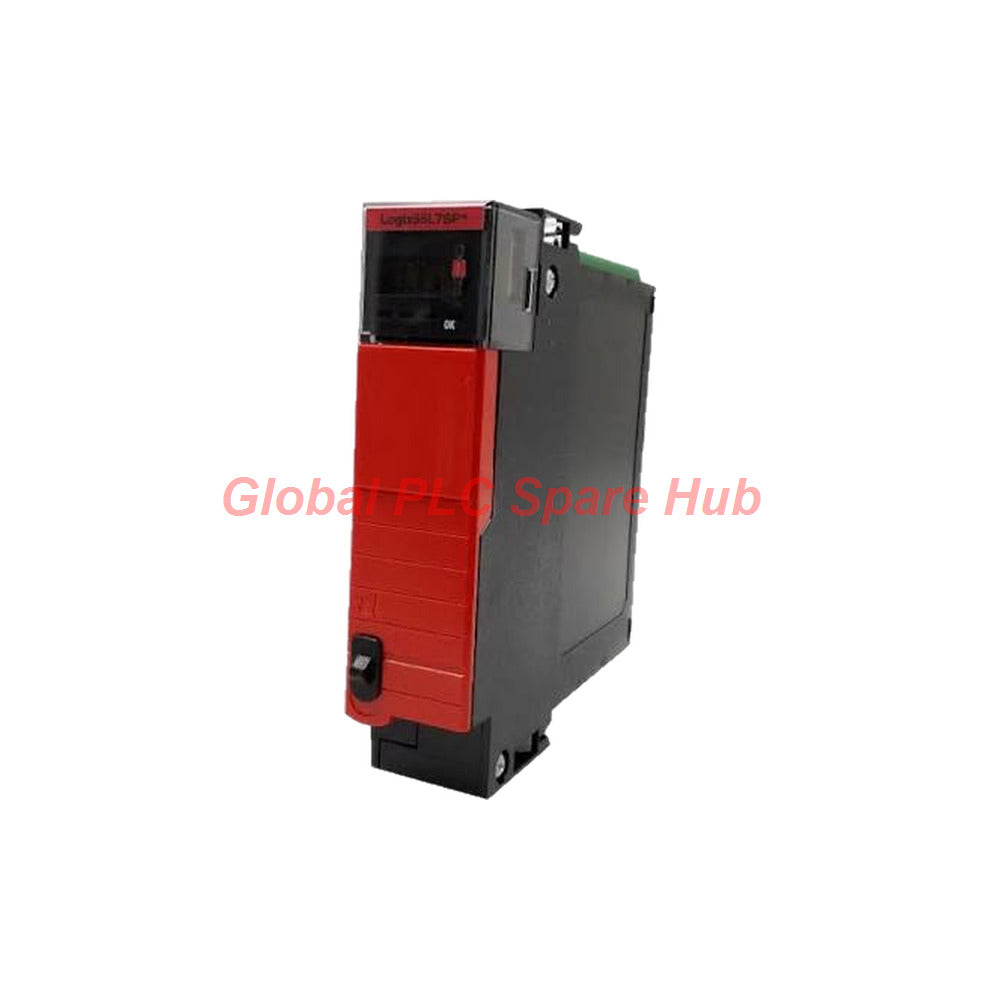

1756-L7SP ControlLogix Safety Partner Processor | Allen-Bradley GuardLogix

Product Overview

The 1756-L7SP is a dedicated GuardLogix Safety Partner Controller engineered by Allen-Bradley for the ControlLogix architecture. Operating alongside a primary GuardLogix L7 controller, this module creates a redundant 1oo2 (1-out-of-2) dual-processor structure to achieve high-integrity industrial safety control.

Designed for mission-critical applications, the 1756-L7SP satisfies strict functional safety benchmarks up to SIL 3 (IEC 61508) and Performance Level e (ISO 13849-1). The unit executes safety routines synchronously with its primary partner controller without occupying standalone user memory allocation.

Technical Specifications

Hardware Architecture & Diagnostic Capabilities

• Cross-Checking Execution: Continuously mirrors the primary L7 controller's execution to verify logic state integrity.
• Status Diagnostics: Generates internal fault hardware flags during instruction discrepancies between safety partners.
• USB Interface: Front-panel USB 2.0 port provides local programming access with 30V basic system isolation.
• Capacitor Energy Backup: Operates with ESM modules to safely flush volatile data without battery maintenance.

Application Scenarios & Equipment Integration

• Press & Stamping Safety: Controls emergency stop circuits, light curtains, and two-hand anti-tiedown interlocking.
• Robotic Cell Guarding: Manages safety zones and speed-restricted monitoring across automated assembly cells.
• Process Emergency Shutdown (ESD): Coordinates high-integrity burner management and critical isolation valves in oil & gas plants.

Installation & Mounting Guidelines

• Strict Slot Placement: Install the double-slot module directly into the slot immediately to the right of the primary L7 controller.
• Chassis Selection: Fully compatible with standard and conformal coated chassis (1756-A4, 1756-A7, 1756-A10, 1756-A13, 1756-A17 series).
• Power Supply Sizing: Verify 800 mA @ 5.1 VDC headroom when budgeting 1756-PA75 or 1756-PB75 backplane capacity.

Packaging, Shipping & Warranty Terms

• Package Contents: 1x Allen-Bradley 1756-L7SP partner module in factory ESD protective packaging.
• Fast Dispatch: Ships out within 24 to 48 hours following verified order processing.
• Global Carriers: Expedited air delivery via FedEx, UPS, and DHL Express.
• 12-Month Coverage: Backed by a full 12-month replacement warranty against component defects.

Engineering Buyer's Guide

• Pairing Verification: Ensure your primary processor ends with 'S' or 'SK' (e.g., 1756-L72S); standard L7 processors cannot pair with this card.
• No Standalone User Memory: Do not purchase memory expansion cards for this unit; all project code resides in the primary partner.
• Capacitor Selection: Match the ESM module type (1756-SPESMNSE vs. 1756-SPESMNRM) to your site's physical security guidelines.

Frequently Asked Questions (FAQ)

Q: Does the 1756-L7SP require a separate Studio 5000 license or code download?

A: No, project logic is downloaded directly to the primary GuardLogix processor, which automatically configures and synchronizes the safety partner.

Q: Can I install this controller two slots away from the primary L7 safety processor?

A: No, physical backplane interconnections require placement in the slot immediately adjacent to the right side of the primary unit.

Q: What causes a major safety fault indication on the partner controller front display?

A: Discrepancies during dual-execution evaluation, loose ESM installation, or physical backplane communication interruptions will trigger a fault.

Q: Is this partner module compatible with GuardLogix L8 series controllers?

A: No, the L8 safety controllers use a single-slot architecture with integrated safety cores and do not utilize the L7 partner hardware.

Q: How do field engineers perform firmware updates on the partner controller?

A: Flashing the primary L7 controller via ControlFLASH automatically updates the partner firmware to matching revision levels.

Global PLC Spare HUB's Insight

During a safety validation audit on an automotive press line, a field engineer reported persistent safety task trips whenever the system transitioned to high-speed cycling. The primary L73S controller was logging cross-checking timing faults with the 1756-L7SP partner card.

Our technical team analyzed the chassis configuration and discovered that an expansion communication card installed next to the partner was generating excessive thermal build-up due to tight enclosure spacing. Once we re-arranged card placement to optimize airflow and replaced the aging 1756-SPESMNSE energy storage module, timing synchronization settled perfectly under 100% processing load. Always verify proper thermal spacing and ESM health when deploying GuardLogix SIL 3 safety architectures!
