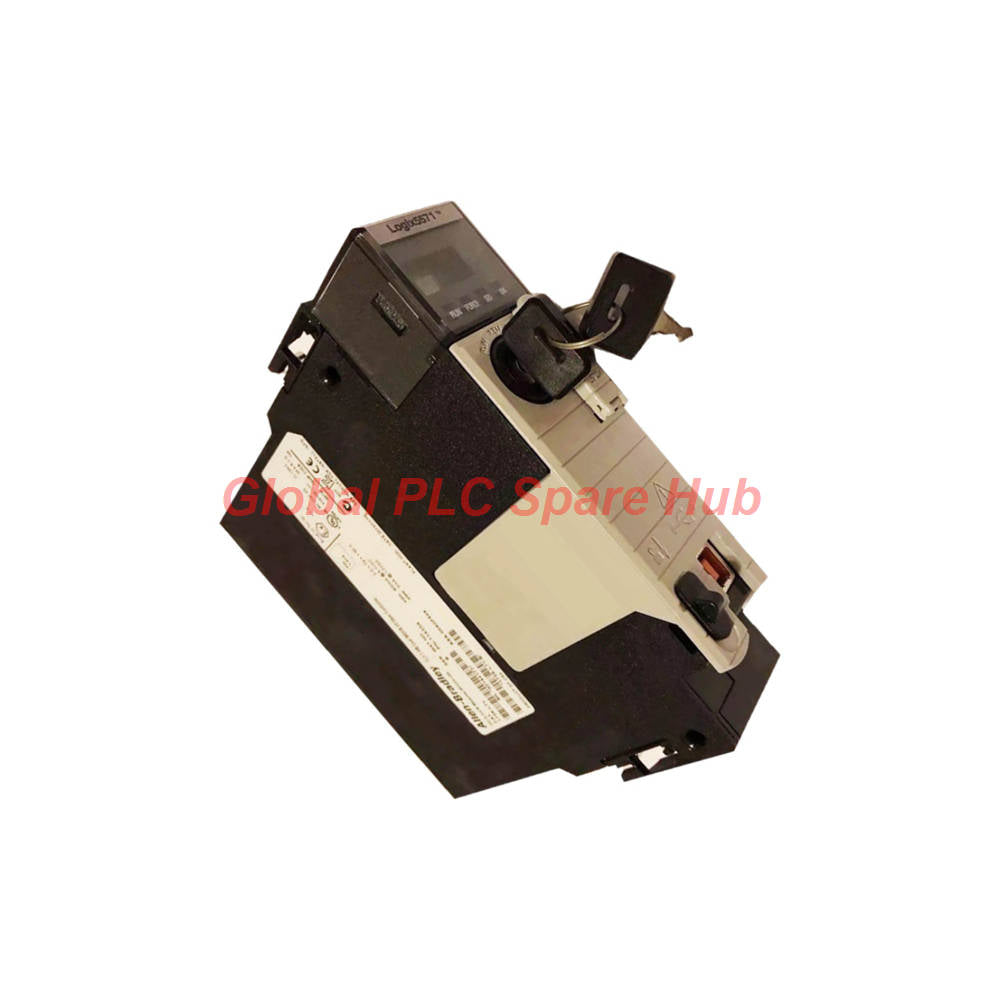

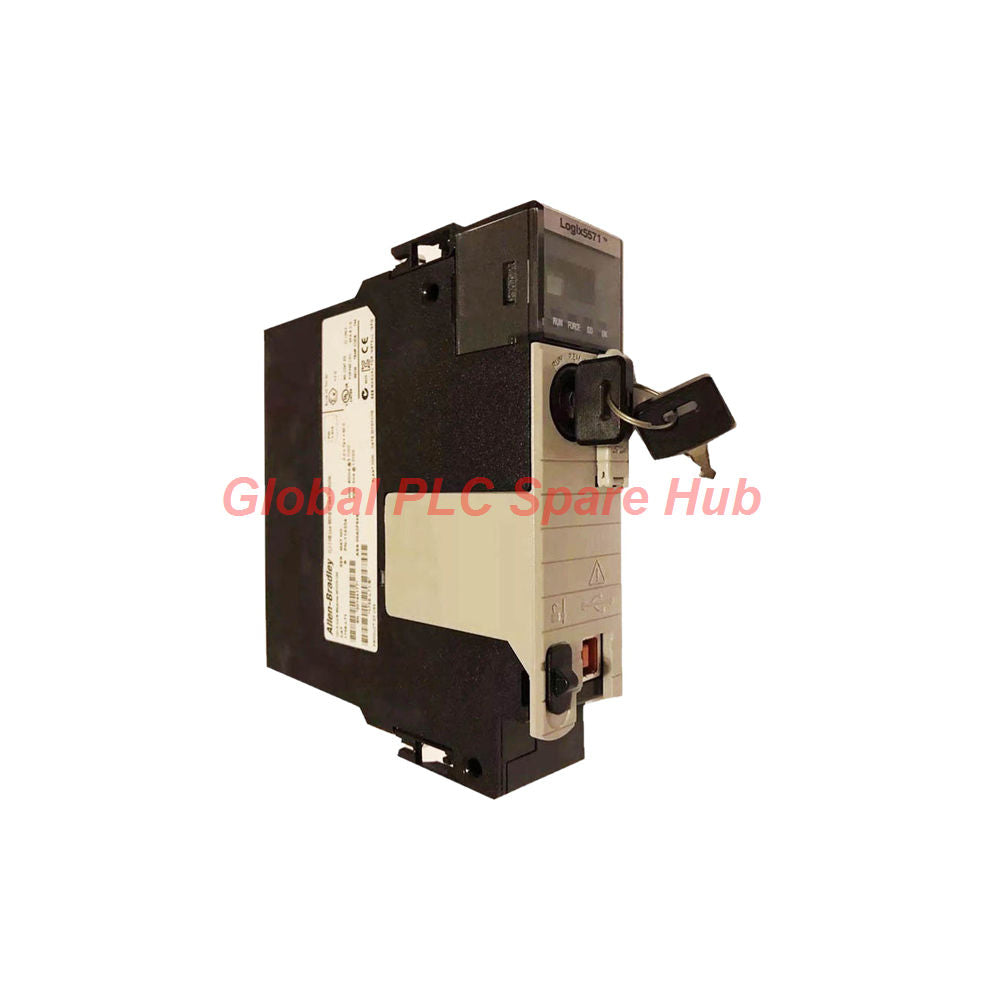

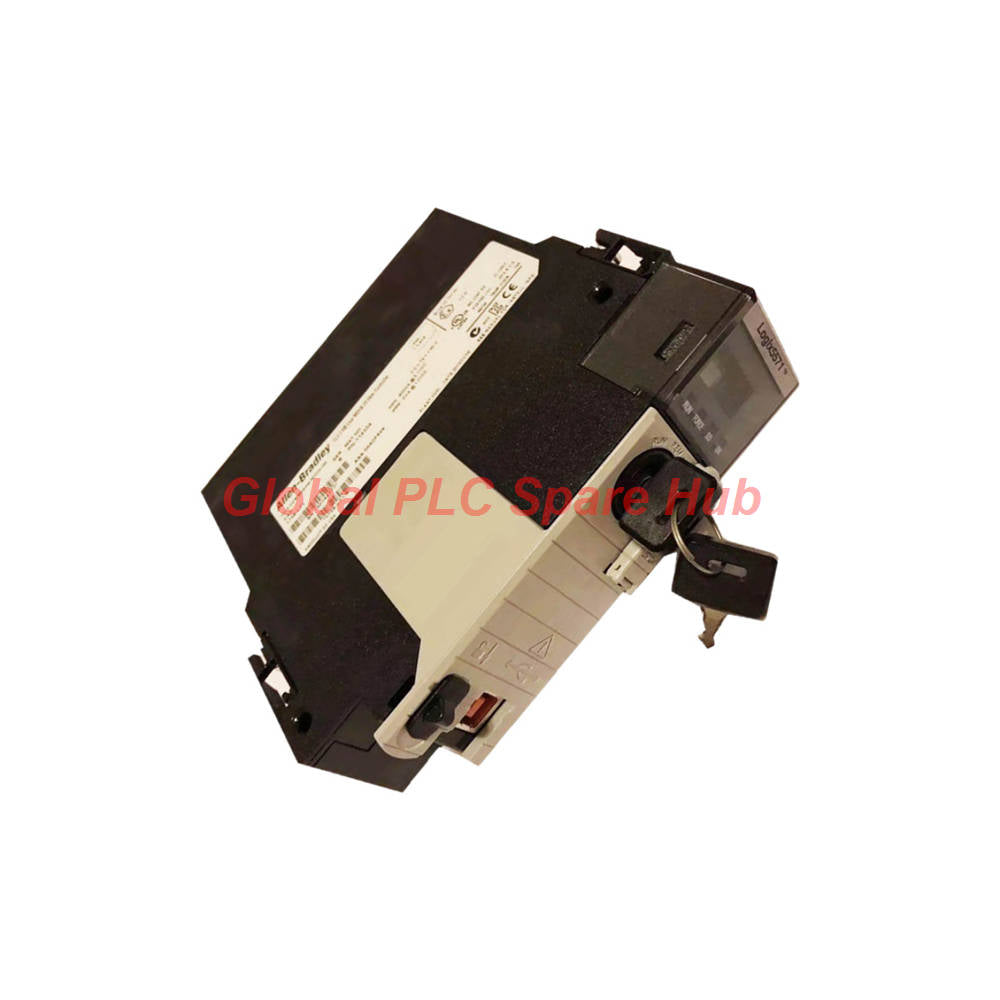

1756-L76 Allen-Bradley ControlLogix 64MB Controller Module

System Architecture Overview

The 1756-L76 operates as a high-performance programmable automation controller engineered within the Rockwell Automation ControlLogix architecture. Featuring 64 MB of user memory and 0.98 MB of I/O memory, this processor manages complex logic tasks, high-speed motion control loops, and massive I/O networks with exceptional execution speed.

Technical Parameters and Specifications

Chassis Installation and Physical Integration

• Insert the 1756-L76 processor into any available slot within a standard Bulletin 1756 ControlLogix chassis backplane.
• Pair the controller with dedicated communication modules (such as EtherNet/IP or ControlNet cards) to establish network data exchange.
• Utilize the front-panel USB port strictly for temporary local programming and debugging sessions rather than permanent links.
• Leverage electronic keying features within the programming software to prevent mismatched module insertion errors.

Advanced Diagnostics and System Health Monitoring

• Inherent time-stamping capabilities support Sequence of Events (SOE) logging to pinpoint plant floor fault sequences accurately.
• Extensive diagnostic routines actively monitor backplane communication integrity and controller memory status.
• Built-in watchdog timers and error handlers detect execution stalls and alert operators via configurable alarms.

Compatibility and Network Scalability

• Directly controls distributed I/O across high-speed EtherNet/IP and ControlNet backplane communications.
• Supports multi-controller deployment within a single physical chassis enclosure.
• Provides full integration with controller redundancy architectures and integrated motion control drives.

Logistics and Warranty Terms

• Secured by a comprehensive 12-month warranty covering hardware and manufacturing defects.
• Expedited worldwide shipping coordinated through premium carriers including FedEx, UPS, and DHL.
• Guaranteed order preparation and dispatch within 24-48 hours of verification.

Target Equipment and Typical Application Scenarios

• Large-scale continuous process manufacturing plants requiring redundant controller fault tolerance.
• High-speed automotive assembly lines managing thousands of synchronized digital and analog I/O points.
• Municipal water treatment facilities utilizing distributed supervisory control and data acquisition networks.

Global PLC Spare HUB's Insight and Field Experience

Commissioning engineers scaling up legacy control platforms frequently select the 1756-L76 when project code sizes exceed standard memory thresholds. Field experience indicates that utilizing the RIUP (Removal and Insertion Under Power) feature on companion I/O modules while the processor maintains run mode significantly reduces maintenance downtime. Technicians must ensure that the 5.1V backplane power supply can safely accommodate the 800 mA current draw of the 1756-L76 before populating fully loaded multi-slot racks.

Frequently Asked Questions

Q: What selection factors dictate upgrading to the 1756-L76 instead of lower-memory ControlLogix processors?
A: Choose the 1756-L76 when applications demand a substantial 64 MB user memory allocation to handle complex structured text routines, extensive data arrays, and high-density plant integration.

Q: Can the front-panel USB port on the 1756-L76 be used for permanent SCADA data logging?
A: No, the USB port is intentionally restricted to temporary local programming, firmware flashing, and debugging tasks.

Q: How does electronic keying protect the controller during routine hardware maintenance?
A: Electronic keying verifies that physical modules installed in the chassis match exact software configuration parameters, preventing accidental mismatch faults.

Q: What corrective steps should be taken if a controller fault light triggers during routine operation?
A: Connect via programming software to inspect the major fault register, identify specific code execution errors or hardware timeouts, and clear the buffer once resolved.

Q: Does the 1756-L76 processor require an external power supply unit mounted inside the chassis?
A: The processor draws power directly from the standard Bulletin 1756 power supply installed on the left side of the ControlLogix backplane.
