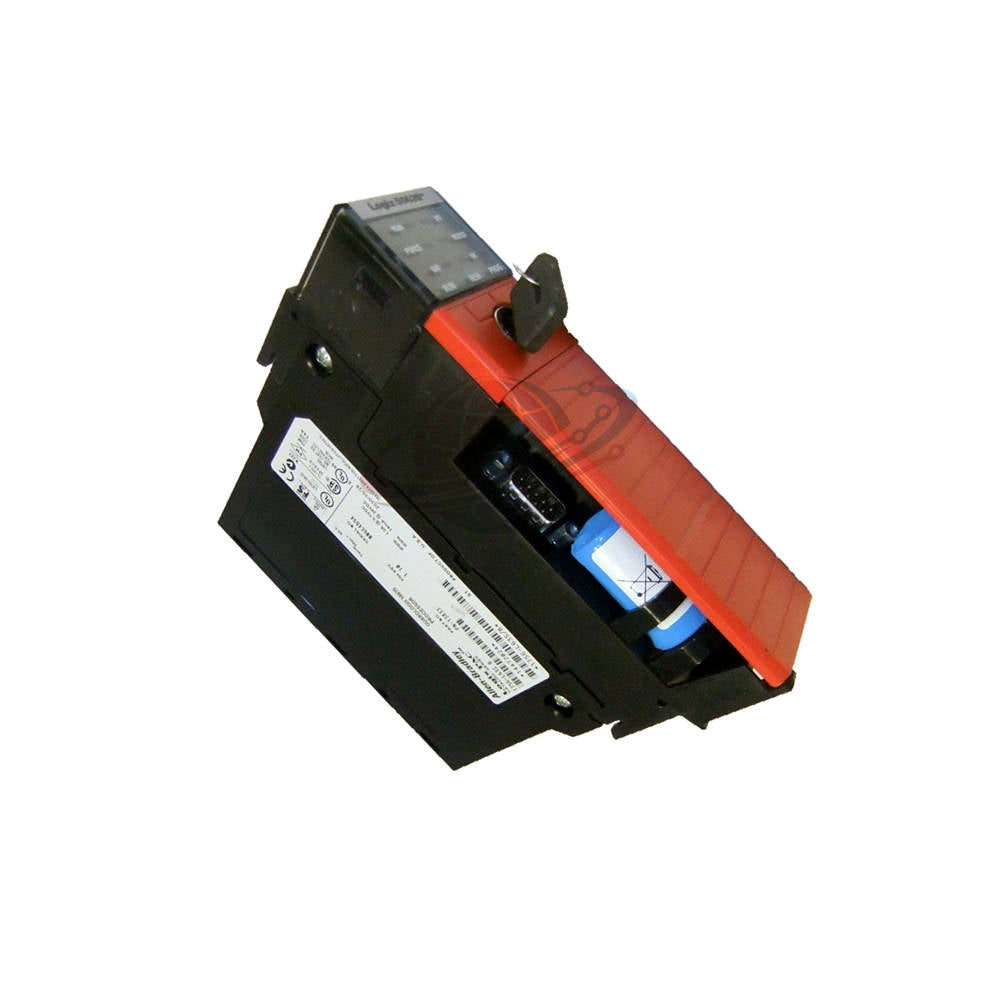

1756-L63S Allen-Bradley GuardLogix SIL 3 Safety Controller

Product Technical Summary

• The 1756-L63S is a high-integrity GuardLogix safety controller engineered for the ControlLogix platform.
• It integrates standard control and safety functions into a single chassis, utilizing an 8 MB user memory for general logic.
• The 1756-L63S allocates a dedicated 3.75 MB safety memory partition to ensure high-demand safety task execution.
• It manages up to 128,000 digital I/O points, providing massive scalability for complex, safety-critical industrial architectures.

Global PLC Spare HUB's Insight

• The 1756-L63S represents a dual-processor approach to machine safety, requiring a safety partner module for 1oo2 redundant execution.
• Engineers favor this module because it eliminates the need for separate safety relays, simplifying the ControlLogix rack footprint.
• Its ability to bridge safety and standard data across EtherNet/IP and ControlNet makes it a powerhouse for distributed safety I/O.
• For SIL 3 certified environments, the 1756-L63S offers the most seamless integration of motion, safety, and discrete control available.

Core Technical Specifications

• Manufacturer: Rockwell Automation / Allen-Bradley
• Model Number: 1756-L63S
• Series: ControlLogix / GuardLogix
• User Memory: 8 MB (Standard Logic)
• Safety Memory: 3.75 MB (Dedicated Safety Partition)
• I/O Memory: 478 KB
• Max I/O Capacity: 128,000 Total Points (4,000 Analog)
• Current Draw (5.1V DC): 1200 mA
• Thermal Dissipation: 11.9 BTU per hour
• Safety Integrity Level: Suitable for SIL 3 Applications
• Isolation: 30V Continuous (Basic Insulation Type)

System Diagnostics & Operational Modes

• Three-Position Keyswitch: Supports RUN, PROG, and REM modes for flexible field commissioning and local lockout.
• Internal Energy Storage: Built-in lithium battery maintains critical user program and safety data during power loss.
• Coprocessor Validation: The safety partner module provides a continuous hardware-level cross-check of safety instructions.
• Diagnostic Reporting: Capable of advanced arithmetic computations and real-time status file manipulation for system health monitoring.

Applications & Device Compatibility

• Automotive Assembly: Managing safety mats, light curtains, and emergency stops on high-speed robotic lines.
• Power Generation: Implementing burner management systems (BMS) and critical fuel-train interlocks.
• Material Handling: Controlling automated storage and retrieval systems (AS/RS) with integrated functional safety.
• Compatible Equipment: Installs in any standard 1756 chassis; pairs with 1756-LSP safety partner and 1756-IB16S/OBV8S safety I/O modules.

Shipping & Warranty Information

• Dispatch Time: Fast processing within 24-48 hours from our global hub.
• Express Logistics: Daily shipments via FedEx, UPS, and DHL for worldwide delivery.
• Quality Assurance: Includes a comprehensive 12-month warranty against all functional defects.
• Package Contents: One 1756-L63S GuardLogix Controller, factory-fresh battery, and installation documentation.

Professional FAQ & Purchasing Guide

• Can I use the 1756-L63S as a standalone controller without a safety partner?
• While it can perform standard tasks, its safety features require a 1756-LSP (Safety Partner) to achieve SIL 3 / PLe certification levels.

• How does the safety memory differ from the user memory?
• Safety memory is a protected area specifically for safety-rated tags and instructions, preventing standard logic from interfering with safety execution.

• What happens if the internal lithium battery fails?
• The controller will signal a minor fault; if power is lost while the battery is dead, the 1756-L63S will lose its volatile user program and safety configuration.

• Selection Guide: 1756-L63S vs. Standard 1756-L63?
• Choose the 1756-L63S only if your application requires a Functional Safety Assessment or must comply with international safety standards like ISO 13849.

• Experience Tip: Why is my safety task not executing?
• Ensure the safety signature has been locked. The 1756-L63S will not execute safety logic in a "Running" state unless the safety configuration is validated and locked within Studio 5000.
