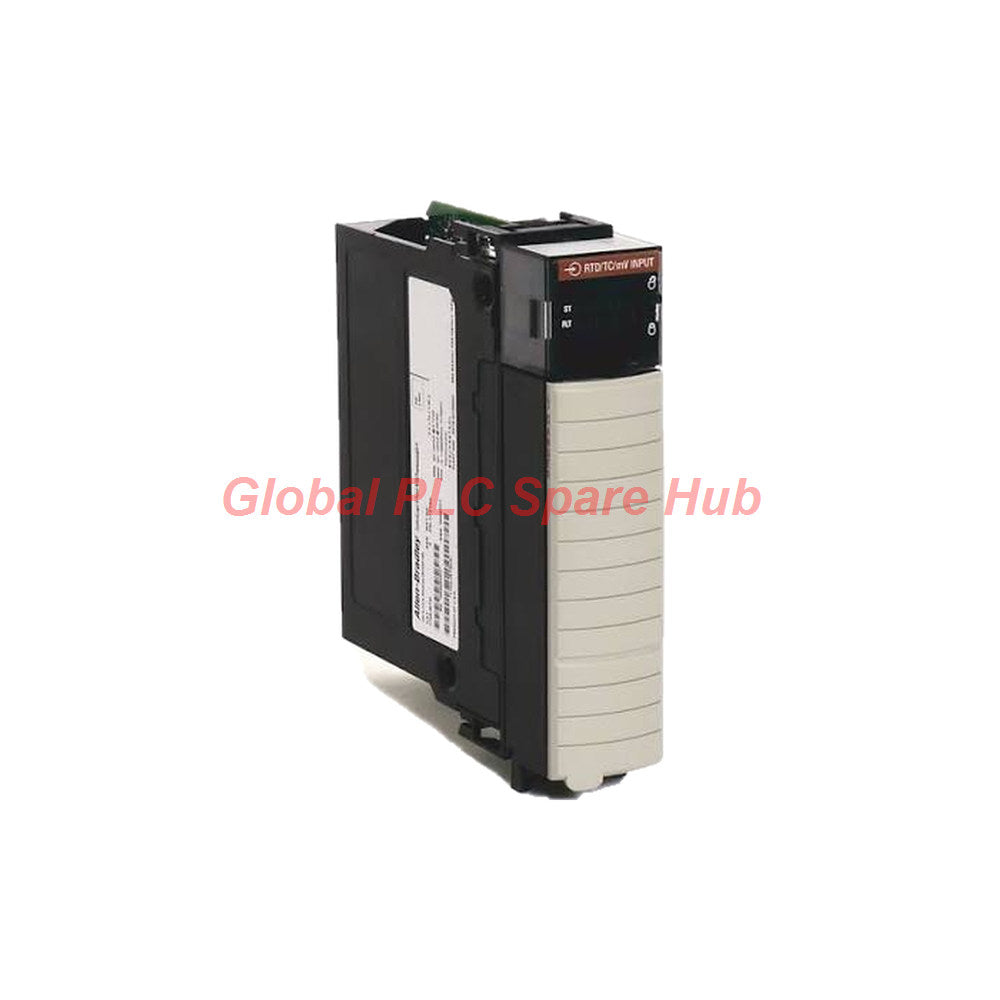

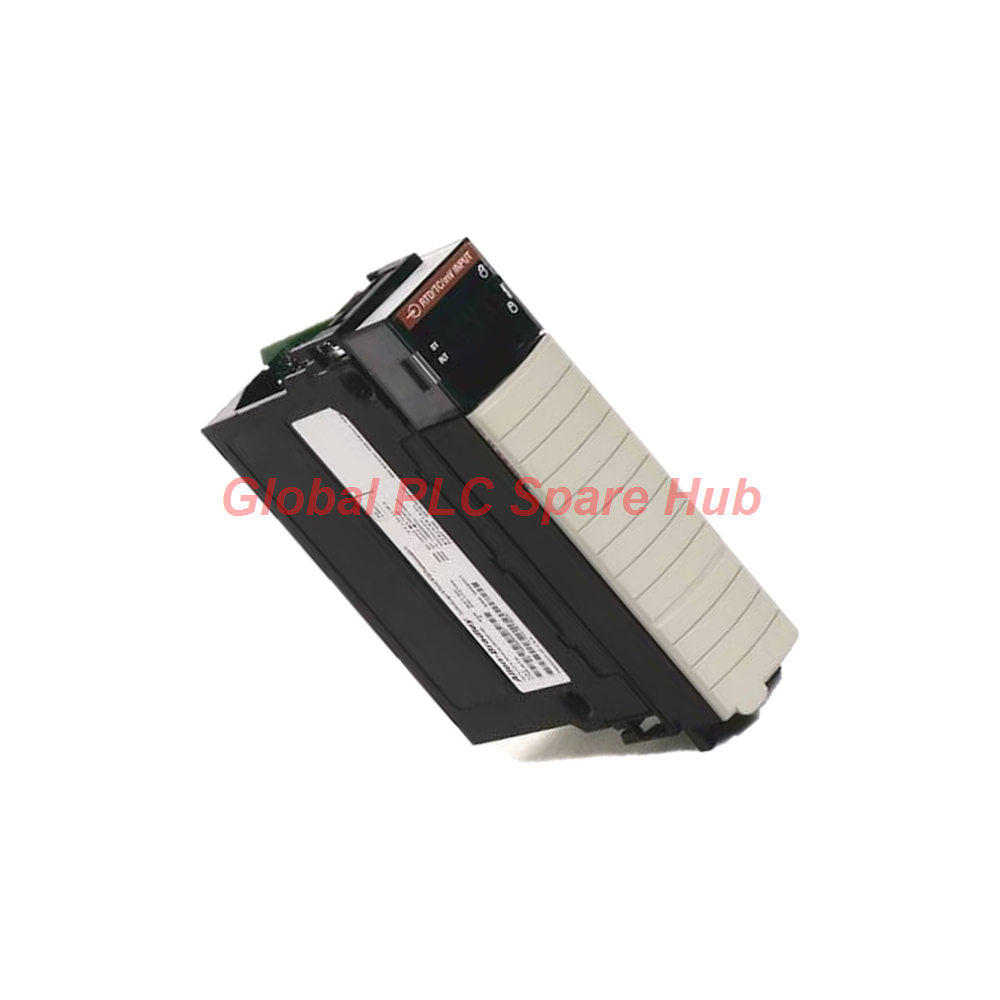

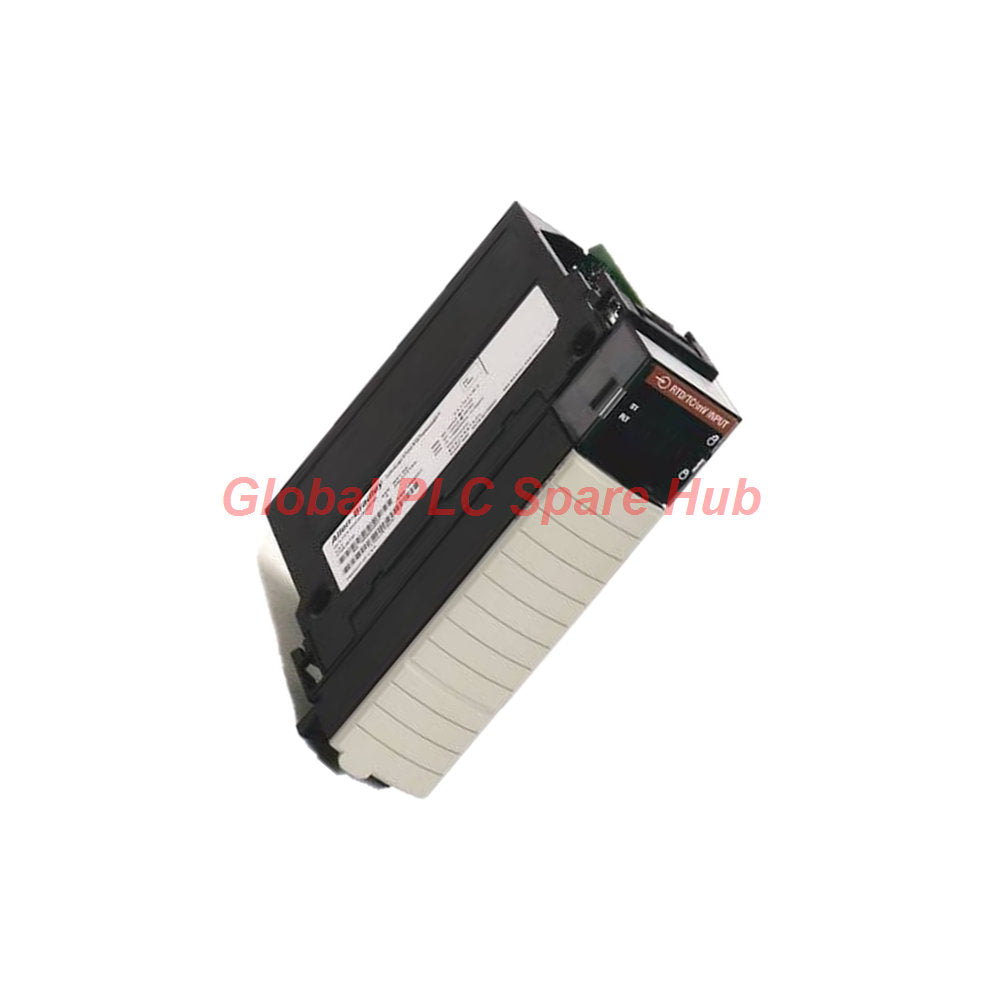

1756-IRT8I Allen-Bradley ControlLogix 8-Point Analog Input Module

Engineering Architecture

The 1756-IRT8I module operates as an advanced 8-channel isolated analog input interface engineered for Rockwell Automation ControlLogix architectures. Utilizing high-resolution Sigma-Delta conversion, this unit processes multi-variable temperature and millivolt signals while maintaining stringent galvanic isolation across complex industrial loops.

Technical Parameters and Specifications

Physical Integration and Terminal Configuration

• Mount the 1756-IRT8I module into any standard ControlLogix chassis slot using aligned backplane guides.
• Attach a compatible 36-pin Removable Terminal Block (RTB), specifically the 1756-TBS6H or 1756-TBCH housing.
• Connect dual local or remote Cold Junction Compensation (CJC) sensors to maintain thermocouple measurement accuracy within +/- 0.3°C.
• Ensure proper wire-off detection configuration during initial software setup to monitor sensor loop continuity.

Advanced Diagnostics and Fault Detection Capabilities

• Active open-circuit detection flags disconnections within 2 seconds for thermocouples and 3-wire RTDs, and 5 seconds for 4-wire RTDs.
• Built-in rate alarms and process alarms evaluate real-time sensor variations against pre-configured engineering limits.
• Synchronized sampling and programmable digital filters suppress 50 Hz and 60 Hz common-mode electrical noise.

Compatibility and Data Pipeline

• Converts analog measurements into IEEE 32-bit floating point data format for seamless controller consumption.
• Integrates cleanly with supervisory control systems, HMIs, and advanced PID loop calculation blocks.
• Performs automated lead resistance self-calibration on thermocouple channels whenever module power is cycled.

Logistics and Warranty Terms

• Backed by a robust 12-month warranty covering mechanical and electrical manufacturing defects.
• Expedited international delivery dispatched through FedEx, UPS, and DHL.
• Guaranteed processing and fulfillment within 24-48 hours from order verification.

Target Equipment and Typical Application Scenarios

• High-temperature chemical reactors requiring precise multi-zone thermocouple monitoring.
• Power generation turbine skids utilizing distributed Platinum RTDs for bearing temperature tracking.
• Pharmaceutical sterilization autoclaves demanding high-resolution millivolt and thermal logging.

Global PLC Spare HUB's Insight and Field Experience

Commissioning engineers frequently deploy the 1756-IRT8I when upgrading legacy temperature acquisition loops to high-density ControlLogix architectures. Field experience proves that cycling module power after re-wiring thermocouple inputs is critical to force automatic lead resistance self-calibration. Furthermore, technicians must verify that the 5.1V backplane power budget accommodates the 250 mA current draw of the 1756-IRT8I before populating fully loaded 1756 chassis.

Frequently Asked Questions

Q: What selection factors determine whether to use 3-wire versus 4-wire RTD configurations with this module?
A: Choose 4-wire RTD setups for extreme precision environments to completely eliminate lead wire resistance errors over long cable runs, while 3-wire setups suffice for standard industrial distance spans.

Q: Why does the module omit the RTS parameter, and how is sampling rate managed instead?
A: The 1756-IRT8I derives its channel sampling rate exclusively from the Requested Packet Interval (RPI) configured within the Logix designer environment rather than individual channel sweep timers.

Q: What corrective steps should be taken if an open-circuit fault is falsely triggered on a thermocouple channel?
A: Inspect the 36-pin 1756-TBS6H terminal block wiring to ensure terminal screws are torqued correctly and verify that CJC sensors are seated firmly.

Q: Can thermocouple and RTD sensors be wired concurrently across different channels on the same module?
A: Yes, all 8 channels are individually isolated and configurable in any combination of RTD, thermocouple, or millivolt input modes.

Q: How do digital and notch filters protect temperature readings from plant floor electrical interference?
A: The integrated notch filter provides up to 125 dB of common-mode rejection at 50/60 Hz, successfully neutralizing high-frequency variable frequency drive noise picked up by unshielded thermocouple extension wires.
