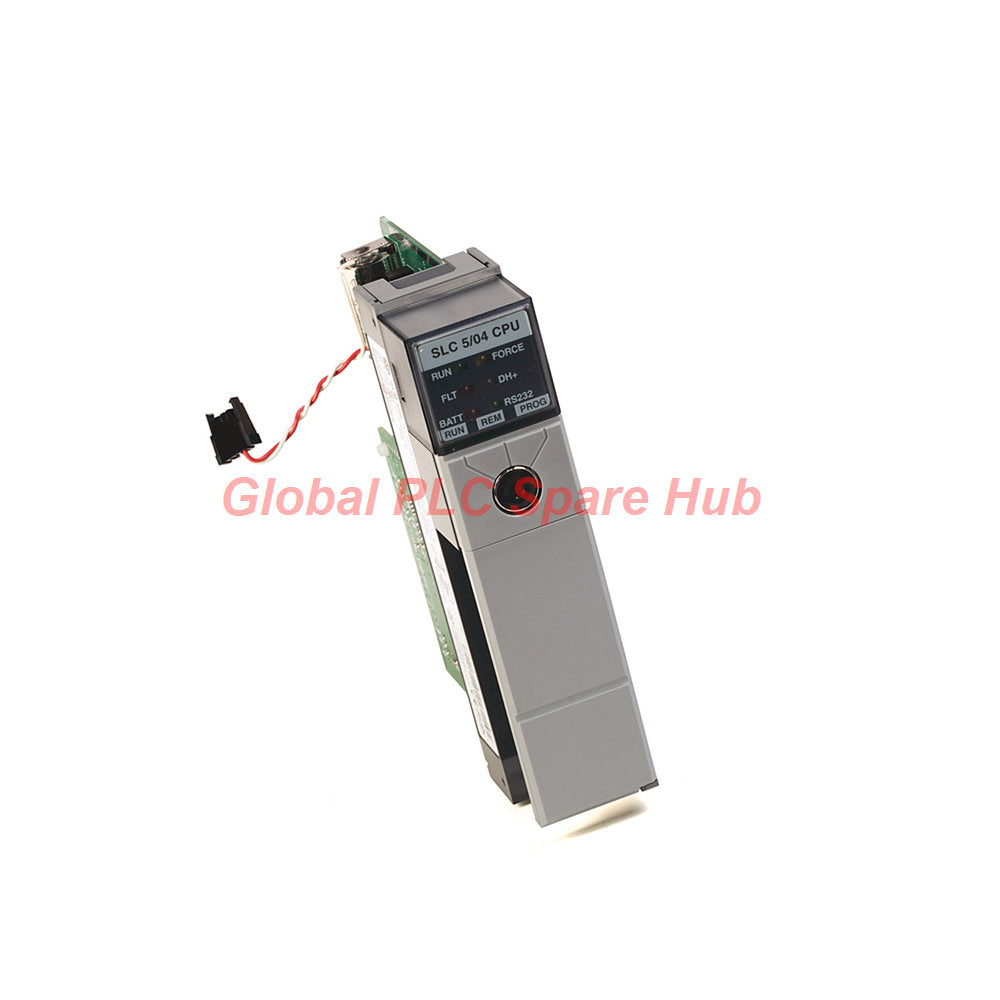

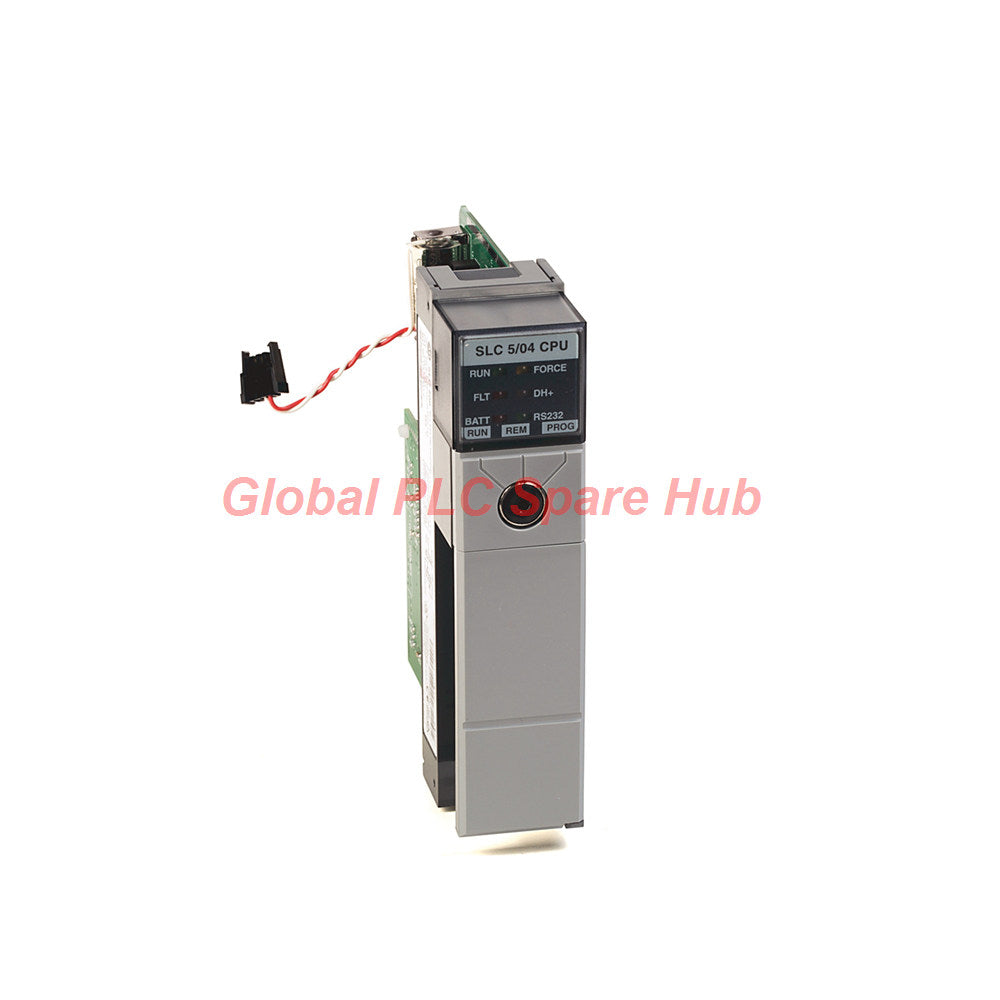

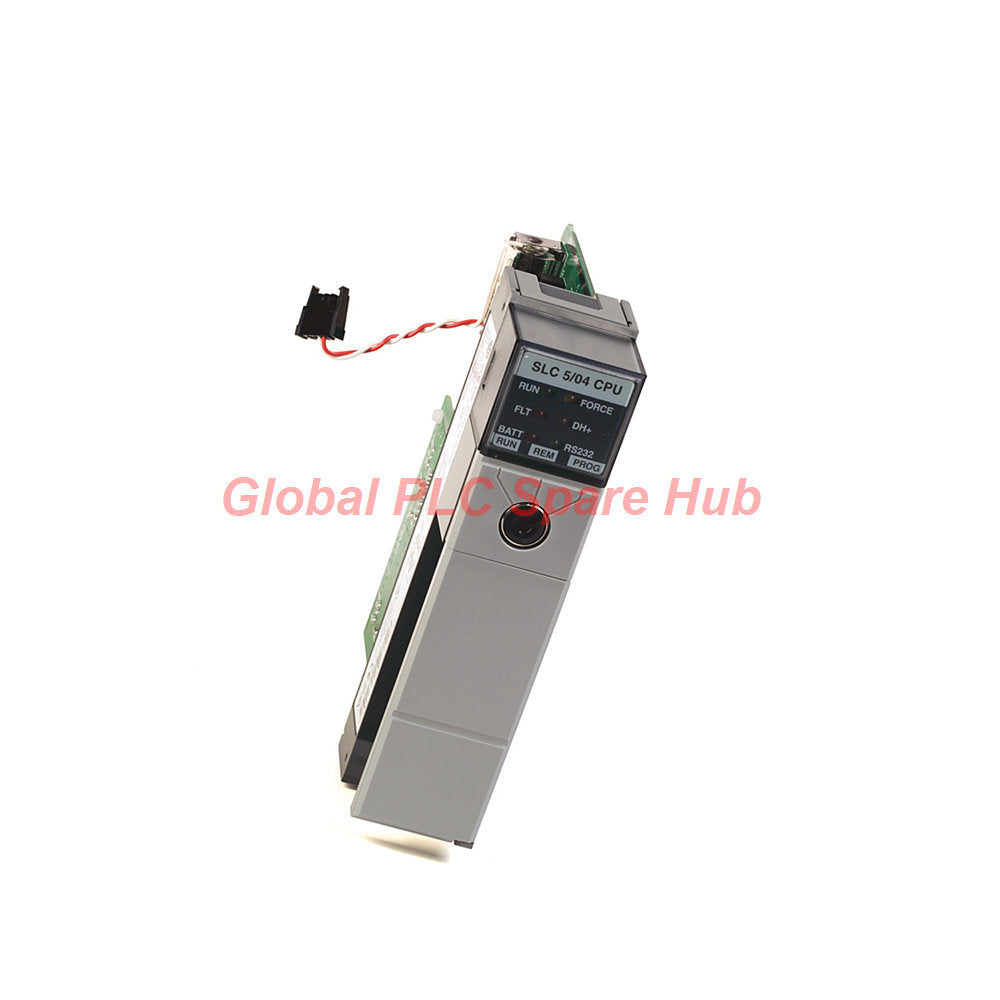

1747-L543 Allen-Bradley SLC 500 SLC 5/04 64KB Processor

Product Executive Overview

The 1747-L543 is the maximum memory capacity processor in the Allen-Bradley SLC 5/04 hardware family, engineered for medium to large-scale industrial control architectures. Operating within the modular SLC 500 Series chassis framework, this high-performance CPU manages complex machine sequencing, motion tracking, and closed-loop PID control loops across distributed I/O networks.

Equipped with 64 KB of battery-backed RAM (60K words for program/data and 4K words for data-only), the module supports up to 4096 discrete inputs and 4096 discrete outputs across 3 chassis racks and 30 I/O slots. Dual native communications—including a 3-wire Data Highway Plus (DH+) port and an RS-232 port—enable seamless integration with legacy plant networks and supervisory control systems.

Global PLC Spare HUB Insight & Field Engineering Review

In mature manufacturing environments, the Allen-Bradley 1747-L543 CPU remains a reliable anchor for complex automation processes. Our field automation specialists frequently specify this 64KB unit during system overhauls where standard 16KB or 32KB processors run out of data table space during advanced PID loop expansions or extensive alarm history buffer additions.

During a control retrofitting project at a packaging facility, a plant experienced frequent processor faults caused by memory overflow on a smaller CPU card. Upgrading to the 1747-L543 provided immediate memory headroom while preserving the existing DH+ network infrastructure, eliminating the high cost and downtime of a full control platform migration.

System Architecture & Hardware Specs

• 1747 — Product Family: Allen-Bradley SLC 500 Modular Hardware System
•   └── L543 — Processor Designation: SLC 5/04 Processor with 64 KB User Memory
•       ├── Communication Interfaces: Data Highway Plus (DH+) Channel & RS-232 Channel
•       ├── Backplane Current Draw: 1.0 A at 5 VDC | 125 mA at 24 VDC
•       └── Memory Protection: 1747-BA Lithium Battery Backup & Optional 1747-M13 Flash EPROM Module

Technical Parameters & Performance Benchmarks

• Brand / Manufacturer: Allen-Bradley / Rockwell Automation
• Catalog Number: 1747-L543
• System Platform: SLC 500 Series
• Processor Model: SLC 5/04 Controller
• User Memory: 64 KB (64,000 Words) Battery-Backed RAM
• Max Discrete I/O Capacity: 4096 Inputs / 4096 Outputs
• Max Analog I/O Capacity: Up to 480 Points
• Max Chassis / Slots: 3 I/O Chassis / 30 Total Module Slots
• Program Scan Speed: 0.9 ms/K (Typical)
• Bit Execution Time: 0.37 µs
• I/O Scan Speed: 0.225 ms
• Power Scan Hold-Up Time: 20 ms to 3 seconds (Load Dependent)
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Diagnostic Indicators: RUN, CPU FAULT, FORCED I/O, DH+, and RS-232 status LEDs

Application Scenarios & Machinery Diagnostics

• Centralized supervisory control of distributed I/O skids across long-distance plant environments via DH+ trunks.
• High-density analog loop processing and multi-axis position control on metal stamping, extrusion, and material handling systems.
• Complex continuous process control requiring advanced mathematical instruction sets and PID regulation.
• Real-time visual fault diagnosis utilizing on-board LED diagnostics and RSLogix 500 online diagnostic buffers.

Installation, Maintenance & Logistics Terms

Slot the CPU module into Slot 0 of the primary SLC 500 chassis frame before applying backplane power. Ensure the 1747-BA lithium battery assembly connects firmly to the retainer clips to prevent user memory corruption during main power shutdowns.

When connecting DH+ communications, use standard 3-wire shielded twisted-pair trunk cable with proper line termination resistors installed at both physical cable ends to maintain noise immunity.

Package Contents: 1 x Allen-Bradley 1747-L543 Processor Module, with installed keylock key set, battery lead, and hardware summary guide.

Global Express Freight: Orders process and dispatch within 24 to 48 hours via premium express air couriers including FedEx, UPS, and DHL worldwide.

Warranty Guarantee: Supplied with a comprehensive 12-month replacement warranty covering component failure and logic processing performance under standard operational conditions.

Frequently Asked Questions & Technical Advice

Q1: What is the primary difference between the 1747-L541, 1747-L542, and 1747-L543 controllers?

A1: The main distinction lies in memory sizing. While all three share identical SLC 5/04 processing architecture and ports, the 1747-L541 offers 16KB, the 1747-L542 offers 32KB, and the 1747-L543 provides the maximum 64KB memory capacity.

Q2: How long will memory retention last using the 1747-BA battery when power is turned off?

A2: Under normal ambient operating conditions, a healthy battery retains RAM memory for up to two years without power. We recommend replacing the battery during annual preventative maintenance turnarounds.

Q3: How do engineers clear a solid red CPU FAULT LED indicator during field commissioning?

A3: Establish an online connection via RSLogix 500 through the RS-232 or DH+ port, navigate to the Controller Status diagnostic buffer, clear the major fault code, and toggle the key switch from PROG to RUN.

Q4: Can I use an optional non-volatile EEPROM card alongside the battery system?

A4: Yes, installing an optional 1747-M13 Flash EPROM module provides permanent non-volatile backup, allowing automatic user memory restoration if the battery fully discharges while powered down.

Q5: What programming software is required to configure and flash this processor card?

A5: Programming and hardware configuration require RSLogix 500 programming software combined with RSLinx Classic drivers configured for serial DF1 or DH+ interfaces.
