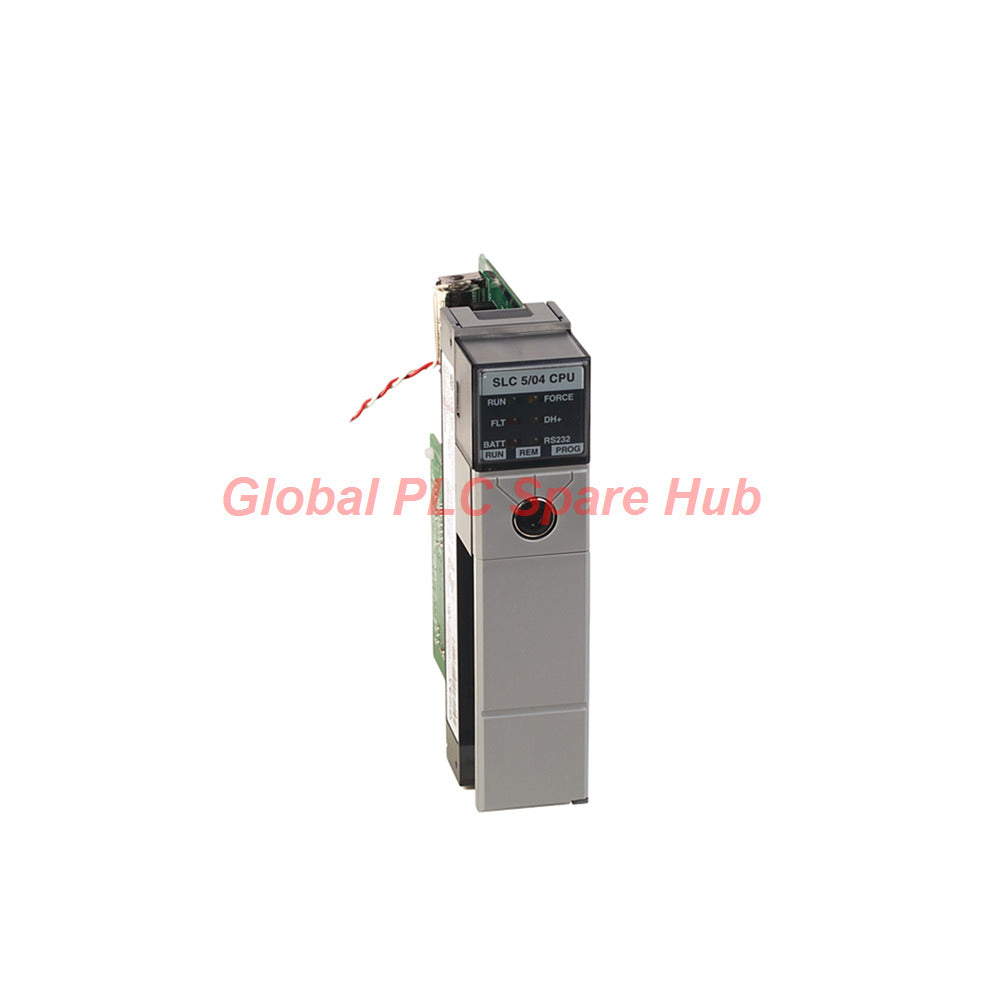

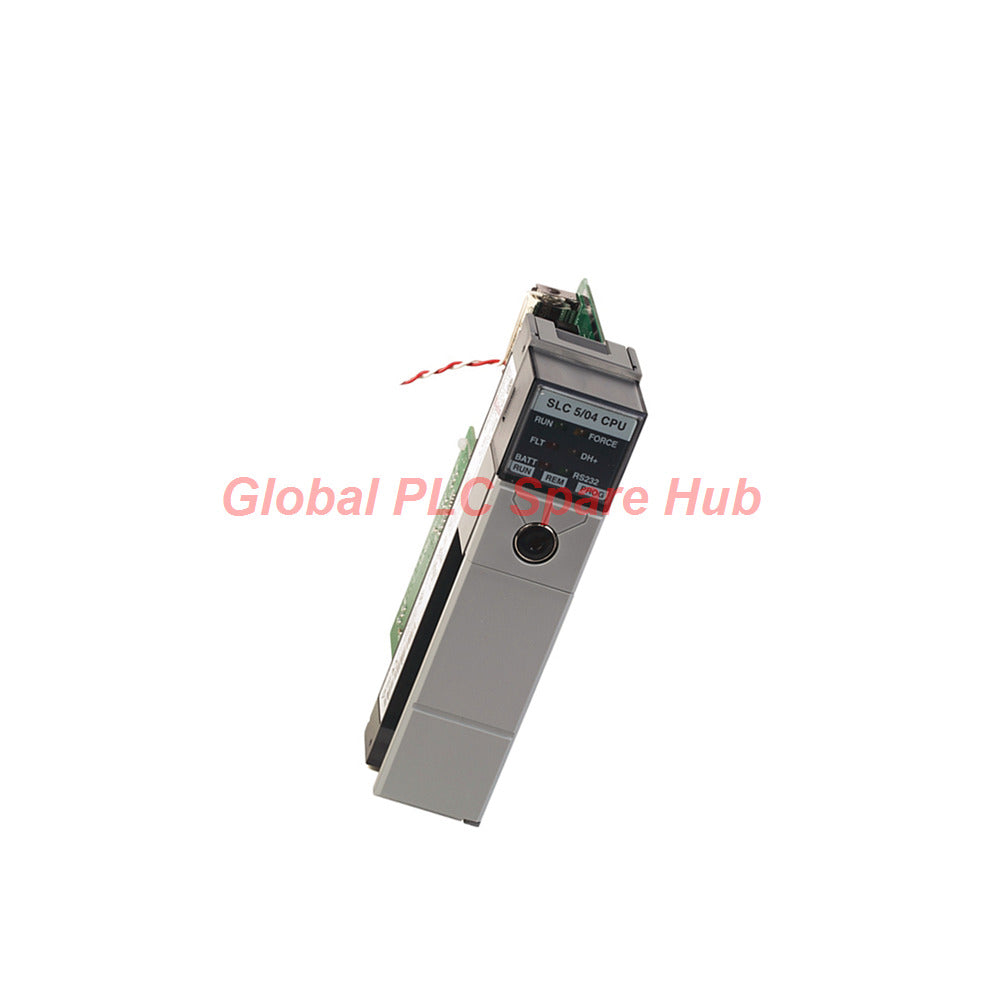

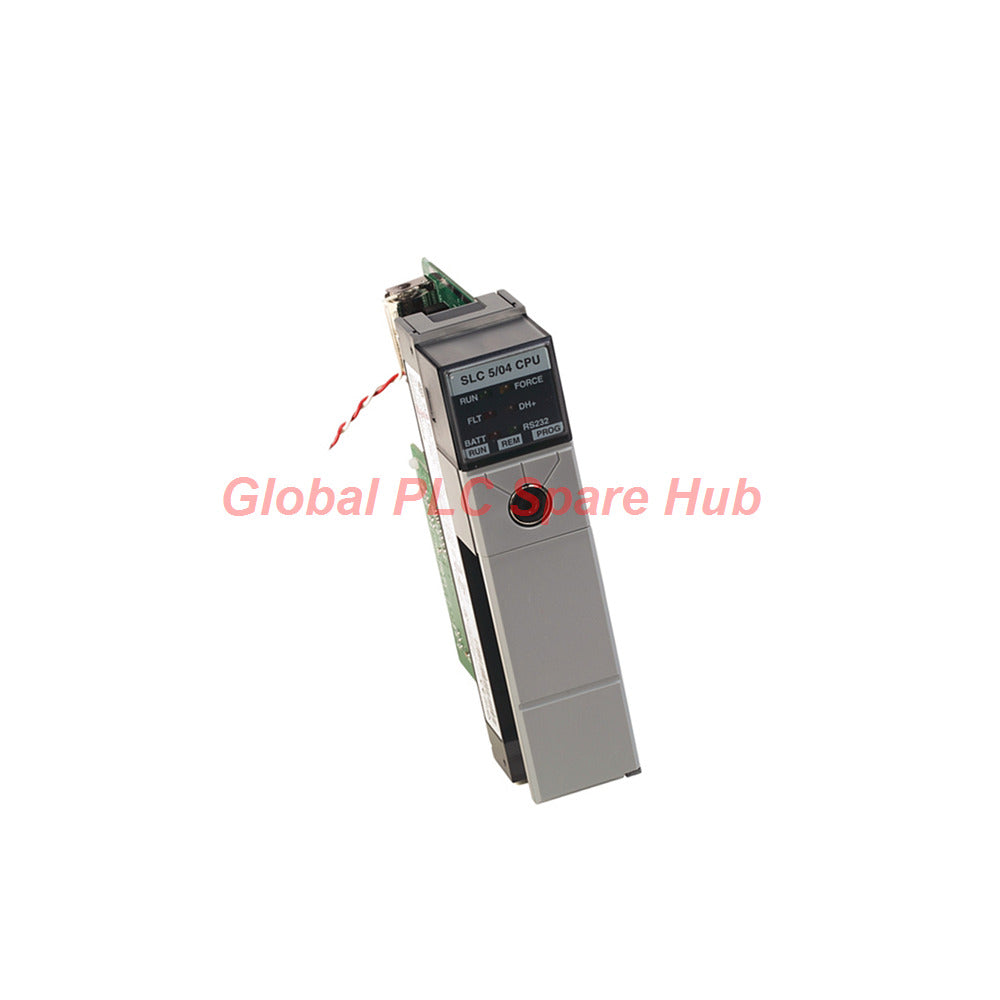

1747-L542 Allen-Bradley SLC 500 SLC 5/04 CPU Module 32K

Overview

The Allen-Bradley 1747-L542 serves as a high-performance central processing unit within the SLC 500 modular hardware family. Engineered by Rockwell Automation, this SLC 5/04 Processor delivers fast execution speeds and reliable control for complex industrial automation systems. The controller manages extensive I/O configurations while providing native dual-protocol network integration.

Equipped with 32KB of battery-backed user memory, the 1747-L542 handles up to 4,096 discrete inputs and 4,096 discrete outputs effortlessly. Built-in Data Highway Plus (DH+) and RS-232 communication ports allow direct connection to HMI displays, SCADA packages, and peer-to-peer PLC networks without requiring extra communication modules.

Technical Specifications

The engineering specifications below group performance metrics logically across operational categories using MECE principles.

• Brand: Allen-Bradley / Rockwell Automation
• Catalog Number: 1747-L542
• Product Series: SLC 500 (SLC 5/04 Platform)
• Processor Memory: 32KB Words (28K program words, 4K data words)
• Discrete I/O Capacity: 4096 Inputs / 4096 Outputs
• Analog I/O Support: Up to 480 local analog points
• Max Expansion Capacity: 3 local chassis / 30 total module slots
• Program Scan Time: 0.9 ms per Kword (typical)
• I/O Scan Time: 0.225 ms
• Bit Execution Speed: 0.37 microseconds
• Integrated Communication Ports: DH+ (Data Highway Plus) and RS-232
• Operating Temperature: 0 to 60 °C (32 to 140 °F)
• Storage Temperature: -40 to 85 °C (-40 to 185 °F)
• Ambient Relative Humidity: 5% to 95% non-condensing
• Vibration Tolerance: 2.5G at 57 to 2000 Hz
• Operating Shock Rating: 30G peak
• Electromagnetic Immunity: Industrial noise rejection via backplane shielding
• Memory Backup Type: Battery-backed RAM with optional 1747-M13 Flash EPROM
• Backplane Current Draw: 1.0A at 5V DC / 175mA at 24V DC
• Power Hold-up Time: 20 milliseconds to 3 seconds following power loss

Installation Guide

Follow these standard engineering procedures to ensure safe installation of your controller.

• Turn off power to the system chassis before inserting or removing the unit.
• Insert the 1747-L542 strictly into Slot 0 (leftmost position) of any SLC 500 chassis.
• Align the circuit card with the chassis guide rails inside chassis like the 1746-A7 or 1746-A10.
• Press the module firmly into the backplane connector until top and bottom latches secure it.
• Connect the 1747-BA lithium battery module to preserve user program memory during main power shutdown.
• Connect communication cables to the DH+ or 9-pin RS-232 ports before energizing the power supply.

Diagnostics & Maintenance Convenience

The front panel includes diagnostic LEDs that provide immediate status feedback during operation. Maintenance engineers can quickly assess processor health without connecting a computer.

Clear status indicators display system states for RUN, CPU FAULT, FORCED I/O, BATTERY LOW, DH+, and RS-232. A three-position key switch lets operators easily select RUN, PROG, or REM mode for safe program modifications on site.

System Compatibility

The 1747-L542 processor maintains broad hardware and software compatibility across legacy and modern platforms.

It mounts in standard 1746 chassis including 1746-A2, 1746-A7, 1746-A10, and 1746-A13 models. The integrated DH+ port supports pass-through messaging to ControlLogix, CompactLogix, and PLC-5 controllers across multi-tier networks.

Certification & Compliance

This controller meets global industrial control standards for safety and operational reliability.

It carries UL approval, CE mark compliance, and C-Tick certification for industrial electromagnetic compatibility. Universal industry codes include UPC 10662468417454 and UNSPSC 32151705.

Typical Application Scenarios

Engineers deploy the 1747-L542 in medium to large industrial automation systems requiring fast network execution.

Common applications include automotive assembly lines, municipal water treatment facilities, material handling systems, and packaging machinery. Its high-speed DH+ networking capability makes it ideal for distributed control architectures with remote I/O nodes.

Packaging Details & 12-Month Warranty

Each unit ships in protective static-shielding packaging inside a heavy-duty industrial carton. The box contains the 1747-L542 module, a factory key, and an installation instruction sheet.

We provide a full 12-month warranty covering operational performance and hardware function. Orders process rapidly with dispatch within 24 to 48 hours via express carriers like FedEx, UPS, or DHL.

Global PLC Spare HUB's Insight & Field Experience

Our automation specialists routinely evaluate legacy control hardware in live field environments. The 1747-L542 remains one of the most resilient workhorses in industrial control history due to its robust DH+ communication throughput.

In a recent field installation at a bottling plant, an engineer reported recurring CPU FAULT errors after a facility power outage. Our team identified that the onboard 1747-BA battery had drained below its operational voltage threshold. Installing a fresh battery alongside a 1747-M13 EEPROM backup module saved the client days of production downtime by automatically restoring logic during unexpected outages. Always pair high-memory SLC 5/04 controllers with non-volatile EEPROM modules for complete operational security.

Buying Guide & Selection Advice

Selecting the correct SLC 500 processor depends on your network infrastructure and system memory needs.

If your application relies on Data Highway Plus (DH+) networks, choose the SLC 5/04 series like the 1747-L542. If your architecture uses DH-485 instead, consider the SLC 5/03 series such as the 1747-L532. Ensure your program memory fits within 32KB words before selecting this unit over higher-capacity processors.

Frequently Asked Questions (FAQ)

What is the main difference between an SLC 5/03 and an SLC 5/04 processor?

The SLC 5/03 processor utilizes a DH-485 network port, whereas the SLC 5/04 processor like the 1747-L542 features a high-speed Data Highway Plus (DH+) network interface.

How do I resolve a red BATT LED on the front panel?

Replace the 1747-BA lithium battery while system power remains turned on to prevent losing program data stored in volatile RAM.

Can I install the 1747-L542 in any slot of an SLC chassis?

No, you must install the processor exclusively into Slot 0 of the local chassis.

What happens if the main power fails and the battery is dead?

The processor loses user program logic stored in RAM unless a non-volatile memory module like the 1747-M13 Flash EPROM is present.

How fast does order dispatch take after placing an order?

Orders ship within 24 to 48 hours via fast express services including FedEx, UPS, or DHL.
