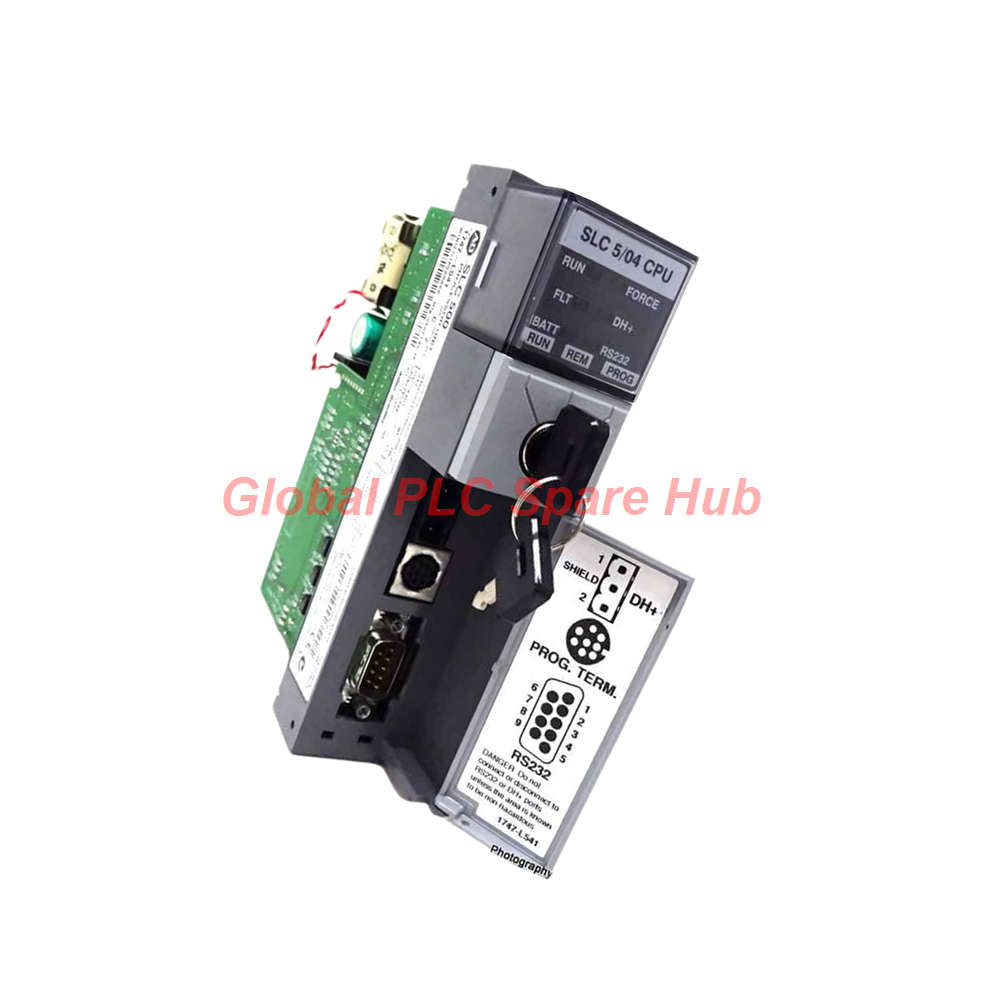

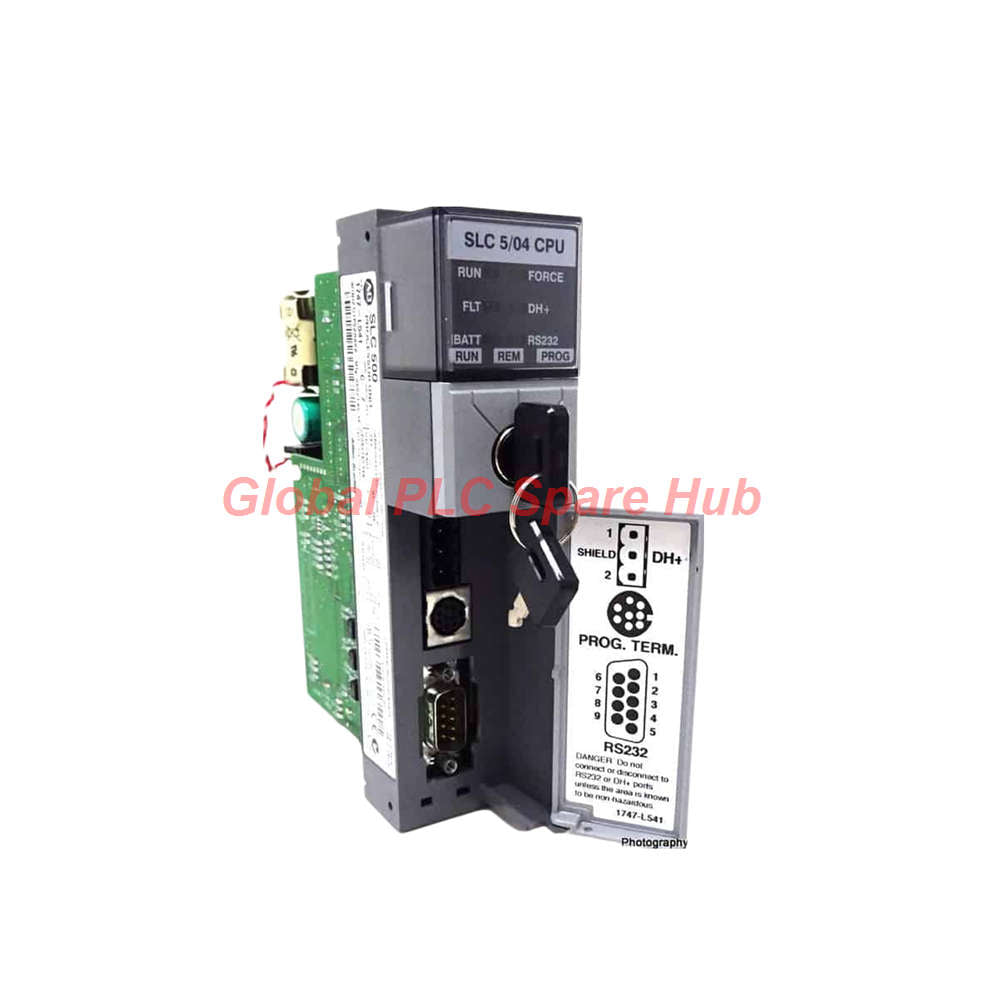

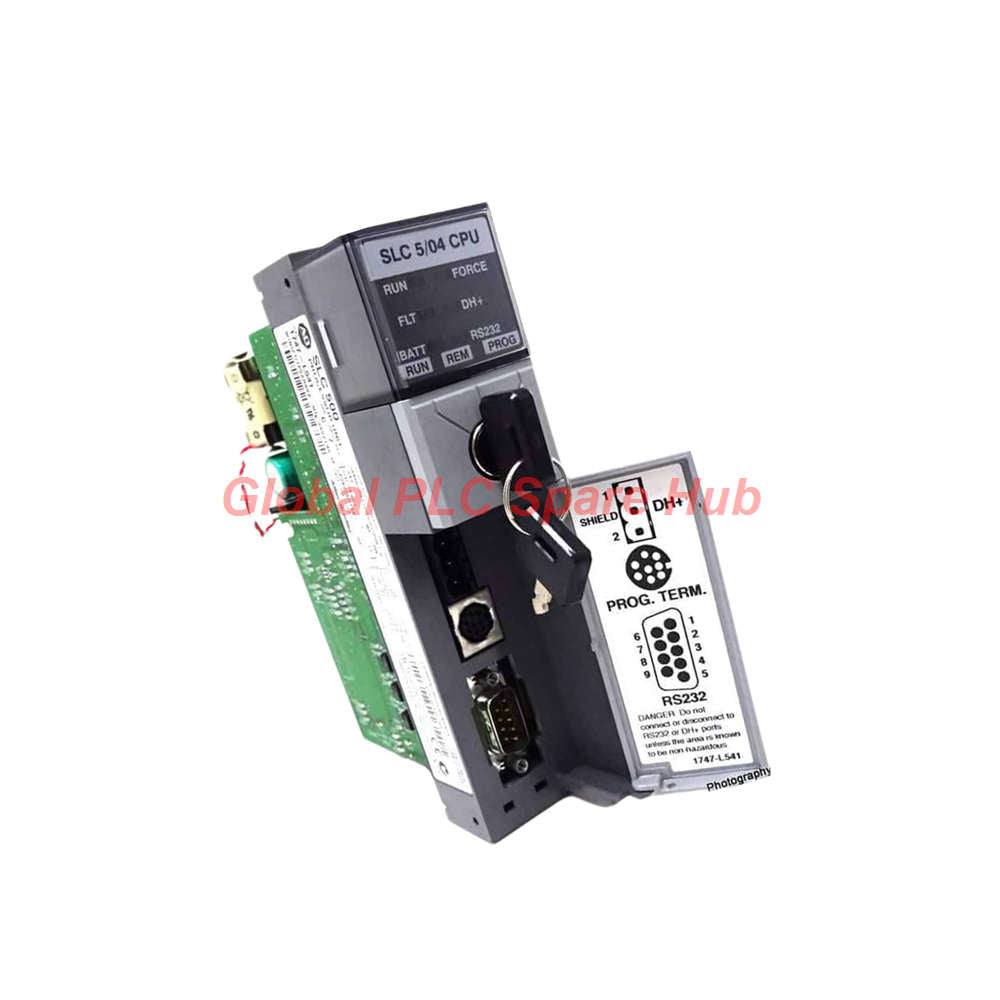

1747-L541 Allen-Bradley SLC 500 CPU Module Overview

Allen-Bradley 1747-L541 SLC 5/04 Processor Module Overview

Global PLC Spare HUB's Insight: The Allen-Bradley 1747-L541 stands as a robust SLC 5/04 modular processor engineered for demanding industrial automation environments. This controller bridges mid-range processing needs with advanced communication capabilities. Engineers deploy this unit to manage complex control loops across manufacturing plants. Global PLC Spare HUB provides this hardware to maintain optimal operational continuity in legacy automation architectures.

Technical Specifications

Installation and Hardware Integration

The 1747-L541 module requires a standard SLC 500 rack and a dedicated system power supply for proper backplane mounting. Technicians secure the unit directly into chassis slot configurations while ensuring terminal power remains disconnected during installation. Field engineers must verify ground connections to minimize electrical noise interference in high-voltage industrial zones. The front panel features a 3-position key switch to toggle easily between Run, Remote, and Program operational states.

Commissioning, Diagnostics, and Maintenance

System integrators configure the 1747-L541 communication ports using standard programming software to establish reliable network links. The physical hardware incorporates diagnostic status LED indicators for RUN, FLT, BATT, FORCE, DH+, and RS-232 states. Maintenance personnel rely on these visual cues to isolate communication faults or low battery conditions quickly. Global PLC Spare HUB recommends replacing the 1747-BA backup battery periodically to prevent data loss during power interruptions.

Compatibility and System Expansion

This 1747-L541 controller integrates seamlessly with existing SLC 500 backplanes and distributed I/O networks. The built-in RS-232 port supports DF1, DH-485, ASCII, and Modbus RTU protocols for flexible peer-to-peer connectivity. Additionally, the integrated Data Highway Plus channel allows engineers to connect multiple controllers over extended distances without signal degradation.

Operational Environment and Industrial Application

Industrial facilities deploy the 1747-L541 processor within SCADA networks, HVAC automation systems, and automated material handling lines. The hardware design withstands continuous operation within factory environments meeting standard temperature thresholds. The inclusion of advanced math instructions and timed interrupts ensures precise execution for fast-paced motion and process control tasks.

Logistics, Warranty, and Package Details

• Package Contents: One 1747-L541 processor module and factory documentation.
• Shipping Carriers: Fast global delivery via FedEx, UPS, and DHL.
• Dispatch Timeline: Orders ship within 24 to 48 hours of confirmation.
• Warranty Terms: Backed by a comprehensive 12-month warranty from Global PLC Spare HUB.

Frequently Asked Questions

Question: How do technicians clear a major fault on the 1747-L541 processor during startup?

Answer: Engineers connect programming software via the RS-232 port, examine the error code within the processor status file, and correct the underlying ladder logic routine before toggling the key switch back to Run mode.

Question: Can the RS-232 port on the 1747-L541 connect to a multi-drop network directly?

Answer: Field technicians utilize a 1761-NET-AIC interface converter to adapt the single RS-232 channel for multi-drop network configurations.

Question: What is the primary function of the 1747-M13 memory device used with this series?

Answer: The module utilizes a flash-based memory backup device to store user programs and data tables securely, protecting critical logic against memory corruption.
