1734-IR2 POINT I/O RTD Module Allen-Bradley Series

Global PLC Spare HUB Review

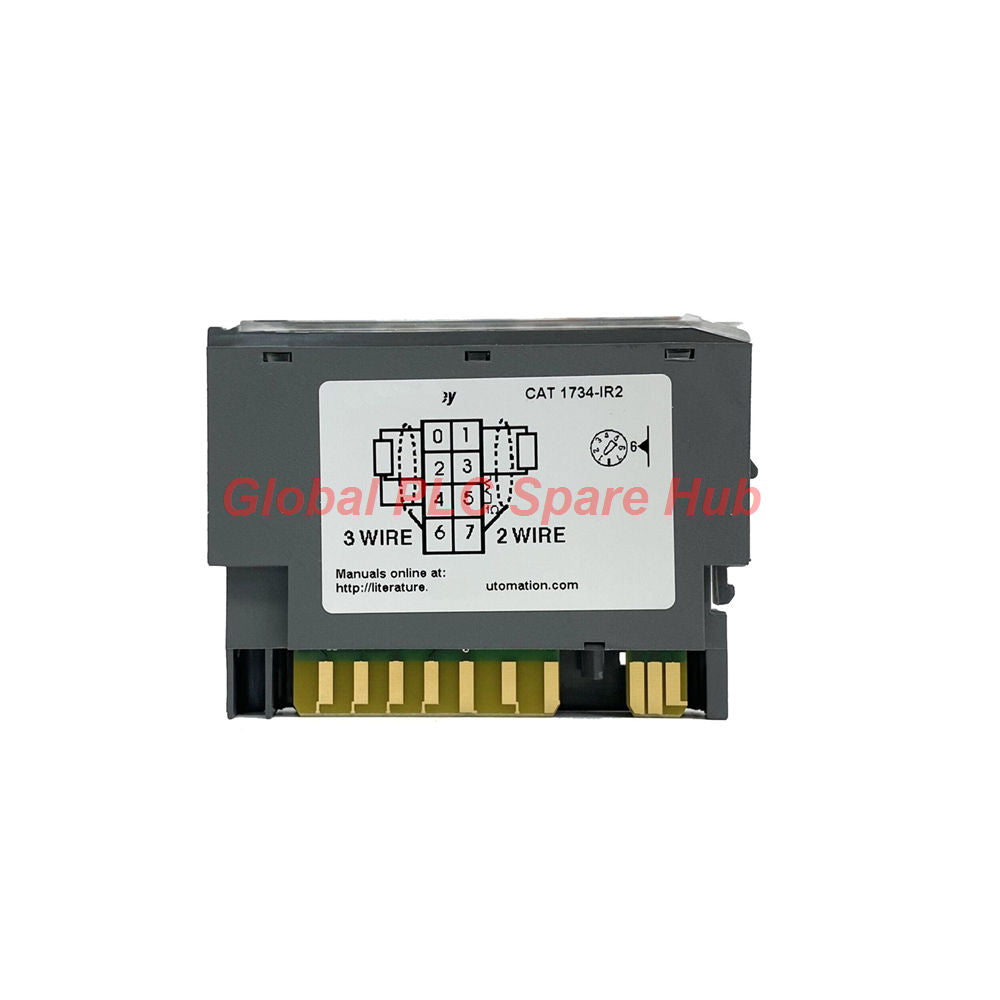

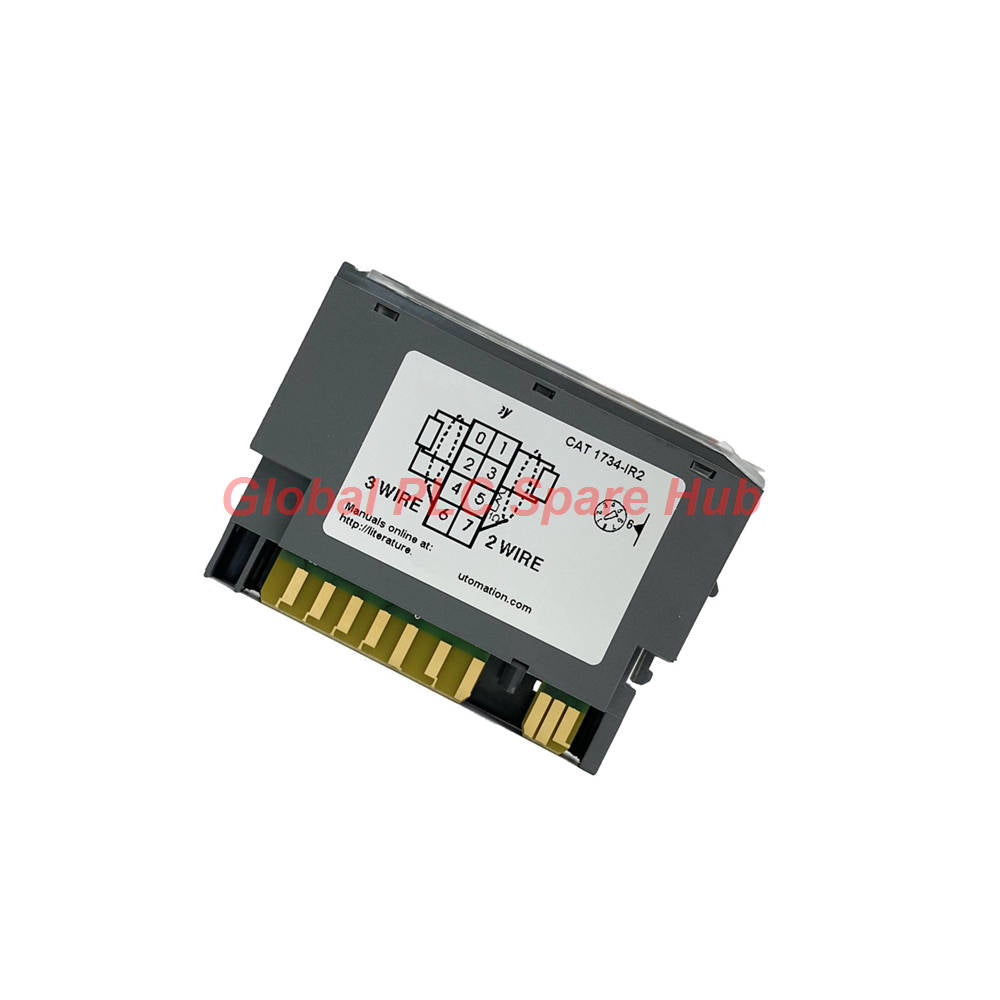

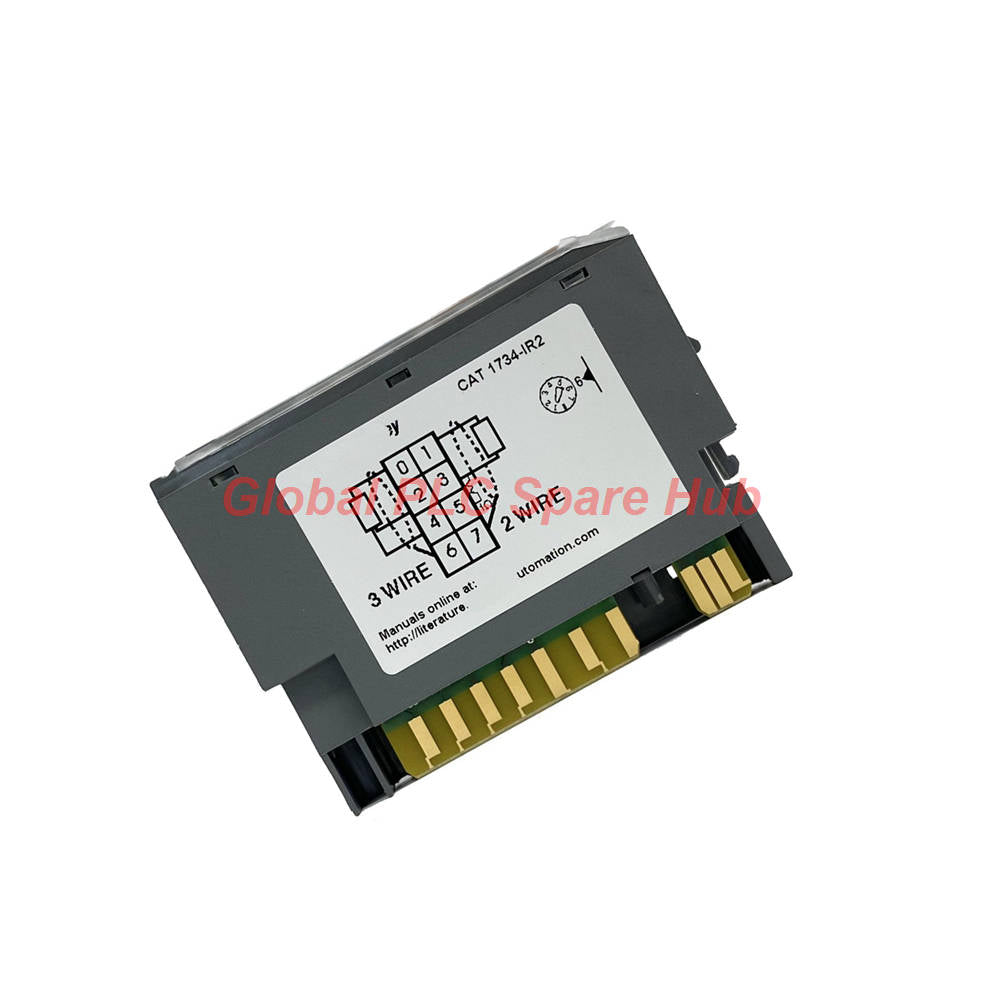

The Allen-Bradley 1734-IR2 POINT I/O RTD / Resistance input module provides precise temperature measurement for distributed architectures. Global PLC Spare HUB's Insight highlights this unit for its delta-sigma conversion accuracy and flexible sensor profiling. Engineers integrate it into compact control cabinets to monitor dual-channel thermal loops without signal degradation.

Technical Specification Matrix

Deployment Architecture & Field Setup

• Snap the 1734-IR2 directly onto compatible terminal base assemblies like the 1734-TB or 1734-TBS.
• Verify that mechanical keyswitch position 6 matches the module to prevent insertion errors.
• Terminate 2-wire or 3-wire RTD leads directly into the terminal block maintaining proper shield grounding.
• Allocate sufficient 5V DC backplane power from the adapter to handle the 220 mA current draw.

System Diagnostics & Operational Health

• Real-time status LEDs indicate channel-level faults, open-circuit conditions, and network packet exchange.
• Delta-sigma conversion filters out line noise frequencies ranging from 50 Hz to 480 Hz using configurable notch settings.
• Internal diagnostic registers log out-of-range temperature inputs for immediate controller notification.

Target Applications & Compatible Equipment

• Compatible Equipment: CompactLogix controllers, POINT I/O adapters (1734-AENT, 1734-APB), and 1734 terminal bases.
• Process Skids: Monitoring fluid temperatures in compact chemical injection skids and heat exchangers.
• Machine Builders: Tracking bearing and winding temperatures in high-speed rotating industrial machinery.
• Environmental Chambers: Managing precise thermal profiles in testing enclosures and HVAC distribution lines.

Fulfillment, Warranty & Logistics

• Shipping Partners: Expedited worldwide delivery handled via FedEx, UPS, and DHL.
• Fulfillment Window: Orders dispatched swiftly within 24 to 48 hours from verification.
• Quality Assurance: Backed by a comprehensive 12-month replacement warranty covering hardware integrity.

Engineering Frequently Asked Questions

Q: How does changing the notch filter frequency affect channel update rates on the 1734-IR2?
A: Lower notch frequencies like 50 Hz increase input step response times up to 60 ms for maximum noise rejection, whereas higher filter settings like 480 Hz speed up response times to 6 ms at the expense of noise filtering.

Q: What causes an open-circuit fault indication on a connected temperature channel?
A: An open-circuit fault usually stems from a broken sensor wire, loose terminal block screw, or incorrect scaling configuration where no resistance is detected within the 0 to 600 ohm range.

Q: Can this module handle mixed sensor types across its two input channels simultaneously?
A: Yes, each channel operates independently, allowing technicians to configure different RTD profiles or direct resistance inputs across channel zero and channel one.

Q: What precautions prevent backplane power faults when adding this unit to an existing node?
A: Calculate the total current draw of all modules on the communication adapter. Since this unit pulls 220 mA from the 5V DC backplane, an auxiliary power expansion module may be required if current budgets are exceeded.

Q: How should an engineer approach selecting between platinum and nickel RTD profiles for retrofits?
A: Review the sensor alpha curve stamped on the existing field probe. Matching the exact alpha coefficient (such as α=0.00385 for European platinum) in the software configuration ensures true temperature linearity and prevents measurement drift.

Purchasing Guide

When integrating the 1734-IR2 POINT I/O RTD / Resistance input module into your layout, verify your controller's I/O tree capacity and ensure your terminal base assembly is rated for the application environment. Global PLC Spare HUB recommends keeping spare base units on hand to streamline future maintenance cycles.
