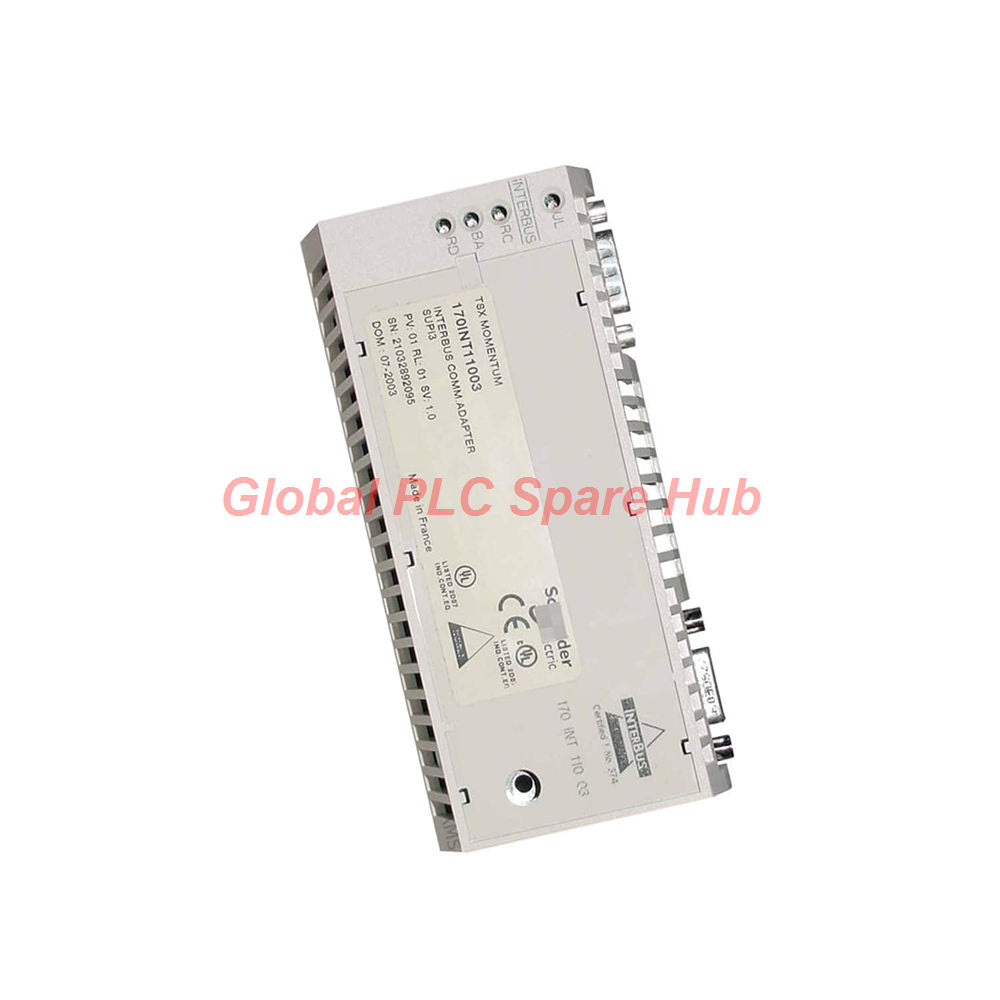

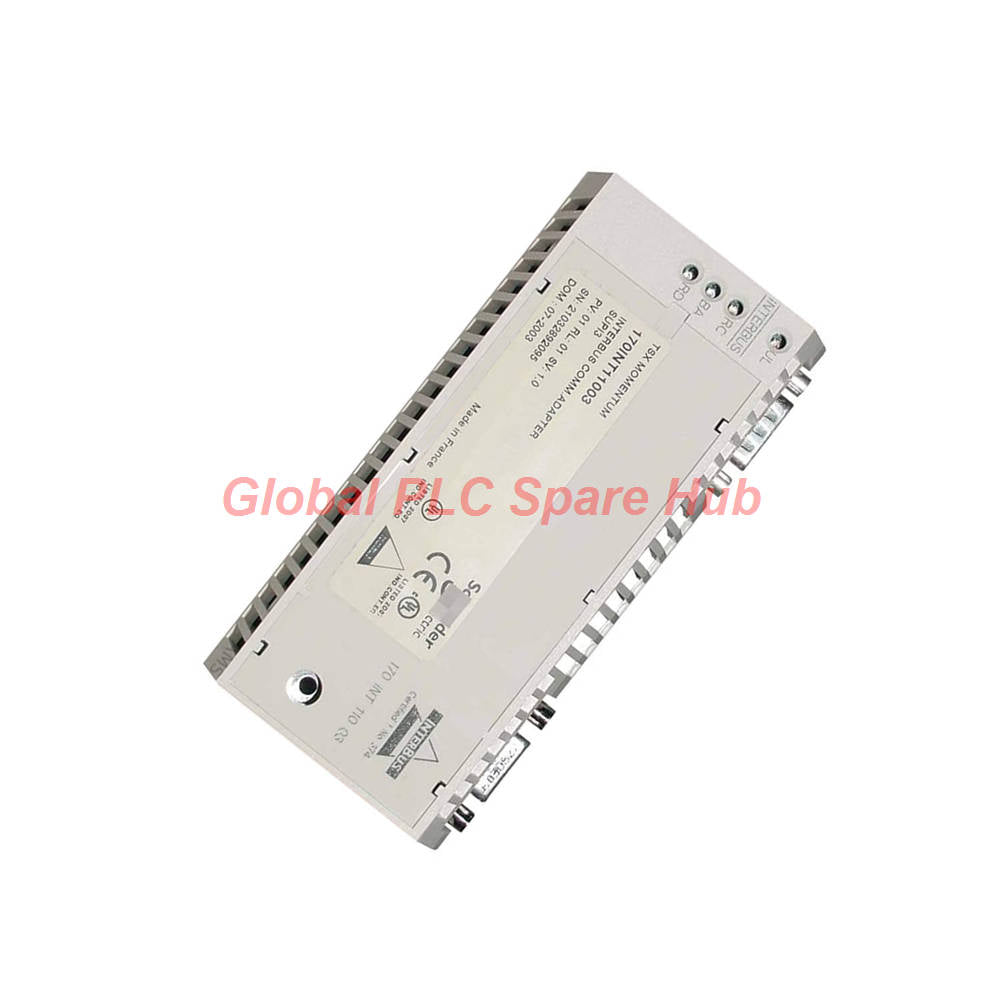

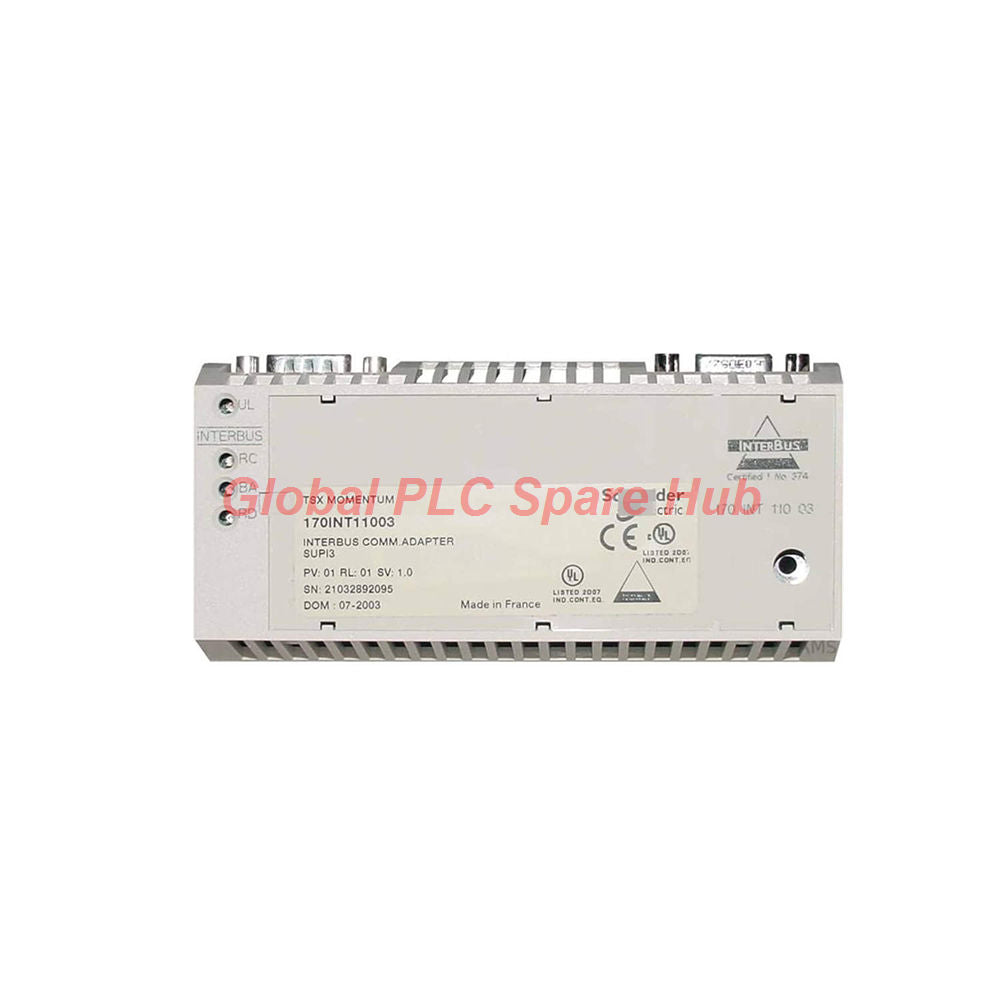

170INT11003 Schneider Electric Modicon Momentum Interbus Adapter

Manufacturer: Schneider Electric
Product No.: 170INT11003
Condition： In stock
Product Type: Interbus Adaptor
Product Origin: DE
Payment: T/T, Western Union
Weight: 195g
Shipping port: Xiamen
Warranty: 12 months

Quantity

Selected quantity: 1

Estimate delivery times: 12-26 days (International), 3-6 days (United States).

Return within 30 days of purchase. Duties & taxes are non-refundable.

Guaranteed Safe Checkout

Global PLC Spare HUB's Insight

The 170INT11003 is a specialized communication interface designed for the Modicon Momentum distributed I/O system. Unlike standard Ethernet adapters, this module leverages the Interbus Generation SUPI III protocol, utilizing a unique "Continuous Shift Register" methodology. This ensures deterministic data packet delivery across a ring topology. For engineers managing legacy or high-precision synchronized networks, the 170INT11003 offers a robust physical layer via dual 9-pin D-Sub connectors, making it a critical component for maintaining system integrity in long-distance industrial bus segments.

Engineering Specifications

Brand: Schneider Electric
Model: 170INT11003
Series: Modicon Momentum
Communication Protocol: Interbus Generation SUPI III
Transmission Rate: Constant 500 kilobits per second
Network Topology: Active Ring Network
Maximum Nodes: Supports 0 to 254 devices per segment
Maximum Distance: 400 meters between modules / 1,000 meters total segment
Data Integrity: CRC-16 (Cyclic Redundancy Check) Control Parameter
Physical Interface: Two 9-pin D-Sub Interbus Connectors
Cable Requirement: Shielded Twisted Pair (STP)
Power Dissipation: 0.8 Watts (Efficient thermal footprint)
Operating Altitude: Certified up to 5,000 meters
Protection Rating: IP20 (Enclosure required for harsh environments)

Diagnostic & Monitoring Capabilities

CRC-16 Verification: Real-time hardware-level error detection for every data frame.
Shift Register Status: Built-in capability to monitor data flow through the ring.
LED Feedback: Front-facing indicators for bus active status and module health.
Segment Isolation: Facilitates rapid identification of cable breaks within the ring topology.

Target Equipment & Application Scenarios

Compatible Equipment: Modicon Momentum Digital/Analog I/O bases and Interbus Master controllers.
Automotive Assemblies: Ideal for long-distance conveyor systems requiring high noise immunity.
Material Handling: Used in automated warehouses where devices are spread across 1km segments.
Legacy Migrations: Replacing aging SUPI II interfaces with modern SUPI III reliability.
