1606-XLSRED Allen-Bradley XLS Redundancy Module 24V DC Backup

1606-XLSRED | Redundant DC Power Distribution Module

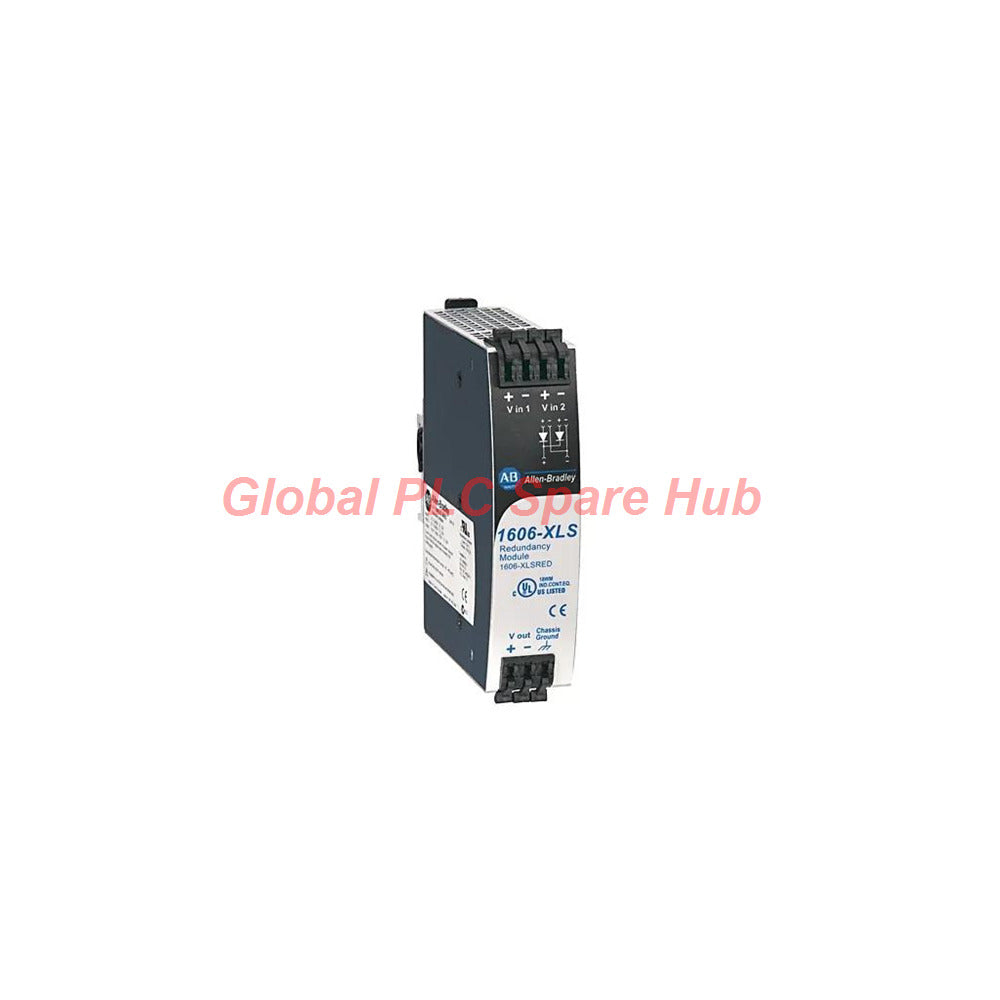

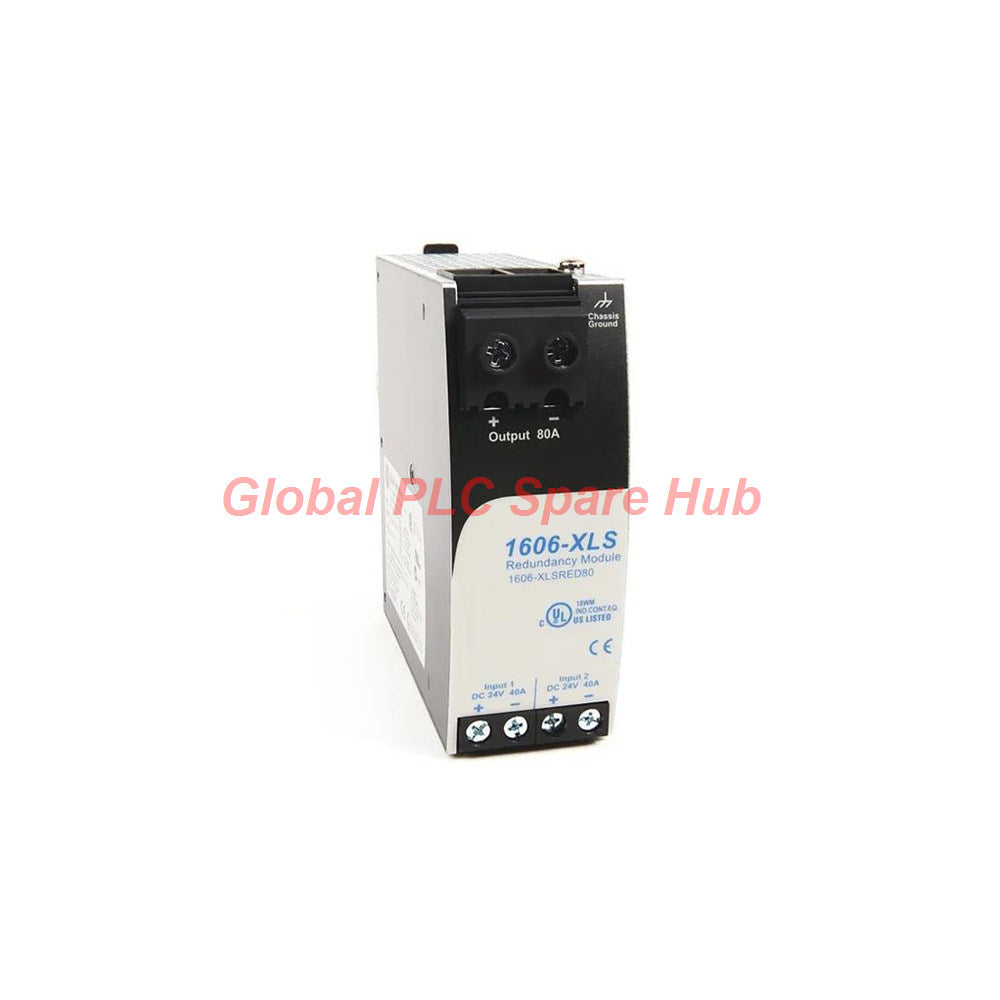

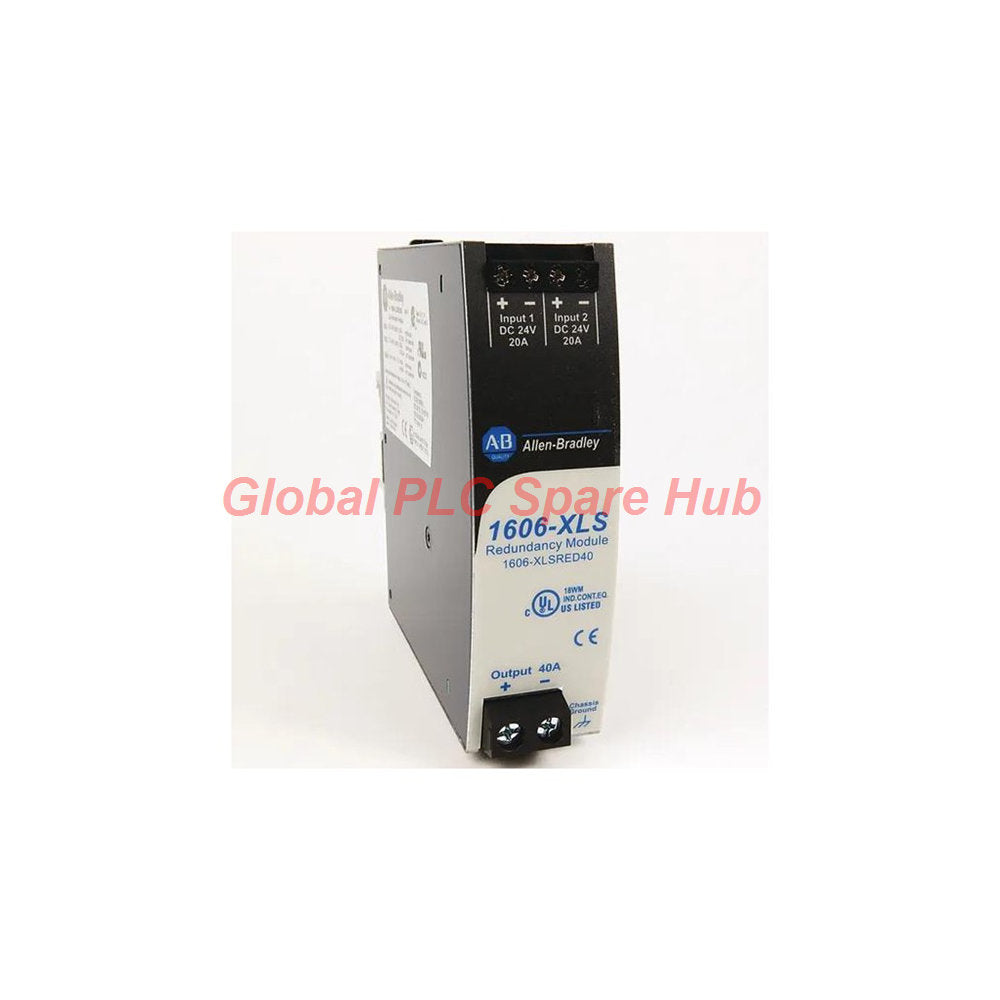

The Allen-Bradley 1606-XLSRED is a redundancy module in the 1606-XLS power system family. It isolates two DC power supply inputs and combines them into one output for supported industrial loads.

Engineers can use this module in 1+1 or N+1 power architectures. If one supply fails, the remaining supply can continue powering the load, provided it has sufficient capacity and the system is correctly designed.

Unlike a monitored redundancy controller, the 1606-XLSRED uses diode-based input isolation and does not provide built-in circuit monitoring. Use external power supply status contacts or control-system monitoring when fault annunciation is required.

01 | Functional Overview

02 | Electrical Ratings and Verification Points

The supplied product data contains conflicting electrical ratings. The table below separates the stated redundancy-module values from details that require confirmation before installation or procurement.

03 | How Redundant Power Distribution Works

The module separates the two supply paths to reduce the chance that a fault on one input will pull down the other input. Both supplies feed a common load through the module's isolation arrangement.

• Normal operation: Both supplies are available, and the load receives power through the redundant distribution arrangement.
• Supply failure: The isolation path helps prevent a failed supply from dragging down the healthy supply. The remaining source must support the full load.
• Power supply replacement: A properly designed system can help maintain load power while one supply is serviced, but only if the circuit and maintenance procedure permit it.
• Fault indication: The module itself should not be assumed to report input failures. Use compatible supply status contacts or external monitoring where required.

Redundancy does not automatically guarantee uninterrupted operation. Engineers must verify load current, supply capacity, wiring protection, voltage drop, and the behavior of connected equipment during a source failure.

04 | Typical Equipment and Industrial Applications

The 1606-XLSRED is a power-distribution accessory, not a PLC processor or a standalone AC/DC power supply. It requires suitable external DC power supplies.

05 | Field Diagnostics and Maintenance Workflow

Because the supplied description identifies no built-in monitoring circuit, troubleshooting should combine electrical measurements with external supply status information. Always follow site electrical safety procedures.

1. Check both sources: Measure each supply's DC output independently and compare readings with the manufacturer's permitted range.
2. Check the common output: Measure the voltage at the module output and at the load. A difference may indicate cable resistance, a poor connection, or excessive load current.
3. Simulate a source failure only under an approved test plan: Verify that the remaining supply can support the load. Do not disconnect a live source without confirming the procedure and system risks.
4. Inspect terminal connections: Look for loose conductors, discoloration, damaged insulation, or signs of excessive heating. Re-torque only to the specified value.
5. Review external alarms: Check the power supplies' status contacts and PLC alarm logic. Do not assume that a fault on the redundancy module generates a diagnostic signal.

If the output voltage drops when one supply is unavailable, investigate the remaining supply's capacity, input voltage, wiring resistance, protective devices, and load startup demand before replacing the module.

06 | Engineering Selection Checklist

• Voltage match: Confirm that the supply output and the module's approved input range match the system design.
• Single-source capacity: For a 1+1 design, verify that either supply can support the full required load under the applicable derating conditions.
• Current distribution: For N+1 arrangements, calculate the load and source capacity for the intended failure condition. Do not assume equal current sharing unless the system design supports it.
• Fault annunciation: Add external monitoring if the control system must identify a failed supply automatically.
• Protection coordination: Check upstream protective devices, conductor sizing, terminal ratings, and fault-current requirements against the official documentation.
• Installation environment: Verify ambient temperature, ventilation, enclosure conditions, and mounting clearances.

07 | Global PLC Spare HUB's Insight

In a redundant control cabinet, the most important design check is whether the remaining power source can carry the entire critical load after a supply failure. A redundancy module cannot compensate for undersized supplies.

During commissioning, record both input voltages and the common output voltage under normal load. If the project permits a controlled failure test, verify the load response and external alarm behavior against the system's acceptance criteria.

For replacement planning, compare the complete catalog number and terminal functions with the installed component. This step is especially important because the supplied information for 1606-XLSRED contains conflicting input-voltage and monitoring details.

08 | Ordering, Warranty, and Shipping

• Product: Allen-Bradley 1606-XLSRED redundancy module
• Warranty: 12-month warranty, subject to the agreed sales terms
• Shipping Methods: FedEx, UPS, or DHL, subject to destination and service availability
• Order Processing: Target processing and dispatch within 24–48 hours after stock and order confirmation
• Quotation Support: Provide the catalog number, required quantity, and application voltage for a more accurate quotation.

Contact Global PLC Spare HUB for pricing, replacement identification, and assistance checking compatibility with your DC power architecture.

09 | Frequently Asked Questions

Q1: What happens if one power supply has a lower output voltage than the other?

The actual current contribution depends on supply voltage, wiring resistance, and the module's isolation characteristics. Measure both sources under load and confirm their settings and operating ranges. Do not assume that both supplies share current equally.

Q2: How should I size the two supplies for a 1+1 redundancy design?

Calculate the maximum continuous load, startup demand, and applicable derating. Each supply must independently support the required load after the other supply becomes unavailable. Check the redundancy module's current limits and the complete manufacturer's design guidance.

Q3: Can this module replace a redundancy unit that provides individual supply alarms?

Not necessarily. The supplied description states that the 1606-XLSRED has no built-in circuit monitoring. If individual source-failure alarms are required, confirm the actual signal features and consider compatible power supply contacts or external monitoring equipment.

Q4: Why might a control cabinet lose power even though one supply remains healthy?

Possible causes include insufficient capacity in the remaining supply, an incorrect voltage setting, a tripped protective device, a loose connection, excessive startup demand, or incorrect wiring. Check the output under the approved test procedure before identifying the failed component.

Q5: Which specifications should I verify before purchasing a replacement?

Confirm the full catalog number, DC input range, input and output current limits, terminal arrangement, monitoring functions, temperature rating, and mounting requirements. The supplied data conflicts on several electrical details, so use the official datasheet for final approval.
