140DAO84210 Schneider Electric Modicon Quantum AC Discrete Output Module

Schneider Electric Modicon Quantum 140DAO84210 AC Discrete Output Module

The Schneider Electric 140DAO84210 is a robust 16-channel AC discrete output module engineered specifically for the Modicon Quantum automation platform. This industrial hardware delivers reliable switching performance for AC loads ranging from 83V to 253V AC. Plant operators deploy this robust module within large-scale process control architectures to manage high-capacity actuators, heavy-duty contactors, and complex industrial solenoids. Global PLC Spare HUB supplies this verified component to maintain continuous uptime in critical manufacturing environments.

Technical Specifications

• Brand: Schneider Electric
• Model / Part Number: 140DAO84210
• Product Series: Modicon Quantum
• Module Type: AC discrete output module
• Discrete Output Number: 16 channels, organized in 4 groups of 4 channels
• Discrete Output Voltage Range: 83 to 253 V AC
• Supply Frequency: 47 to 63 Hz
• Maximum Load Current: 3 A rms per channel (170-253 V), 4 A rms per channel (85-132 V), 16 A rms per module
• Response Time: Less than or equal to 0.5 ms for state 0 to state 1 and state 1 to state 0
• Power Dissipation: 1.85 W plus (1.1 V multiplied by total module load current)
• Temperature Range: Operation between 32 and 140 degrees Fahrenheit (0 to 60 degrees Celsius); Storage between -40 and 185 degrees Fahrenheit (-40 to 85 degrees Celsius)
• Environmental Tolerance: 95 percent relative humidity without condensation; Operating altitude up to 16404 feet (5000 meters)
• Interference Resistance & EMC: Conforms to IEC 801-2 for electrostatic discharge (4 kV contact, 8 kV air) and IEC 801-3 for electromagnetic field susceptibility (10 V/m)

Installation Guide

1. Power down the Modicon Quantum rack completely before inserting or removing the 140DAO84210 module to prevent electrical arcing.
2. Align the module housing carefully with the designated slot on the Quantum backplane.
3. Push the module straight back until the mechanical locking tabs engage securely.
4. Connect field wiring securely to the removable terminal block, ensuring proper torque limits to prevent terminal damage.
5. Verify field power supply levels fall within the required 83V to 253V AC operational window before restoring system power.

Commissioning and Maintenance Convenience

Engineers benefit from integrated front-panel LED indicators that simplify initial system checkout and routine troubleshooting. A green Active LED confirms proper bus communication, a red Fault LED flags external system errors, and 16 green status LEDs display real-time individual channel states. The hot-swappable design of the Modicon Quantum platform allows maintenance teams to replace faulty units quickly without dismantling entire control enclosures, reducing mean time to repair.

Compatibility Information

The 140DAO84210 module integrates seamlessly into existing Modicon Quantum automation architectures. It requires exactly one output word of addressing space within the PLC configuration. The module interfaces natively with standard Quantum power supplies, Quantum backplanes, and Unity Pro or Concept programming software environments without requiring custom protocol gateways.

Certification Information

• UL 508 industrial control equipment standards
• CSA C22.2 No 142 process control equipment compliance
• FM Class 1 Division 2 hazardous location certification
• CE marking for European conformity

Packing List & Warranty Terms

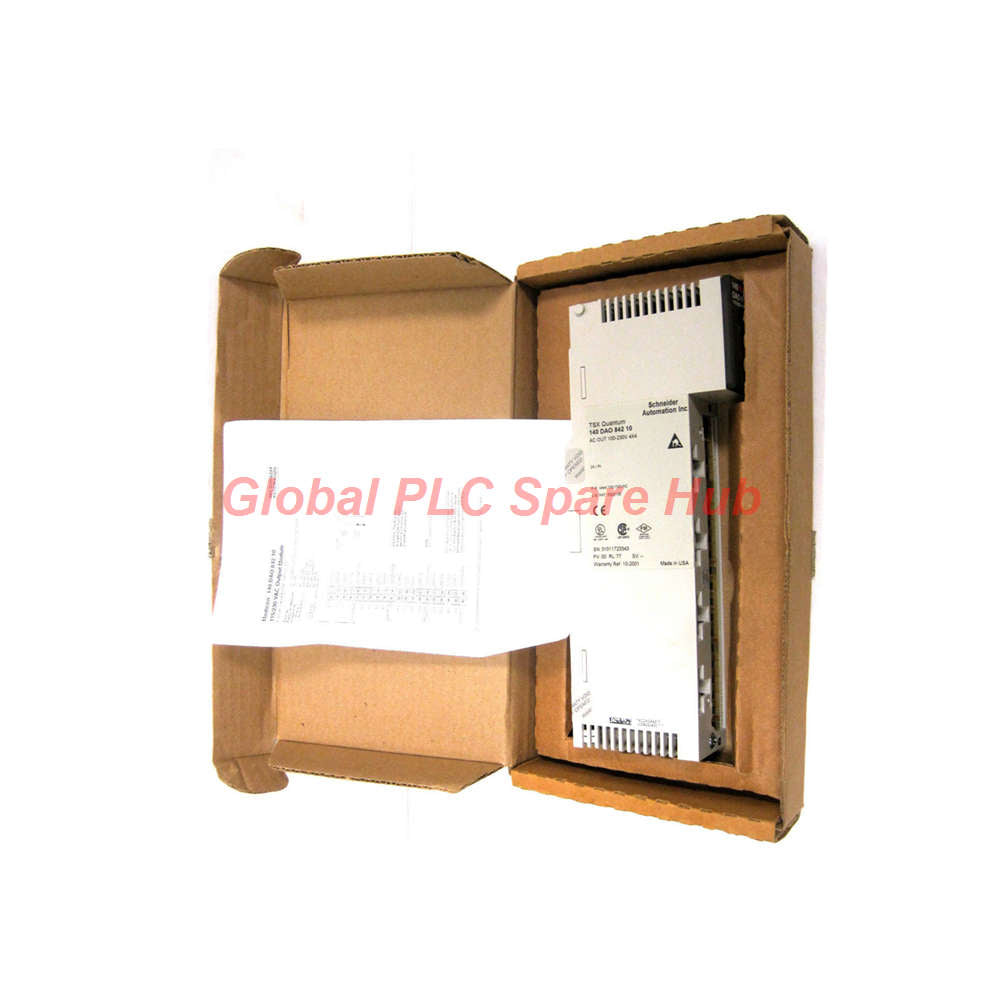

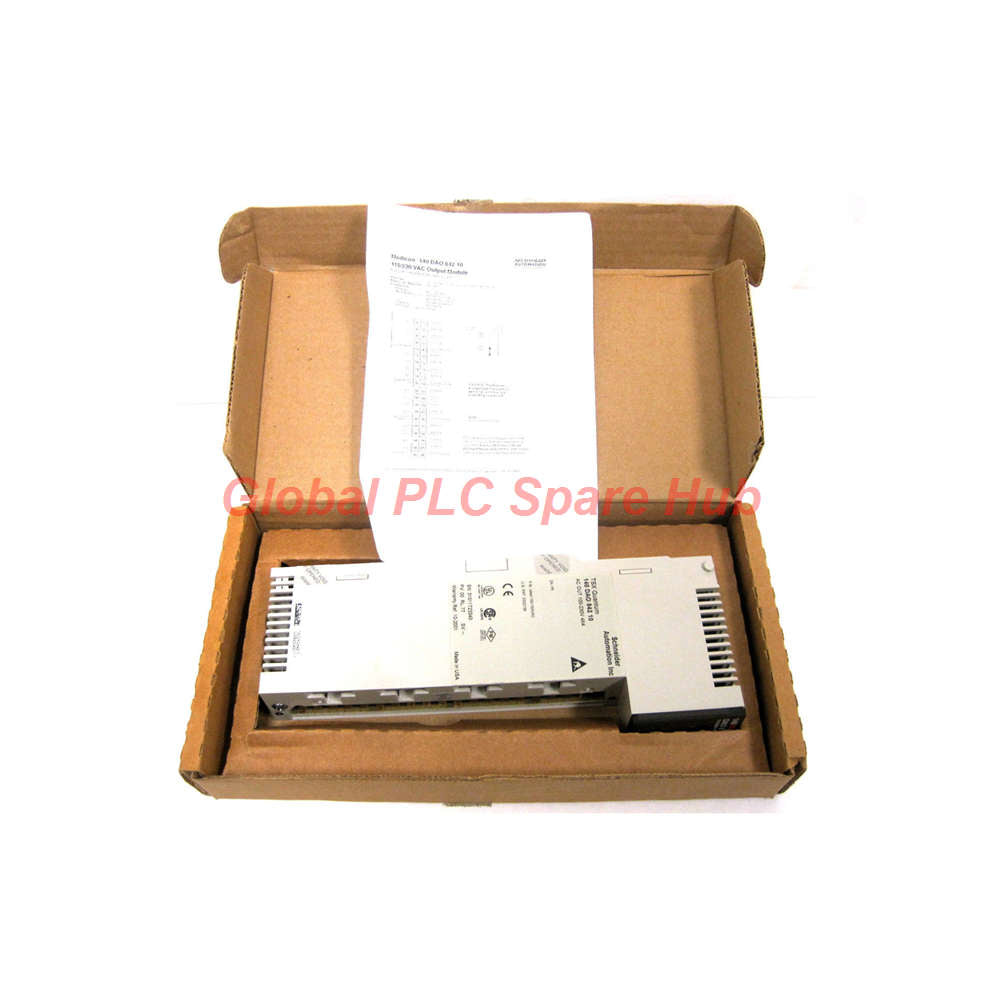

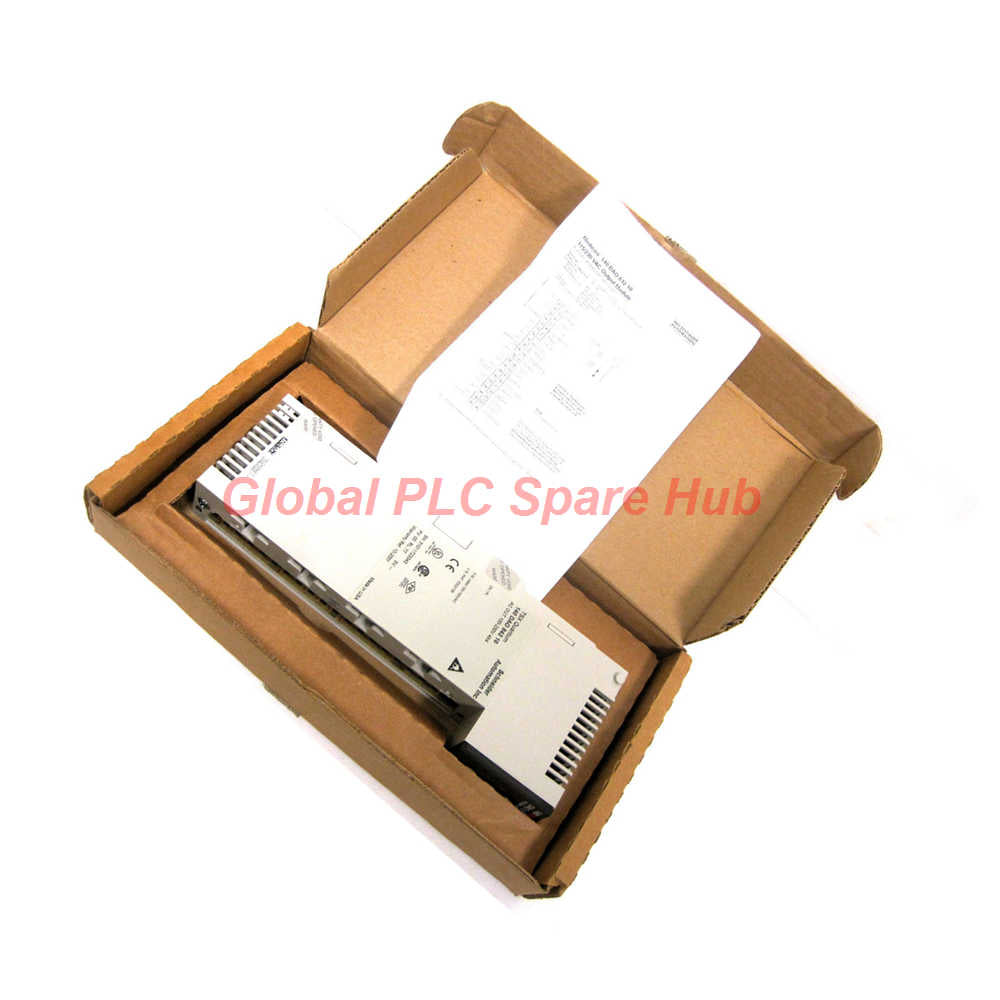

• Packing List: One 140DAO84210 module, removable terminal block, and installation documentation sheet.
• Package Dimensions & Weight: 12.28 x 1.77 x 6.42 inches; 22.4 ounces (634 grams).
• Shipping Methods: Fast dispatch within 24 to 48 hours via reliable couriers including FedEx, UPS, and DHL.
• Warranty: Backed by a comprehensive 12-month warranty covering structural and operational defects from the date of purchase.

Typical Application Scenarios

• Automotive Manufacturing: Controlling high-voltage assembly line staging motors and heavy stamping press actuators.
• Water Treatment Plants: Managing large distribution pumps, chemical metering valves, and motorized sluice gates.
• Oil and Gas Refineries: Interfacing with remote terminal units to switch localized heating elements and pneumatic solenoid banks.

Diagnostic Capabilities

The 140DAO84210 features advanced internal fault detection mechanisms designed to safeguard industrial assets. The module instantly detects and reports blown internal fuses and total loss of field power. When a fault occurs, the internal circuitry trips a protective 5A fuse per output and illuminates the red external fault LED on the front faceplate, transmitting diagnostic bits back to the central CPU for operator review.

Global PLC Spare HUB's Insight & Field Experience

When deploying high-density AC output modules like the 140DAO84210 in heavy industrial sectors, thermal management inside the control cabinet remains a critical success factor. Field engineers frequently observe that grouping multiple high-current inductive loads close together elevates local cabinet temperatures. Global PLC Spare HUB recommends maintaining adequate spacing above and below the Quantum rack, alongside ensuring that total module load current stays safely beneath the 16A module limit to prevent nuisance thermal tripping.

Frequently Asked Questions

What should I do if the red fault LED illuminates on the 140DAO84210 module?

Check the external field power supply voltage and inspect the internal 5A output fuses for continuity, as these are the primary triggers for fault conditions.

Can I hot-swap the Schneider Electric 140DAO84210 while the rack is powered?

The Modicon Quantum architecture supports backplane hot-swapping, but turning off local AC field power before swapping wiring blocks is strongly recommended to protect connected actuators.

How do I verify if my field voltage is compatible with this module?

Measure your active AC line voltage using a calibrated multimeter to ensure it sits consistently within the 83V to 253V AC operational range specified for the 140DAO84210.

What programming software is required to configure the Modicon Quantum 140DAO84210?

You can configure this module using standard legacy or modern Schneider programming suites, including Unity Pro and EcoStruxure Control Expert, by assigning a single output word address.
