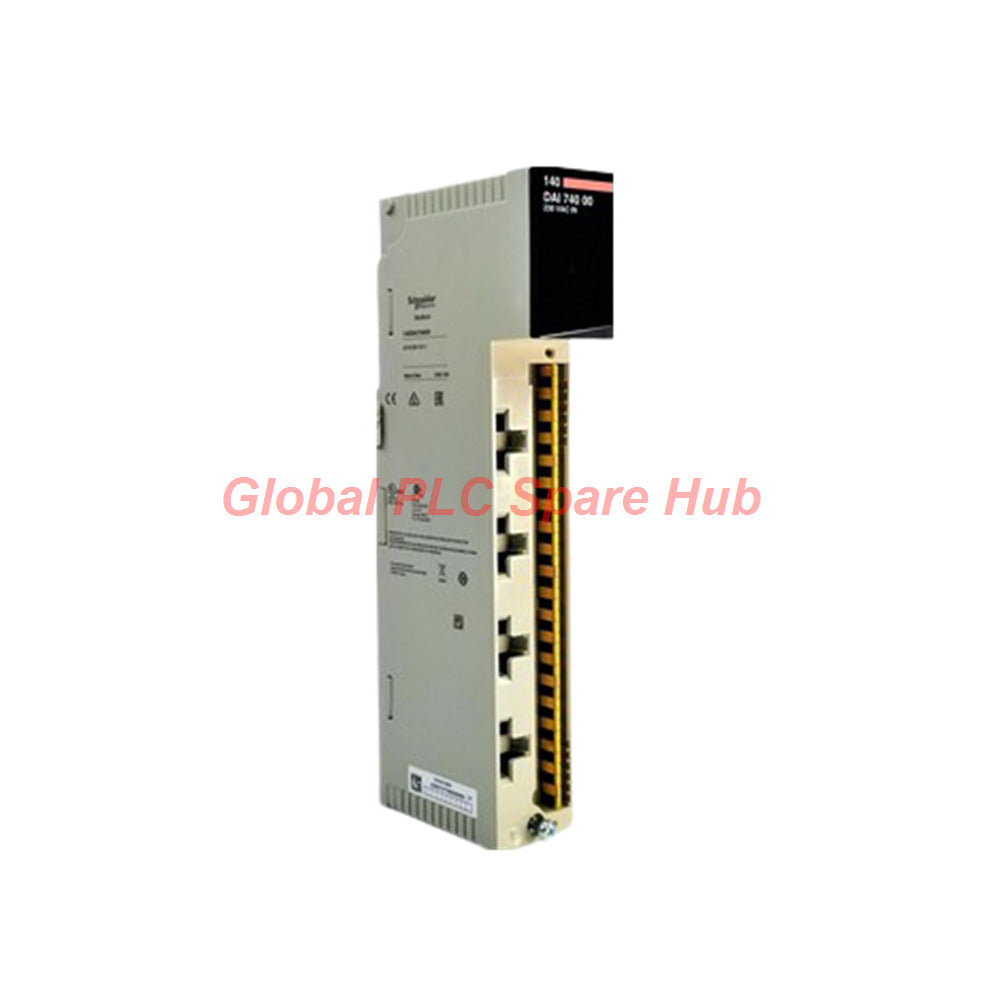

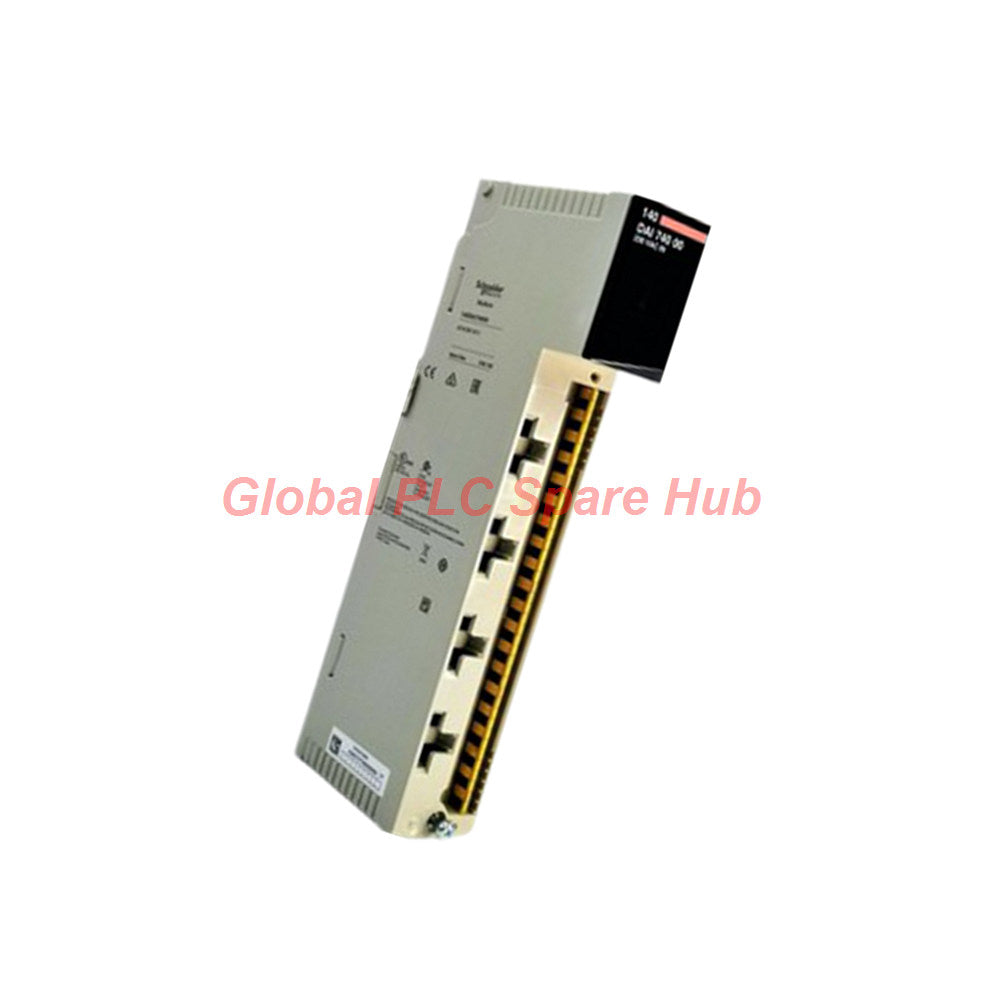

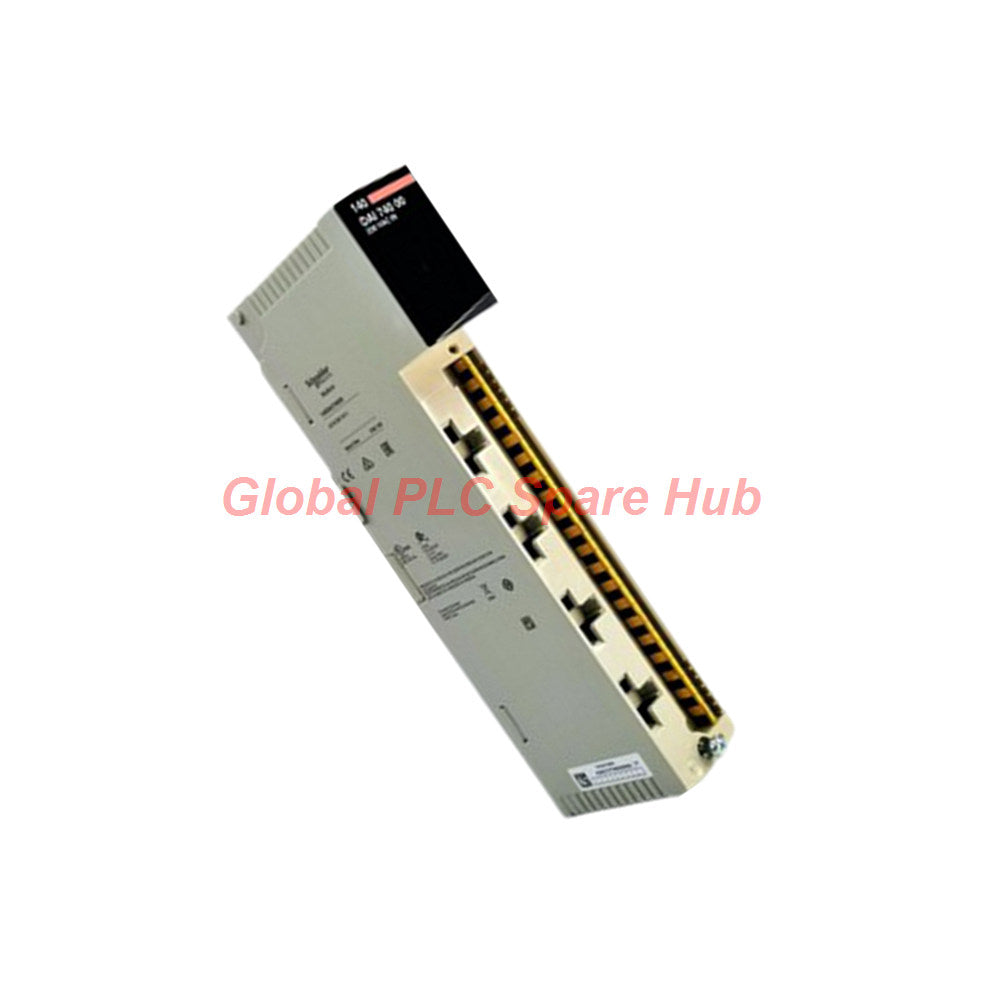

140DAI74000 Schneider Modicon Quantum 230V AC Discrete Input Module

Schneider Electric 140DAI74000 Overview

The Schneider Electric Modicon Quantum 140DAI74000 processes high-voltage field signals for heavy industrial control networks. This standard-format module acts as a rugged interface between field instruments and the system bus. Engineers rely on the Modicon Quantum platform for continuous performance in harsh control room environments. It operates efficiently across major software platforms, including Unity Pro, Concept, and ProWORX 32.

Comprehensive Technical Specifications

• Brand: Schneider Electric
• Model: 140DAI74000
• Product Series: Modicon Quantum Automation Platform
• Module Type: 16-Channel 230V AC Discrete Input Module
• Addressing Requirement: 1 input word
• Bus Current Requirement: 180 mA
• Max Power Dissipation: 5.5 W
• Measuring Range (Voltage): 0 to 264 V AC continuous; absolute max 300 V for 10 s, 400 V for 1 cycle
• Voltage State 1 Guaranteed: 165...264 V AC (57...63 Hz); 175...264 V AC (47...53 Hz)
• Voltage State 0 Guaranteed: 0...40 V AC (57...63 Hz / 47...53 Hz)
• Sensitivity (Input Current): 11.5 mA (57...63 Hz); 9.7 mA (47...53 Hz)
• Input Impedance: 26,500 Ohm capacitive (57...63 Hz); 31,800 Ohm capacitive (47...53 Hz)
• Linearity & Leakage: Max leakage current 2.6 mA
• Resolution & Frequency Response: Network frequency limits 47...63 Hz; dynamic cycle detection
• Response Time: 4.9...0.75 ms x line cycle (Off-On); 7.3...12.3 ms (On-Off)
• Isolation Protection: 1780 Vrms for 1 minute between channels; 1780 Vrms for 1 minute to bus
• Noise Immunity & Anti-Interference: Electrostatic discharge 4 kV contact, 8 kV air (IEC 801-2); RF field 9.1 V/m at 80...2000 MHz (IEC 801-3)
• Temperature Range: Operating 32...140 °F (0...60 °C); Storage -40...185 °F (-40...85 °C)
• Environmental Tolerance: Relative humidity up to 95% non-condensing; operating altitude <= 16,404 ft (5000 m)

Advanced Field Diagnostics

The 140DAI74000 offers clear visual status indications for rapid troubleshooting. Front-panel LEDs streamline fault detection on active control lines:

• Green Active LED: Confirms active backplane bus communication.
• Red Fault LED (F): Indicates an external fault condition on connected field circuits.
• 16 Green Channel LEDs: Show real-time logic states for individual input channels.

Installation & System Compatibility

Installing the 140DAI74000 input module into a standard Modicon Quantum rack is straightforward. Ensure backplane power is off before sliding the module into its assigned slot. Wire field input channels using recommended terminal blocks to maintain channel-to-bus isolation integrity. This unit integrates seamlessly into legacy software systems running Concept or ProWORX 32, as well as modern enterprise architectures using Unity Pro.

Maintenance & Engineering Practicality

Maintenance crews benefit from key design features built into the Modicon Quantum system:

• Status LEDs permit instant verification without extra test gear.
• Standardized form factor minimizes replacement time during routine maintenance.
• Robust 1780 Vrms isolation protects main backplane circuitry from field surges.

Industry Certifications & Compliance

This industrial input module complies with international electrical standards:

• Safety Standards: UL 508, CSA C22.2 No 142
• Hazardous Locations: FM Class 1 Division 2, cUL
• Markings: CE Marked

Shipping, Logistics & 12-Month Warranty

We maintain direct dispatch protocols to keep production lines running smoothly:

• Dispatch Window: Ships within 24 to 48 hours from order confirmation.
• Express Carriers: Premium air freight available via FedEx, UPS, and DHL.
• Packaging: Factory package dimensions 12.28 in x 6.42 in x 1.77 in (Weight: 15.9 oz / 0.45 kg).
• Warranty Coverage: Includes a comprehensive 12-month factory warranty covering all performance claims.

Target Industrial Applications

The Schneider Electric 140DAI74000 excels in high-power automation architectures:

• Power generation distribution panel monitoring
• Water treatment pumping station main control circuits
• Heavy industrial motor control centers (MCC)
• Chemical processing facility safety interlocks

Global PLC Spare HUB Review & Engineering Insights

Our senior engineering team evaluated the 140DAI74000 in high-noise manufacturing environments. The module delivers reliable signal filtering under dirty 230V AC lines. During site testing at a municipal wastewater station, field induction voltage caused false triggers on conventional inputs. The high threshold parameters of the 140DAI74000 eliminated false logic states. Its internal filtering handled voltage spikes without signal degradation, proving its stability on long field cable runs.

Frequently Asked Questions & Selection Guide

How do I verify signal integrity on long cable runs?

Check input current levels against minimum requirements. The module demands 11.5 mA at 60 Hz to register a true logic high state.

Can I mix different AC voltage levels on one module?

No. All 16 channels share a single input group rated strictly for 230V AC field signals.

What causes the front red fault light to energize?

The red LED indicates an external field fault, bus communication issue, or internal hardware error detected by the backplane CPU.

How do I select the right Quantum AC input module?

Match your field device operating voltage and channel density. Choose 140DAI74000 for single-group 16-channel 230V AC applications requiring high isolation protection.
