140CPU43412 Schneider Electric Modicon Quantum CPU

140CPU43412 | Schneider Electric Modicon Quantum CPU Module

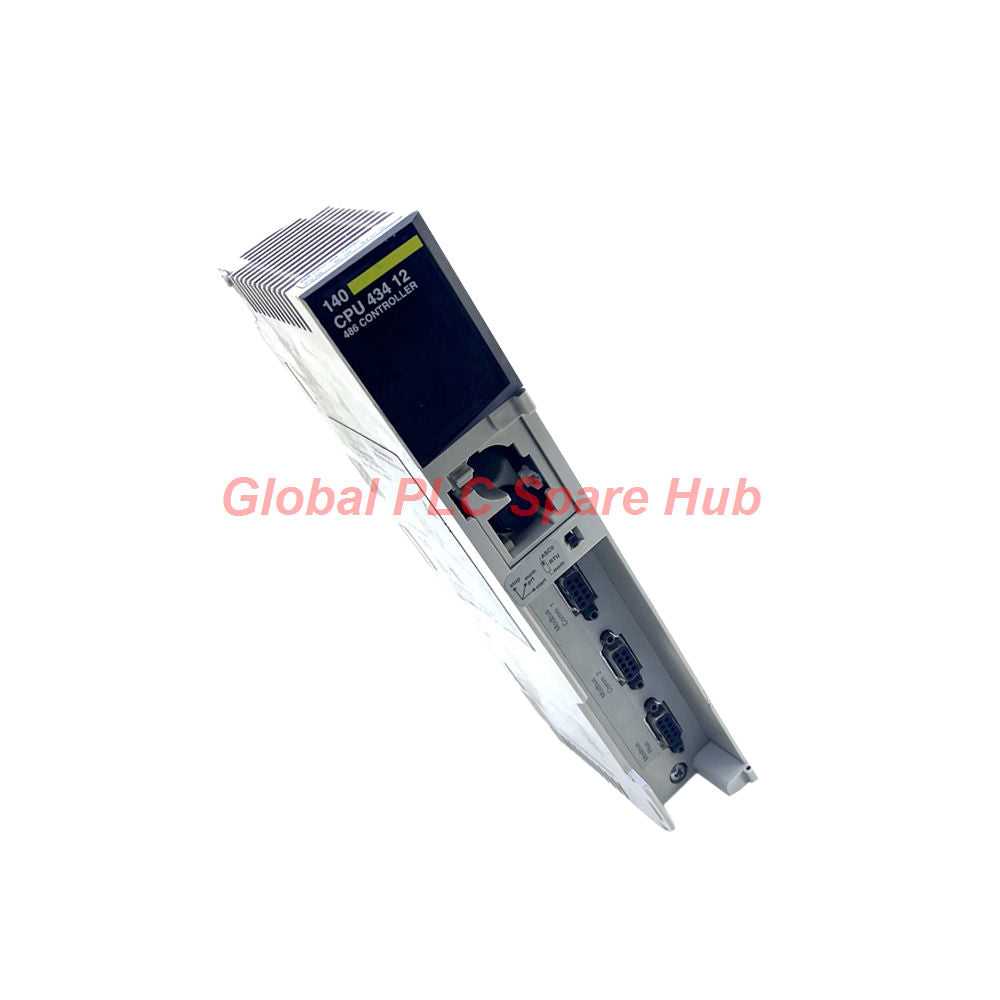

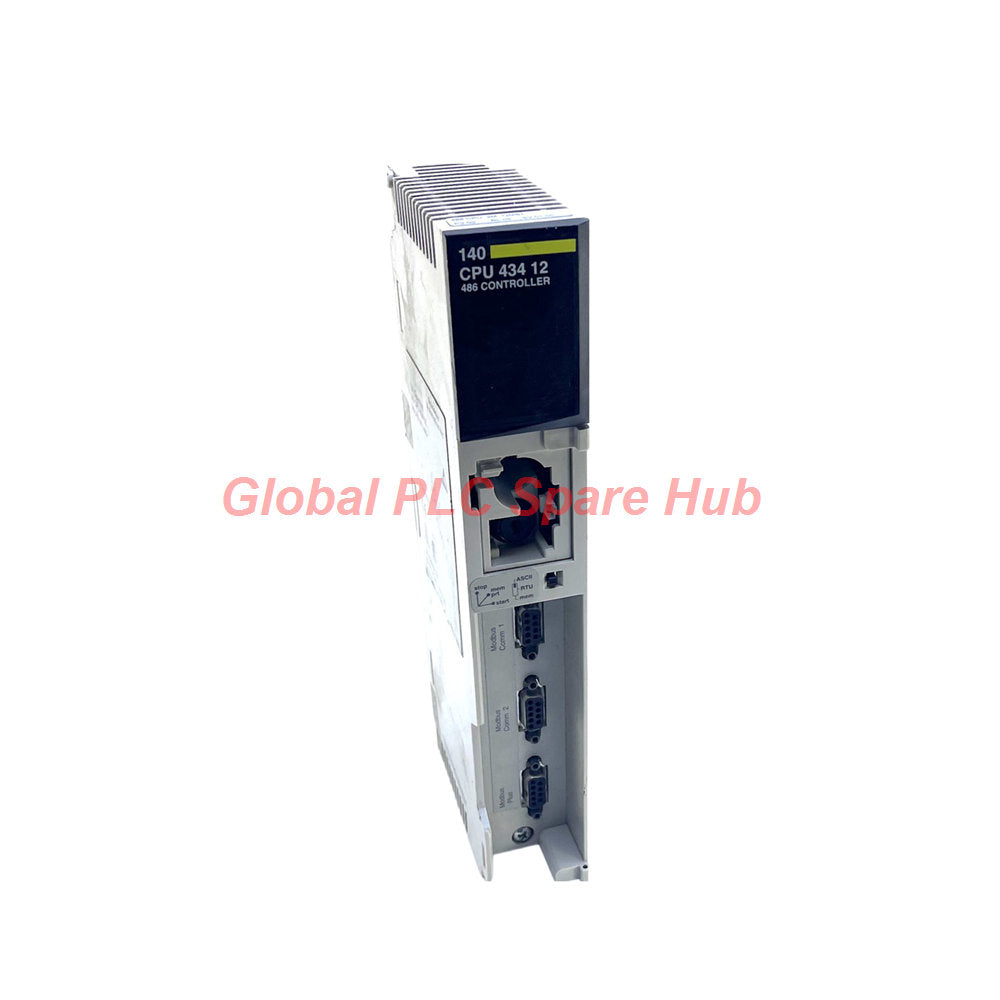

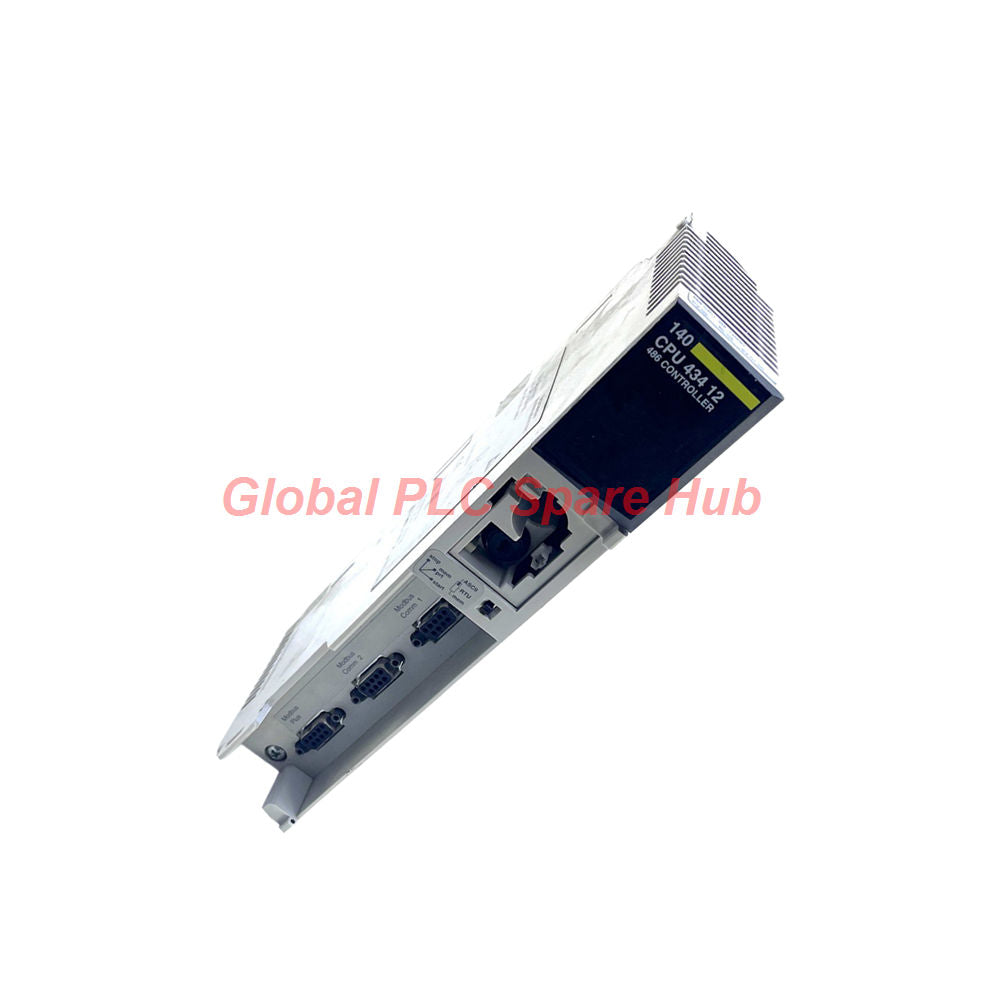

The Schneider Electric 140CPU43412 is a central processing unit (CPU) module in the Modicon Quantum programmable automation controller family. Its listed hardware configuration includes a 486-class processor and 2 MB of SRAM for executing control logic and managing application data.

For control-system engineers, replacement selection should focus on the existing Quantum rack configuration, controller compatibility, application memory requirements, communication interfaces, and operating conditions. The supplied specifications list two Modbus connections, a 400 mA bus-current requirement, and 5 W power consumption. Confirm the exact hardware and communication details against the installed system documentation before ordering.

01 | Hardware Configuration at a Glance

02 | Model Identification and Configuration Breakdown

Use the following identification structure to check the requested unit. The breakdown identifies the product family and module role; it does not assign undocumented meanings to individual digits.

• Manufacturer
  • Schneider Electric
• Product family
  • Modicon Quantum programmable automation controller platform
• Module category
  • Central processing unit (CPU)
• Ordering identifier
  • 140CPU43412 — complete model reference supplied for identification and quotation
• Pre-order configuration checks
  • Verify the complete model number on the installed module label.
  • Confirm the controller rack and backplane arrangement.
  • Check the installed application, firmware, programming software, and communication requirements.
  • Compare the communication ports and key-switch arrangement with the original hardware.

Important: The supplied information does not provide a validated suffix-code table for this model. Do not infer hardware revisions, firmware variants, certifications, or communication-interface options from individual digits without the manufacturer's documentation.

03 | Processing, Memory and Communication Roles

04 | Typical Equipment and Industrial Applications

• Process automation cabinets: Central control of supported I/O modules and process sequences within a compatible Quantum installation.
• Manufacturing lines: Coordination of machine sequences, interlocks, operating states, and production equipment where the existing control architecture supports this CPU.
• Water and wastewater systems: Controller-level processing for compatible pump, valve, and instrumentation control systems.
• Utility and infrastructure control: Integration of supported field I/O and communication devices into an established automation system.
• Legacy system maintenance: Replacement planning for an existing Modicon Quantum CPU when the rack, application, and associated hardware are compatible.

These examples describe potential application contexts, not universal compatibility. Confirm the installed system architecture and application requirements before using this module in a replacement or upgrade project.

05 | Installation and Commissioning Checklist

1. Record the existing configuration: Document the complete CPU model, rack layout, installed modules, communication wiring, and controller status before removal.
2. Back up the application: Where access is available, preserve the current program, configuration, communication parameters, and relevant maintenance records.
3. Check hardware compatibility: Verify the replacement against the rack, backplane, firmware, application, and programming-tool requirements.
4. Review power capacity: Use the documented current and power figures to check the rack power budget. Do not rely on the CPU's nominal consumption alone when sizing the complete system.
5. Inspect communication connections: Confirm connector type, cable condition, addressing, and the applicable Modbus configuration before restarting connected equipment.
6. Follow the approved shutdown procedure: Apply site lockout and electrical safety requirements. Do not remove or insert the CPU under power unless the manufacturer's documentation explicitly permits the operation.
7. Validate the restart: Check CPU status, application execution, I/O communication, alarms, and the expected machine sequence before returning equipment to service.

06 | Global PLC Spare HUB's Insight

When a Quantum controller develops a CPU-related fault, replacing the processor immediately is not always the best first step. The fault may also involve rack power, backplane connections, application integrity, communication settings, or another installed module.

• CPU fails to enter the expected operating state: Record the status indications and diagnostic messages. Check rack power, seating, configuration, and the documented startup procedure.
• Controller starts but field control is unavailable: Compare CPU status with I/O module status and application diagnostics. Check whether the program is executing and whether required I/O data is available.
• Modbus communication is unstable: Check the physical interface, cable and connector condition, device address, communication parameters, and network topology supported by the actual port.
• Fault appears after a CPU replacement: Compare the replacement model and revision with the original configuration. Review application compatibility, stored configuration, and any required transfer or initialization procedure.
• Intermittent system resets occur: Review power-supply stability, rack loading, connection integrity, and the system event history before concluding that the CPU is defective.

Maintenance recommendation: Preserve diagnostic logs and configuration backups before making changes. For a critical production system, establish a tested recovery plan and validate the replacement under the site's approved commissioning procedure.

07 | Compatibility and Replacement Guidance

The 140CPU43412 should be selected as a system component, not simply by matching the CPU label. Before ordering, compare the following items with the existing installation:

• Exact CPU part number and hardware revision.
• Modicon Quantum rack and backplane compatibility.
• Application and firmware requirements.
• Programming software and configuration-transfer requirements.
• Communication interfaces and connected-device settings.
• Power supply capacity and environmental conditions.

Do not assume that a CPU with a similar model number is a direct replacement. Confirm the approved migration path when the original controller, software version, or associated hardware differs from the proposed replacement.

08 | Supply, Warranty and Shipping

• Product: Schneider Electric 140CPU43412 Modicon Quantum CPU module.
• Condition: New and original, subject to order and stock confirmation.
• Warranty: 12 months, subject to the seller's written warranty terms.
• Dispatch: Target dispatch within 24–48 hours after order and stock confirmation, subject to processing requirements.
• Shipping methods: FedEx, UPS, and DHL, subject to destination and service availability.
• Quotation support: Provide the model number, required quantity, destination country, and existing controller details to help verify compatibility and shipping options.

09 | Frequently Asked Questions

Q1. What should I prepare before replacing a CPU in an operating production system?

Prepare a verified application backup, controller configuration, rack inventory, communication settings, and a documented recovery procedure. Arrange an approved maintenance window and confirm that the replacement can support the existing application before removing the original unit.

Q2. Will the existing control program automatically run on a replacement module?

Do not assume automatic transfer or execution. Program retention and startup behavior depend on the actual controller configuration and replacement procedure. Confirm how the application is stored, whether a backup is available, and which initialization or download steps the applicable manual requires.

Q3. How should I investigate communication failures after changing the CPU?

First compare the physical interface and wiring with the original installation. Then verify device addressing, communication parameters, connected-device availability, and application configuration. If the fault affects multiple devices, inspect shared communication paths before replacing individual field devices.

Q4. How can I reduce the risk of ordering an incompatible replacement?

Send the supplier a clear photograph of the module label, the complete part number, the rack or controller identification, and any available hardware revision details. Include the application and communication requirements. Request confirmation against the installed system rather than relying only on a similar product description.

Q5. Which details should I verify if the listed weight or key-switch description differs between suppliers?

Use the exact model label and the manufacturer's documentation as the reference. Ask the supplier to confirm the shipped unit's model, configuration, physical dimensions or weight if logistics depend on them, and the key switch's documented function. Resolve discrepancies before purchase instead of treating conflicting catalog entries as interchangeable specifications.
