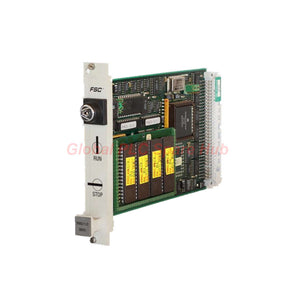

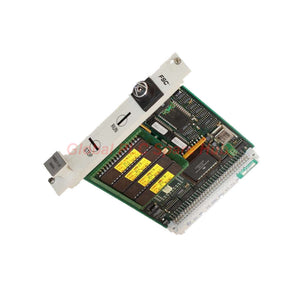

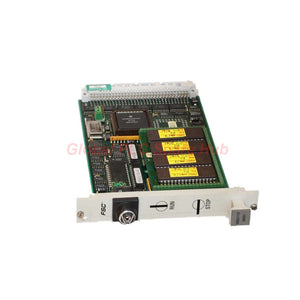

10002/1/2 Control Module Honeywell 8-Channel Solid-State Run Stop Unit

Product Engineering Architecture

• The Honeywell 10002/1/2 is a high-integrity Run-Stop Keyed Control Module designed for critical command signal management.
• It utilizes 8 independent solid-state source outputs to ensure stable, bounce-free switching for industrial start-stop logic.
• This module serves as a hardened interface between supervisory controllers and field-level actuators in 24 Vdc environments.

Global PLC Spare HUB's Insight

• The 10002/1/2 is a preferred choice for safety-conscious system integrators due to its "keyed" control logic architecture.
• Unlike mechanical relays, the solid-state design of the Honeywell 10002/1/2 eliminates contact wear and electrical arcing.
• This module significantly extends the Mean Time Between Failures (MTBF) in high-cycle automation loops.
• Our technical team highlights its short-circuit proof design as a critical buffer for protecting connected field loads.
• It is an essential spare part for maintaining the reliability of legacy start-stop safety circuits.

Technical Specification Matrix

• Brand: Honeywell
• Model: 10002/1/2
• Control Architecture: Run Stop Keyed Control Module
• Output Channels: 8 Independent Source Outputs
• Output Stage: 24 Vdc Solid-State
• Power Consumption: 25 mA @ 5 Vdc / 70 mA @ External 24 Vdc
• Max Output Current: 550 mA per channel
• Lamp Load Capacity: 120 mA maximum
• Voltage Drop: Less than 2.0 Vdc @ 500 mA load
• Off-State Current: Below 0.1 mA (Low leakage)
• Mechanical Size: 2.5 × 12.7 × 19.1 cm (1.0 × 5.0 × 7.5 inches)
• Net Weight: 0.7 kg

Configuration Hierarchy

• 10002/1/2 Control Platform
  • Logic Processing Layer: 5 Vdc Bus Interface
    • Keyed Control Logic Engine
      • 8-Channel Independent Command Gating
      • Output Stage: 24 Vdc Solid-State Source
        • Short-Circuit Proof Protection Circuitry
        • Low-Impedance High-Speed Switching

Real-Time Diagnostic & Safety Capabilities

• Fault Protection: Integrated circuitry provides a short-circuit proof design to prevent module burnout.
• Signal Integrity: Low off-state current (< 0.1 mA) prevents false triggering of sensitive downstream inputs.
• Operational Stability: Minimal internal voltage drop ensures consistent 24 Vdc signal levels over long distances.
• Visual Feedback: Compatible with Honeywell diagnostic racks for real-time channel status monitoring.

Compatible Equipment & Use Cases

• Primary control element for Honeywell Safety Manager and DCS systems.
• Ideal for mission-critical Start-Stop loops for industrial turbines and pumps.
• Commonly used in hardwired interlocking systems within the oil and gas sector.
• Suitable for driving remote industrial indicator panels and high-intensity status lamps.
• Engineered for high-reliability autorun sequences in continuous manufacturing.

Logistics & Warranty Performance

• Warranty Period: 12-month comprehensive industrial warranty on all 10002/1/2 units.
• Global Logistics: Expedited shipping provided via FedEx, UPS, and DHL.
• Dispatch Time: Orders are typically processed and shipped within 24-48 hours.
• Build Quality: Robust industrial-grade casing designed for standard rack mounting.

Professional FAQ & Selection Guide

• Question: What is the primary benefit of the keyed control logic in the 10002/1/2?
• Answer: It ensures prioritized command gating, preventing "Run" and "Stop" signals from overlapping and causing process instability.

• Question: Can the 10002/1/2 drive small DC relays?
• Answer: Yes, with a 550 mA capacity, it can easily drive most standard industrial relays used in interlock circuits.

• Question: Does this module require an external 24 Vdc power source?
• Answer: Yes, while logic is powered by the 5 Vdc bus, an external 24 Vdc source is required to drive the 8 field outputs.

• Question: How do I diagnose a channel failure on the 10002/1/2?
• Answer: Verify the output voltage at the terminal; if it is significantly lower than the input supply under a < 500 mA load, the solid-state junction may be degraded.

• Question: Selection Tip: When should I choose the 10002/1/2 over mechanical relay alternatives?
• Answer: Always choose the 10002/1/2 for safety-critical loops requiring high cycle speeds and zero contact maintenance.
