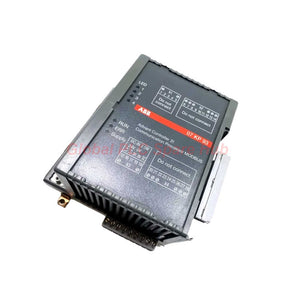

07KP93 Communication Module ABB GJR5253200R1161 RS232/RS485 Unit

Product Engineering Architecture

• The ABB 07KP93 (GJR5253200R1161) serves as a specialized communication processor for the Advant Controller 31 (AC31) ecosystem.
• It facilitates seamless integration between AC31 basic units and external hardware via the MODBUS RTU protocol.
• Featuring two independent serial interfaces, this module bridges the gap between field-level devices and supervisory control systems.

Global PLC Spare HUB's Insight

• The 07KP93 is a critical legacy component for maintaining the networking integrity of T200 and AC31 series controllers.
• Its primary value lies in the dual-port flexibility, allowing COM3 and COM4 to support both EIA RS-232 and RS-485 standards.
• The ABB 07KP93 is an essential spare for facilities still utilizing Modbus-based telemetry for process monitoring.
• Our technical team highlights that this module is built for long-term industrial reliability with a robust 0.58 kg construction.
• It is the preferred solution for adding isolated serial gateways to existing ABB automation segments.

Technical Specification Matrix

• Brand: ABB
• Model: 07KP93
• Product ID: GJR5253200R1161
• Protocol Support: Modbus RTU (Software 907 KP 93 required)
• Serial Ports: 2 Ports (COM3 and COM4)
• Physical Interface: EIA RS-232 or EIA RS-485 switchable
• Supply Voltage: 24 V DC (170 mA to 210 mA consumption)
• Power Dissipation: Typ. 2.5 W (Maximum 5 W)
• Electrical Isolation: Full isolation between ports and system logic
• Wiring Connection: Removable terminal blocks (max 2.5 mm2)
• Housing Dimensions: 140 mm x 120 mm x 85 mm

Configuration Hierarchy

• 07KP93 Communication Processor
  • Parallel Bus Interface: Direct AC31 CPU Coupling
    • Serial Interface COM3
      • RS-232 / RS-485 Physical Selection
      • Modbus Master/Slave Logic Selection
    • Serial Interface COM4
      • RS-232 / RS-485 Physical Selection
      • Modbus Master/Slave Logic Selection

Diagnostic & Monitoring Capability

• RUN LED: Green indicator confirming the communication processor is operational.
• ERR LED: Red indicator signaling internal hardware faults or configuration errors.
• Supply LED: Green indicator for verification of 24V DC input power status.
• LED1-LED4: Yellow status lamps for granular diagnosis of serial port data activity.
• Reversed Polarity Protection: Integrated safety to prevent module damage during terminal wiring.

Compatible Equipment & Use Cases

• Directly compatible with all ABB Advant Controller 31 (AC31) Basic Units.
• Standard gateway for ABB Procontic T200 industrial controllers.
• Ideal for connecting Modbus RTU enabled sensors, HMIs, and VFDs to a central PLC.
• Suitable for redundant communication paths in localized automation segments.
• Commonly used in legacy system maintenance for power distribution and water treatment plants.

Logistics & Warranty Performance

• Warranty Period: 12-month comprehensive industrial warranty on all 07KP93 units.
• Express Delivery: Worldwide shipping provided by FedEx, UPS, and DHL.
• Handling Time: Guaranteed dispatch within 24-48 hours of order confirmation.
• Package Contents: 1 x 07KP93 Module, 1 x 5-pole terminal block, and earth connection cable.

Professional FAQ & Selection Guide

• Question: Can I operate both COM3 and COM4 as Modbus Masters simultaneously on the 07KP93?
• Answer: No, Master-Master operation is not supported; the ports must be configured as Master/Slave or Slave/Slave.

• Question: Does this module require a separate software license for Modbus?
• Answer: The module uses the 907 KP 93 software package for programming and configuring the Modbus connection elements.

• Question: What is the maximum cable cross-section for the terminal blocks?
• Answer: The removable terminal blocks support a maximum conductor cross-section of 2.5 mm2.

• Question: How does the electrical isolation benefit my long-distance RS-485 runs?
• Answer: It isolates the 07KP93 system logic from common-mode voltages and transients on the field wiring.

• Question: Selection Tip: When should I choose the 07KP93 instead of standard CPU ports?
• Answer: Select the 07KP93 when your application requires more than one Modbus network or isolation from field interference.
