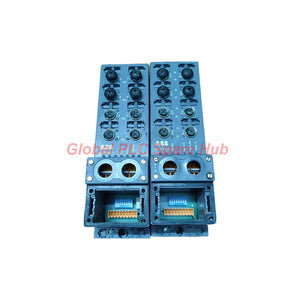

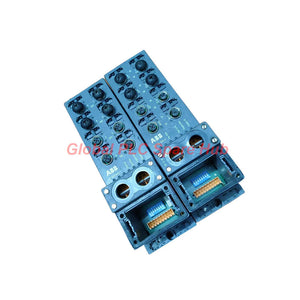

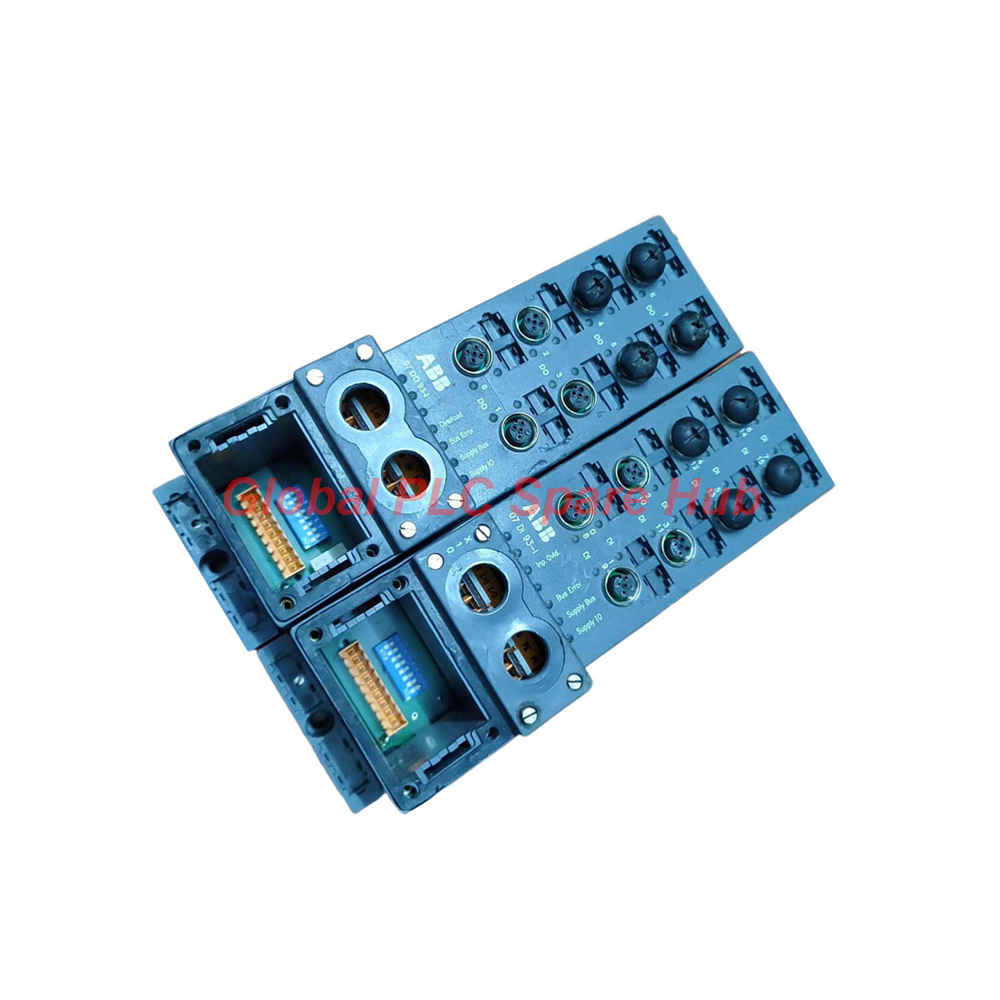

07 DI 93-I ABB Advant Controller 31 16-Channel Digital Input Module

Engineering Precision Overview

The 07 DI 93-I is a high-durability, remote digital input module from the ABB Advant Controller 31 (CS31) product ecosystem. Engineered for harsh industrial environments, this unit features an IP67-rated enclosure, providing complete protection against dust and water immersion. The module supports 16 independent input channels, accommodating 2-pole or 3-pole sensor configurations (switches, initiators). Its integrated short-circuit/overload-proof supply voltage ensures field reliability, while the electrically isolated CS31 system bus connection prevents ground-loop interference, maintaining high-integrity communication across distributed automation networks.

Technical Performance Matrix

• Brand / Series: ABB / Advant Controller 31 (CS31)
• Model Number: 07 DI 93-I
• Input Configuration: 16 Channels (M12 5-pole connectors)
• Signal Voltage: 11-30V DC (Signal 1), 0-5V DC (Signal 0)
• Bus Interface: EIA RS-485 (CS31 System Bus)
• Protection Rating: IP67 (Dust-tight, immersion-resistant)
• Sensor Supply: Short-circuit/overload protected (PTC, IK > 1.6 A)
• Response Time: ~1ms input signal delay
• Dimensions: 220 x 63 x 70.5 mm
• Weight: ~470g

Global PLC Spare HUB's Insight

The 07 DI 93-I is a workhorse for decentralized automation. At Global PLC Spare HUB, we highlight its modularity; the 8 independent M12 connectors allow individual sensor replacement without interrupting the entire bus segment. This is critical for high-uptime manufacturing lines where troubleshooting time must be minimized. It effectively bridges the gap between field-mounted proximity sensors and the centralized ABB control logic, offering superior signal noise immunity compared to standard cabinet-mounted I/O.

Diagnostics and Application Suitability

• Diagnostic Capability: On-board LEDs provide real-time monitoring of Bus Error, Input Overload, and power supply health (Bus/IO).
• Application Suitability: Ideal for decentralized skid mounting, conveyor tracking systems, and mobile machine automation where exposure to liquids or contaminants is likely.
• Ease of Maintenance: The loop-through CS31 bus architecture and pluggable M12 connectors significantly reduce cable clutter and installation complexity.

Logistics and Quality Assurance

• Shipping: Expedited dispatch via FedEx, UPS, or DHL within 24-48 hours.
• Warranty: 12-month standard manufacturer warranty for all industrial applications.
• Packaging: Industrial-grade secure packaging to ensure integrity during transit.

Expert Professional FAQ

Why use the M12 connector approach for this module?
The M12 interface provides a rugged, vibration-proof connection that meets IP67 standards, eliminating the need for complex terminal junction boxes in the field.

How do I troubleshoot an "Input Overload" LED indicator?
This typically indicates a short circuit on the sensor supply line. Disconnect the sensors one by one until the red LED clears to isolate the faulty field device.

Can I extend the CS31 bus cable length across a large factory floor?
The CS31 bus utilizes RS-485 signaling; ensure proper bus termination and use shielded, twisted-pair cable to maintain communication stability over long distances.

What is the advantage of the 2-pole/3-pole sensor compatibility?
It provides universal hardware flexibility, allowing you to interface with both simple mechanical contacts and active electronic proximity switches without needing additional signal conditioners.

Selection Guide: When should I choose the 07 DI 93-I over cabinet-mounted I/O?
Choose this module when your sensors are dispersed at significant distances from your main control panel; mounting this unit locally in the field reduces wiring costs and voltage drop significantly.
