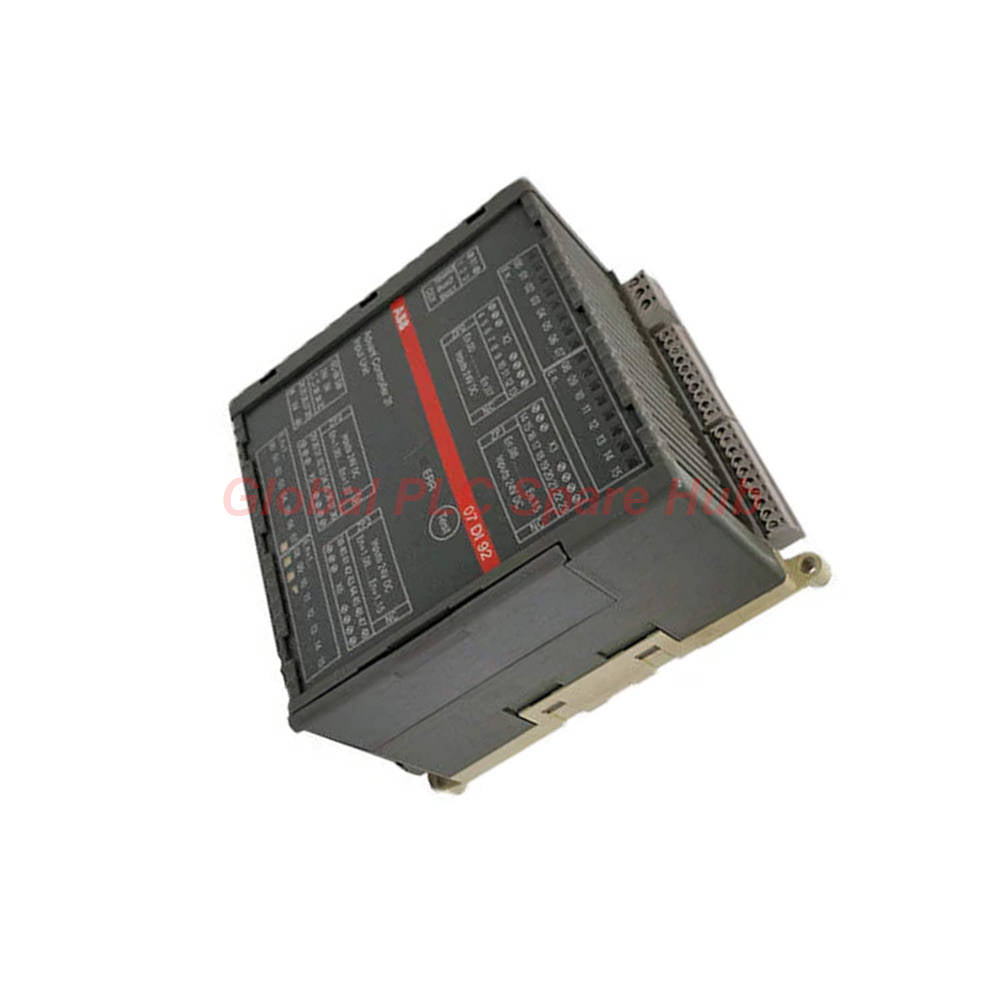

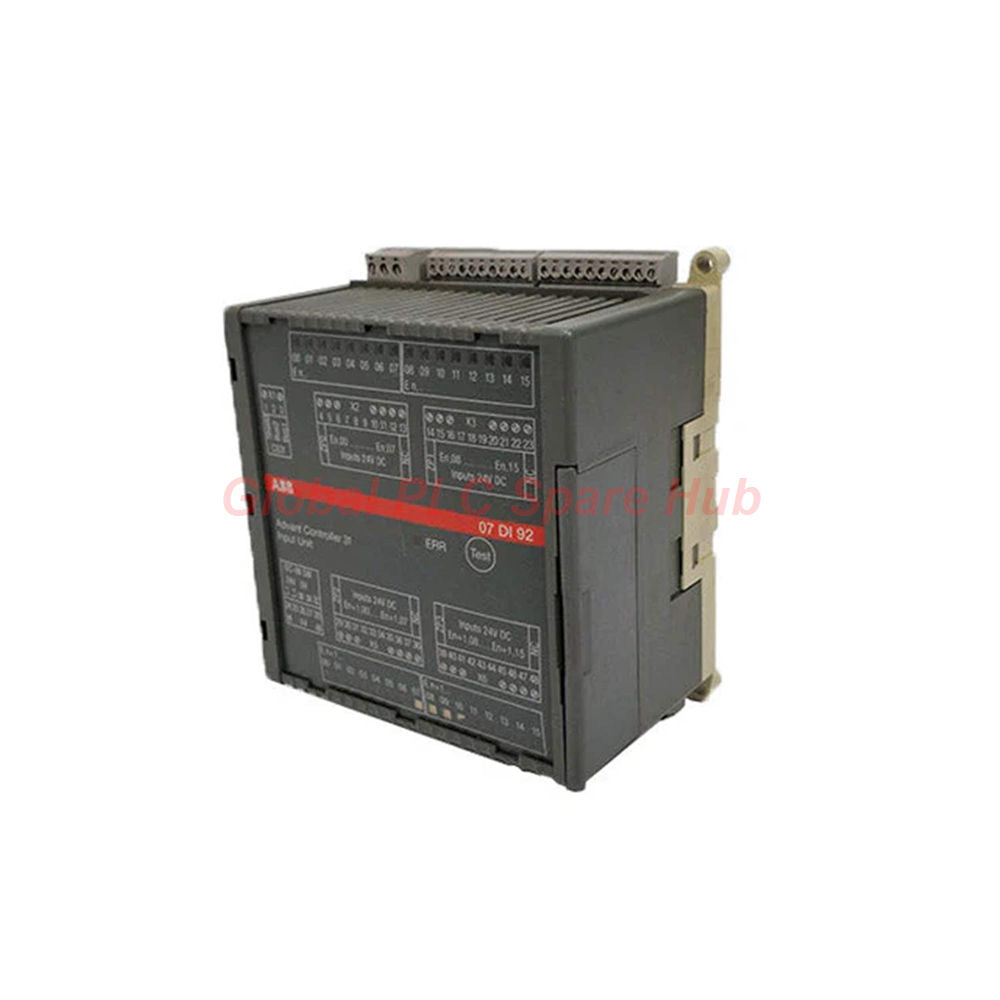

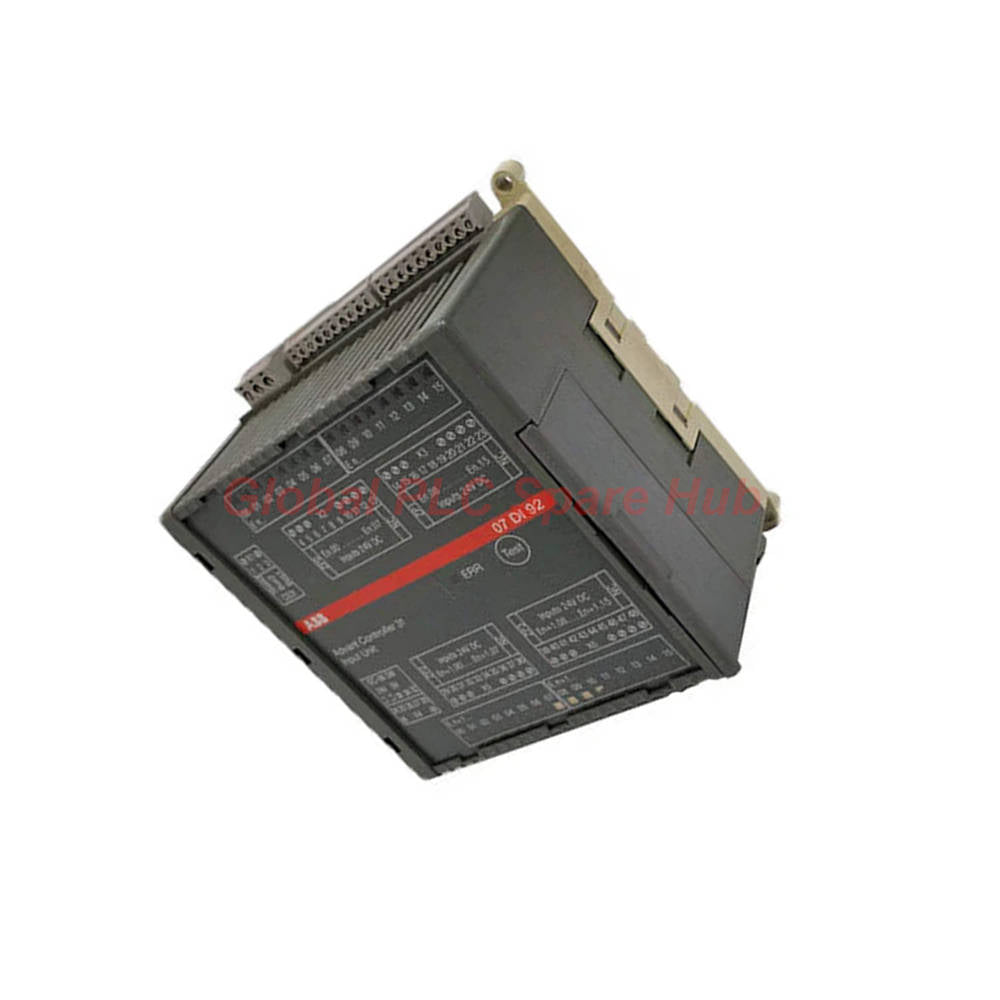

07 DI 92 ABB Digital Input Module CS31 System 07DI92 Original Stock

Product Overview

• The 07 DI 92 is a high-density remote input module engineered for the ABB Advant Controller 31 (AC31) series.
• It serves as a decentralized terminal on the CS31 system bus, offering 32 robust digital inputs.
• This module is designed for engineers who require reliable signal acquisition with galvanic isolation across multiple input groups.

Technical Engineering Specifications

• Brand: ABB
• Model Identification: 07 DI 92
• Order Number: GJR5 2524 00 R0101
• Communication Interface: CS31 System Bus (EIA RS-485 standard).
• Input Capacity: 32 Channels, divided into 4 isolated groups (8 channels per group).
• Nominal Signal Voltage: 24 V DC.
• Threshold Levels: 0 Signal (-30 V to +5 V) | 1 Signal (+13 V to +30 V).
• Isolation Integrity: Group-to-group isolation and CS31 bus-to-logic isolation.
• Input Propagation Delay: Typical 7 ms hardware filtering.
• Power Consumption: Maximum 0.15 A (internal unit logic).
• Thermal Management: 0...55 °C operating range with natural convection.
• Physical Footprint: 120mm x 140mm x 85mm.

CS31 Configuration Breakdown

• System Bus Layer
  • RS-485 Physical Layer: Electrically isolated from supply and I/O circuits.
  • Address Allocation: Occupies two digital addresses on the CS31 bus.
  • Hardware Setting: Address selection via coding switch located under the side cover.

Global PLC Spare HUB's Insight

• The 07 DI 92 is a legacy powerhouse for ABB CS31 networks and Advant Controller 31 systems.
• Unlike integrated I/O, this remote module excels in large-scale cabinet distributions where cable reduction is paramount.
• Its 4-group electrical isolation (ZP0-ZP3) provides a critical safety buffer for your control logic.
• We recommend this module for systems requiring stable, filtered 24V signal processing in harsh zones.
• The 07 DI 92 remains a top choice for retrofitting legacy industrial infrastructure.

Diagnostic Capabilities & Display

• Signal Monitoring: 32 green LEDs provide real-time status of every input channel.
• System Fault Analysis: A dedicated red LED indicates bus communication or hardware errors.
• Manual Verification: Integrated "Test" button for rapid logic circuit debugging.
• Polarity Guard: Built-in protection against incorrect supply voltage wiring.

Typical Application & Equipment Compatibility

• Primary Compatibility: ABB Advant Controller 31 (AC31) and legacy CS31 bus masters.
• Machine Automation: Interfacing with limit switches, proximity sensors, and push-buttons.
• Infrastructure: Distributed control in HVAC, water treatment, and conveyor systems.
• Refurbishment: Direct replacement for legacy GJR5-series modules in existing racks.

Logistics & Warranty Terms

• Quality Guarantee: 12-month comprehensive warranty on all functional components.
• Packaging List: 1 x 07 DI 92 Module, including all required removable screw terminals.
• Dispatch Speed: Orders processed and shipped within 24-48 hours.
• Express Delivery: Global priority shipping available via FedEx, UPS, and DHL.

Professional FAQ & Selection Guide

• How many addresses does the 07 DI 92 consume on the CS31 bus?
• The module occupies two consecutive digital addresses. Your master controller must account for this dual-address allocation.
• Can I mix different reference potentials between the input groups?
• Yes, because the 4 groups are electrically isolated, you can use separate reference potentials (ZP0 to ZP3).
• What is the significance of the 7 ms input signal delay?
• This is a hardware filter designed to eliminate contact bounce from mechanical switches for stable logic transitions.
• Is there a specific mounting orientation required for optimal cooling?
• The module must be mounted vertically on a DIN rail to allow for proper natural convection.
• Selection Guide: When should I choose the 07 DI 92 over an 07 DO module?
• Select the 07 DI 92 strictly for signal acquisition (inputs). Output control requires a DO module.
