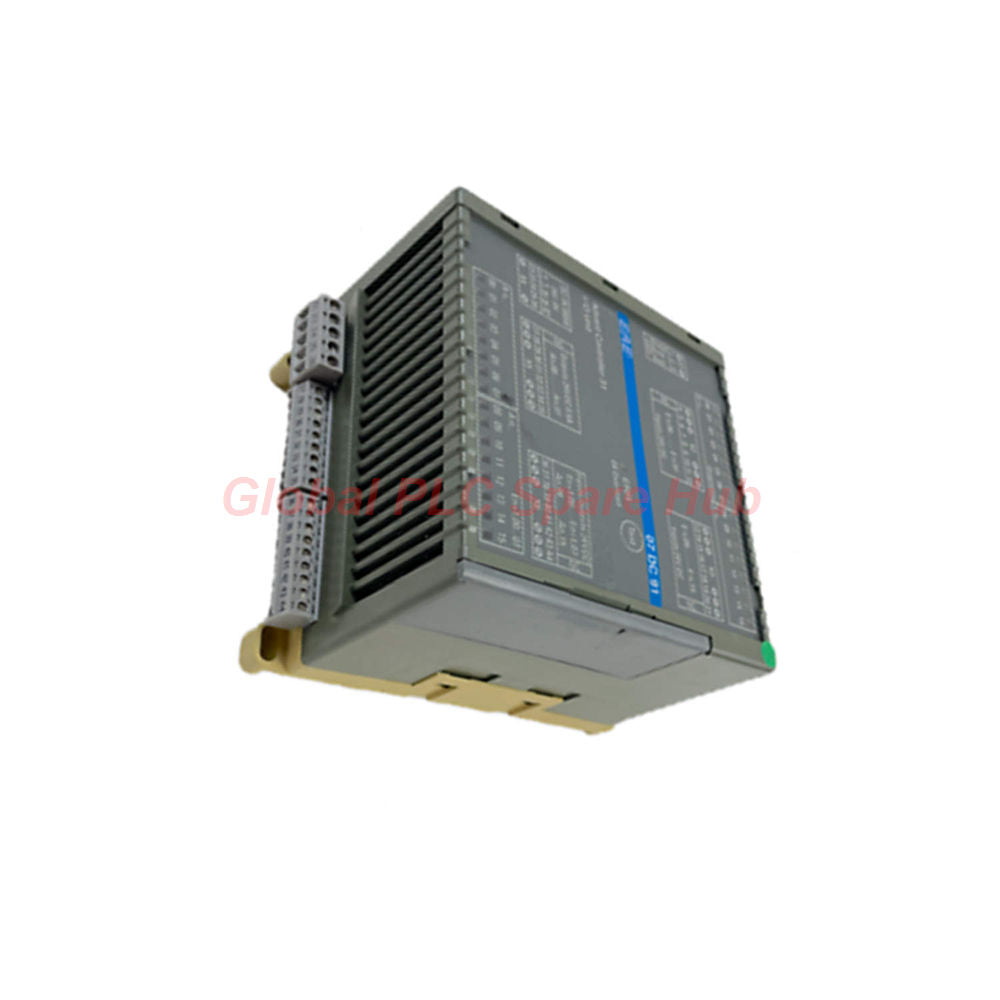

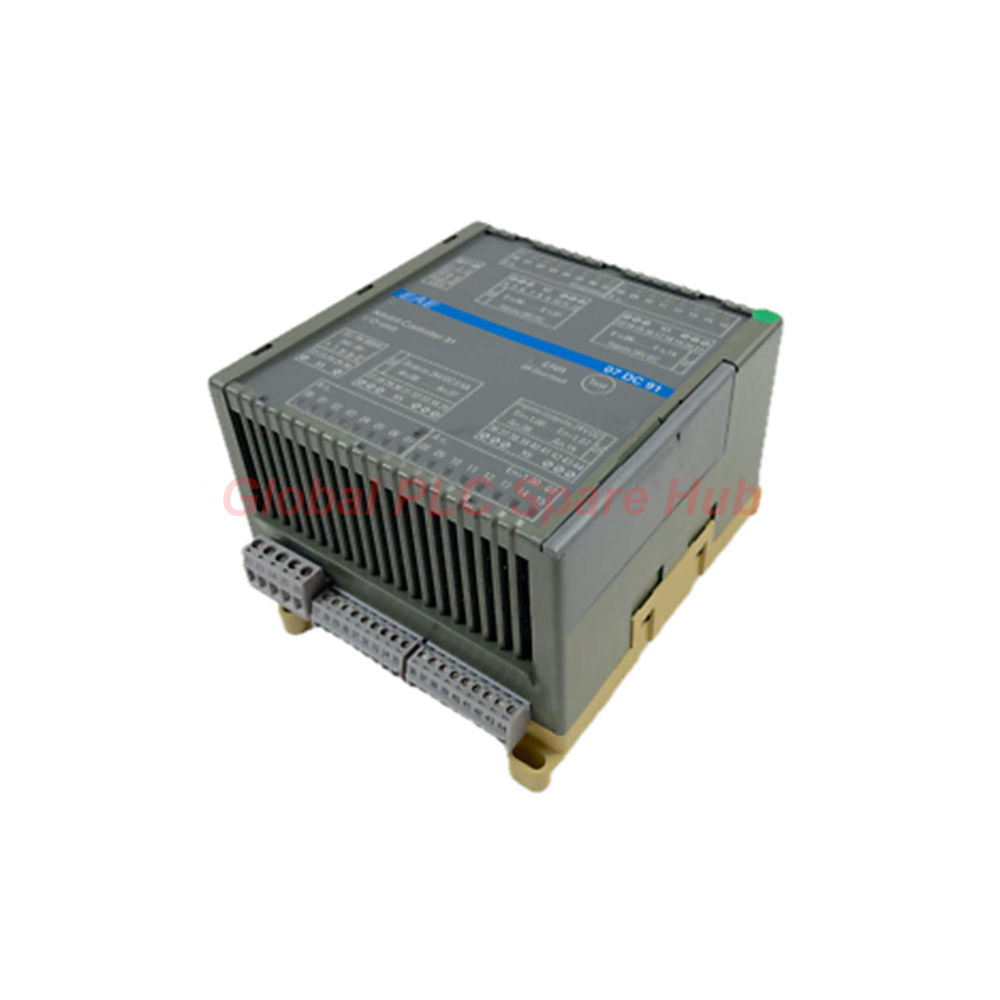

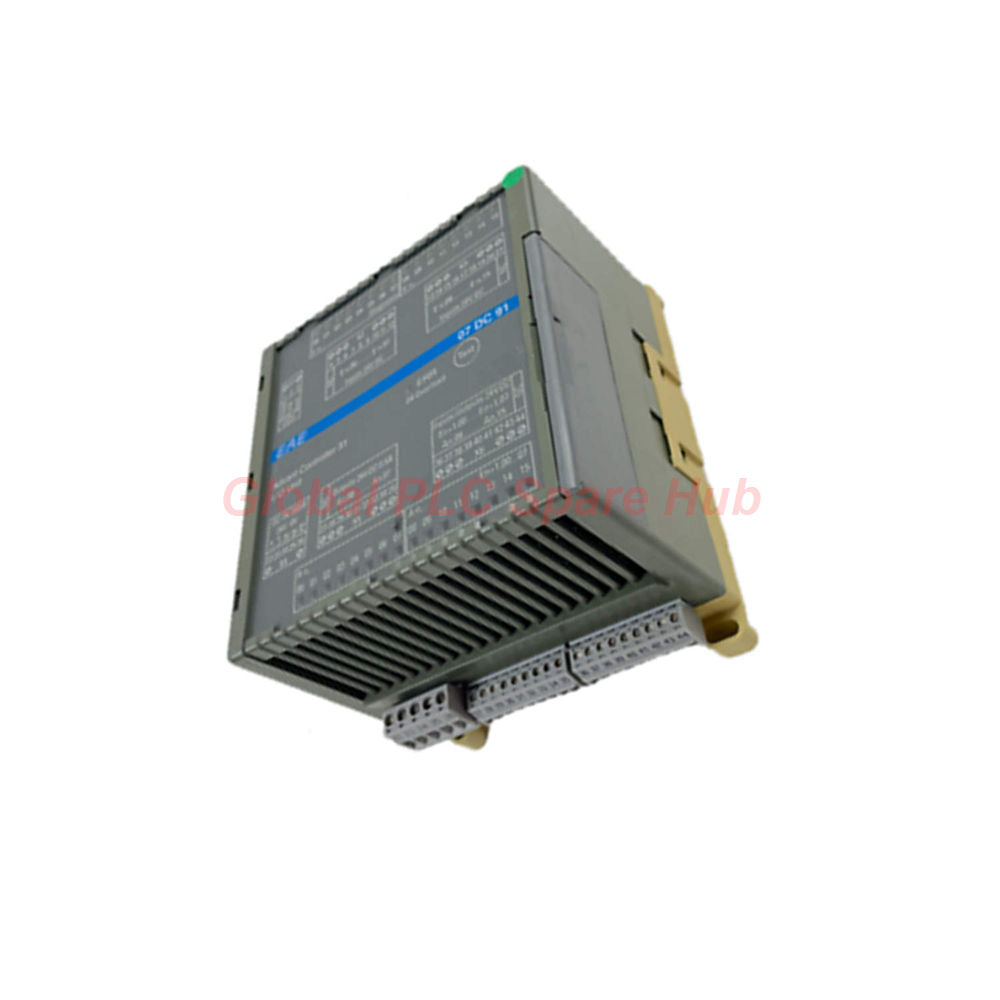

07 DC 91 Digital Input Output ABB 07DC91 32-Channel Transistor Module

Product Engineering Architecture

• The ABB 07 DC 91 (GJR5251400R0202) is a high-density remote I/O node designed for the CS31 system bus.
• This 32-channel powerhouse offers a hybrid digital interface including 16 fixed inputs and 8 short-circuit proof transistor outputs.
• It features 8 unique "universal" channels that can be addressed as inputs, outputs, or re-readable feedback loops.

Global PLC Spare HUB's Insight

• The 07 DC 91 is a staple in industrial maintenance due to its highly versatile "Configurable Logic" bank.
• By allowing 8 channels to fluctuate between functions via software, it reduces the need for multiple module variants in your inventory.
• Our engineers highlight the ABB 07 DC 91 for its "smart recovery" logic, which automatically resets outputs after a fault.
• It is the ultimate "Swiss Army Knife" for legacy Advant Controller and AC31 system expansions.
• This module effectively bridges the gap between high-density sensing and precision transistor control.

Technical Specification Matrix

• Brand: ABB
• Model: 07 DC 91
• Interface Type: CS31 System Bus (Remote Module)
• Total Digital Channels: 32 Channels
• Digital Inputs: 16 Fixed (24 V DC)
• Transistor Outputs: 8 Fixed (0.5 A rated load)
• Configurable I/O: 8 Universal Channels
• Input Delay: Typ. 7 ms
• Output Protection: Short-circuit and Overload protected (I > 0.7 A)
• Total Load Capacity: Max 8.0 A total current
• Power Consumption: 0.15 A (No load) to 10 W (Full load)
• Mounting: DIN rail (15 mm) or M4 screw mounting

Configuration Hierarchy

• 07 DC 91 Remote Node
  • CS31 Bus Communication Layer
    • Fixed Logic Bank
      • 16 Digital Inputs (En,00...En,15)
      • 8 Transistor Outputs (An,00...An,07)
    • Universal Configurable Bank
      • 8 Bi-directional Channels (En+1,00...En+1,07 / An,08...An,15)
      • Integrated Overload Protection and Diagnosis

Real-Time Diagnostic & Safety Capabilities

• Signal Visualization: 16 Green LEDs for inputs and 16 Yellow LEDs for outputs/configurable channels.
• Fault Identification: Dedicated Red Error LED for rapid bus and hardware diagnostics.
• Automatic Recovery: The module automatically reactivates outputs after a short-circuit is corrected.
• Inductive Load Handling: Internal varistors protect against back-EMF during high-frequency switching.
• Address Settings: Coding switch located under the right slide cover for easy bus node identification.

Compatible Equipment & Use Cases

• Standard remote I/O expansion for ABB Advant Controller 31 systems.
• Ideal for conveyor systems and high-speed packaging machinery.
• Retrofitting project where high I/O density is required within tight cabinet spaces.
• Applications requiring real-time re-readable output confirmation for enhanced safety logic.
• Distributed control for remote pumping stations and HVAC units via CS31 bus.

Logistics & Warranty Performance

• Warranty Period: 12-month comprehensive industrial warranty on all 07 DC 91 units.
• Express Shipping: Global logistics provided via FedEx, UPS, and DHL.
• Lead Time: Most orders are processed and ready for shipment within 24-48 hours.
• Package Contents: 1 x 07 DC 91 Module and complete set of removable connectors.

Professional FAQ & Selection Guide

• Question: How is a channel defined as an input or output on the 07 DC 91?
• Answer: This is managed by the user program; writing data to the channel enables output mode, while reading data sets it as an input.

• Question: What is the maximum switching frequency for inductive loads?
• Answer: For inductive loads, the switching frequency should not exceed 0.5 Hz to prevent overheating the internal varistors.

• Question: Does the 07 DC 91 provide isolation from the bus?
• Answer: Yes, the CS31 system bus connection is fully electrically isolated from the internal 24V signal logic.

• Question: Can I use this module to replace two smaller 16-channel modules?
• Answer: Yes, the 32-channel density of the 07 DC 91 is designed to save significant DIN rail space.

• Question: Selection Tip: When is the 07 DC 91 better than a standard digital-only module?
• Answer: Choose the 07 DC 91 when your field configuration needs to be flexible or if you require "feedback" monitoring of your output states.
