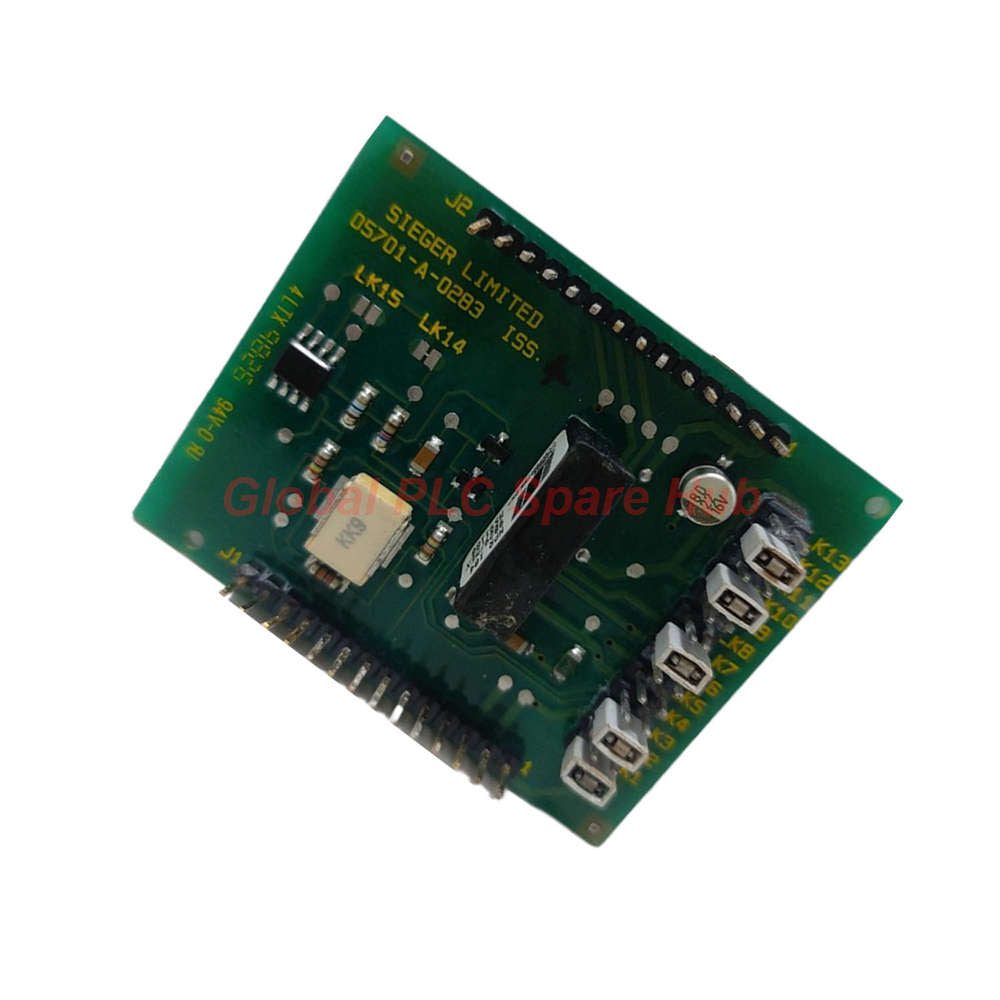

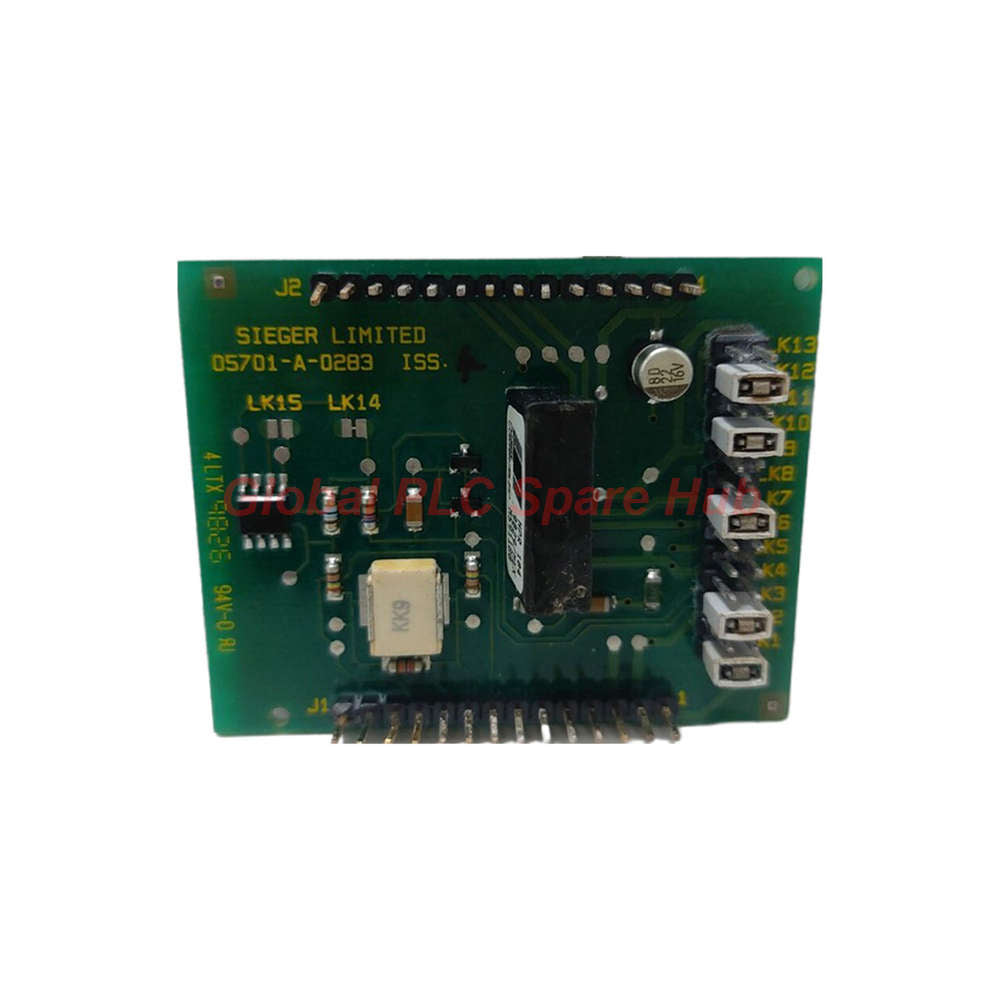

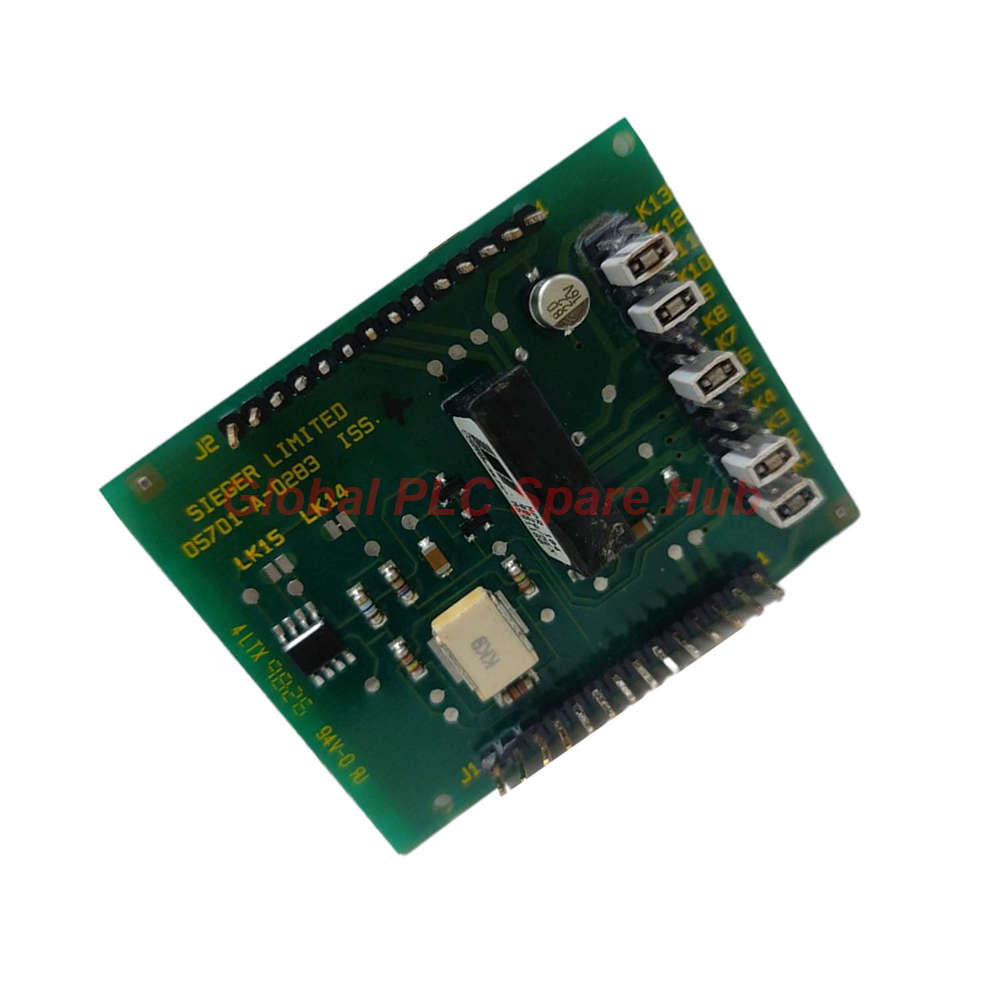

05701-A-0283 Honeywell Sensor Drive Module 4-20mA New

Product Overview

• The 05701-A-0283 is the primary signal conditioning interface for the Honeywell System 57 platform.
• It manages incoming catalytic or 4-20mA signals and provides regulated power for stable field detection.
• This module scales raw sensor data into standardized outputs for direct channel card processing.
• Refer to the System 57 handbook for specific channel card mounting and bridge calibration procedures.
• Factory-fitted design allows for seamless "plug-and-play" integration onto the control backplane.

Technical Engineering Specifications

• Brand: Honeywell
• Model Identification: 05701-A-0283
• Module Type: Sensor Drive Module (Signal Conditioning).
• Signal Compatibility: Supports both 4-20mA loops and Catalytic bead sensors.
• Modbus Protocol: RTU Mode supporting functions 02, 03, 04, 06, and 16.
• Isolation: 50V relative to system 0V to prevent ground loop interference.
• Data Speed: Asynchronous Serial Data up to 19200 baud.
• Environmental: -5°C to +55°C operating range; 0-90% RH (non-condensing).
• EMC Standards: EN50081 and EN50082 Generic Emission/Immunity compliance.
• Weight: Lightweight 30g card for high-density rack mounting.

Interface Configuration Breakdown

• Serial Communication Architecture
  • RS485/422 Highway: Supports Single or Dual (Primary/Secondary) redundant highways.
  • Capacity: Maximum of 31 nodes on RS485 or 10 nodes on RS422.
  • Transmission Distance: Reliable data reach up to 1200m (3900ft).
  • RS232 Logic: Local diagnostic interface for distances up to 15m.

Global PLC Spare HUB's Insight

• The 05701-A-0283 is a mechanical necessity for ensuring signal integrity in gas detection racks.
• Its thermal shutdown protection acts as a critical safety layer, preventing secondary card failure.
• Engineering teams value the module for its precise scaling circuitry, reducing calibration time.
• This module is the standard choice for System 57 users needing to integrate 4-20mA field transmitters.
• Reliable performance in high EMI/RFI environments common in industrial plants.

Diagnostic & Protection Capabilities

• Thermal Shutdown: Integrated protection automatically engages during over-temperature events.
• Signal Acquisition: High-sensitivity circuitry captures ±200mV thresholds for RS485.
• Hysteresis Control: Typical 20mV (RS485) and 500mV (RS232) to prevent signal jitter.
• Power Guard: Optimized 1.5W maximum consumption to maintain rack thermal balance.

Logistics & Warranty Terms

• Quality Assurance: Includes a 12-month comprehensive warranty on all units.
• Shipping Timeline: Guaranteed dispatch from our facility within 24-48 hours.
• Carrier Services: Worldwide express shipping via FedEx, UPS, or DHL.
• Field Wiring: Compatible with 2.5mm² (14 AWG) terminals located on the DC input card.

Professional FAQ & Selection Guide

• How do I choose between RS485 and RS232 modes?
• Use RS485 for long-distance multi-drop networking; use RS232 only for local PC diagnostic connections.
• Does the module provide power to the gas sensor directly?
• Yes, it generates the specific voltages and currents required to drive the field sensor.
• What is the maximum data rate supported by this card?
• The 05701-A-0283 supports baud rates up to 19.2k bits per second.
• Is the module protected against electrical transients?
• Yes, it features 50V isolation and meets European EMC immunity standards for industrial zones.
• Selection Guide: Can I use this with other gas control systems?
• No, this module is specifically designed for the Honeywell System 57 and plugs directly into its channel cards.
