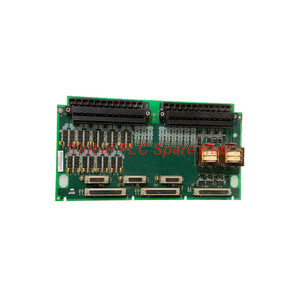

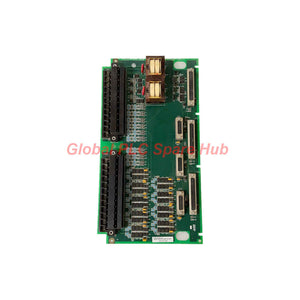

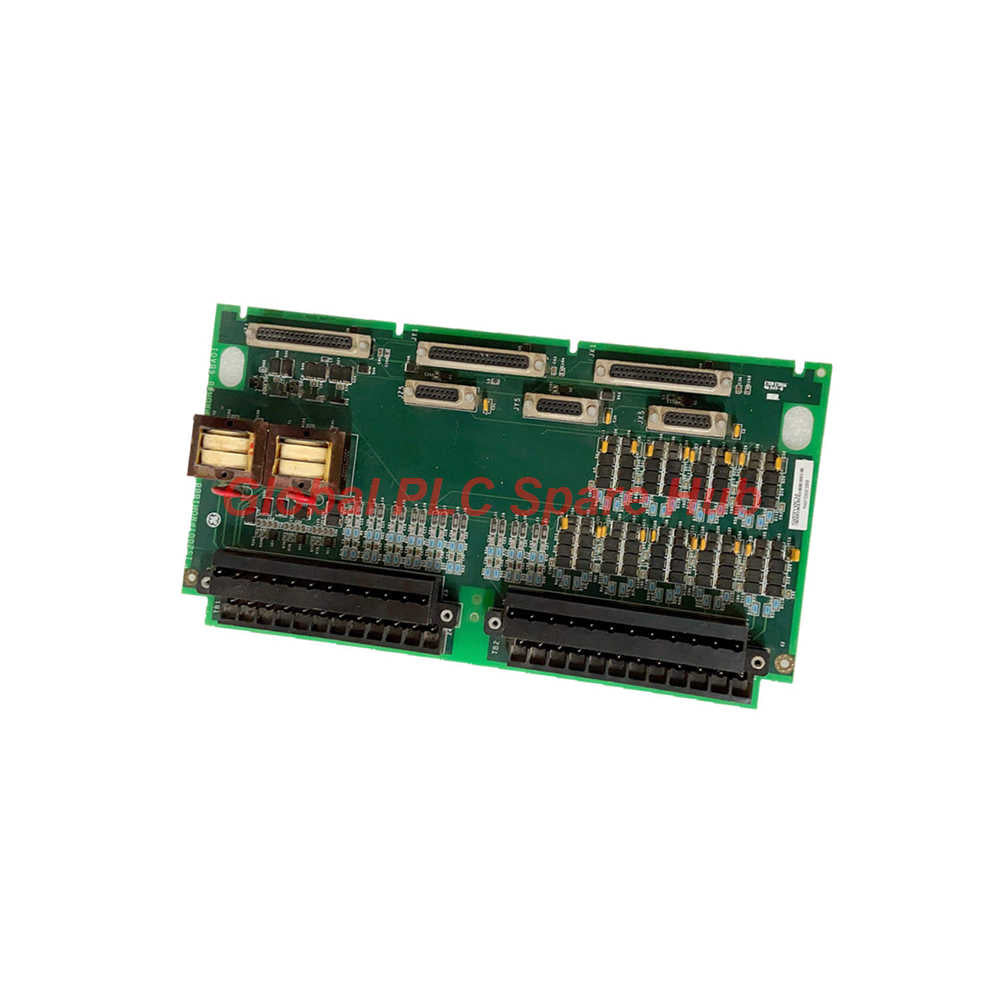

IS200TPROH1C GE Mark VIe Emergency Protection Terminal Board

Manufacturer: GE
Product No.: IS200TPROH1C
Condition： En stock
Product Type: Terminal Board
Product Origin: USA
Payment: T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months

Cantidad

Selected quantity: 1

Tiempo estimado de entrega: 12-26 días (Internacional), 3-6 días (Estados Unidos).

Devolución dentro de los 30 días siguientes a la compra. Los aranceles e impuestos no son reembolsables.

Pago Seguro Garantizado

GE IS200TPROH1C Mark VIe Emergency Protection Terminal Board

The IS200TPROH1C is a mission-critical Emergency Protection (TPRO) terminal board engineered for the GE Mark VIe control architecture. Designed to host three PPRO I/O packs, this module excels in complex turbine protection, featuring dual potential transformers for voltage monitoring and high-speed signal conditioning. Its architecture is purpose-built for TMR (Triple Modular Redundant) systems, ensuring fault-tolerant performance and rigorous safety compliance in heavy-duty power generation environments.

Global PLC Spare HUB Insight

Engineers and technicians rely on the IS200TPROH1C for its sophisticated signal processing and hardware-level diagnostic integration. Unlike standard terminal blocks, this board acts as an active component of the control system, validating electronic IDs during boot-up to ensure absolute configuration integrity. It is the premier choice for upgrading aging turbine control loops where speed accuracy and emergency trip reliability are the highest priorities.

Application Focus: Gas and steam turbine speed monitoring, TMR safety loops, and generator excitation protection.

Technical Specifications

Manufacturer: General Electric (GE)
Part Number: IS200TPROH1C
Series: Mark VIe
Input Frequency Range: 2 Hz to 20,000 Hz (Magnetic Speed Pickups)
Pulse Rate Accuracy: 0.05% of reading
Operating Temperature: 30°C to 65°C
Dimensions: 15.9 cm x 17.8 cm
Technology: High-density surface-mount circuitry

Operational & Diagnostic Features

Hardware Validation: PPRO packs perform an automated scan of electronic IDs to verify correct board-to-software matching upon power initiation.
Continuity Assurance: P24 output remains active via the ORing of R, S, and T I/O packs, even if individual packs are offline.
I/O Flexibility: Dedicated terminals for 4-20 mA inputs and speed signals, with centralized MARET return paths.

Installation & Safety Guidelines

Mounting: Compatible with standard DIN-rail sheet metal carriers or direct panel-mount assemblies.
Wiring: Recommended use of #18 AWG wiring for stable signal transmission.
Jumper Configuration: Set JPX, JPY, and JPZ to (1, 4, 7, 10) for thermocouples; set to (3, 6, 9, 12) for 4-20 mA inputs.
Voltage Warning: In 240V AC applications, ensure no cross-connection between 125V DC and AC lines to prevent MOV damage due to peak voltage surges.

Shipping & Quality Guarantee

Dispatch: Rapid order processing with 24-48 hour lead times.
Logistics: Worldwide shipping options via FedEx, UPS, and DHL.
Warranty: Comprehensive 12-month performance guarantee on all units.

Expert FAQ

Q: What is the primary role of the MARET terminal on the IS200TPROH1C?
A: Terminal 8 (MARET) acts as the unified return path for both the P24 power output and the 4-20 mA input channels, ensuring a clean ground reference for sensitive signals.

Q: How does this board differ from the TPROH2C model?
A: While they share identical protection logic, the H1C utilizes a fixed barrier terminal block, whereas the H2C is equipped with pluggable, removable Euro-Block connectors for easier field wiring.

Q: Can I use this in a non-TMR (simplex) system?
A: Yes, the IS200TPROH1C is fully compatible with both simplex and TMR configurations, though TMR is recommended for maximum fault tolerance.

Q: Why does the system refuse to boot after replacing the board?
A: The PPRO pack requires a successful electronic ID scan. Ensure the new board is correctly seated and that the backup trip relay terminal board ID is recognized by your current software configuration.

Q: What is the best practice for wiring speed signals to avoid noise?
A: Ensure your signal cables are shielded and that the shield drain is properly terminated to the cabinet chassis ground near the terminal block to prevent high-frequency interference.

Selection Guide

Verify System Needs: Confirm your I/O pack count; ensure you have three PPRO packs for TMR setups.
Check Wiring: Choose the H1C if your site standard prefers fixed barrier terminals.
Software Sync: Verify your Mark VIe software revision supports the IS200TPROH1C electronic ID before installation.
