TCSESB083F2CU0 Schneider Electric ConneXium Switch Ethernet TCP/IP Module

Global PLC Spare HUB's Insight

Industrial networking demands robust backbone devices capable of handling severe electromagnetic interference while ensuring zero packet loss. Our technical evaluation of the TCSESB083F2CU0 managed switch reveals that its combination of copper and fiber optic ports provides ideal topology flexibility for distributed control architectures. Integrating Transparent Ready concepts into factory floors allows control engineers to seamlessly bridge plant-floor automation with enterprise management systems without compromising deterministic real-time data flow.

Configuration Blueprint and Port Architecture

The structured hardware layout and communication mapping of the TCSESB083F2CU0 switch are organized below:

• Core Device Identity

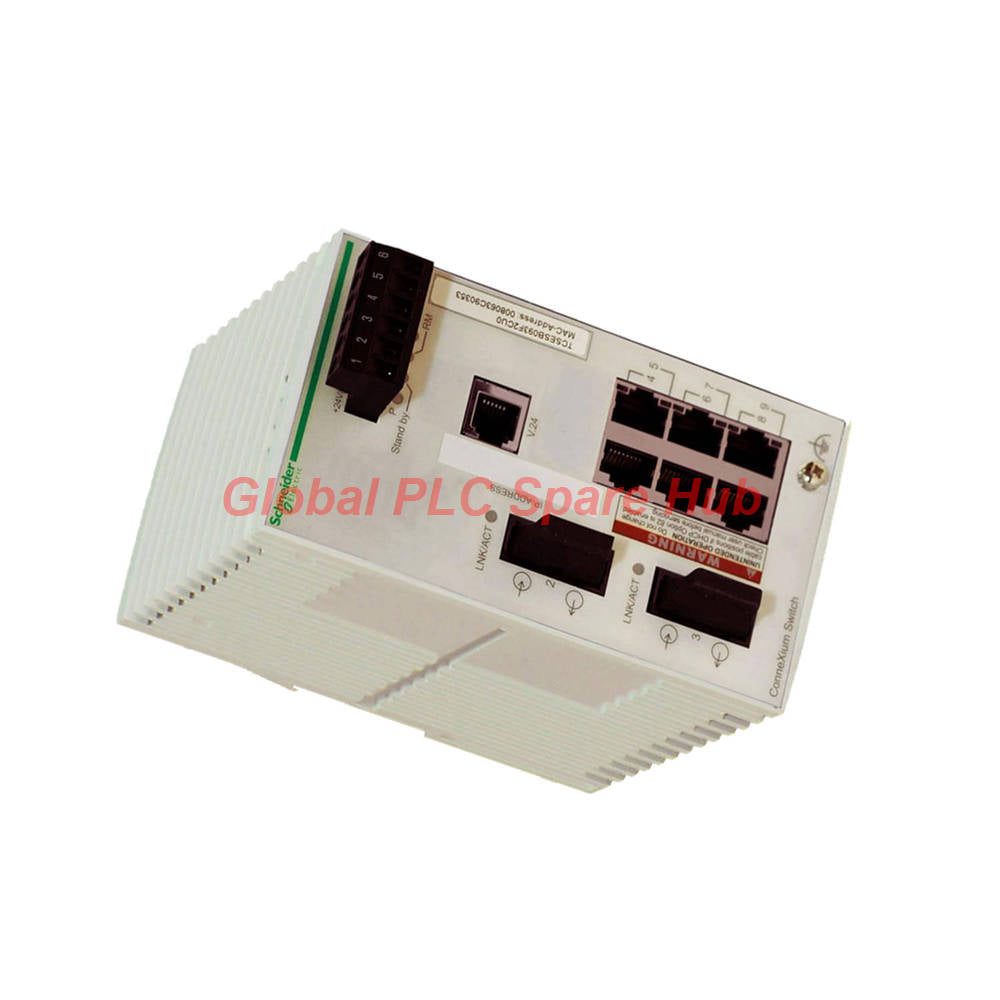

  • Schneider Electric TCSESB083F2CU0 ConneXium Basic Managed Switch
• Copper Port Subsystem
  • 6 Ports - 10BASE-T/100BASE-TX via shielded RJ45 connectors
• Fiber Optic Subsystem
  • 2 Ports - 100BASE-FX multimode via duplex SC optical connectors
• Power and Redundancy Architecture
  • Dual power input supporting 9.6 to 32 V DC SELV with built-in alarm relay outputs

### Comprehensive Technical Specifications Matrix

### Target Equipment Applications and Diagnostic Capabilities

### Logistics, Warranty, and Fulfillment

### Professional Frequently Asked Questions

Question:
How does the TCSESB083F2CU0 handle power supply redundancy on the factory floor?

Answer:
The switch features dual power supply inputs accepting 9.6 to 32 V DC SELV via a removable 6-way connector, tied directly to a volt-free alarm contact rated at 1 A to trigger external alerts if either power rail fails.

Question:
What is the maximum switch capacity when configuring a redundant ring topology with this hardware?

Answer:
Engineers can scale up to a maximum of 50 switches within a single ring network, utilizing Rapid Spanning Tree Protocol (RSTP) and ring coupling mechanisms for high availability.

Question:
What selection criteria should guide an engineer choosing between copper ports and fiber optic ports on the TCSESB083F2CU0?

Answer:
Use the 6 RJ45 copper ports for local cabinet wiring under 100 meters, and utilize the 2 multimode SC fiber ports for long-distance runs between plant zones or areas prone to high electrical noise.

Question:
How is configuration and web-based management accessed on this basic managed switch?

Answer:
Configuration is handled directly via an embedded web server, allowing network administrators to manage data stream control, IGMP snooping, and priority ports through standard web browsers.

Question:
Are there specific hazardous location ratings required when installing this switch in oil and gas or chemical facilities?

Answer:
Yes, this unit carries UL 1604 Class 1 Division 2 and CSA C22.2 No 213 Class I Division 2 certifications, making it fully rated for explosive or hazardous process environments.
