وحدة الإدخال المنفصل IC200MDL635 من GE Fanuc Versamax بجهد 48VDC

Functional Engineering & Input Circuit Architecture

The GE Fanuc IC200MDL635 functions as a high-density, 16-point discrete input module engineered specifically for the Versamax PLC system platform.

Operating at a nominal 48 VDC voltage rating (0 to 60 VDC range), this card accepts both positive logic (sourcing) and negative logic (sinking) field signals.

The 16 input channels organize into 2 galvanically isolated groups containing 8 points each.

In positive logic setups, field devices source current into the input terminal and return through the common connection.

In negative logic setups, current flows from the common terminal back to the field input device.

Optical isolation rated at 250 VAC continuous (1500 VAC for 1 minute) protects logic backplane circuits from field wiring surges.

With fast 0.5 ms signal filtering response times, the IC200MDL635 delivers real-time digital state acquisition across industrial backplanes.

Technical Parameter Specifications

Below is the engineering parameter matrix for the GE Fanuc IC200MDL635 digital input card:

• Manufacturer Brand: GE Fanuc / Emerson Automation
• Part Identification: IC200MDL635
• System Series: Versamax Programmable Logic Controller
• Module Type: 48 VDC Discrete Input Module (Sinking / Sourcing)
• Channel Density: 16 Discrete Inputs (2 Isolated Groups of 8)
• Nominal Voltage Rating: 48 VDC
• Operating Voltage Range: 0 to 60 VDC
• Current Draw per Point: 1.7 mA typical at 48 VDC; 2.1 mA typical at 60 VDC
• Propagation Speed: ON Response: 0.5 ms; OFF Response: 0.5 ms
• Group Isolation: 250 VAC continuous / 1500 VAC for 1 min (Group-to-Group & Group-to-Ground)
• Thermal Derating Requirement: None required across operational temperature window
• External Bus Power: Not required for input sensing circuitry

Target Equipment & Field Application Scenarios

The GE Fanuc IC200MDL635 integrates cleanly into industrial automation systems requiring higher DC voltage thresholds for noise reduction.

• Monitoring high-voltage 48 VDC battery bank relay contacts in substation automation panels.
• Interfacing emergency stop buttons, selector switches, and limit sensors in telecommunication power systems.
• Processing high-speed digital state signals in heavy-duty conveyor handling lines.
• Capturing discrete feedback signals in utility control setups where long wiring runs induce noise on standard 24V loops.

System Diagnostics & Telemetry Integration

Front-panel status LEDs provide instant diagnostic visibility for maintenance technicians during field servicing.

Each individual channel features an active logic LED indicator that illuminates when the field voltage satisfies the logic ON threshold.

A dedicated green OK LED indicates health status of internal module electronics and successful backplane handshake with the Versamax controller.

Global PLC Spare HUB's Insight

Industrial environments with long field cable runs often experience induced AC noise spikes that trigger false input states on 24 VDC cards.

During a retrofit project at an electrical distribution center, long control runs caused intermittent input ghosting on standard 24V inputs.

Upgrading the field sensing loops to 48 VDC using the GE Fanuc IC200MDL635 eliminated signal corruption entirely.

The higher voltage threshold combined with 0.5 ms hardware filtering blocked line-induced transients.

In addition, because the IC200MDL635 requires no thermal derating, panel builders can populate adjacent slots without thermal spacing gaps.

Engineering Selection & Procurement Guidelines

• Voltage verification: Confirm field switches and sensors operate on a 48 VDC nominal loop before installation.
• Logic flexibility: Wire field commons according to your loop setup—connect common to negative for sourcing, or positive for sinking.
• Terminal carrier selection: Pair the module with appropriate Versamax snap-in carriers like the IC200CHS001 (box style) or IC200CHS002 (spring style).
• Isolation planning: Ensure group common lines remain separated if maintaining galvanic isolation between the two 8-point banks is required.

Logistics, Warranty & Dispatch Terms

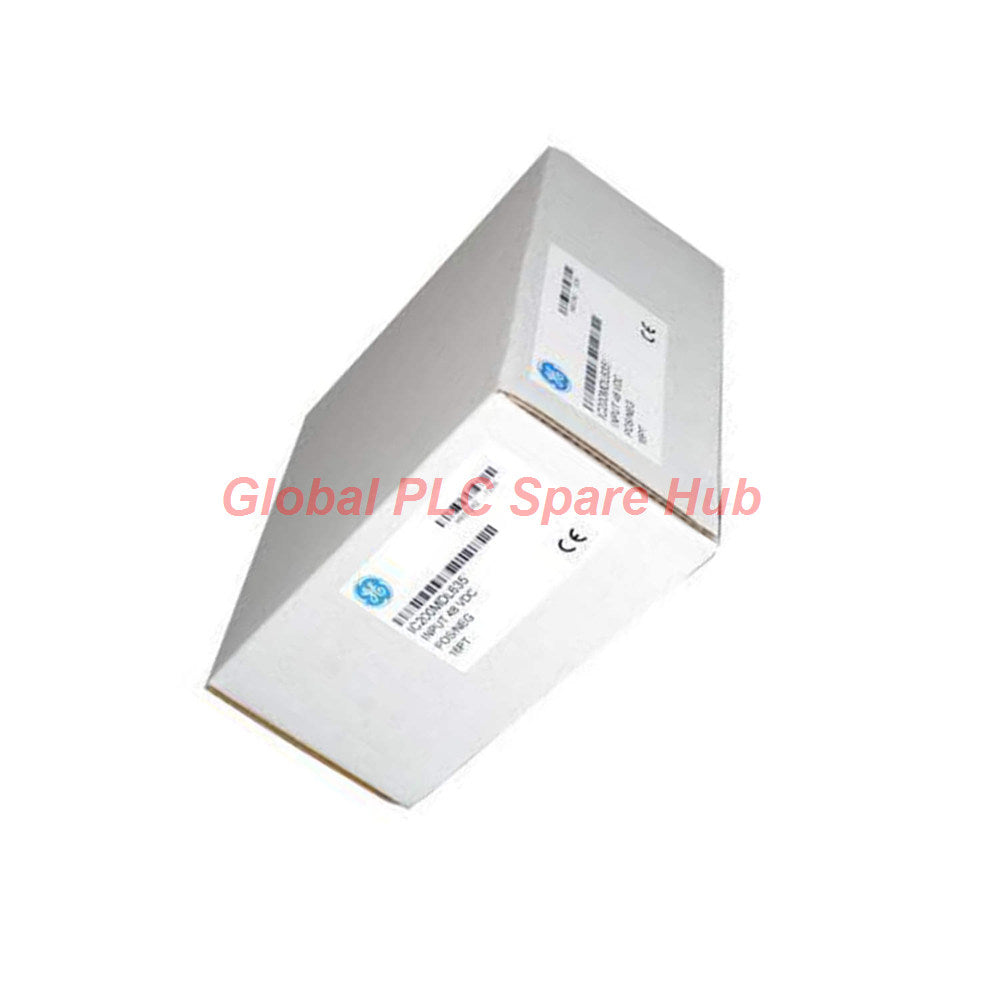

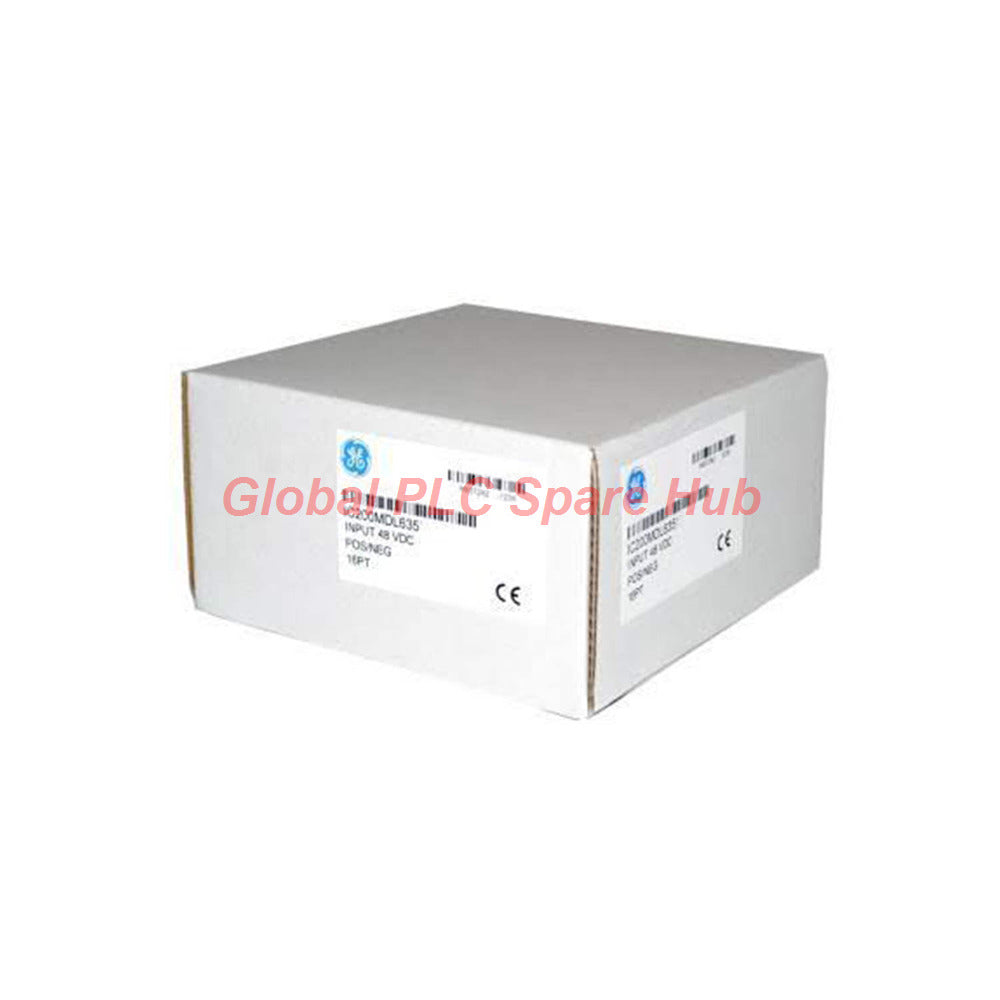

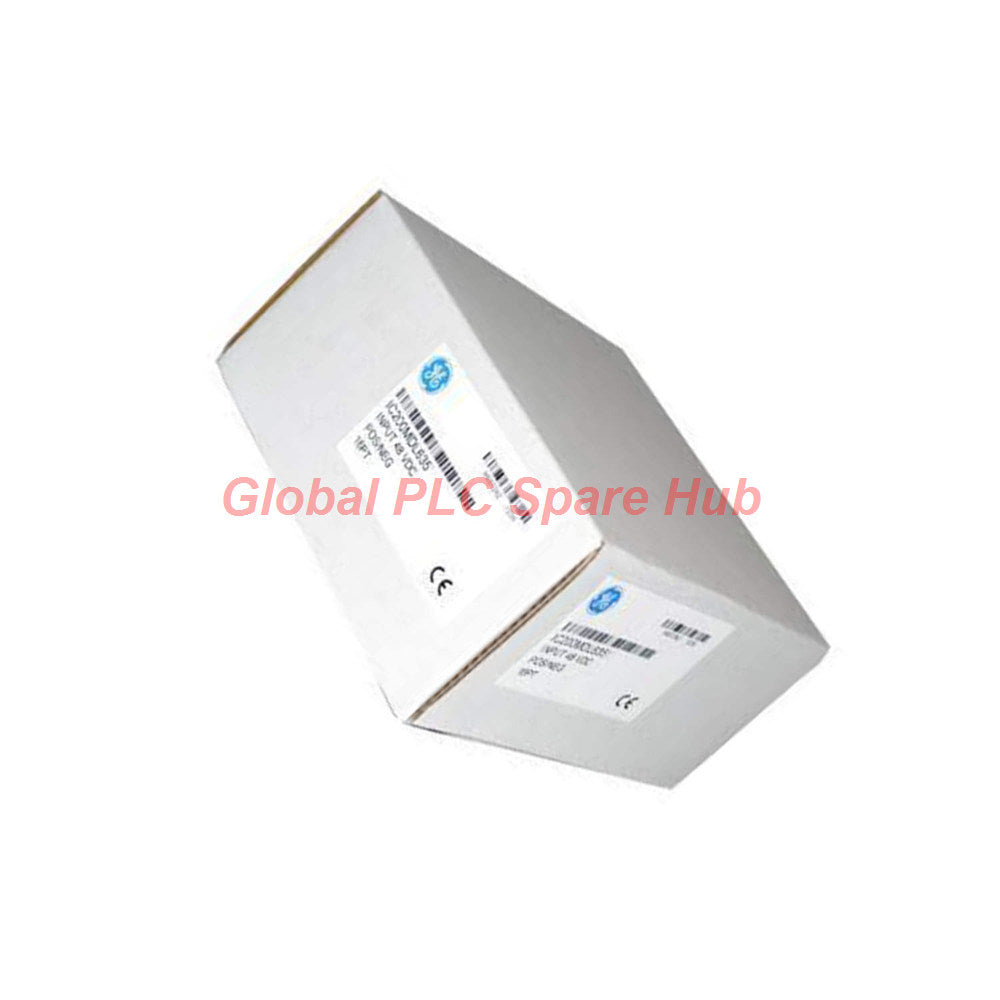

• Packaging Spec: Anti-static factory box with foam insert protection
• Warranty Terms: Covered by a comprehensive 12-Month Replacement Warranty from shipment date
• Order Handling Speed: Dispatched from stock within 24 to 48 hours
• Express Global Shipping: Fast air freight options via FedEx, UPS, and DHL Express

Frequently Asked Questions (FAQ)

Question 1: Does the IC200MDL635 require an external power supply to power its internal input logic?

Answer: No, internal logic circuits draw operating power directly from the Versamax backplane bus, so no external power supply connection is required for module operation.

Question 2: Can I connect both sinking (NPN) and sourcing (PNP) sensors to the same IC200MDL635 module?

Answer: Yes, because the module features two isolated groups of 8 channels, you can wire one group as positive logic (sourcing) and the second group as negative logic (sinking).

Question 3: What is the benefit of using 48 VDC discrete inputs over conventional 24 VDC inputs?

Answer: A 48 VDC input loop provides higher noise immunity and lower voltage drop over long field cable runs, making it ideal for utility panels and large process plants.

Question 4: Does the IC200MDL635 require derating when all 16 channels are energized simultaneously in high ambient temperatures?

Answer: No, this module requires no thermal derating, allowing full continuous 16-channel activation across its entire operating temperature range.

Question 5: What isolation protection does the IC200MDL635 offer against high-voltage surges on field cabling?

Answer: The module features optical isolation rated at 250 VAC continuous and 1500 VAC for up to 1 minute between user inputs, backplane logic, and frame ground.
