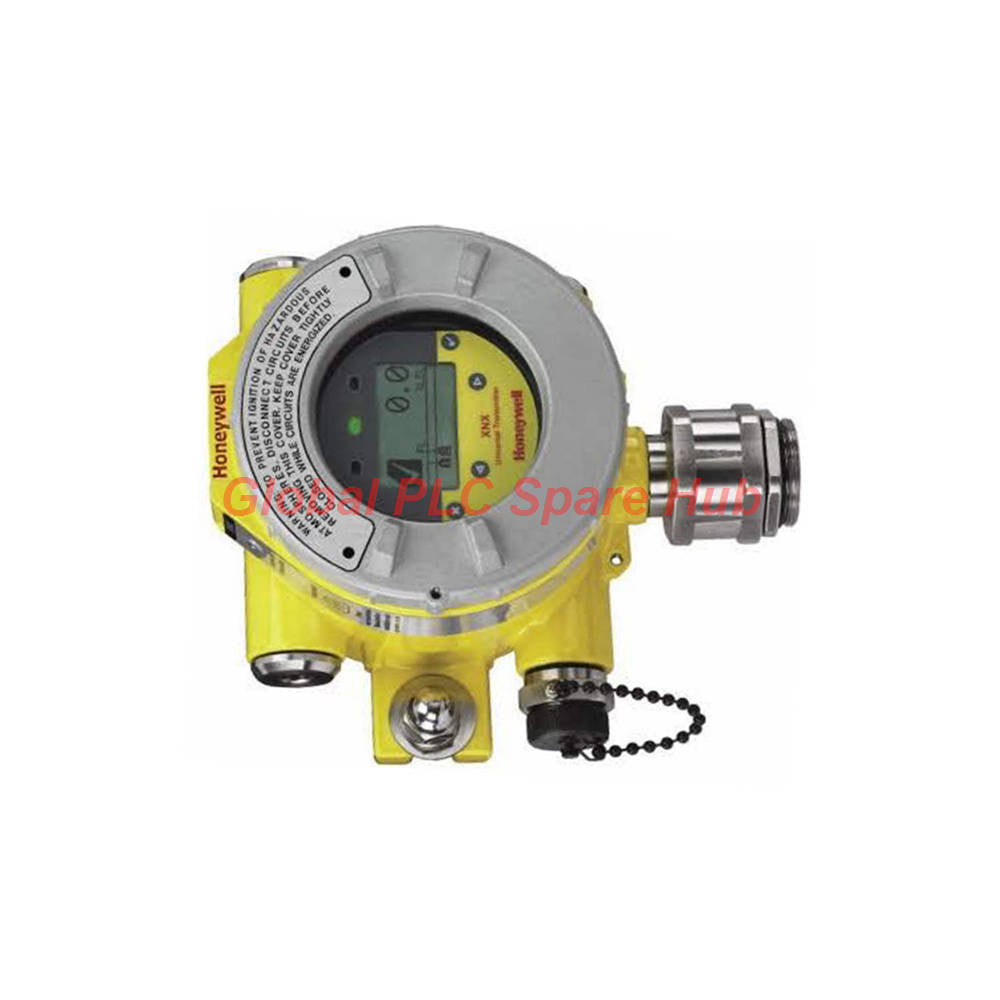

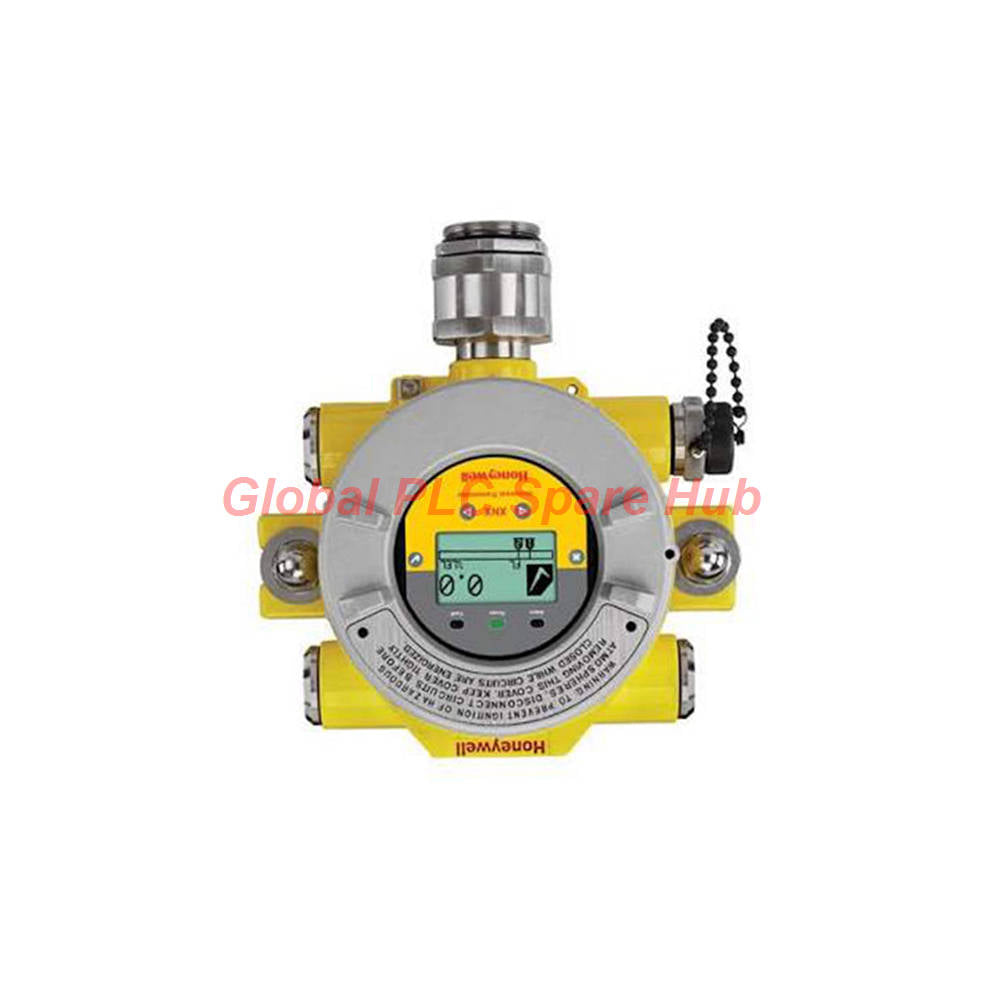

Honeywell XNX-AMAI-NNIV1 XNX Universal Transmitter & Gas Detector

Product Introduction

Welcome to Global PLC Spare HUB's Insight. Industrial safety demands precise gas detection in harsh environments. The Honeywell XNX-AMAI-NNIV1 serves as a robust XNX Universal Transmitter designed for hazardous area installations. This unit integrates advanced infrared hydrocarbon detection with HART over 4-20mA output. Facility engineers rely on this transmitter for continuous monitoring of combustible gases. The modular design simplifies spare parts management across large processing plants. Every device undergoes strict quality checks before dispatch.

Technical Specifications

The technical parameters of the Honeywell XNX-AMAI-NNIV1 meet rigorous industrial standards.

• Brand: Honeywell
• Model: XNX-AMAI-NNIV1
• Series: XNX Universal Transmitter
• Measurement Range: 0-100% LEL or 0-5% v/v Methane
• Frequency Response: Fast transient gas response under 5 seconds
• Sensitivity: High precision infrared optic stability
• Linearity: Plus or minus 2 percent full scale
• Resolution: 1 percent LEL increment
• Temperature Range: Minus 40 degrees Celsius to plus 65 degrees Celsius
• Environmental Tolerance: IP66 and NEMA 4X weatherproofing
• Interference Immunity: High resistance to humidity and poisoning elements
• Weight: 6.8 Kg

Installation Guide & Mechanical Setup

Proper installation ensures long-term operational reliability.

• Mount the Honeywell XNX-AMAI-NNIV1 securely using the robust aluminum housing.
• Utilize the 5 x M25 entries for secure cable gland connections.
• Ensure clear optical paths for the integrated infrared sensor module.
• Verify earth grounding connections to mitigate electrical noise interference.
• Check supply voltage stability before initiating initial power-up sequences.

Commissioning, Maintenance & Diagnostics

Efficient maintenance minimizes plant downtime.

• Commissioning requires setting the HART over 4-20mA output parameters via a handheld communicator.
• Local display menus guide technicians through zero and span calibration steps.
• Routine optical lens cleaning prevents dust accumulation on the infrared receiver.
• Diagnostic capabilities include real-time fault reporting and optical signal strength monitoring.
• The local interface logs error codes for rapid troubleshooting by maintenance staff.

Compatibility & Model Comparison

System integration requires careful evaluation of compatible field devices.

• The Honeywell XNX-AMAI-NNIV1 interfaces seamlessly with Searchline Excel and Searchpoint Optima sensors.
• Compare this unit with alternative configurations for your specific application needs.
• Review the alternative model: XNX-AMSV-FNIV1.
• Engineering Tip: Select the XNX-AMAI-NNIV1 when aluminum housing and specific infrared interface requirements match your hazardous zone classification.

Certifications, Package Contents & Logistics

Global deployment requires internationally recognized safety approvals.

• Certifications: ATEX, IECEx, and INMETRO approvals for hazardous locations.
• Package Contents: 1 x Honeywell XNX-AMAI-NNIV1 transmitter, integrated IR hydrocarbon sensor, and installation manual.
• Warranty: 12 months comprehensive warranty coverage.
• Logistics: Fast dispatch within 24-48 hours via FedEx, UPS, and DHL.

Typical Application Sectors

• Oil and gas upstream extraction platforms
• Petrochemical refining processing units
• Chemical storage and distribution terminals
• Waste water treatment biogas facilities

Purchasing Guide & Expert FAQ

How do I select between different sensor types in the XNX series?

Choose infrared sensor options for hydrocarbon monitoring where catalytic bead poisoning is a risk. Select electrochemical sensors for toxic gas detection applications.

What causes a calibration fault during routine maintenance?

Accumulated dust on the optical lens or unstable reference voltage typically causes calibration failures. Clean the optics and verify power supply stability.

Can the HART protocol communicate over long cable runs?

Yes, the 4-20mA current loop supports reliable HART digital communication over distances up to several thousand feet when using shielded twisted-pair cables.

What are the payment and shipping terms for urgent orders?

We support secure B2B payment methods and dispatch orders within 24-48 hours via trusted couriers including FedEx, UPS, and DHL.
