X-DI3201 HIMA HIMax 32-Channel Analog Input Module SIL 3

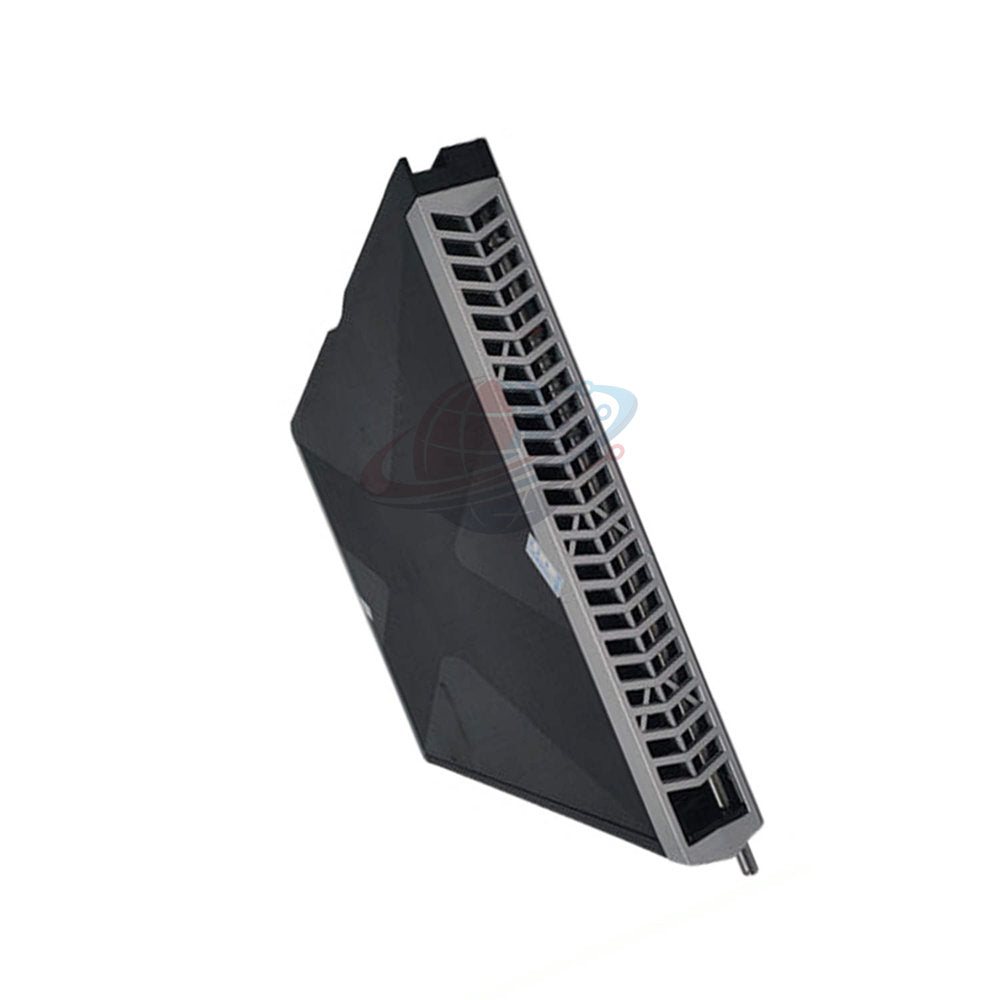

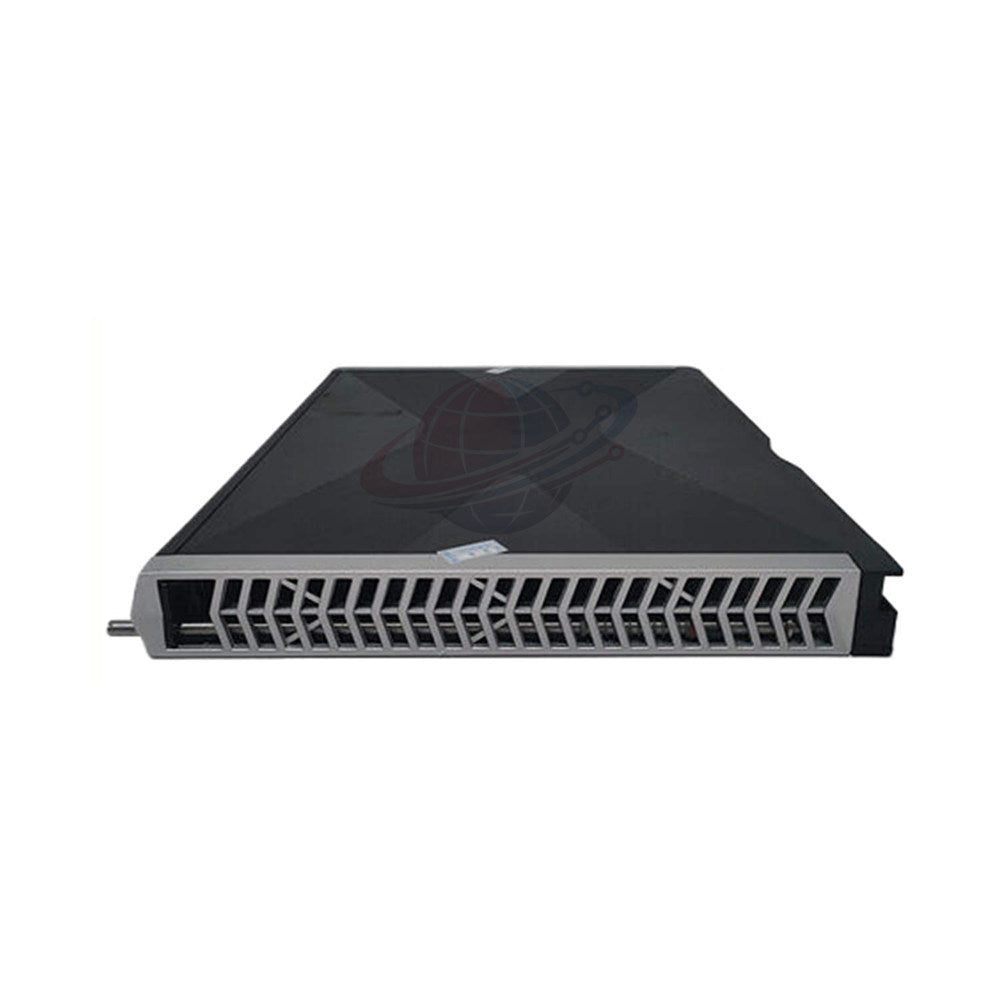

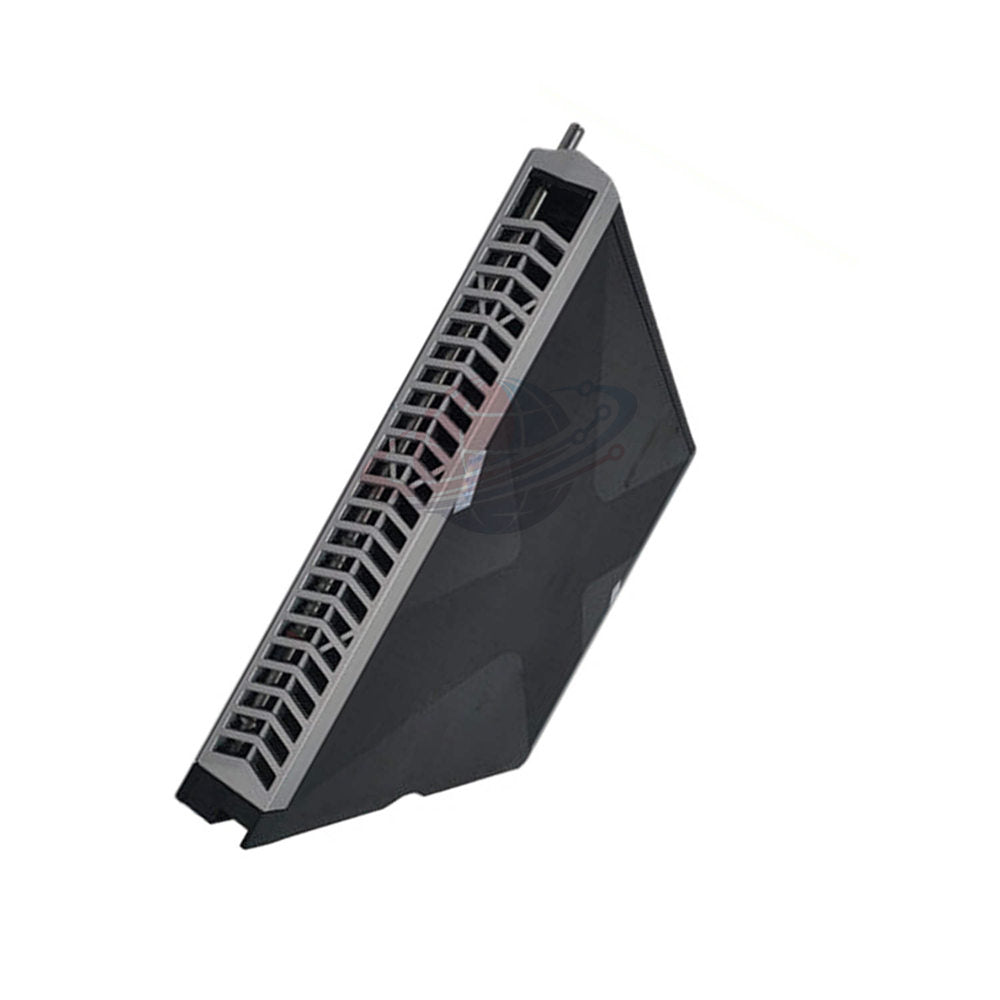

X-DI3201 HIMA HIMax 32-Channel Analog Input Module

The X-DI3201 is a safety-instrumented analog input module specifically engineered for the HIMA HIMax Programmable Electronic System (PES). Featuring 32 high-precision channels, the X-DI3201 provides dedicated evaluation for 0/4...20 mA signals, ensuring high-availability monitoring in SIL 3 rated safety loops. This module integrates galvanic isolation from the system bus and provides independent transmitter supplies for each channel, making it a cornerstone for complex industrial safety architectures.

Technical Specifications

• Brand: HIMA
• Model: X-DI3201
• System Series: HIMax
• Input Channels: 32 with common ground AI-
• Safety Integrity Level: SIL 3, Cat. 4, PL e
• Nominal Range: 0/4...20 mA (Up to 22.5 mA)
• Digital Resolution: 12-bit
• Sampling Time: 2 ms
• Accuracy: ± 0.15 % of final value (-10 °C to 70 °C)
• Transmitter Supply: 32 x 26.5 VDC (30 mA per channel)
• Supply Voltage: 24 VDC
• Dimensions: 310 x 29.2 x 230 mm
• Protection: IP20

Global PLC Spare HUB's Insight

The X-DI3201 is highly regarded by field engineers for its robust transmitter supply management. It can withstand simultaneous short circuits on up to 12 transmitter supplies without tripping the entire module, preventing nuisance shutdowns during commissioning. Its ultra-fast 2 ms sampling time and high interference voltage suppression (> 60 dB) make it suitable for environments with significant electromagnetic noise, common in large-scale chemical processing facilities.

Target Equipment & Application Scenarios

• Pressure & Flow Transmitters: Precise monitoring in pipeline ESD systems.
• Level Control: SIL 3 certified overfill protection in refinery tank farms.
• Burner Management Systems (BMS): Fuel-to-air ratio monitoring and flame analysis.
• Chemical Reactor Safety: High-speed temperature and pressure data acquisition.
• Fire and Gas (F&G) Systems: Interface with specialized hazardous area detectors.

Diagnostic & Field Connectivity

• Supply Monitoring: Continuous undervoltage and overvoltage detection on transmitter lines.
• Fault Recovery: Automatic restart of transmitter supplies after overload clearance.
• Field Wiring: Supports 8 x 12-pole cable plugs with wire cross-sections up to 1.5 mm².
• Galvanic Isolation: Ensures field-side surges do not propagate to the HIMax system bus.

Shipping & Warranty Terms

• Fast Dispatch: Dispatched within 24-48 hours of order confirmation.
• Express Logistics: Global delivery via FedEx, UPS, and DHL.
• Quality Assurance: Includes a full 12-month warranty.
• Package Contents: One X-DI3201 module with test documentation.

Professional FAQ

What happens if a transmitter loop exceeds 30 mA?

The module monitors individual channel draw; if an overload occurs across more than 12 channels simultaneously for >3 seconds, the entire transmitter supply is switched off for protection.

Can the X-DI3201 be installed in any HIMax slot?

It is compatible with any base plate slot except those reserved specifically for system bus modules.

What is the shunt resistance for current measurement?

The module features a precision 200 Ω shunt for current measurement across all 32 channels.

Does the accuracy vary across the full temperature range?

No, the X-DI3201 maintains a strict ± 0.15 % accuracy from -10 °C up to 70 °C.

How fast is the signal settling time?

The input signal settles to 99% of the process value within 15 ms, ensuring rapid response in safety-critical loops.

Selection & Buying Guide

When selecting the X-DI3201, ensure your field transmitters are compatible with the 26.5 VDC supply voltage provided. For safety loops requiring maximum authoritativeness, utilize the 12-bit digital resolution to define precise trip points in the SILworX software environment. Always verify the terminal tightening torque (0.2–0.25 Nm) during installation to ensure long-term vibration resistance.
