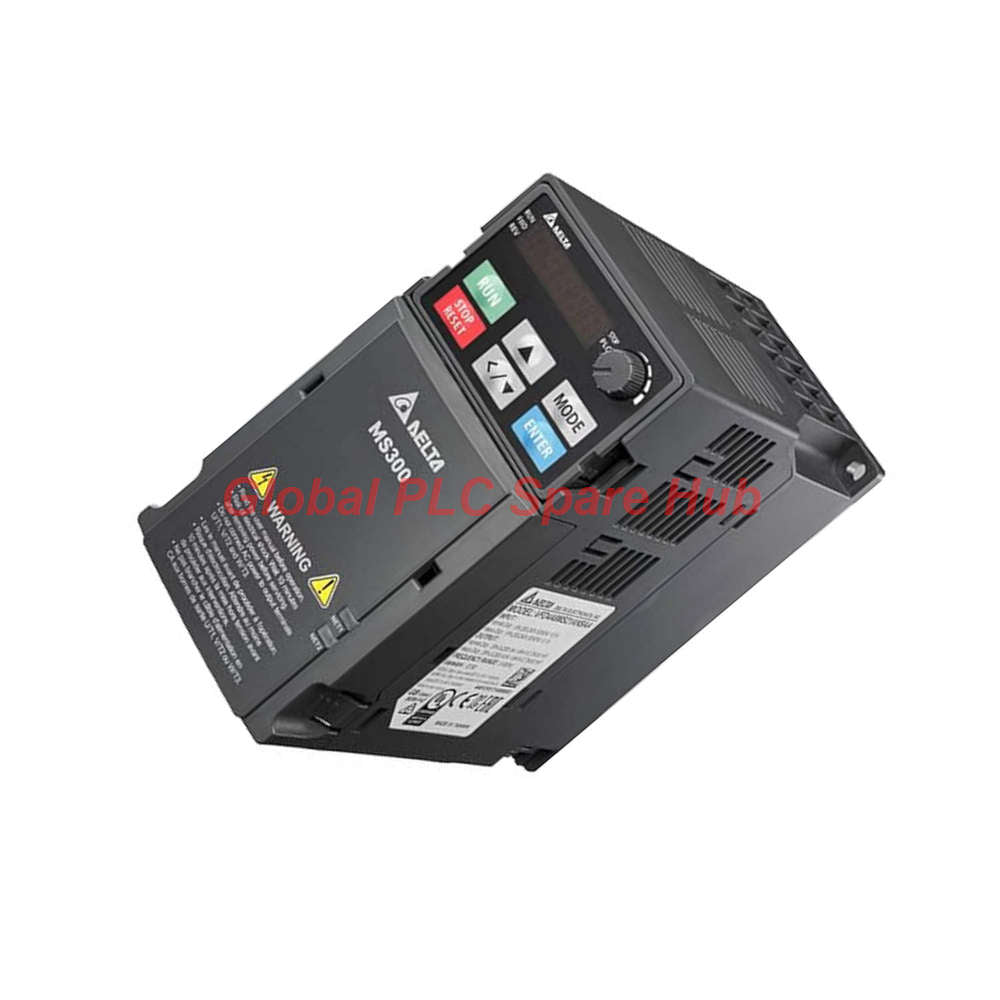

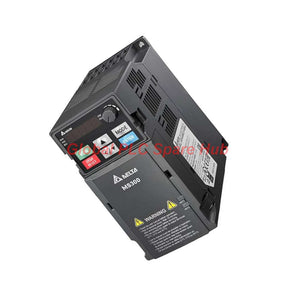

VFD4A8MS21ANSAA Delta MS300 VFD Drive 1HP 230V Single Phase

Product Overview

The VFD4A8MS21ANSAA represents Delta Electronics' advanced MS300 series vector control drive engineered for space-constrained industrial setups.

This compact frequency inverter converts single-phase 230V power into high-performance three-phase motor control.

It seamlessly supports both induction motors (IM) and permanent magnet motors (PM) with exceptional dynamic response.

The unit incorporates an integrated PLC function, allowing users to run simple custom logic programs directly.

Its ultra-compact frame size B2 supports zero-clearance side-by-side mounting, significantly maximizing enclosure space density.

Technical Specifications Checklist

Engineers organized these core operational parameters to clarify performance capabilities under varying workloads.

Operational Resilience & Environmental Limits

• Thermal Operating Range: Operates efficiently between -20°C and +50°C without derating under normal duty.
• Noise Suppression Capabilities: Built-in RFI switch with optional integrated EMC filter minimizes high-frequency electromagnetic noise.
• Overload Endurance: Heavy duty mode delivers up to 200% instantaneous current to overcome high-inertia starting spikes.
• Precision Current Sensing: High-resolution current detection protects motor windings during severe load fluctuations.
• Deceleration Energy Backup (DEB): Controls motor deceleration during sudden power loss, preventing uncontrolled mechanical coasting.

Installation & Wiring Best Practices

Mount the VFD4A8MS21ANSAA vertically on standard DIN rail or panel backplates.

Install multiple units side-by-side without horizontal clearance to maximize control cabinet density.

Connect 1-phase 230V mains power leads securely to input terminals L1 and L2.

Route motor cables to output terminals U, V, and W using short, shielded industrial cables.

Ensure low-impedance ground bonding between the drive ground terminal and the central cabinet earth bus.

Commissioning & Servicing Features

The removable 5-digit LED keypad facilitates rapid parameter programming and remote door mounting.

Built-in USB programming ports enable firmware updates and configuration backups via Delta's software suite.

Spring-clamp control terminals simplify field signal wiring and resist vibration-induced wire looseness.

An optional external 24V DC auxiliary power connection keeps control electronics active during main power outages.

Network Integration & System Compatibility

Standard onboard RS-485 interfaces support native Modbus RTU communication at high baud rates.

Optional fieldbus cards support Ethernet/IP, Profinet, EtherCAT, Modbus TCP, CANopen, DeviceNet, and Profibus DP networks.

Integrated pulse input terminals enable precise speed synchronization and simple tension control loops.

Closed-loop speed feedback capabilities support high-precision encoder interface expansion boards.

Compliance & Safety Certifications

• UL and cUL listed for rigorous North American industrial safety compliance.
• CE marked for European Low Voltage Directive and EMC compliance standards.
• Safe Torque Off (STO) SIL2 / PLd functional safety compliance prevents unintended motor restarts.

Packaging Details, Warranty & Express Logistics

Ships in original factory packaging containing one VFD4A8MS21ANSAA drive and a quick-start manual.

We cover this unit with an inclusive 12-month warranty against manufacturing defects.

Orders are processed and dispatched within 24 to 48 hours from order confirmation.

Express international air shipping options include FedEx, UPS, and DHL Express.

Industrial Applications & Machinery Fit

• Winding & Rewinding Machines: Maintains constant web tension using closed-loop torque control.
• Slitting & Printing Equipment: Delivers rapid speed response to prevent material tearing during acceleration.
• CNC Machine Tool Spindles: Drives high-speed AC motors up to 599 Hz with precise speed regulation.
• Textile & Wire Drawing Machines: Handles multi-motor synchronization via pulse train input signals.
• Compact Woodworking Machinery: High starting torque easily overcomes heavy cutterhead inertia.

Diagnostic Capabilities & Error Tracking

The drive continuously monitors operating parameters, including output current, DC bus voltage, and heatsink temperature.

Internal memory logs the last four fault events along with detailed voltage and current snapshots.

Digital alarm outputs signal maintenance systems immediately when parameters exceed preset safety thresholds.

Global PLC Spare HUB's Insight

The VFD4A8MS21ANSAA is our top recommendation for retrofitting older single-phase machinery requiring high torque.

In a recent coil-winding machine rebuild, the client needed PM motor control without adding an external controller.

We deployed this MS300 drive and programmed its built-in PLC to handle automatic wire-layering routines directly.

This eliminated an external micro PLC, streamlined control wiring, and reduced panel assembly labor by 35%.

The STO (Safe Torque Off) feature also simplified the safety circuit design, meeting modern machinery safety requirements easily.

Technical FAQ & Application Guidance

Q1: Can I power the VFD4A8MS21ANSAA using standard 120V household current?

A1: No, this model requires a 200V to 240V single-phase input supply to operate within specified DC bus voltage limits.

Q2: What is the benefit of switching between Heavy Duty (HD) and Normal Duty (ND) settings?

A2: ND mode permits 5.0A continuous output for fans/pumps, while HD mode caps output at 4.8A but allows 200% peak starting torque for hard-to-start loads.

Q3: How do I configure PM motor auto-tuning on this MS300 drive series?

A3: Select permanent magnet motor type in parameter 01-01, enter motor nameplate data, and run the static auto-tuning routine.

Q4: Why does the drive display an Overvoltage (ov) code when decelerating heavy cutter heads?

A4: High load inertia feeds regenerative energy back into the drive; extend deceleration time or wire an external braking resistor to the internal brake chopper.

Q5: Can I run multi-motor setups off a single VFD4A8MS21ANSAA inverter?

A5: Yes, provided the combined full-load currents of all parallel motors do not exceed the drive's rated continuous current in V/Hz control mode.
