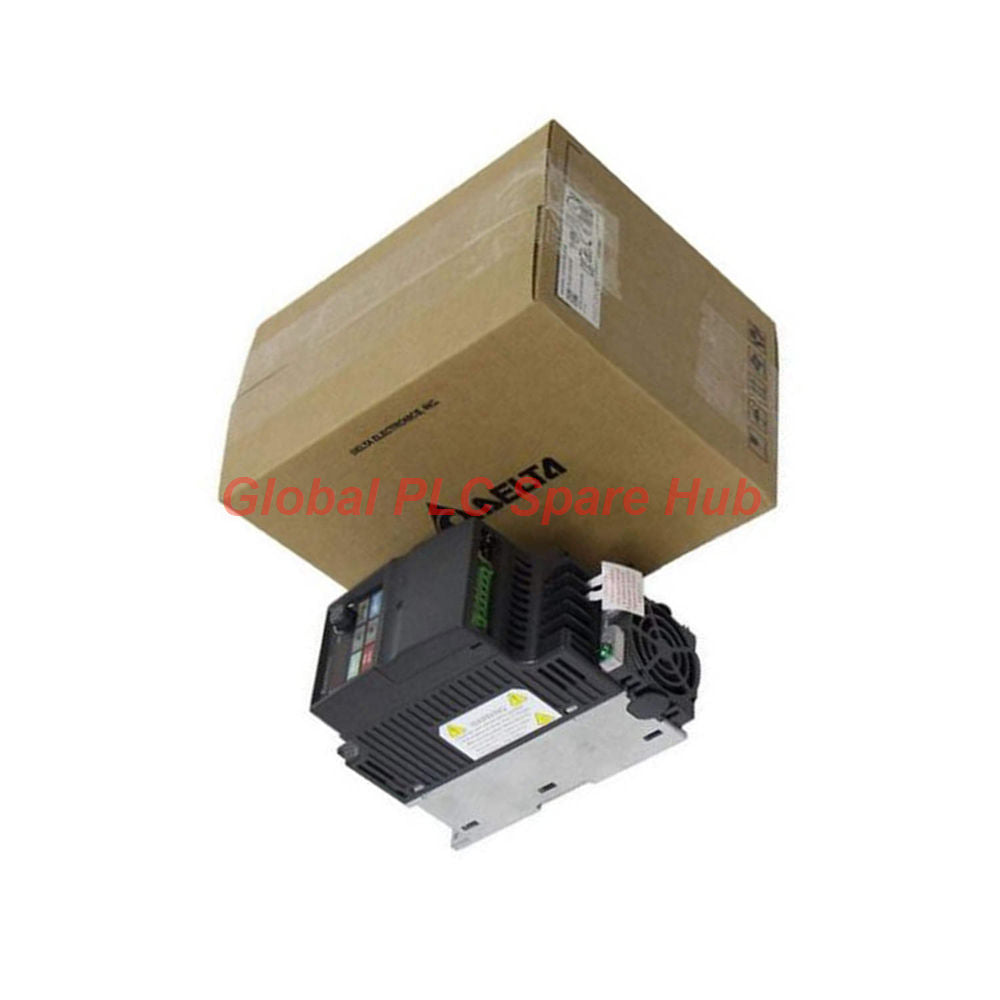

VFD007EL43A Delta VFD-EL Series 1HP 3-Phase AC Micro Drive

Executive Engineering Summary

This technical brief outlines the Delta VFD007EL43A frequency inverter from the VFD-EL micro drive architecture. Built for panel builders seeking compact scalar control, this 1 HP unit delivers stable motor regulation through a robust V/Hz control profile.

Technical Performance Parameters

• Manufacturer & Model: Delta Products, VFD007EL43A
• Product Line: VFD-EL Micro Type AC Inverter
• Power & Current Rating: 1 Horsepower (0.75 KW), 2.5 Amperes (CT)
• Voltage Specifications: 3-Phase Input, 380 to 480 VAC Range
• Frequency Capabilities: 0.1 to 600 Hertz maximum output
• Control Architecture: V/Hz (Scalar) Open Loop Motor Control
• Physical Dimensions: Frame Size A, Height 6.86 Inches, Width 2.83 Inches, Depth 5.36 Inches
• Protection Class: IP20 Enclosure with integrated EMI filter and RFI switch

Hardware Deployment & Panel Layout

Install the VFD007EL43A upright inside a vented metallic electrical enclosure. Utilize its side-by-side mounting design to minimize back-panel footprint, ensuring a 50-millimeter clearance above and below the chassis. Terminate incoming 3-phase power securely to terminals L1, L2, and L3, keeping low-voltage control lines isolated from high-voltage motor cabling.

Operational Setup & Maintenance Protocol

Configure baseline parameters such as base frequency, acceleration ramps, and maximum voltage via the built-in digital operator keypad. Clean internal heat sinks annually with dry compressed air. Verify main terminal screw torque yearly to prevent micro-arcing and thermal fatigue.

System Compatibility & Interfacing

The drive interfaces natively with standard 3-phase induction motors. Built-in high-precision current detection circuitry protects downstream equipment against sudden load spikes. The integrated RS-485 communication port supports standard Modbus protocols for easy connection to data logging panels.

Quality Assurance, Terms & Logistics

• Regulatory Standards: CE and UL compliance for industrial machinery
• Fulfillment Options: Rapid dispatch within 24 to 48 hours using FedEx, UPS, and DHL
• Warranty Protection: 12-month comprehensive replacement coverage
• Package Inclusion: One VFD007EL43A drive unit and printed quick reference guide

Targeted Industrial Machinery & Applications

• Small commercial conveyor belts and transfer lines
• Laboratory stirring apparatus and mixing equipment
• Light-duty industrial exhaust blowers and fans
• Automated sliding doors and gate mechanisms

Built-In Fault Diagnostics & Error Handling

The VFD007EL43A features onboard fault logging to store recent trip codes. Diagnostic indicators display overcurrent, overvoltage, and thermal warnings directly on the built-in LED display panel, enabling technicians to execute rapid root-cause isolation.

Global PLC Spare HUB Insight

Field engineers deploying the VFD007EL43A often take advantage of its easy DC bus sharing capability during multi-axis machine retrofits. When configuring this VFD-EL drive for variable torque pump loads, adjust the V/Hz curve manually to optimize energy efficiency and reduce acoustic motor noise at lower speeds.

Expert Frequently Asked Questions

Question:
Does the VFD007EL43A require an external EMC filter for basic industrial compliance?

Answer:
No, the unit features a built-in EMI filter and an integrated RFI switch to manage high-frequency line noise natively.

Question:
Can this scalar drive handle dynamic braking applications out of the box?

Answer:
Yes, it includes a built-in dynamic braking transistor, allowing engineers to connect an external braking resistor directly for fast stopping cycles.

Question:
What buying guidance applies when choosing between Frame Size A and larger inverter models?

Answer:
Evaluate continuous motor current requirements, available cabinet depth, and whether side-by-side thermal spacing is feasible in your layout.

Question:
Why does the display show an overvoltage fault during deceleration?

Answer:
Decelerating high-inertia loads too quickly causes energy to pump back into the DC bus; extend the deceleration time parameter or install a matching braking resistor.

Question:
How do technicians access parameter groups without an external handheld programmer?

Answer:
The drive comes equipped with a built-in digital keypad and navigation buttons directly on the front chassis face for complete on-site configuration.
