TWDDDO8TT Schneider Electric Twido Transistor Output Module 8-Point 24VDC

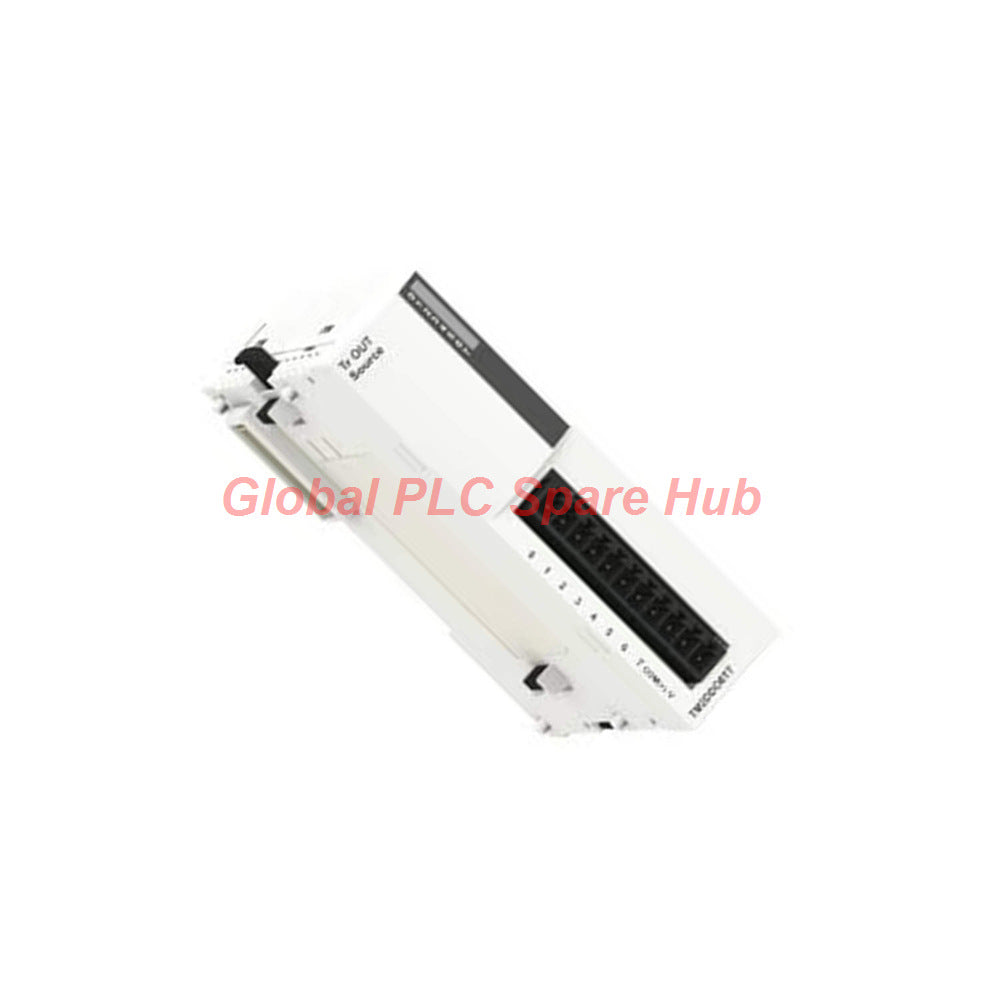

TWDDDO8TT Schneider Electric Twido Transistor Output Module

The TWDDDO8TT is a high-performance, 8-point discrete output module within the Schneider Electric Twido controller series. This module utilizes high-speed transistor switching for reliable source-logic output control. With a compact form factor and robust electrical protection, it is designed for demanding industrial applications that require frequent switching cycles and long-term operational stability.

Technical Specification Matrix

• Brand: Schneider Electric
• Model: TWDDDO8TT
• Series: Twido
• Output Configuration: 8 Discrete Transistor Outputs (Source Logic)
• Supply Voltage: 24V DC (20.4–28.8V)
• Current Capacity: 0.3A per channel; 2.9A per common
• Switching Speed: 300 µs (State 1) / 450 µs (State 0)
• Integrated Protection: Thermal Overload & Short-Circuit Protection
• Galvanic Isolation: 1500 Vrms (Photocoupler)
• Connectivity: Removable screw terminal block
• Environment: IP20, 0°C to 55°C operation

Global PLC Spare HUB's Insight

The TWDDDO8TT is engineered for high-frequency switching environments where relay-based outputs would prematurely fail. The integration of advanced short-circuit protection safeguards the internal transistors from field-wiring errors, effectively reducing downtime. We recommend this unit for high-speed PWM or logic-level signaling in dense control architectures.

Typical Applications & Diagnostics

This module is ideal for driving solenoid valves, contactor coils, and status indicators. To perform diagnostics, verify voltage at the terminal blocks relative to the shared COM+ point. If issues persist, monitor PLC status registers to confirm the command signal is reaching the expansion bus.

Shipping & Warranty

• Logistics: Fast shipping via FedEx, UPS, and DHL.
• Lead Time: Processing and dispatch within 24–48 hours.
• Warranty: Standard 12-month quality assurance guarantee included.

Professional FAQ

How does the transistor-based switching differ from relay outputs?
Transistor outputs have essentially infinite cycle life, making them superior for high-speed, frequent toggling without mechanical wear.

Can I connect an inductive load to this module?
Yes, the module supports inductive loads up to 2000 mH, provided appropriate suppression is implemented.

What should I do if a short-circuit occurs?
Rectify the fault at the field wiring level; the module's protection will trigger, and power cycling may be required to reset the output stage.

Why is my output not triggering despite the signal being 'On'?
Check for a valid 24V DC supply at the COM+ terminal and verify the integrity of the screw terminal connections.

Is this module suitable for low-voltage signal logic?
Yes, its fast response time (sub-millisecond) makes it an excellent choice for precise logic-level signal distribution.
