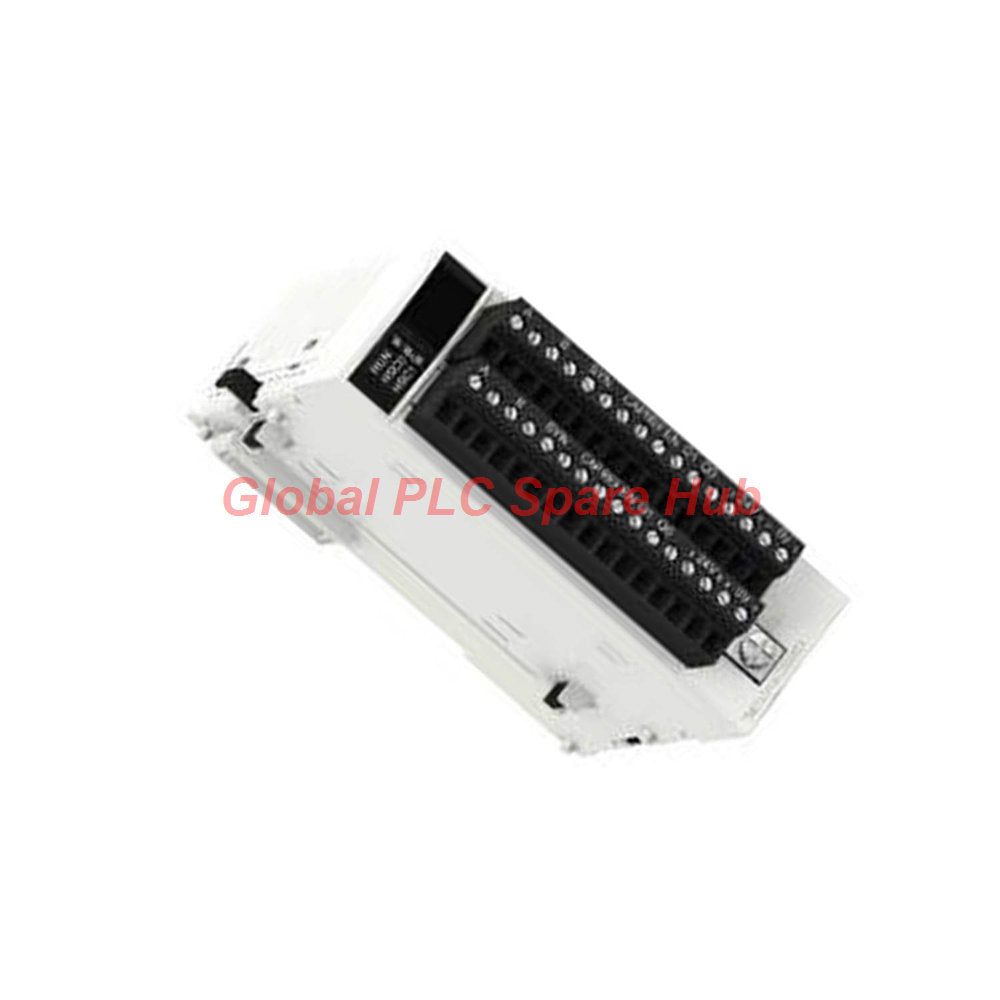

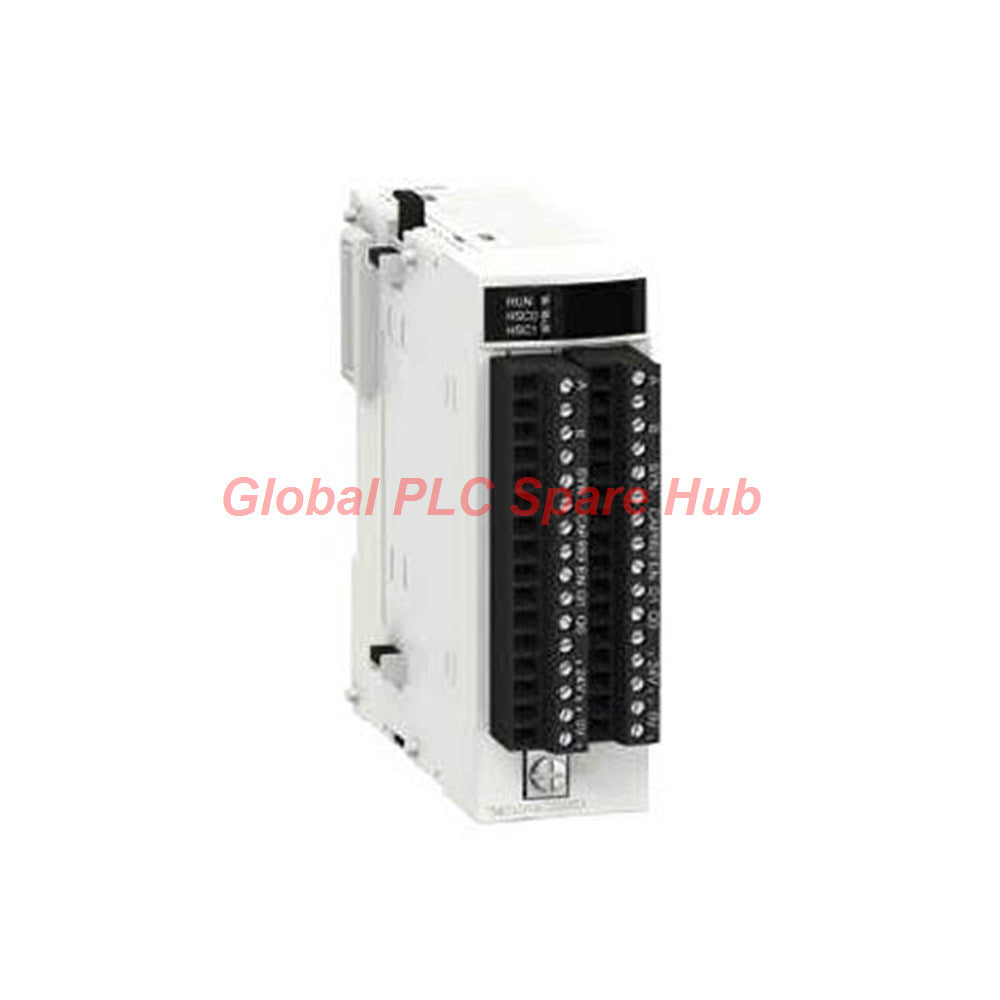

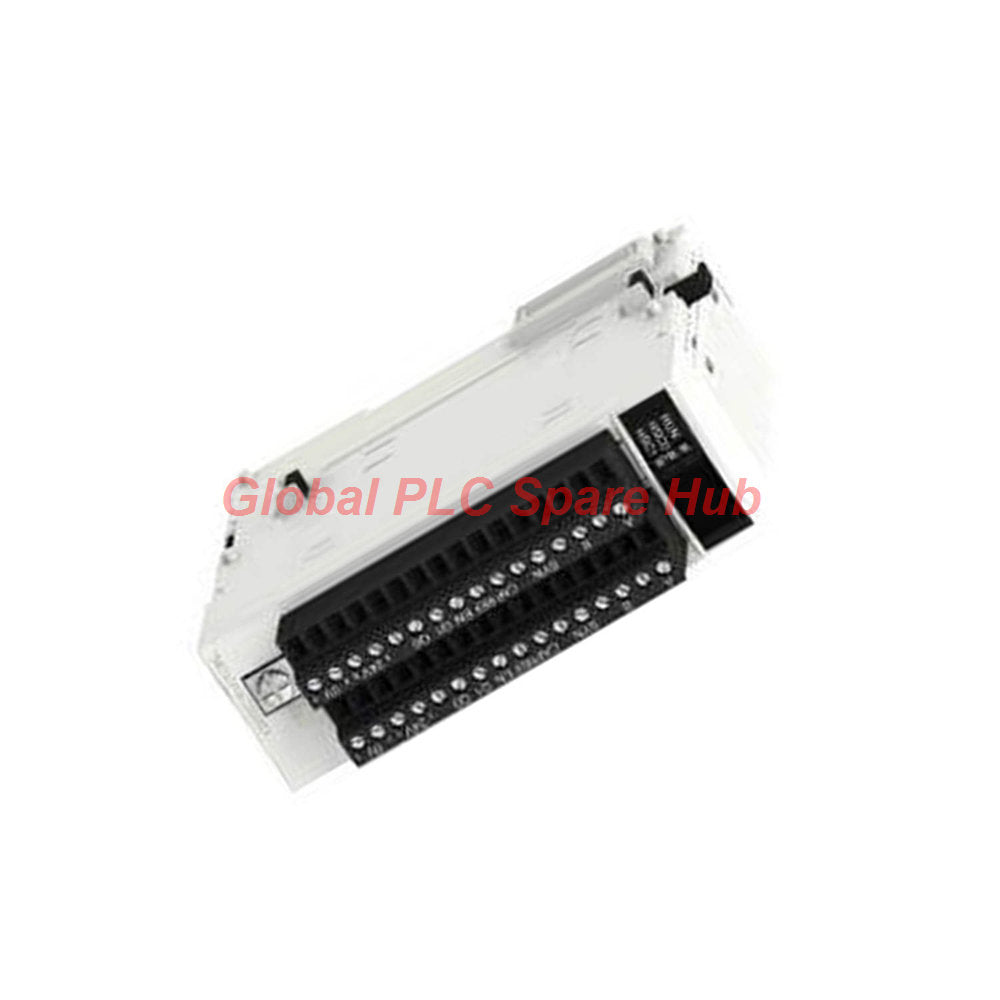

TM200HSC206DT Schneider Modicon M238 Counter Module | 60 kHz

TM200HSC206DT Global PLC Spare HUB Review

Precision pulse tracking in multi-axis automation requires robust galvanic isolation and tight high-speed filtering. Based on our practical diagnostic monitoring, the TM200HSC206DT counter module handles 60 kHz incremental encoder feeds exceptionally well while protecting internal bus logic through 1500V channel isolation. Its modular integration with the Modicon M238 base architecture ensures reliable real-time position capturing without count drift.

Functional Overview & Hardware Layout

Advanced Diagnostic Capabilities & System Signaling

• Integrated Display Block: Offers localized optical feedback for real-time operational status and fault tracking.
• Thermal & Overload Tripping: Built-in electronic protection trips at 0.5 A to 1.5 A per output with automatic reset features once faults clear.
• Fallback Safety States: Configurable channel states ensure outputs hold last valid values or transition safely to preset 0 or 1 conditions during communication interruptions.
• Power Bus Monitoring: Tracks internal 5V/24V limits alongside external 24V DC supplies to prevent dropouts.

Target Devices & Industrial Application Scenarios

• High-speed rotary encoder tracking on CNC machinery and automated cutting tables.
• Frequency metering and period measurement for turbine speed monitoring loops.
• Axis-following synchronization and frequency generation tasks in packaging conveyor lines.

Logistics, Fulfillment & Coverage

• Express Dispatch: Processed and dispatched within 24 to 48 hours.
• Global Transport: Secure international delivery via FedEx, UPS, and DHL.
• Quality Protection: Fully secured by a standard 12-month replacement warranty.

Engineering FAQ

Q: How does the TM200HSC206DT module handle electrical noise from long incremental encoder cable runs?
A: The unit requires shielded cabling with proper grounding, and its high-speed inputs feature strict current/voltage thresholds (state 1 guaranteed at 15-30V) to reject common-mode electromagnetic interference.

Q: What happens to the counting registers if an overload occurs on one of the source outputs?
A: The affected output triggers its internal 0.5A-1.5A automatic thermal protection reset loop while the high-speed counting registers continue tracking based on configured fallback rules.

Q: Can multiple TM200HSC206DT counter modules be stacked onto a single Modicon M238 base?
A: Yes, the controller base natively supports up to 3 dedicated counter modules, allowing multi-axis synchronous control within the same rack configuration.

Q: Why is auxiliary input functionality like IN_CAP or IN_REF critical for positioning applications?
A: These auxiliary inputs allow hardware-level event capture and reference marking without adding software scan-time latency, ensuring microsecond-accurate registration.

Q: Buying Guide: When should an engineer specify this module instead of using standard PLC built-in inputs?
A: Choose the TM200HSC206DT when your application demands dedicated 60 kHz hardware counting loops, specialized up/down frequency modes, and isolated 31-bit resolution that would otherwise burden the main CPU scan cycle.
