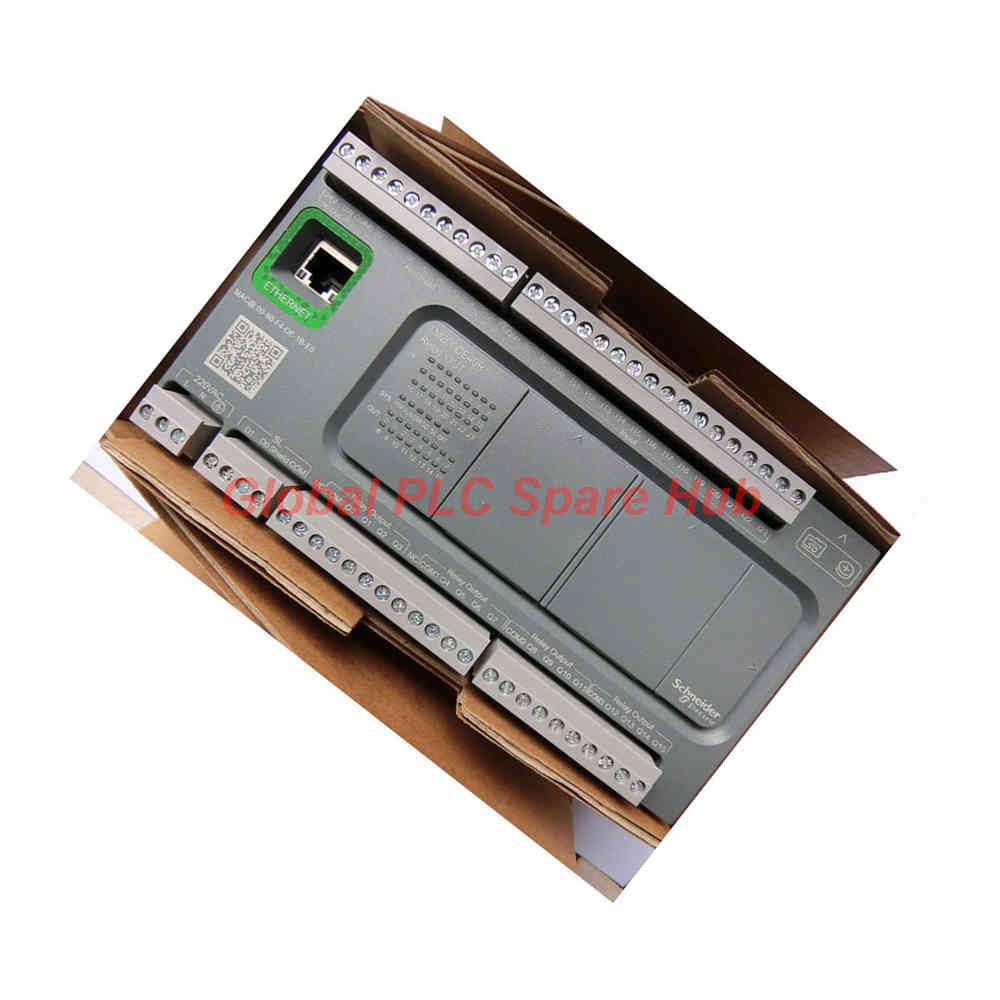

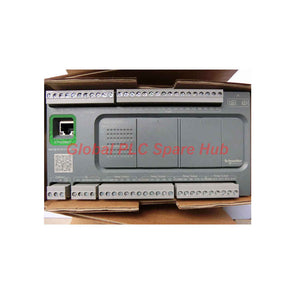

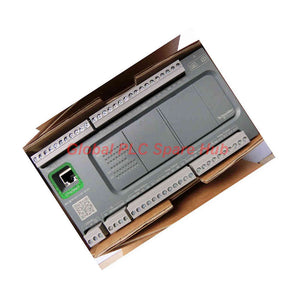

TM200CE40R Controller M200 Schneider Electric 40 I/O Unit

Product Engineering Profile

The Schneider Electric TM200CE40R Easy Modicon M200 Ethernet Controller is a high-capacity 40-I/O automation processor engineered for robust industrial machinery control. Featuring a wide-range AC power supply, integrated Modbus TCP/IP Ethernet connectivity, and 16 heavy-duty relay outputs, it manages complex plant floor logic and direct actuator switching reliably.

Global PLC Spare HUB Review: In networked pumping station upgrades, utilizing the onboard Ethernet port of the TM200CE40R allows seamless SCADA data polling without requiring auxiliary communication cards, significantly reducing cabinet footprint and wiring complexity.

Core Technical Architecture & Specifications Matrix

• Identification & Core Parameters
  • Brand: Schneider Electric
  • Model / Ordering Code: TM200CE40R
  • Product Series: Easy Modicon M200 Series
  • Device Type: Ethernet Logic Controller / CPU Module
  • Rated Supply Voltage: 100 to 240 V AC (limits: 85 to 264 V AC, 50/60 Hz)
• Discrete I/O Allocation & Performance
  • Total Channels: 40 discrete I/O channels (24 inputs, 16 relay outputs)
  • Input Architecture: 4 high-speed inputs (I0, I1, I6, I7) at 100 kHz, 4 fast inputs (I2...I5), and 16 regular inputs supporting sink/source logic
  • Output Architecture: 16 normally open relay outputs handling up to 2 A per channel with 4 A per common group
  • Internal Power Source: Built-in 24 V DC sensor power supply providing up to 300 mA
• Processing & Memory Architecture
  • Execution Speed: 0.2 µs per Boolean instruction; 0.3 ms for periodic task execution
  • Memory Storage: 512 bytes internal flash backup; optional 32 GB micro SD card slot
  • Battery Backup: BR2032 Li-CFx coin cell delivering up to 3 years of retention during power interruptions
• Communication & Physical Attributes
  • Ports: Mini-B USB 2.0 programming interface, non-isolated RS485 serial link, dual RS232/RS485 terminal block connections, and 10/100BASE-T Ethernet RJ45 port
  • Protocols: Modbus TCP/IP Client/Server, Modbus Master/Slave (RTU/ASCII), and SoMachine-Network
  • Dimensions & Weight: 175 mm (Width) x 90 mm (Height) x 70 mm (Depth); Net weight: 0.512 kg
  • Mounting Standards: DIN rail TH35-15 / TH35-7.5 or direct panel installation via fixing kit

Equipment Compatibility & Application Scenarios

• Target Hardware Integration: Compatible with Modicon M200 local expansion modules (supporting up to 4 discrete expansion racks up to 128 transistor or 80 relay outputs), SoMachine software suites, and standard industrial HMI panels.
• Primary Industrial Scenarios:
  • Distributed HVAC control panels requiring direct AC supply voltage and hard-contact relay output switching for motor starters.
  • Automated material handling lines needing integrated Ethernet communication for remote supervisory data collection.
  • Mid-scale OEM packaging systems utilizing high-speed counter inputs (HSC) for encoder position tracking.

Diagnostic Capabilities & Maintenance Protocol

• LED Status Indicator Tree:
  • PWR (Green): Confirms active 100-240V AC power input status.
  • RUN (Green): Indicates normal user application program execution.
  • ERR (Red): Highlights hardware faults, configuration errors, or watchdog failures.
  • SD (Green): Flashes during active micro SD card data transactions.
  • BAT (Red): Warns of low backup battery voltage requiring replacement.
  • SL1 (Green): Monitors serial link data traffic.
  • LK/ACT 10/100 (2 Green LEDs): Track Ethernet network link status and packet transmission activity.
  • I/O LEDs (Green, per channel): Reflect real-time digital status for individual inputs and outputs.
• Troubleshooting & Maintenance:
  • Monitor the relay electrical durability limit (rated for 100,000 cycles at full resistive AC-12 load); schedule preventive contact inspection in high-frequency switching applications.
  • Check Ethernet link LEDs if remote polling fails; persistent link dropouts under high electrical noise indicate unshielded cable proximity to heavy inductive loads.

Logistics, Fulfillment & Warranty Terms

• Fulfillment Speed: Dispatched within 24 to 48 hours from order validation.
• Express Carriers: Secure global shipping handled via FedEx, UPS, and DHL.
• Warranty Coverage: Backed by a comprehensive 12-month industrial replacement warranty covering non-artificial manufacturing defects.

Expert Buying Guide & Frequently Asked Questions

Q: How does the AC power supply requirement of the TM200CE40R affect control cabinet design?

A: Operating directly on 100-240V AC mains eliminates the need for an external 24V DC power supply to power the CPU base unit, simplifying panel layouts in installations where AC line power is readily available.

Q: What specific maintenance consideration applies to the relay outputs over extended operation?

A: Because the outputs utilize mechanical normally-open relays, continuous high-frequency switching will eventually reach the 20-million mechanical lifecycle threshold, making solid-state expansion modules preferable for rapid-cycling actuator tasks.

Q: Can the onboard Ethernet port handle simultaneous Modbus TCP client and server communication?

A: Yes. The integrated Ethernet port supports full Modbus TCP/IP client and server capabilities, enabling the controller to act as both a data master for local sub-devices and a slave node for upper-level SCADA systems.

Q: Why is an external sensor power supply not strictly required for basic digital inputs?

A: The controller features a built-in 24V DC auxiliary power supply capable of delivering up to 300 mA directly to connected field sensors, reducing auxiliary hardware overhead.

Q: What is the primary advantage of choosing the TM200CE40R over standard DC-powered controllers?

A: Field experience shows that direct AC-powered models are ideal for legacy panel retrofits where existing control transformers supply 120V or 230V AC mains directly to the main rack architecture.
