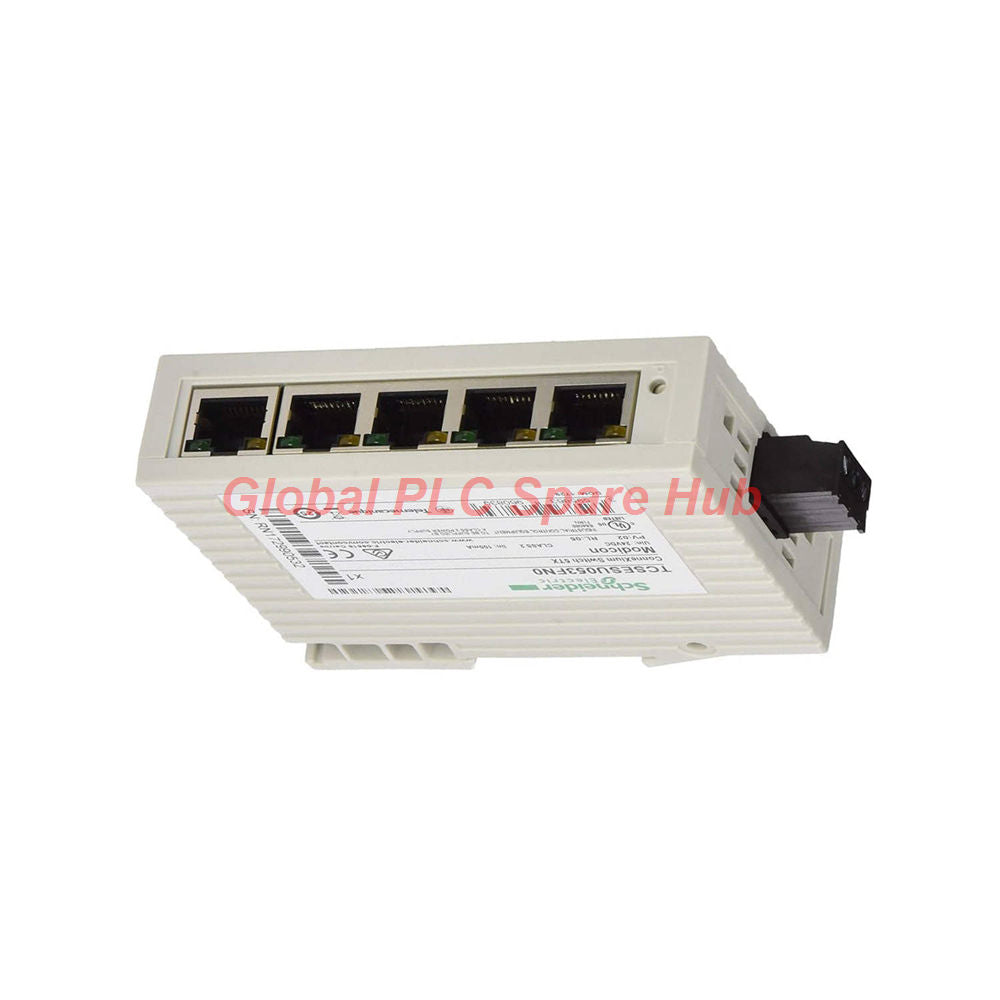

TCSESU053FN0 Schneider Electric ConneXium 5-Port Ethernet Switch
Manufacturer: Schneider Electric
Product No.: TCSESU053FN0
Condition： In stock
Product Type: Ethernet Switch
Product Origin: DE
Payment: T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
Industrial Network Architecture: TCSESU053FN0 ConneXium Ethernet Switch
The TCSESU053FN0 is an industrial-grade unmanaged Ethernet switch from Schneider Electric's ConneXium Transparent Ready series, engineered with 5 copper ports for robust plant-floor connectivity. Global PLC Spare HUB's Insight: Unmanaged switches like the TCSESU053FN0 provide reliable plug-and-play auto-negotiation in distributed control networks without requiring complex configuration overhead.
Hardware Specifications & Parameters
| Technical Parameter | Engineering Specification |
|---|---|
| Manufacturer & Series | Schneider Electric ConneXium |
| Model Number | TCSESU053FN0 |
| Port Configuration | 5 Ports, Shielded RJ45 Copper (10BASE-T/100BASE-TX) |
| Supply Voltage & Power | 24 V DC SELV (Limits: 9.6-32 V DC), 2.2 W Consumption |
| Environmental Rating | IP30 Protection, Operating Temp: 0°C to 60°C |
| Physical Dimensions | Width: 25 mm, Height: 114 mm, Depth: 79 mm, Weight: 0.113 kg |
Diagnostic Capabilities & System Integration
Effective maintenance relies on immediate visual feedback and robust physical interfaces:
- Local LED Diagnostics: Dedicated indicators for power supply health, per-channel link activity, and active data rates (10/100 Mbit/s).
- Automatic Adaptation: Features auto-crossing (Auto MDI/MDX), polarity change detection, and store-and-forward switching architecture.
- Unlimited Cascade: Supports flexible network expansion topologies across distributed automation cells.
Target Applications & Equipment
The TCSESU053FN0 switch is ideal for embedding into PLC remote drop enclosures, HMI communication clusters, and variable frequency drive (VFD) supervisory loops within manufacturing cells, water treatment plants, and material handling systems.
Fulfillment, Logistics & Warranty
- Global Logistics: Fast dispatch within 24 to 48 hours via secure couriers including FedEx, UPS, and DHL.
- Quality Assurance: Backed by a comprehensive 12-month warranty covering operational integrity.
Engineering FAQ & Troubleshooting
Q: What causes an individual port activity LED to remain unlit despite a connected patch cable?
A: Verify cable continuity and check whether the link partner exceeds standard attenuation limits. Unmanaged switches require correct CAT 5E twisted shielded pairs to establish proper physical handshake.
Q: Can the TCSESU053FN0 handle power input fluctuations from legacy panel transformers?
A: Yes. Global PLC Spare HUB Review highlights that the unit accepts a wide DC voltage range from 9.6 V to 32 V, buffering standard industrial transient drops efficiently.
Q: How does auto-polarity correction assist field technicians during installation?
A: It eliminates communication faults caused by crossed transmit/receive pairs in legacy field wiring, saving substantial commissioning time.
Q: Is grounding necessary given the IP30 rating and compact casing?
A: Absolutely. Proper DIN rail and terminal block grounding ensures electromagnetic immunity against high-frequency noise generated by nearby switching inverters.
Q: What is the recommended selection guideline when expanding a ConneXium network?
A: When cascading switches in high-vibration zones, secure the 25 mm slim profile firmly and utilize shielded CAT 5E cabling to maintain packet integrity across long drops.
