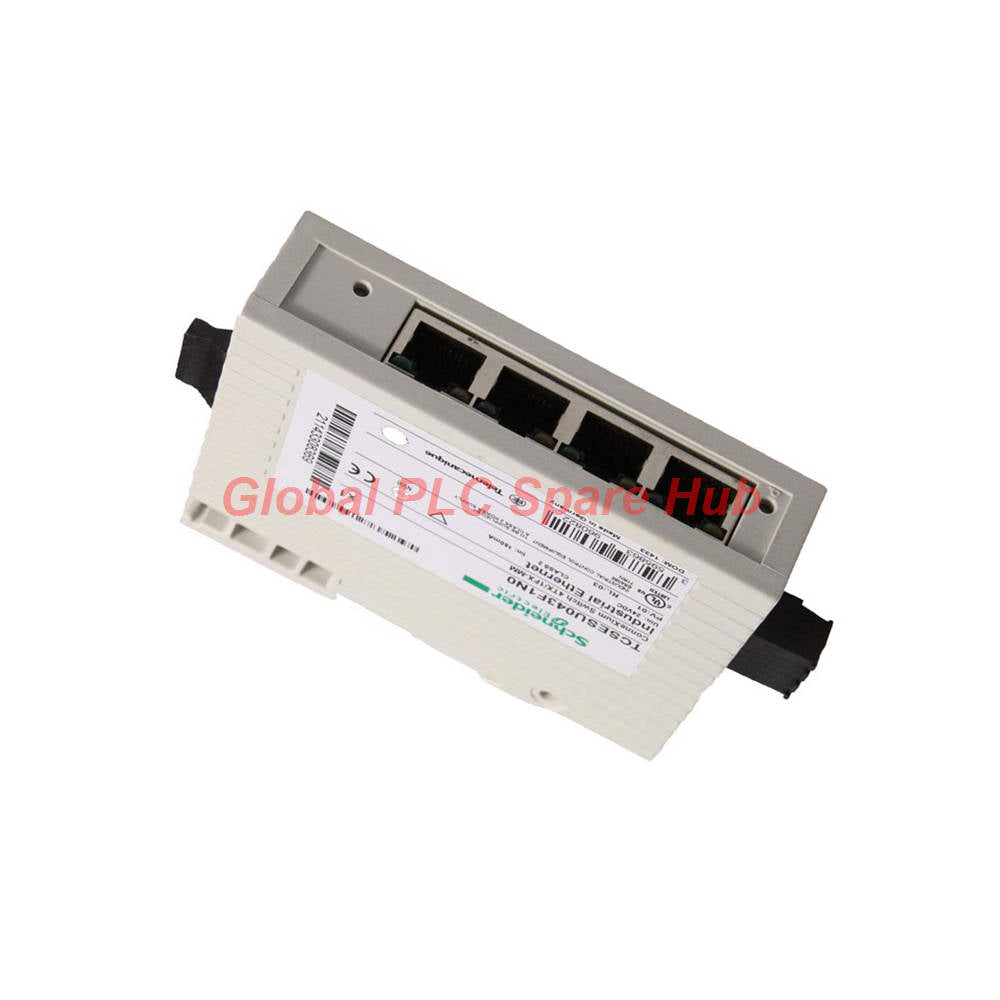

TCSESU043F1N0 Schneider Electric Unmanaged Switch Series

Product Overview & Engineering Architecture

The Schneider Electric TCSESU043F1N0 ConneXium Ethernet Switch is a compact unmanaged networking device engineered to bridge copper and fiber infrastructures in harsh industrial environments. Operating under the Transparent Ready concept, this DIN-rail unit handles automated negotiation and store-and-forward switching across high-noise control spaces.

Global PLC Spare HUB Review: In distributed PLC network retrofits, deploying the TCSESU043F1N0 near local drop panels isolates electrical noise via its multimode fiber uplink, preventing common-mode ground potential issues from traveling between remote control cabinets.

Technical Specification Hierarchy

• Core Identification & Brand
  • Brand: Schneider Electric
  • Model / Part Number: TCSESU043F1N0
  • Product Range: ConneXium Unmanaged Switch Series
  • Device Type: Ethernet TCP/IP Unmanaged Switch
• Port Configuration & Media
  • Copper Ports: 4 ports (10BASE-T/100BASE-TX) via Shielded RJ45
  • Fiber Optic Port: 1 port (100BASE-FX) via Duplex SC interface
  • Transmission Medium: CAT 5E shielded twisted pairs (copper); 50/125 µm or 62.2/125 µm multimode optical fiber
  • Attenuation Budget: 11 dB for 62.2/125 µm fiber; 8 dB for 50/125 µm fiber
• Electrical & Power Characteristics
  • Rated Supply Voltage: 24 V DC (SELV limits: 9.6 to 32 V DC)
  • Power Consumption: 3.9 W maximum dissipation
  • Power Connection: 3-way removable screw terminal block
• Physical & Environmental Ratings
  • Dimensions: 25 mm (Width) x 114 mm (Height) x 79 mm (Depth)
  • Net Weight: 0.12 kg (Ultra-compact DIN rail profile)
  • Operating Temperature: 0°C to +60°C ambient air tolerance
  • Enclosure Protection: IP30 ingress rating with 0-95% non-condensing relative humidity
  • Compliance & Certifications: CE, CSA C22.2 No 142, CUL 508

Industrial Equipment Compatibility & Deployment Scenarios

• Target Hardware Ecosystem: Compatible with Modicon PLCs, distributed I/O islands, industrial operator interfaces, and SCADA gateway nodes.
• Primary Operational Scenarios:
  • Extending network backbone spans beyond copper limits utilizing the 100BASE-FX multimode fiber uplink.
  • Interconnecting compact machine-level automation cells where control cabinet footprint is heavily restricted.
  • Eliminating frame dropouts in multi-drop unmanaged cascading topologies.

Diagnostic Capabilities & Maintenance Protocol

• Local LED Indication Matrix:
  • Dedicated fiber port state and activity tracking LED.
  • System power supply status indicator.
  • Per-channel copper port link/activity LEDs and data rate indicator (10/100 Mbit/s confirmation).
• Field Maintenance & Troubleshooting:
  • Use the built-in auto-crossing (Auto MDI/MDX) and polarity correction to instantly diagnose miswired field patch leads during commissioning.
  • Monitor the power supply LED; flickering or dimming under 9.6 V DC indicates an unstable auxiliary power feed requiring immediate voltage regulation checks.

Logistics & Fulfillment Parameters

• Fulfillment Speed: Dispatched within 24 to 48 hours following order verification.
• Global Carrier Network: Secure and tracked express delivery handled via FedEx, UPS, and DHL.
• Warranty Terms: Backed by a comprehensive 12-month industrial replacement warranty covering non-artificial hardware defects.

Expert Buying Guide & Frequently Asked Questions

Q: What specific fiber core size is optimal for maximizing the link distance on this switch?

A: Field experience shows that utilizing 50/125 µm multimode fiber provides a tighter attenuation budget (8 dB limit) compared to 62.2/125 µm fiber (11 dB limit), yielding more stable long-term optical margins in high-bandwidth control loops.

Q: Can the TCSESU043F1N0 be cascaded infinitely without introducing excessive latency?

A: While the architecture supports an unlimited cascade count theoretically, engineering best practices recommend limiting unmanaged switch hops to prevent cumulative frame jitter in real-time motion control networks.

Q: Why does the unit require a DC SELV voltage range instead of direct AC mains?

A: Industrial control panels rely on 24V DC auxiliary power supplies to isolate sensitive microprocessors from high-voltage transient spikes originating from nearby motor starters and contactors.

Q: How do I verify if a copper port is negotiating at Fast Ethernet speeds?

A: Check the dual-state channel LEDs; a solid indication on the 100 Mbit/s rate LED combined with flashing activity confirms successful auto-negotiation with the connected field node.

Q: What precautions should be taken when terminating the SC duplex fiber connector?

A: Always inspect and clean optical ferrules with lint-free isopropyl alcohol wipes prior to insertion to prevent microscopic dust particles from causing severe optical attenuation and CRC errors.
