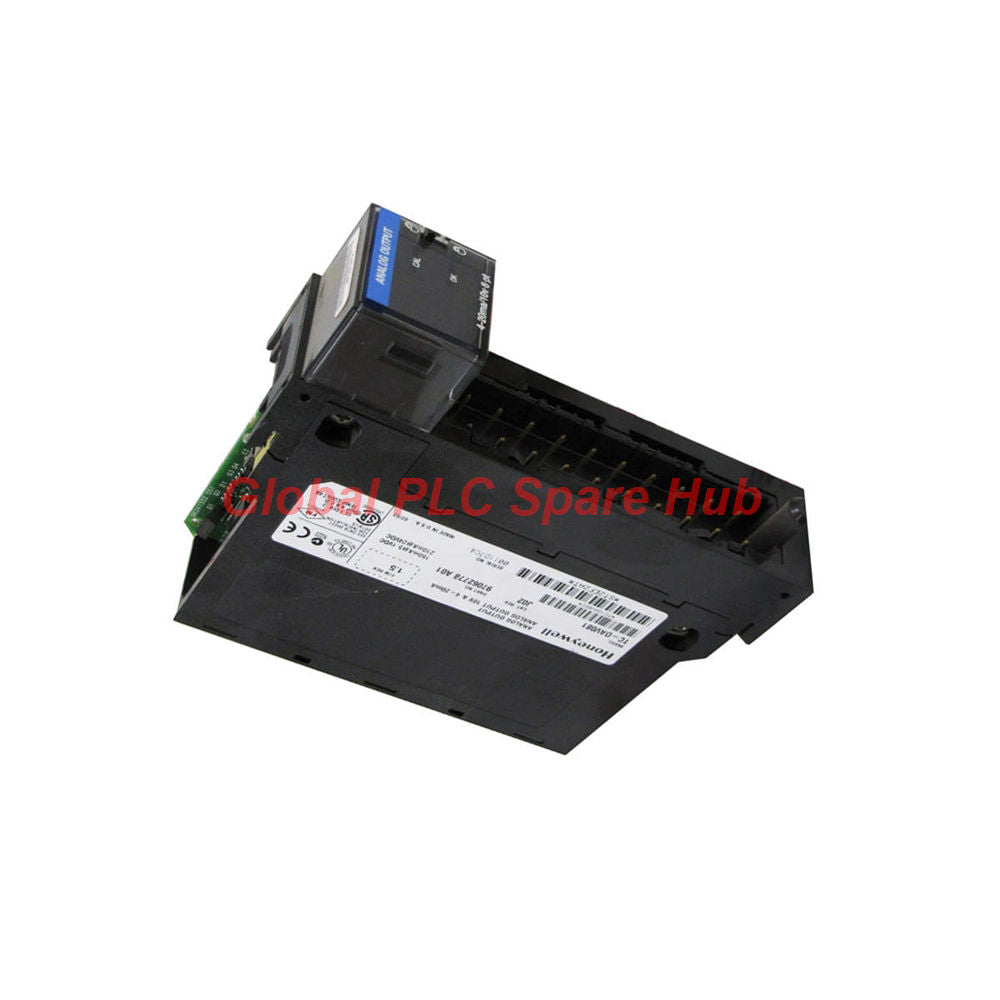

TC-OAV081 TC-OAV081 Honeywell 8-Channel Analog Output Module Experion PKS

Technical Overview

The Honeywell TC-OAV081 is a high-performance 8-channel analog output module engineered for the Experion PKS distributed control architecture. Delivering precision voltage output (±10.4 V) and current output (0 to 21 mA) with high-resolution digital-to-analog conversion, this module ensures accurate actuation for industrial control valves, drives, and positioners. Housed with robust electronic short-circuit protection and 2550 VDC user-to-system isolation, the TC-OAV081 guarantees reliable process control under rigorous electromagnetic and thermal conditions.

Global PLC Spare HUB's Insight & Field Experience

Analog output loop stability in large-scale continuous process plants can be heavily impacted by ground loops and induced electromagnetic interference (EMI) along long signal cable runs to final control elements. During the commissioning of a chemical distillation column upgrade utilizing the TC-OAV081 module, our instrumentation team observed minor valve position hunting on channel 3. Investigation confirmed that the 4-20 mA control loop shield was improperly grounded at both ends, creating circulating ground currents. Terminating the signal cable shield exclusively at the control cabinet ground bar and ensuring load resistance remained well within the 0-750 Ω limit instantly stabilized loop output and eliminated positioning jitter.

Technical Specification Matrix

Applicable Hardware & Deployment Scenarios

• Target Control Systems: Honeywell Experion PKS C300 controller nodes and redundant I/O expansion chassis.
• Final Control Elements: Electro-pneumatic control valve positioners, variable frequency drives (VFDs), proportional speed controllers, and analog chart recorders.
• Industrial Sectors: Oil and gas refineries, petrochemical processing complexes, power generation boiler controls, and water treatment fluid metering skids.

Step-by-Step Installation Guidelines

• Slot Verification: Confirm that controller rack power is de-energized before inserting or extracting the TC-OAV081 module into the designated I/O slot.
• Terminal Block Engagement: Securely mount the 20-position TC-TBNH terminal block to the front of the module, ensuring locking mechanisms are fully latched.
• Loop Wiring & Shielding: Terminate field actuator signal wires carefully, maintaining proper polarity and ensuring single-point shield grounding to prevent ground loops.
• Power-Up & Self-Test: Energize the system backplane and verify that module status LEDs indicate normal operation without channel fault flags.
• Software Configuration: Configure channel scaling (4-20 mA or ±10V) and failure-safe action states within the Experion engineering environment.

Diagnostic Capabilities & Maintenance Efficiency

• Open/Short Protection: Electronic current-limiting circuitry automatically protects individual channels against accidental short circuits or overloads below 21 mA.
• Overvoltage Safeguard: Withstands continuous 24 VAC/VDC overvoltage conditions at room temperature without permanent hardware degradation.
• Status Telemetry: Real-time diagnostic reporting feeds channel error flags directly back to the supervisory controller for rapid maintenance triage.

Compliance, Shipping & Warranty Terms

• Quality Assurance: Backed by a comprehensive 12-month warranty protecting against manufacturing or component defects.
• Fulfillment Speed: Rapid 24 to 48-hour order dispatch processing to mitigate costly industrial process downtime.
• Logistics Partners: Secure international air freight expedited through trusted global couriers including FedEx, UPS, and DHL.

Frequently Asked Questions (FAQ)

Q: Can the TC-OAV081 module simultaneously drive voltage and current actuators across its 8 channels?

A: Yes. The TC-OAV081 supports configurable mix-and-match operations where individual channels can be software-selected for voltage (±10.4V) or current (0-21mA) output modes.

Q: What specific field terminal block model is required to wire this analog output card?

A: The module requires the 20-position TC-TBNH removable terminal block for clean, structured field signal wire termination.

Q: How does open-circuit protection behave if an actuator wire is accidentally severed in the field?

A: The channel incorporates electronic current limiting to restrict output drive to 21 mA or less, preventing internal thermal runaway while sending an error diagnostic to the controller.

Q: What key guidelines should be considered when replacing a legacy analog module with this unit?

A: Always verify that backplane power draws (150 mA @ 5.1VDC and 210 mA @ 24VDC) do not exceed power supply budget limits on your existing Experion I/O rack.

Q: Does the module require external fusing on individual analog output loops?

A: While internal electronic limiting handles short circuits, adding external loop fuses or isolating barriers is recommended depending on site-specific hazardous area classification rules.
