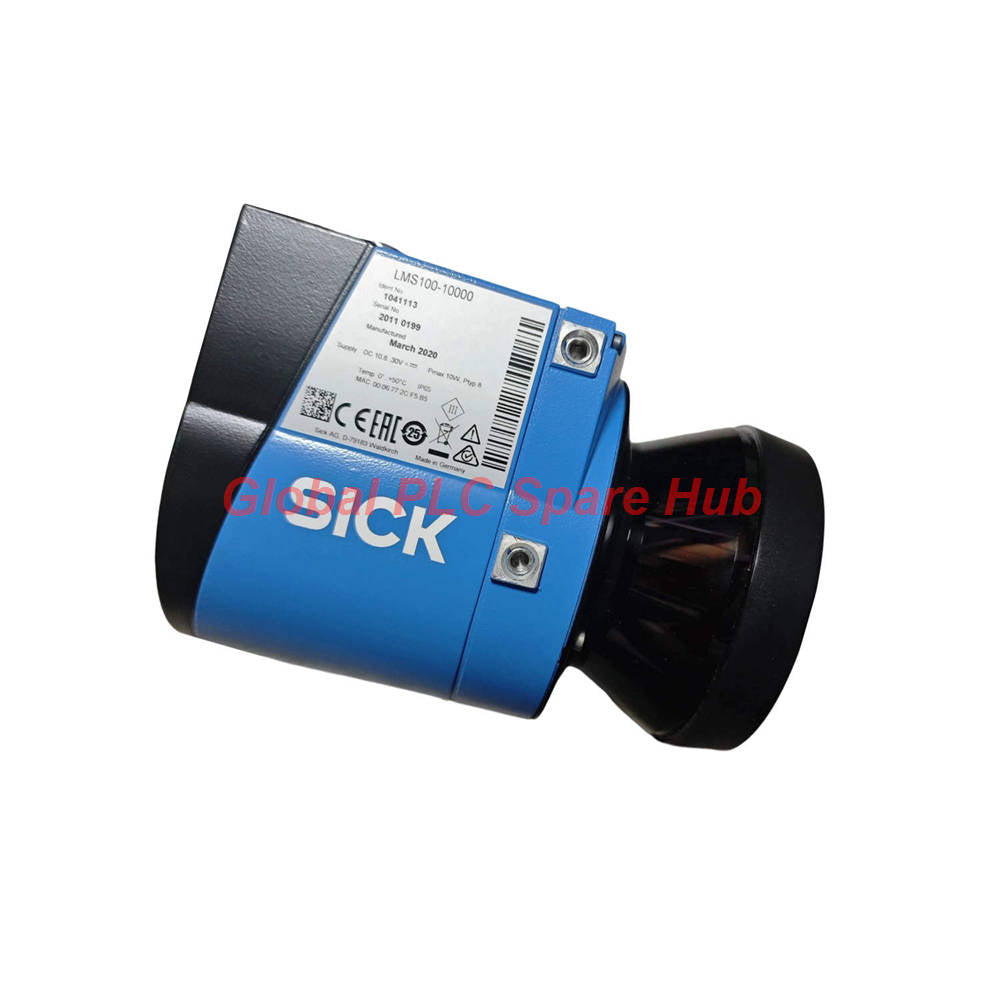

SICK LMS100-10000 Laser Scanner Indoor Measurement Unit

Executive Overview & Detection Principle

The SICK LMS100-10000 functions as a high-precision indoor 2D laser scanner engineered for precise optical distance measurement and contour mapping. Operating on an infrared 905 nm laser source, this device achieves a sweeping 270-degree horizontal aperture angle. Engineers deploy the LMS100-10000 to capture real-time spatial data across dynamic factory floors. Global PLC Spare HUB supplies this optical measuring unit to support advanced navigation and automated guided vehicle systems.

Technical Blueprint & Performance Metrics

Deployment Blueprint & Connection Guide

• Mount the unit securely on stable indoor brackets, ensuring an unhindered 270-degree horizontal scanning window.
• Connect power using the system plug with a dedicated screw terminal block, maintaining a steady 10.8V to 30V DC input.
• Establish communication links through the onboard Ethernet TCP/IP port (10/100 MBit/s) for high-speed scan data output.
• Utilize the RS-232 serial interface for auxiliary service configuration or secondary data logging.
• Integrate digital inputs, encoder inputs, and control outputs to coordinate field evaluation sets and monitoring zones.

Diagnostic Architecture & Status Monitoring

• Optical Display Panel: Features an integrated 7-segment display paired with five status LEDs for instant visual diagnostics.
• Contamination Warning: Built-in optical monitoring alerts maintenance teams when dust or debris accumulates on the front screen.
• Echo Evaluation: Evaluates up to 2 distinct echoes per pulse to filter out minor atmospheric obstructions.
• Fog Correction: Active software compensation algorithms stabilize detection reliability under minor particulate interference.

System Compatibility & Interface Integration

• Network Protocols: Direct TCP/IP streaming over industrial Ethernet architecture.
• Field Evaluation: Supports up to 10 independent field sets and 10 simultaneous evaluation cases.
• CAN Extension: Expandable output configurations via internal CAN interface.
• Ambient Light Resilience: Engineered to withstand up to 80,000 lux of ambient illumination without optical saturation.

Target Equipment & Industrial Application Sectors

• Automated Guided Vehicles (AGVs): Collision avoidance and contour-based navigation across indoor logistics routes.
• Warehouse Robotics: Pallet overhang detection and automated high-bay storage profiling.
• Material Handling Systems: Sizing and volume estimation of packages moving along high-speed conveyor belts.
• Perimeter Security: Indoor zone monitoring and intrusion detection within restricted logistics hubs.

Fulfillment, Logistics & Warranty Framework

• Processing Window: In-stock sensor orders are processed and dispatched within 24 to 48 hours.
• Global Carriers: Expedited international shipping serviced by FedEx, UPS, and DHL.
• Warranty Terms: Covered by a dependable 12-month replacement warranty backed by Global PLC Spare HUB.

Global PLC Spare HUB's Insight & Buying Guide

• Field Engineering Insight: When operating the LMS100-10000 in dusty packaging environments, optical window maintenance is critical. Even a thin layer of fine powder can trigger contamination warnings on the 7-segment display and degrade the 18-meter range at 10% remission. Clean the optical cover periodically with a non-abrasive antistatic cloth.
• Selection Guidance: Note that this specific indoor scanner does not constitute a certified safety component under machine safety laws. Ensure your control architecture implements separate safety circuits if used near human operators.

Frequently Asked Questions

Q: Can the SICK LMS100-10000 be deployed outdoors?

A: No, this model is specifically engineered for indoor applications with an operating temperature range of 0 °C to +50 °C and lacks integrated window heating.

Q: How many evaluation cases can run at the same time?

A: The scanner supports up to 10 simultaneous evaluation cases mapped across 10 distinct field sets.

Q: What data interfaces are available for reading measurement results?

A: Measurement data can be extracted via the 10/100 MBit/s Ethernet TCP/IP data interface or the RS-232 serial port.

Q: What does the contamination warning indicator signify?

A: It signals that dust or foreign particles have settled on the optical transceiver window, requiring a routine cleaning to maintain precise distance measurements.

Q: Is this laser scanner certified for primary safety shutdown loops?

A: No, the sensor does not constitute a safety component as defined by relevant legislation on machine safety, so it must be paired with dedicated safety controllers for personnel protection.
