Schneider Modicon OTB1C0DM9LP | CANopen Bus I/O Distributed Remote Unit

Industrial CANopen Distributed Control Excellence

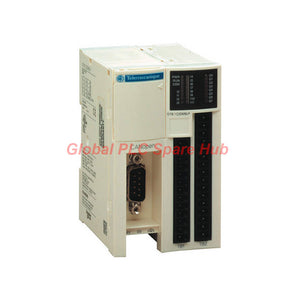

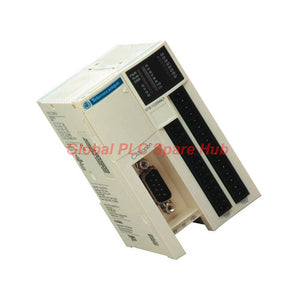

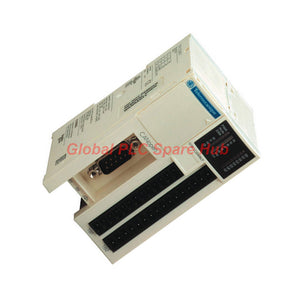

The OTB1C0DM9LP represents a high-performance solution within the Modicon OTB series, specifically engineered for distributed I/O architectures. This module serves as a bridge between complex field sensors and the primary control network, leveraging CANopen bus technology for high-speed data transmission. With a modular expansion capacity of up to 7 units, it provides the scalability required for modern, decentralized industrial automation.

Technical Specifications Overview

• Brand: Schneider Electric
• Series: Modicon OTB
• Model: OTB1C0DM9LP
• Network Protocol: CANopen (DS 401 V2.1 profile)
• Discrete Inputs: 12 points (Type 1, 24V DC, Sink/Source)
• Discrete Outputs: 2 Solid State (PNP) and 6 Relay outputs
• Processing Capabilities: Integrated 32-bit counter (2 channels) and Pulse Generator (PWM/RPLS)
• Power Supply: 24V DC rated voltage
• Installation: 35mm DIN rail or panel mount options
• Ingress Protection: IP20 for cabinet-protected environments

Global PLC Spare HUB's Insight

Our technical team views the OTB1C0DM9LP as a vital asset for complex machine retrofits. Its ability to handle both solid-state outputs for high-speed switching and relay outputs for high-current loads makes it remarkably versatile. It is ideal for distributed conveyor management, automated packaging lines, and multi-axis motion control systems where minimizing wiring runs to the master PLC is critical for system latency reduction.

Integrated Diagnostic Capabilities

The unit features comprehensive on-board status monitoring to minimize downtime. Dedicated per-channel LEDs provide instantaneous visual feedback on I/O states, while separate PWR, RUN, and ERR indicators allow for rapid network-level fault isolation. The system is designed to withstand harsh electromagnetic environments, featuring 8kV air discharge protection and robust transient immunity.

Logistics and Warranty

• Shipping: Expedited global dispatch within 24–48 hours
• Carriers: Reliable worldwide shipping via FedEx, UPS, or DHL
• Assurance: Every OTB1C0DM9LP unit includes a comprehensive 12-month quality warranty

Professional FAQ

Q: How should I determine the correct baud rate for my CANopen segment?

A: The baud rate is dependent on your total bus length. For distances up to 100 meters, 500 kbit/s is recommended. For extended reaches reaching 5,000 meters, you must drop the speed to 10 kbit/s to maintain signal integrity.

Q: Can I mix input and output modules in the expansion slots?

A: Yes, the OTB1C0DM9LP is fully modular. You can add up to 7 expansion modules, allowing you to tailor the specific mix of analog or discrete I/O needed for your application.

Q: What is the benefit of the integrated pulse generator functions?

A: The integrated pulse functions (PWM/RPLS) allow you to control proportional valves or simple stepper motor drivers directly from the I/O node, offloading these time-critical tasks from the master CPU.

Q: How does this module behave during a network micro-break?

A: The module is built with an immunity threshold of 10ms for its supply circuit, ensuring that brief voltage dips or network jitters do not trigger a system-wide reset.

Q: Buying Guide: What should I verify before integration?

A: Always verify your CANopen node address settings and ensure the terminating resistors are installed at both ends of the trunk line. Use shielded twisted-pair cabling to comply with EN 61131-2 standards and prevent data collision.
