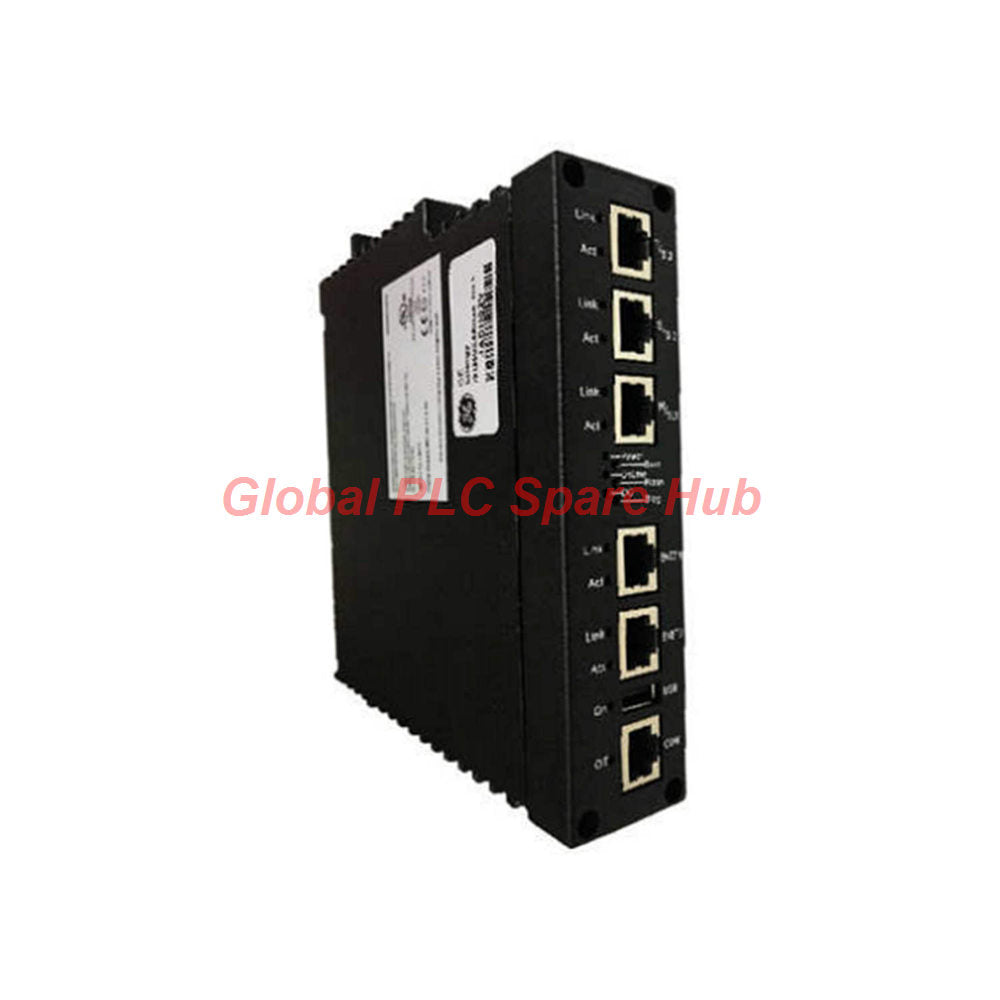

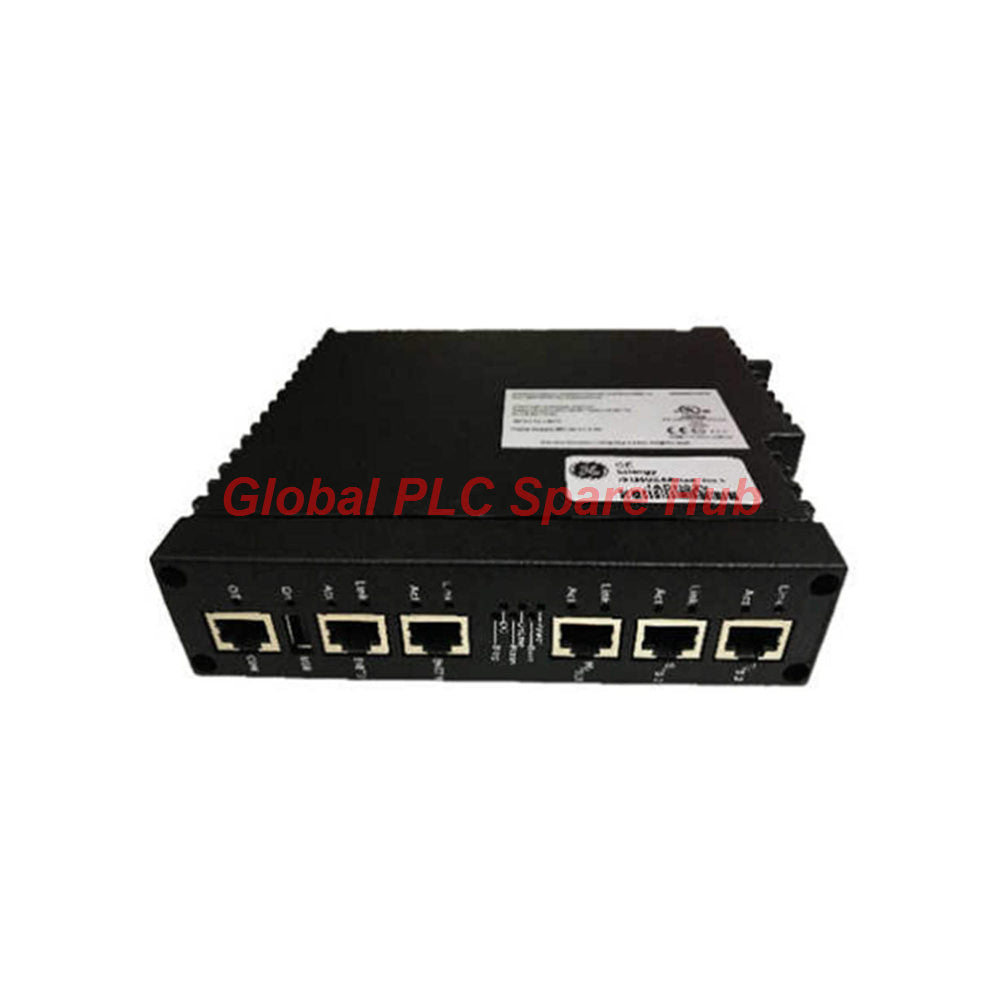

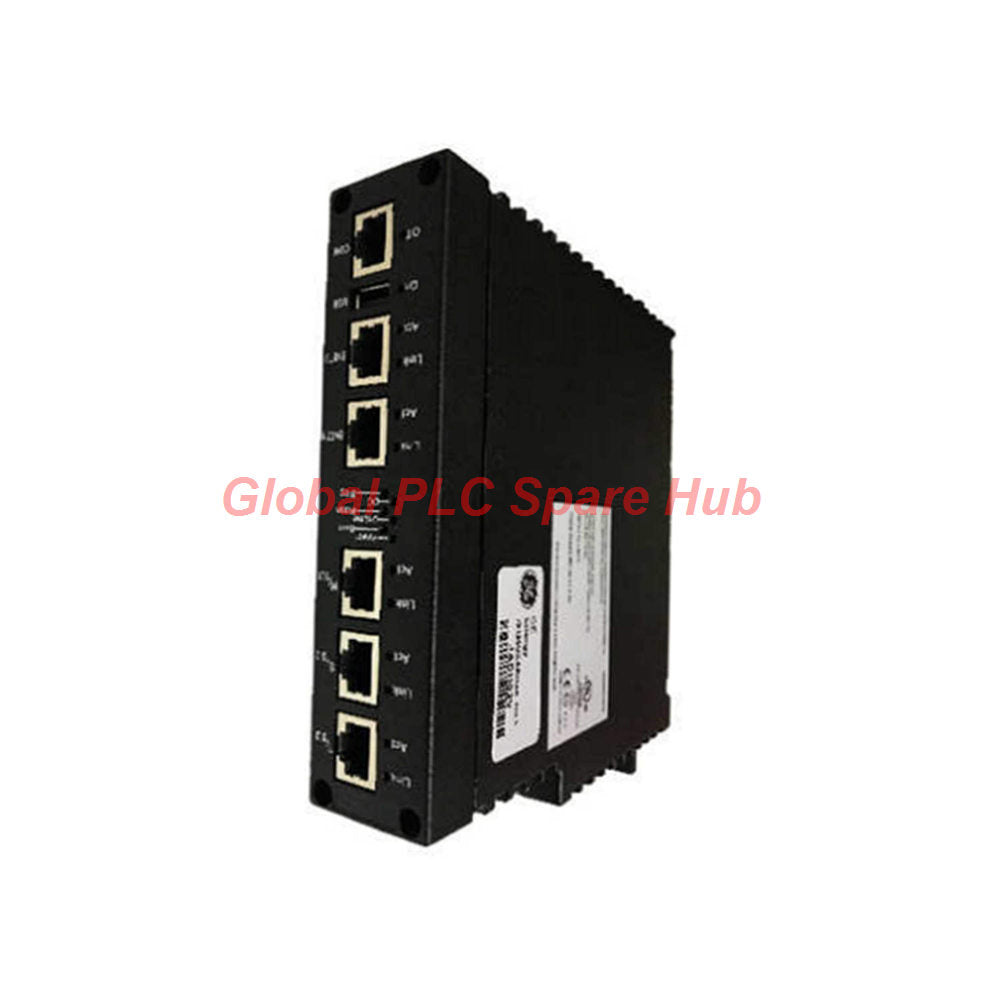

IS420UCSBH1A GE Mark VIe Controller - UCSB Processor

Engineering Profile: GE IS420UCSBH1A Controller

The IS420UCSBH1A serves as a core processing unit within the Mark VIe Control Safety System. Engineered for extreme industrial demands, this UCSB controller integrates a high-efficiency 600 MHz Intel EP80579 microprocessor. Designed for longevity and reliability, the module operates without fans or batteries, significantly reducing maintenance intervals in harsh deployment environments.

Technical Performance Data

• Model: IS420UCSBH1A
• Series: Mark VIe (Control Safety System)
• Processor: 600 MHz Intel EP80579
• Voltage Range: 18–30 VDC (Nominal 24/28 VDC)
• Current Demand: 1.5 ADC (Max)
• Thermal Range: -22 to 149°F (-30 to 65°C)
• Design Architecture: Single-module, fanless, battery-free
• Safety Certifications: ATEX Zone 2 (Group IIC), UL E207685, Class I Div 2

Global PLC Spare HUB's Insight

The IS420UCSBH1A represents the foundational architecture for the UCSB series. Unlike newer UCSC variants, the IS420UCSBH1A offers a highly deterministic control environment. Our technical team identifies this controller as the ideal candidate for legacy system upgrades in EX2100e excitation systems and LS2100e static starter systems. It is engineered for operations where thermal stability and high-availability safety logic are non-negotiable.

Diagnostic & Application

• Diagnostic Capability: Integrated self-monitoring routines detect processor faults and voltage deviations in real-time.
• Typical Applications: Steam/Gas turbine governance, power generation auxiliary control, and hazardous-area drive management.
• Deployment: Suited for both non-hazardous and ATEX/Class I Div 2 environments, offering flexible mounting across diverse industrial layouts.

Logistics & Warranty

• Global Logistics: Fast, tracked shipping via FedEx, UPS, or DHL.
• Lead Time: Rapid order processing within 24–48 hours.
• Warranty: Industry-leading 12-month standard warranty on all controller units.

Professional FAQ & Selection Guide

Q: How does the IS420UCSBH1A handle extreme thermal environments?
A: The fanless, passive-cooling design allows it to operate reliably between -22°F and 149°F by utilizing its robust metallic housing as a heat sink.

Q: Can I upgrade from this module to the UCSC controller?
A: While they share similar software architectures, always consult your specific Mark VIe cabinet documentation; pin-outs and backplane firmware requirements may require specific configuration adjustments.

Q: Why is there no battery in this unit?
A: This design eliminates the risk of chemical leakage and reduces service requirements, relying on non-volatile internal memory for configuration storage.

Q: What is the significance of the UL E207685 certification?
A: It confirms that the unit meets rigorous safety standards for use in volatile industrial environments, including Class I, Division 2, Groups A, B, C, and D zones.

Q: Selection Guide: How do I ensure compatibility for my EX2100e system?
A: Verify that the controller revision matches your existing IO configuration files. If you are replacing an existing unit, document the firmware version currently running on the rack before swapping.
