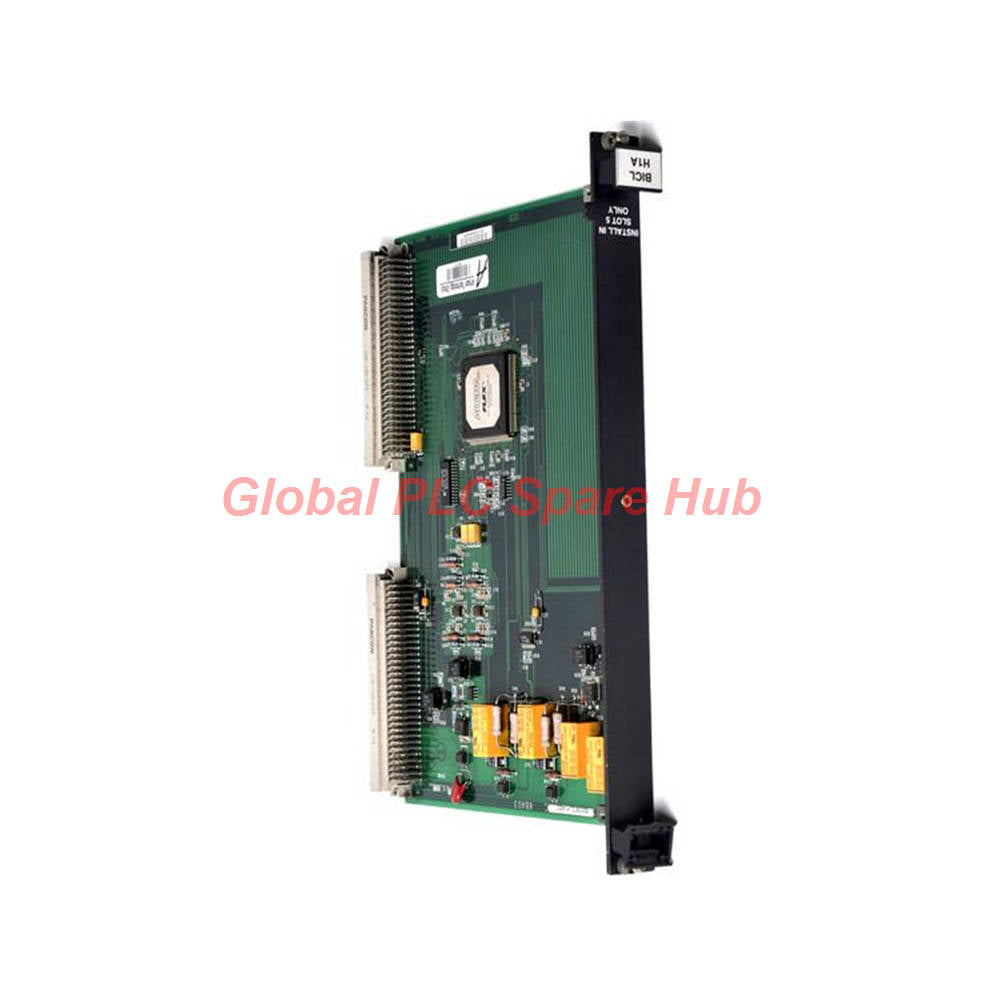

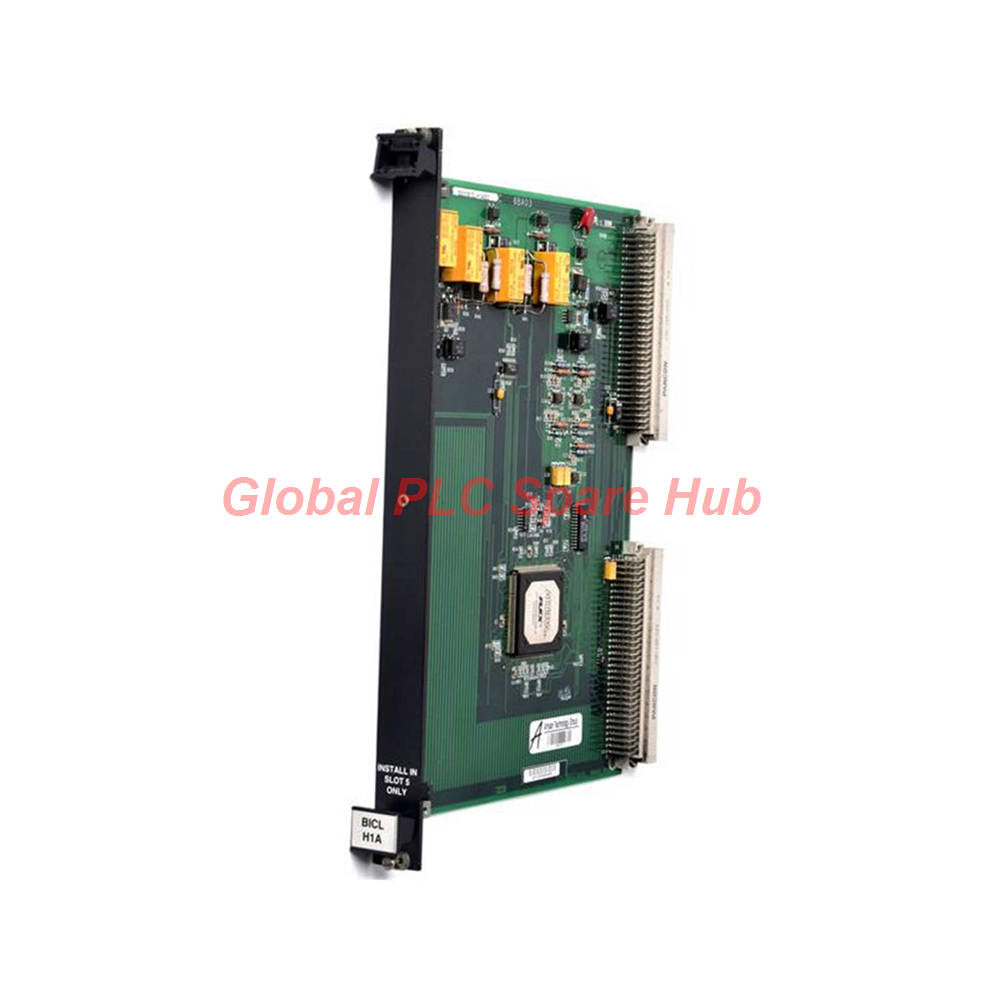

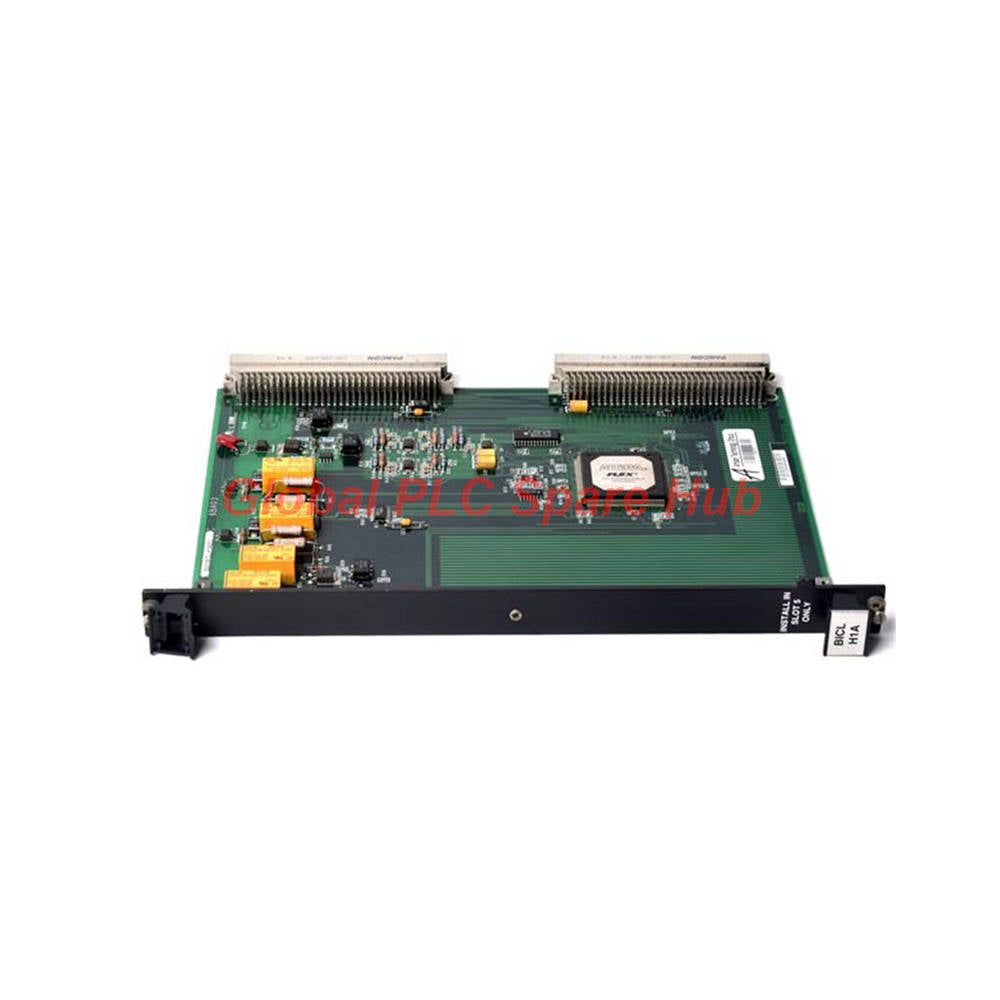

IS200BICLH1AFD GE Innovation Series IGBT Bridge Interface Board

Core Engineering Functionality

The IS200BICLH1AFD acts as the vital communication nexus within the GE Innovation Series drive architecture. As a high-performance IGBT Drive/Source Bridge Interface Board, it bridges the gap between the main control PCB and peripheral Bridge Personality Interface components. This module leverages an electronically programmable logic device (EPLD) to manage complex tasks, including pulse-width modulated (PWM) speed regulation, bridge temperature tracking, and critical system fault string monitoring.

Technical Architecture & Resilience

• Manufacturer: General Electric (GE Industrial Control Systems)
• Series: Innovation Series / Mark VI
• Model Number: IS200BICLH1AFD
• Form Factor: VME-rack mountable interface board
• Connectivity: Dual P1 and P2 interface connectors for VME backplane integration
• Protection: Uniform conformal coating (H1 designation) for superior environmental resistance
• Diagnostics: Integrated 1024-bit serial memory for hardware ID and revision tracking
• Thermal Monitoring: Onboard circuitry for four RTD inputs

Global PLC Spare HUB Insight

Field experts rely on the IS200BICLH1AFD for its precision in managing high-voltage bridge interfaces. Its ability to process bridge temperature data in real-time makes it indispensable for gas and steam turbine applications where heat management is the primary determinant of system longevity. Unlike standard interface cards, the EPLD-driven logic on this board allows for firmware-level adaptability during power-up cycles, ensuring it remains synchronized with the master CPU in complex redundant configurations.

Deployment & Installation Essentials

• Slot Positioning: Strictly reserved for Slot 5 in the drive assembly; incorrect placement may cause hardware damage.
• Safe Handling: Utilization of an anti-static wrist strap is mandatory during installation to prevent ESD damage to sensitive integrated circuits.
• Sequence Control: Always verify that the drive assembly is completely de-energized before unseating the board via the ejector tabs.
• Diagnostic Note: This module utilizes a "blind" front faceplate; rely on the Innovation Series controller software for status feedback rather than onboard LEDs.
