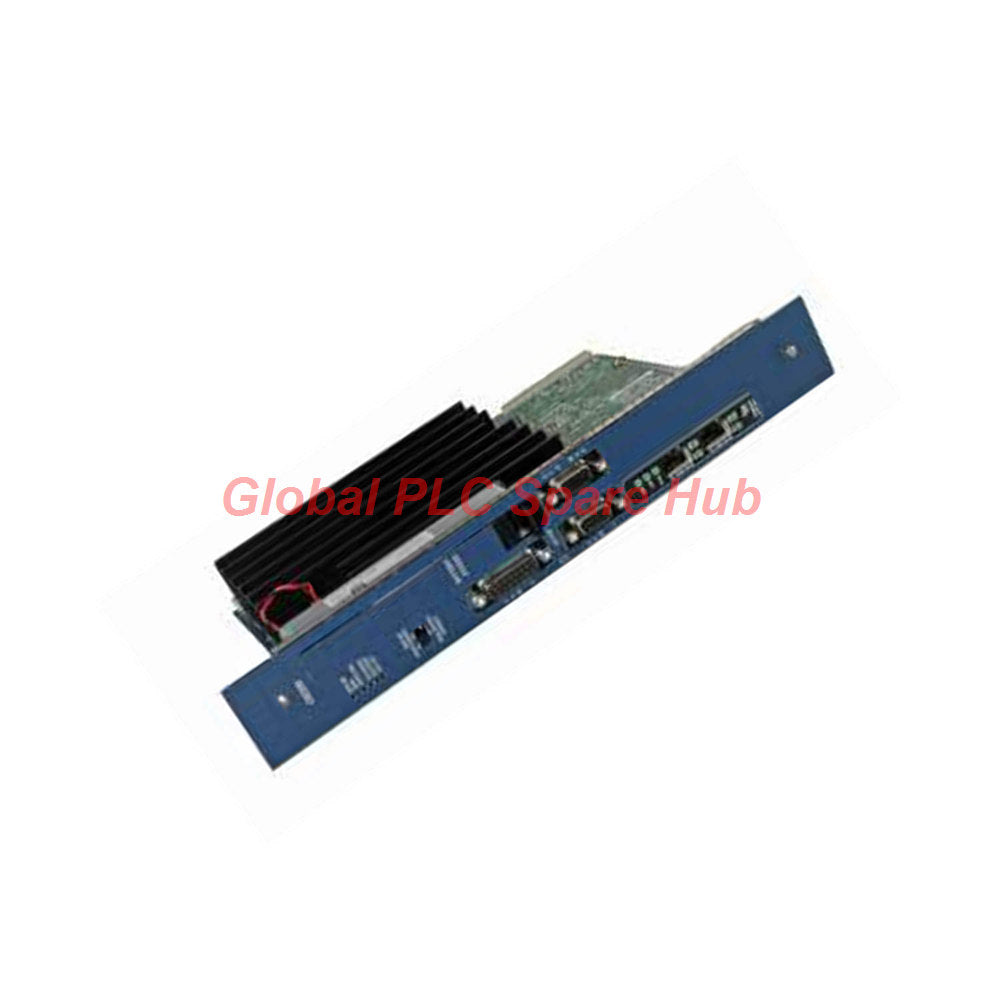

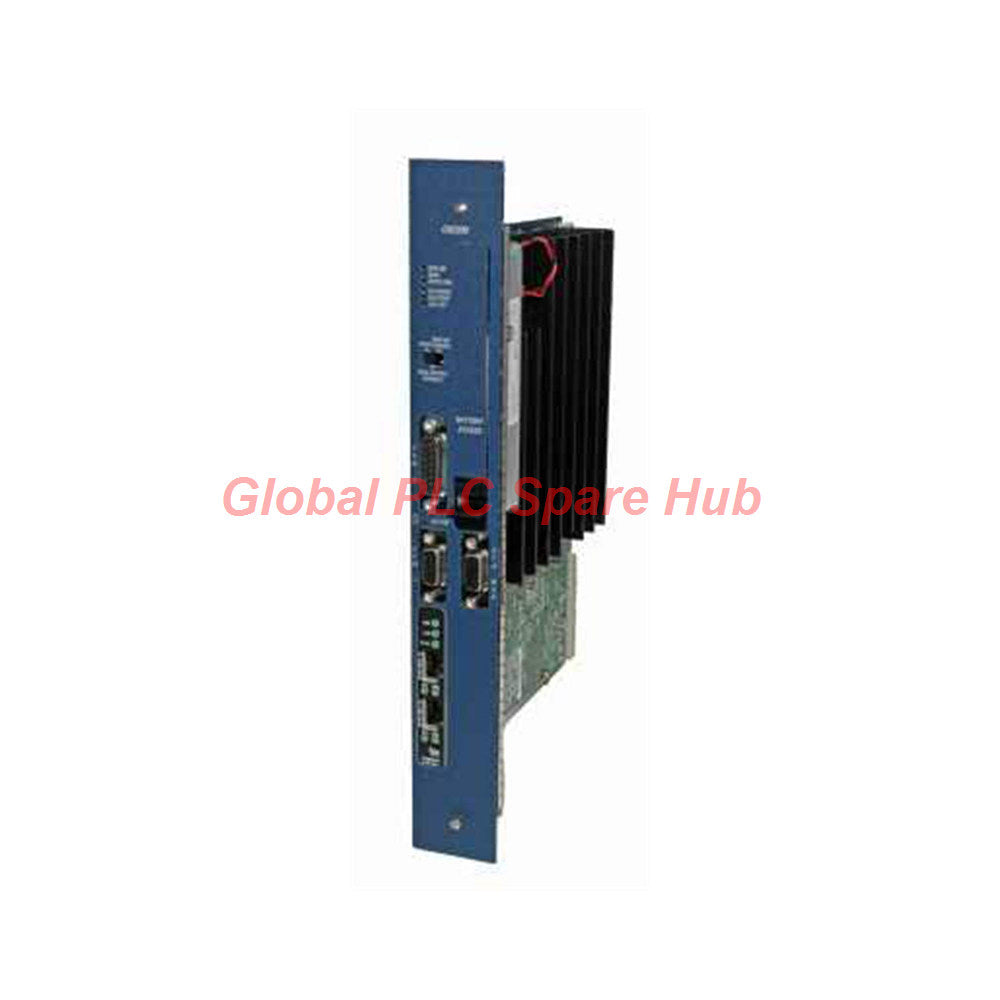

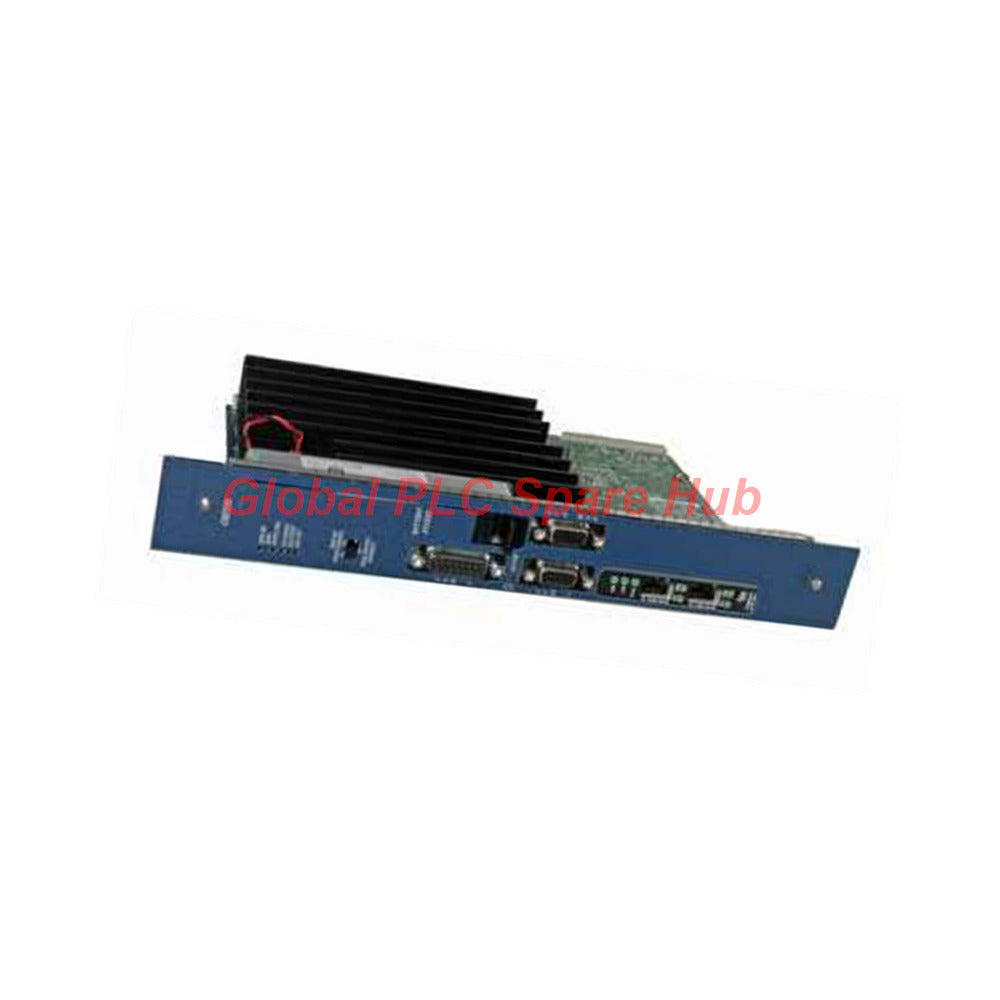

IC698CRE030 PACSystem RX7i Pentium-M Processor GE Fanuc New

Overview

The IC698CRE030 serves as a high-performance Pentium-M redundancy CPU module within the GE Fanuc PACSystem RX7i programmable automation controller platform. Engineered for mission-critical automation architectures, this 600 MHz central processing unit provides rapid execution speed, high-capacity logic processing, and seamless hot-standby redundancy capabilities.

Featuring 64 MB of high-speed user memory, the IC698CRE030 mounts directly into VME64 backplanes. It incorporates an integrated auto-sensing dual RJ-45 Ethernet switch supporting 10/100 Mbps communication, enabling web-based system monitoring, online logic editing, and peer-to-peer data transfers without external network hubs.

Technical Specifications

The technical parameters below detail processing performance, memory allocation, and communication interfaces using MECE classification rules for clear engineering review.

• Brand / Manufacturer: GE Fanuc (Emerson Automation)
• Catalog Number: IC698CRE030
• Product Series: PACSystem RX7i Series
• Module Type: Redundancy Central Processing Unit (CPU)
• Processor Core: Intel Pentium-M rated at 600 MHz
• User Memory Capacity: 64 MB total RAM
• Backplane Compatibility: High-speed VME64 backplane standard
• Integrated Ethernet Ports: Dual RJ-45 10/100 Mbps ports with integrated auto-sensing switch
• Station Management Port: 1 Isolated RS-232 serial port (DCE interface)
• Serial Communication Ports: 1 Isolated RS-232 port + 1 Isolated RS-485 port
• RS-232 Connector Interface: Female 9-pin D-sub (DB9) connector
• Web Monitoring Feature: Native HTTP server for browser-based controller diagnostics
• Cable Requirements: Straight-through cables for RS-232 / Shielded twisted-pair for RS-485
• Diagnostic Indicators: Port activity LEDs for Ethernet link and serial transaction status
• System Redundancy Support: Hot-standby bumpless CPU failover synchronization

Hardware Installation & Cable Termination Guidelines

Adhering to proper backplane mounting and serial cable pinouts prevents ground potential loops and data loss during operation.

• Ensure main rack power is completely turned off before inserting or removing the processor card.
• Align the IC698CRE030 with the card guides in the dedicated CPU slot of the RX7i VME64 rack.
• Push the module firmly into the VME64 backplane connectors until top and bottom retaining levers click shut.
• Utilize standard straight-through DB9 serial cables when interfacing with the isolated RS-232 DCE ports.
• Install shielded twisted-pair cabling on the RS-485 serial port to shield signal lines from heavy plant EMI.
• Connect dual RJ-45 network drops directly to the onboard Ethernet switch without intervening external hubs.

System Diagnostics & Embedded Web Services

The IC698CRE030 provides extensive real-time status telemetry to minimize system troubleshooting downtime.

An onboard HTTP web server allows plant engineers to review CPU status, fault tables, and operational modes remotely through standard web browsers. Front-panel LEDs indicate active communication states for Ethernet links, RS-232 activity, CPU health, and redundancy synchronization status without requiring programming software connections.

Target Equipment & Field Applications

System integrators specify the IC698CRE030 processor in large-scale industrial plants where process interruptions cause major financial or safety hazards.

Primary target applications include continuous oil and gas refining, power generation turbines, chemical batch reactors, municipal water treatment, and high-speed metal rolling mills. Its redundant processing architecture guarantees zero-downtime failover during hardware maintenance or field faults.

Global PLC Spare HUB's Insight & Field Experience

Our automation engineering group tests and services high-end RX7i redundancy processors across critical utility installations. The IC698CRE030 offers remarkable processing throughput, but stable network topology setup remains vital for uninterrupted redundant lock-step sync.

During an emergency call at a gas compression facility, an engineer reported loss of primary-to-backup processor synchronization. Technical diagnostics revealed that network traffic spikes were delaying heartbeat signals over unshielded serial management cables. Replacing the serial cable with high-grade shielded twisted-pair wiring grounded at a single earth point eliminated signal jitter and restored instant, seamless failover capability. Always ensure serial station management lines are isolated from adjacent AC power conduits.

Processor Selection & System Integration Guidance

Selecting the correct CPU model depends on memory requirements and redundancy network topology.

Choose the IC698CRE030 when your plant requires high-speed dual-redundant CPU operation combined with 64 MB program memory and integrated Ethernet switching. If your system architecture does not require redundant CPU backup, evaluate standard non-redundancy RX7i processors like the IC698CPE010 or CPE020 to optimize hardware budget.

Delivery Terms & 12-Month Hardware Warranty

Every module is packaged inside static-shielding protective bags and shipped in reinforced industrial cartons lined with custom anti-shock foam.

We supply every unit with a full 12-month hardware replacement warranty covering execution speed and hardware component function. Emergency orders process rapidly for global dispatch within 24 to 48 hours using leading express carriers including FedEx, UPS, or DHL.

Frequently Asked Questions (FAQ)

What is the processing clock speed and user memory size of the IC698CRE030?

The module features an Intel Pentium-M core running at 600 MHz accompanied by 64 MB of dedicated user RAM.

Do I need an external Ethernet hub to connect two devices to the Ethernet interface?

No, the unit incorporates a built-in dual-port 10/100 Mbps auto-sensing switch, allowing direct network daisy-chaining without external switches.

What type of serial cable is required for the RS-232 station management port?

Because the station manager interface is configured as a DCE (Data Communications Equipment) port, it utilizes a standard female DB9 straight-through cable.

Can I monitor system diagnostics without installing programming software?

Yes, the onboard web server enables engineers to inspect CPU fault tables and system diagnostics using any standard web browser over an Ethernet link.

What express shipping options are offered for urgent replacement orders?

Orders process rapidly and ship within 24 to 48 hours via fast global courier networks such as FedEx, UPS, or DHL.
