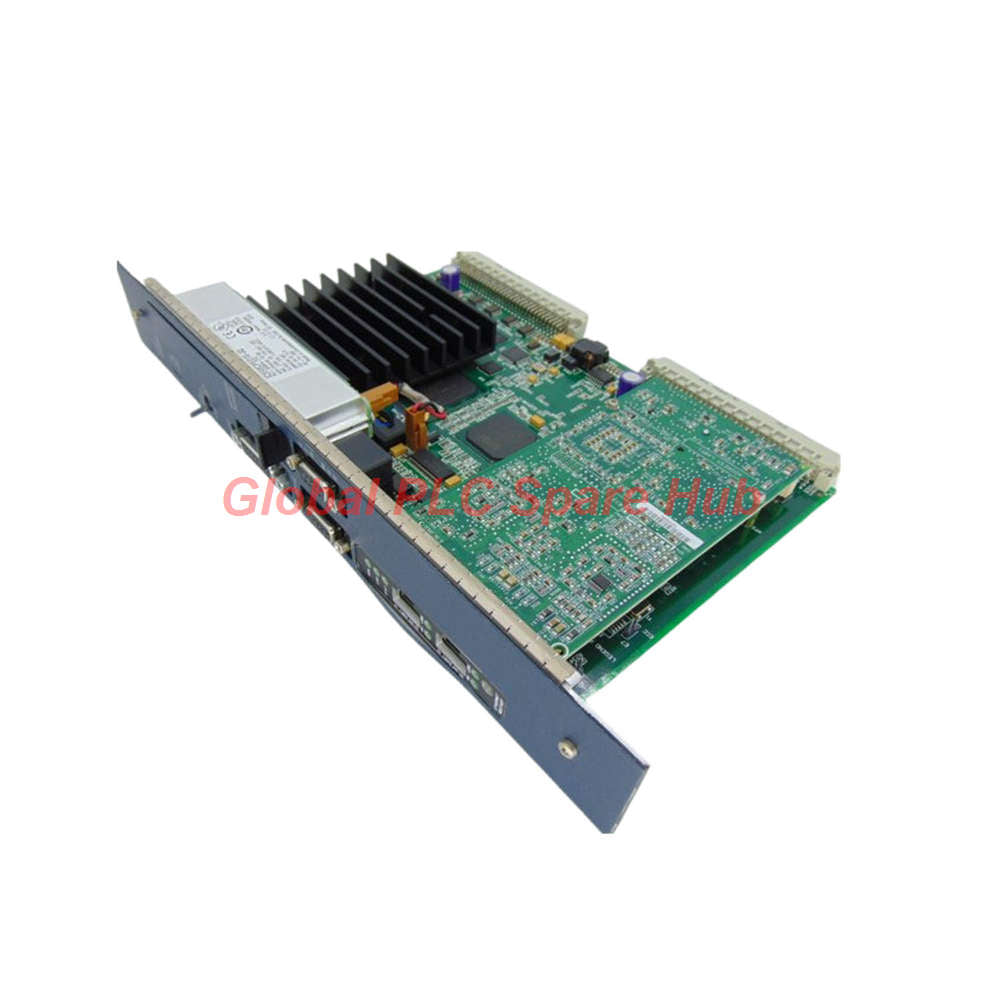

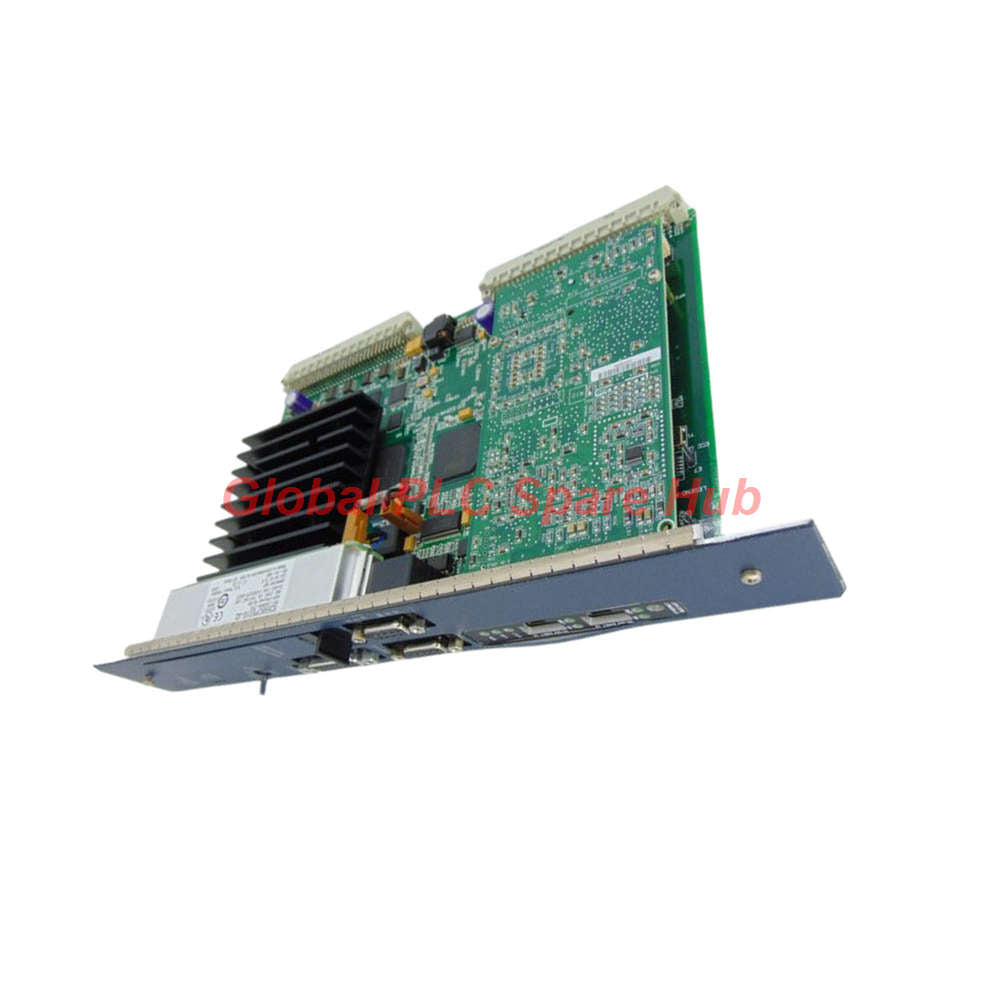

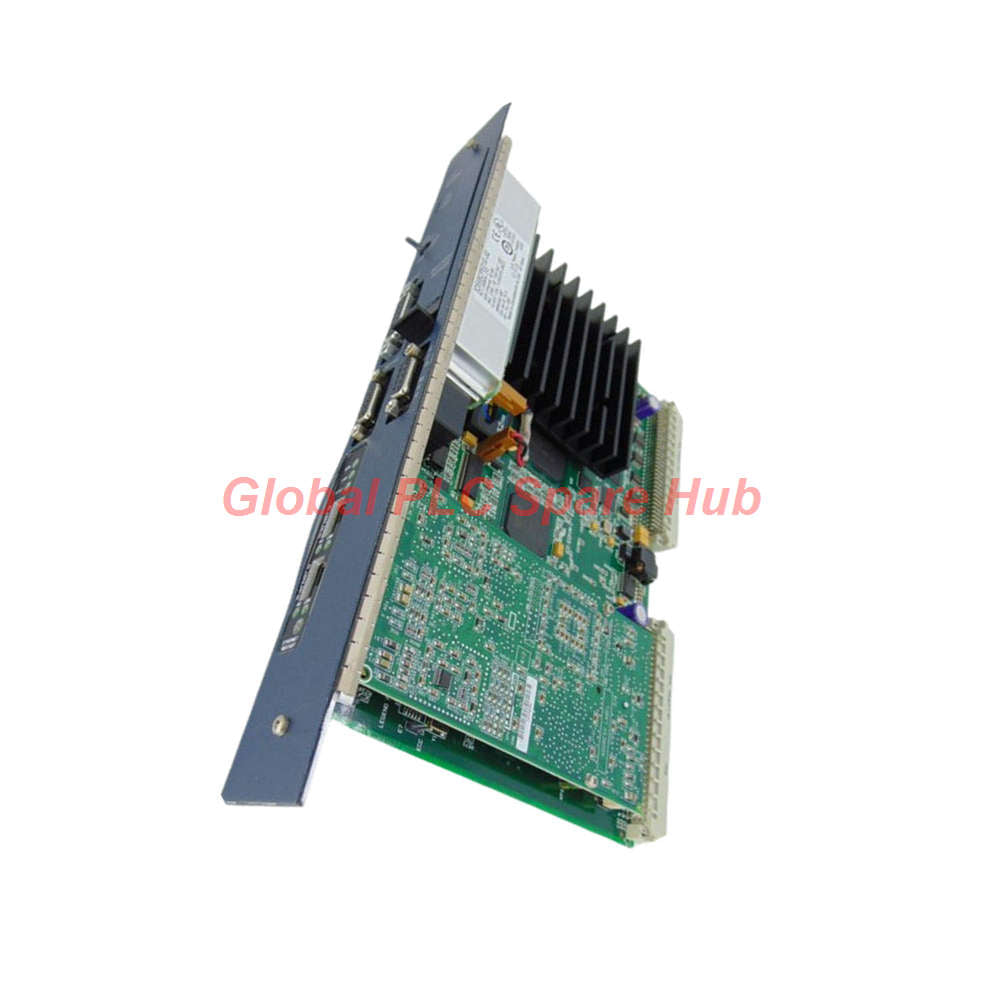

IC698CPE010 Central Processing Unit GE Fanuc RX7i Series

Global PLC Spare HUB Review

The GE Fanuc IC698CPE010 PACSystems RX7i Central Processing Unit (CPU) delivers high-speed deterministic control for complex plant-wide architectures. Global PLC Spare HUB's Review highlights this 300 MHz Intel Celeron processor for its robust VME64 backplane integration and dual-port redundant Ethernet capabilities. System architects rely on its 10 MB battery-backed RAM and non-volatile flash memory split to execute extensive ladder logic and C-language routines smoothly.

Technical Specification Matrix

### Deployment Architecture & Installation Protocol * Seat the IC698CPE010 processor firmly into Slot 1 of the VME64-compliant RX7i rack backplane. * Connect the primary Ethernet port to the plant network, utilizing LAN 2 for media redundancy if required. * Configure application logic using Proficy Machine Edition Logic Developer PLC version 4.0 or later. * Ensure power supply rails deliver adequate amperage, noting the 4.5 Amp draw on the 5VDC logic bus. ### System Diagnostics & Operational Health * Front-panel status indicators report real-time CPU health, battery condition, and communication link traffic. * Station Manager port access via RS-232 allows deep terminal-level diagnostic querying and error logging. * Built-in watchdog timers automatically flag processor hangs or memory parity exceptions to prevent unsafe runs. ### Target Applications & Compatible Equipment * **Compatible Racks:** GE Fanuc RX7i modular baseplates and VME-based Series 90-70 expansion chassis. * **Large Manufacturing Plants:** Centralizing heavy discrete and analog control loops across extensive production lines. * **Continuous Process Skids:** Managing high-speed data exchanges via Ethernet Global Data (EGD) in chemical plants. * **Distributed Control Hubs:** Acting as master controller coordinating multiple remote I/O drop stations. ### Fulfillment, Warranty & Logistics * **Global Freight Partners:** Secure, rapid worldwide transit handled via FedEx, UPS, and DHL. * **Dispatch Window:** Orders process and ship out within 24 to 48 hours of verification. * **Quality Protection:** Covered by a comprehensive 12-month replacement warranty on functional hardware. ### Engineering Frequently Asked Questions

Q: What causes a lithium battery backup fault on the IC698CPE010 CPU?
A: A battery fault indicates that the internal coin cell voltage has dropped below operational thresholds, risking RAM data loss during power cycles. Technicians should replace the battery promptly while the rack is powered to retain volatile parameters.

Q: Can the dual Ethernet ports be configured for ring redundancy networks?
A: Yes. The onboard Ethernet interface supports Media Redundancy Protocol (MRP) and linear topologies via LAN 2 to maintain communication links if a primary cable breaks.

Q: Why does programming block size matter when structuring large applications on this controller?
A: Individual blocks are capped at 128 KB with a maximum limit of 512 blocks. Engineers must modularize complex logic arrays efficiently to prevent compilation overflow errors during project builds.

Q: How do I manage firmware updates safely without corrupting non-volatile flash storage?
A: Always execute firmware transfers through Proficy Machine Edition via a stable direct serial or Ethernet link while ensuring uninterrupted rack power to prevent incomplete flash writes.

Q: What precautions should be taken when replacing a legacy Series 90-70 CPU with this model?
A: Verify rack backplane current capacity, as the RX7i CPU draws significantly higher 5VDC current (4.5A nominal) compared to older units, requiring careful power supply sizing.

### Purchasing Guide When integrating the IC698CPE010 PACSystems RX7i Central Processing Unit (CPU) into your control upgrade, confirm your power supply module can support the heavy 5VDC inrush and continuous load. Global PLC Spare HUB recommends keeping spare lithium backup batteries and pre-configured flash storage cards on hand to ensure zero down-time during routine maintenance cycles.
