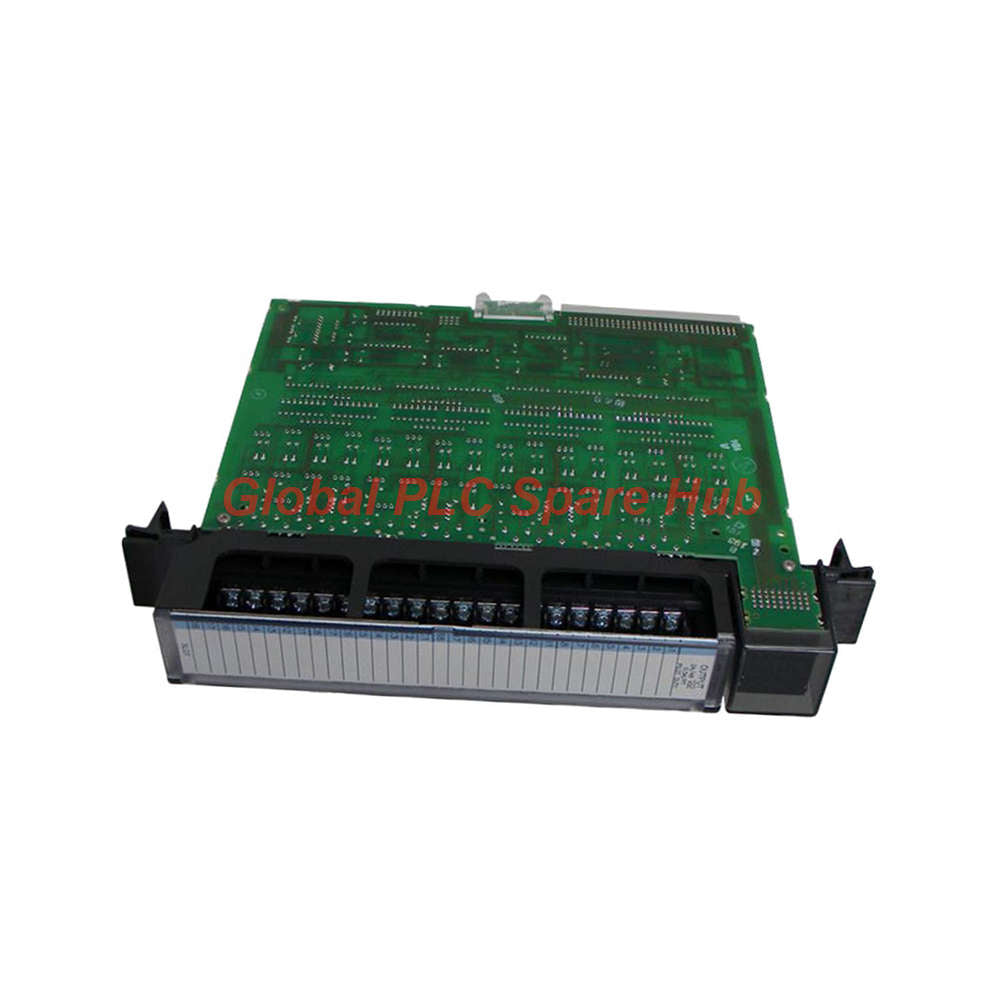

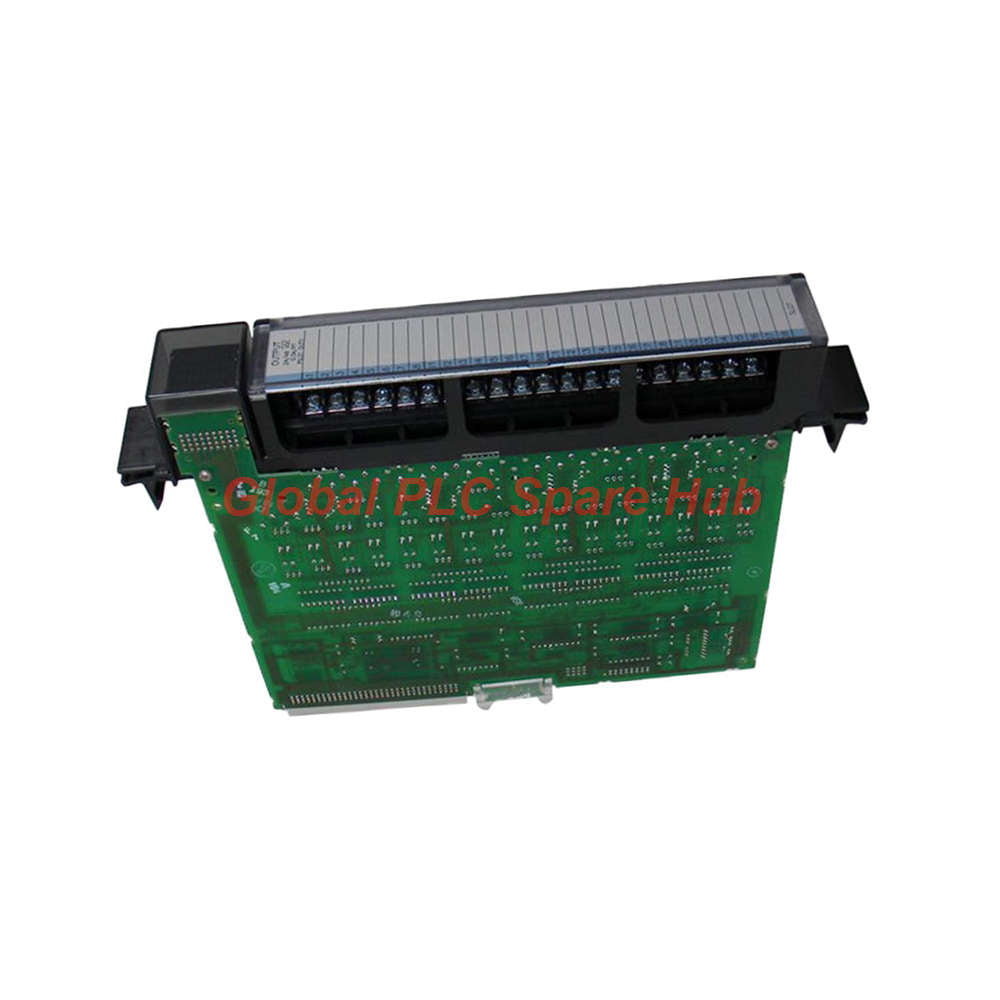

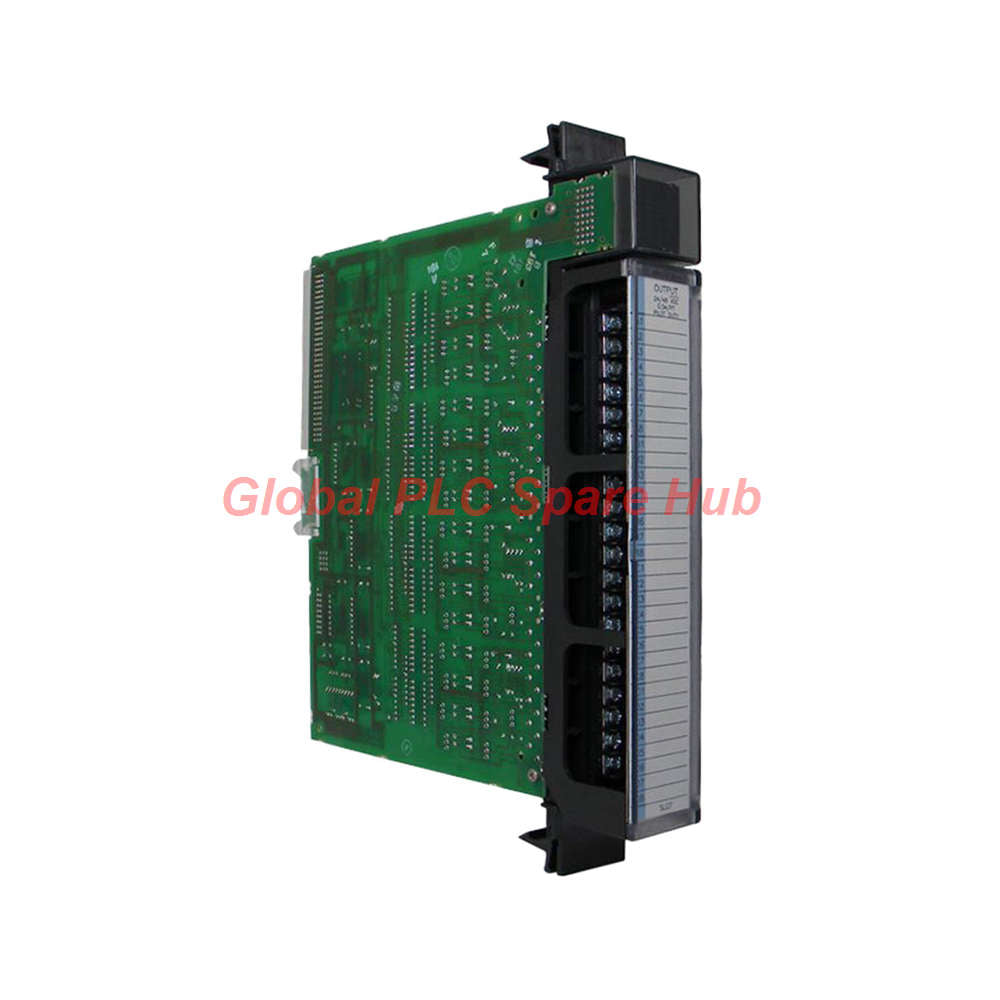

IC697MDL640 GE Fanuc Series 90-70 16-Point 125VDC Discrete Input Module

Manufacturer: GE Fanuc
Product No.: IC697MDL640
Condition： In stock
Product Type: Discrete Input Module
Payment: T/T, Western Union
Weight: 800g
Shipping port: Xiamen
Warranty: 12 months

Quantity

Selected quantity: 1

Estimate delivery times: 12-26 days (International), 3-6 days (United States).

Return within 30 days of purchase. Duties & taxes are non-refundable.

Guaranteed Safe Checkout

Product Overview

The IC697MDL640 is a robust 16-point discrete input module engineered for the GE Fanuc Series 90-70 PLC ecosystem. Designed for high-voltage industrial sensing, this module accepts 125V DC inputs, providing versatile signal handling through both positive and negative (sourcing/sinking) logic. With four isolated groups of four points, it offers significant flexibility for segmenting complex control architectures and enhancing signal isolation.

Technical Performance Data

Manufacturer: GE Intelligent Platforms / GE Fanuc
Series: Series 90-70
Model Number: IC697MDL640
Input Points: 16 discrete inputs
Group Isolation: 4 groups of 4 points each
Rated Voltage: 125V DC
Operating Range: -35V to 145V DC
Response Time: Configurable (1ms or 10ms filtering)
Configuration: Software-based (No jumpers/DIP switches)

Operational Intelligence and Diagnostics

Interrupt Capability: Supports one input as an interrupt for high-priority event handling.
Visual Feedback: Top-mounted LEDs provide clear per-channel status indication.
IEC Compliance: Characteristics conform to international standards for noise immunity.

Global PLC Spare HUB's Insight

The IC697MDL640 is a cornerstone of legacy Series 90-70 systems. Its mechanical keying prevents insertion errors, protecting the backplane. Unlike newer hardware, this module facilitates direct high-voltage DC field device integration, effectively reducing the need for intermediate relays in dense control cabinets.

Recommended Applications

Power generation and distribution monitoring.
Heavy-duty industrial process control.
Legacy relay-logic migration.
High-voltage proximity and limit switch sensing.

Shipping and Warranty

Logistics: Secure shipping via FedEx, UPS, and DHL.
Dispatch: Guaranteed processing within 24-48 hours.
Warranty: 12-month manufacturer warranty.

Frequently Asked Questions

What is the benefit of the configurable input filtering?
Selecting 10ms helps suppress noise in long runs, while 1ms is ideal for high-speed events.

Is this module compatible with proximity switches?
Yes, provided the switches are rated for 125V DC.

How do I configure this module?
Use the programming software via the SNP or Ethernet port; no physical jumpers are required.

Selection Advice: Can I use this for AC?
No, this module is for DC signals only. Select a specific Series 90-70 module for AC applications.

Troubleshooting: What if the LEDs are off despite signals?
Verify the 125V DC input voltage is present and check the common bus connection for that specific input group.
