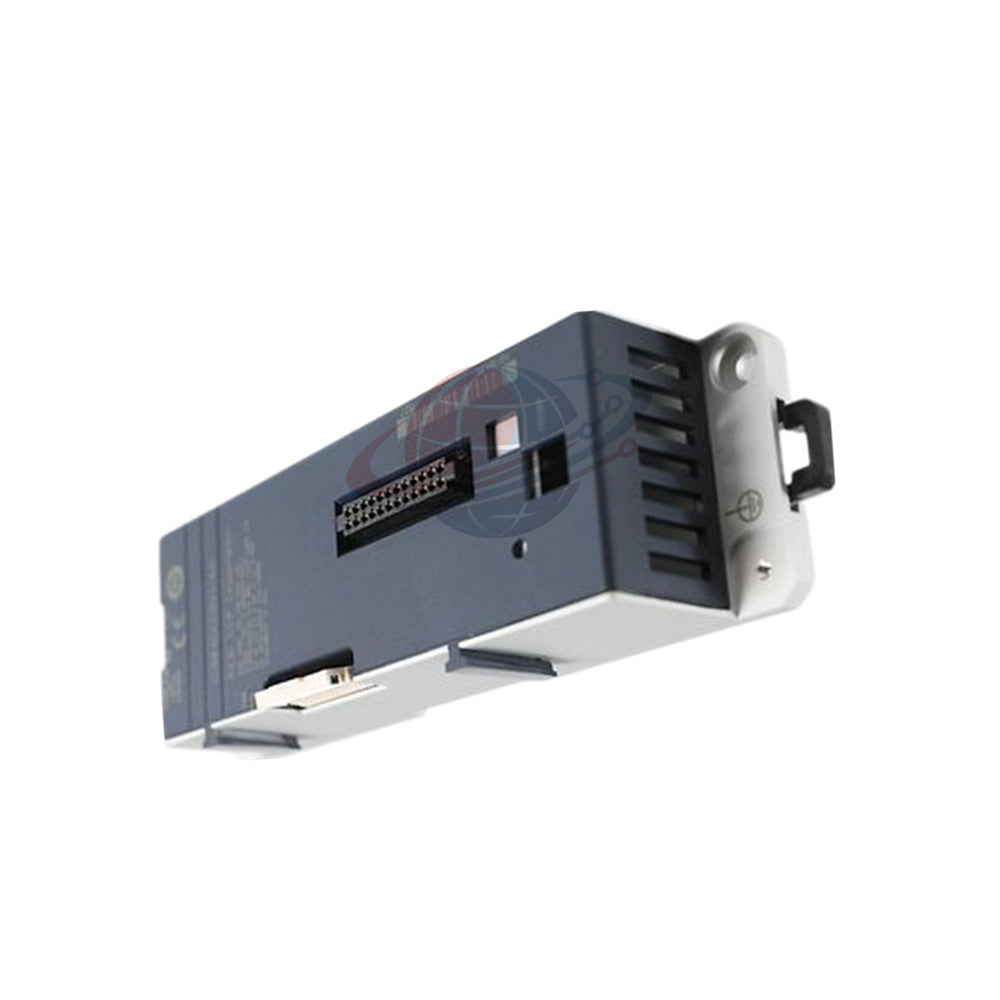

IC694CEE001 RX3i PacSystems Expansion Carrier by GE Fanuc for PROFINET I/O

IC694CEE001 RX3i CEP Expansion Carrier

IC694CEE001 is a dedicated expansion carrier engineered for the GE Fanuc RX3i PacSystems platform.

The module extends remote I/O connectivity through PROFINET I/O communication infrastructure.

It enables compact distributed automation architectures while maintaining stable communication between RX3i controllers and remote nodes.

The carrier integrates directly with compatible CEP001 host carriers for flexible system expansion.

Global PLC Spare HUB's Insight

IC694CEE001 is frequently selected for distributed control projects requiring scalable remote I/O deployment.

Its PROFINET-oriented architecture simplifies communication between centralized controllers and field-level expansion stations.

Engineers often deploy this module when additional RX3i I/O capacity is required without redesigning the complete control infrastructure.

The compact installation structure also supports cabinet optimization in high-density industrial panels.

Recommended Industrial Applications

• Distributed manufacturing systems
• Remote process monitoring stations
• Packaging automation lines
• Water treatment control systems
• Material handling networks
• Factory-wide PROFINET infrastructures
• Process expansion projects
• Machine-level remote I/O architectures

Operational and Diagnostic Capabilities

• Remote RX3i I/O expansion
• PROFINET LAN communication integration
• Distributed node management
• Power status indication monitoring
• Controller-side remote diagnostics
• Expansion station communication verification
• Field-level automation scalability support

Functional Architecture Layout

• Expansion Integration Structure
  • Interfaces with RX3i CEP001 host carriers
  • Supports remote node expansion
  • Extends RX3i distributed I/O capability
• PROFINET Communication Layer
  • Industrial Ethernet-based communication
  • Remote node connectivity support
  • Distributed automation compatibility
• Mechanical Installation Design
  • DIN rail mounting supported
  • Panel mounting supported
  • Compact cabinet integration
• Power and Status Monitoring
  • Powered through host CEP001 carrier
  • Green LED:
    • Normal operating voltage
  • Amber LED:
    • Low voltage condition
  • LED Off:
    • No power condition

Technical Specifications

• Manufacturer: GE Fanuc
• Model: IC694CEE001
• Series: RX3i PacSystems
• Product Type: CEP Expansion Carrier Module
• Compatible Host Device: RX3i CEP001 Carrier
• Network Interface: PROFINET I/O LAN
• Expansion Capability: Remote RX3i I/O support
• Mounting Methods: DIN rail and panel mounting
• Power Source: Host CEP001 carrier
• Firmware Upgrade Port: Not available
• Ethernet Port: Not integrated
• Configuration Software: Proficy Machine Edition 8.6 or later
• Required SIM Version: SIM 3 or later
• Status Diagnostics: Multi-color power LED indication
• Cooling Requirement: Adequate airflow spacing required
• Application Architecture: Distributed RX3i expansion systems

Engineering-Level Advantages

• Supports modular distributed control expansion
• Improves flexibility of remote I/O deployment
• Reduces redesign effort during plant expansion
• Compatible with modern PROFINET infrastructures
• Optimizes cabinet installation density
• Simplifies maintenance access in distributed systems

Installation Recommendations

• Maintain sufficient airflow around the carrier
• Verify CEP001 compatibility before commissioning
• Allow clearance for communication cable routing
• Secure DIN rail latch during installation
• Confirm stable power delivery from the host carrier

Maintenance and Troubleshooting Features

• LED diagnostics simplify field troubleshooting
• Supports fast verification of power conditions
• Distributed node monitoring improves maintenance efficiency
• Modular architecture simplifies expansion replacement
• Supports long-term automation scalability planning

Shipping and Delivery Support

• 24–48 hour fast dispatch available
• Industrial protective export packaging included
• Global courier services supported:
  • FedEx
  • UPS
  • DHL

Warranty Information

• 12-month warranty support
• Technical verification before shipment
• After-sales support available during warranty period

Professional FAQ

• Why do engineers use distributed expansion carriers in automation systems?

  They improve scalability without replacing the primary controller infrastructure.

• What is the practical advantage of PROFINET-based expansion?

  It provides faster communication and flexible industrial Ethernet integration.

• What should users verify before adding remote I/O modules?

  Check host carrier compatibility and available backplane configuration resources.

• Why is airflow spacing important during installation?

  Proper heat dissipation improves long-term communication stability and hardware lifespan.

• Which projects benefit most from the IC694CEE001 architecture?

  Large distributed systems requiring modular remote I/O scalability and centralized control.
