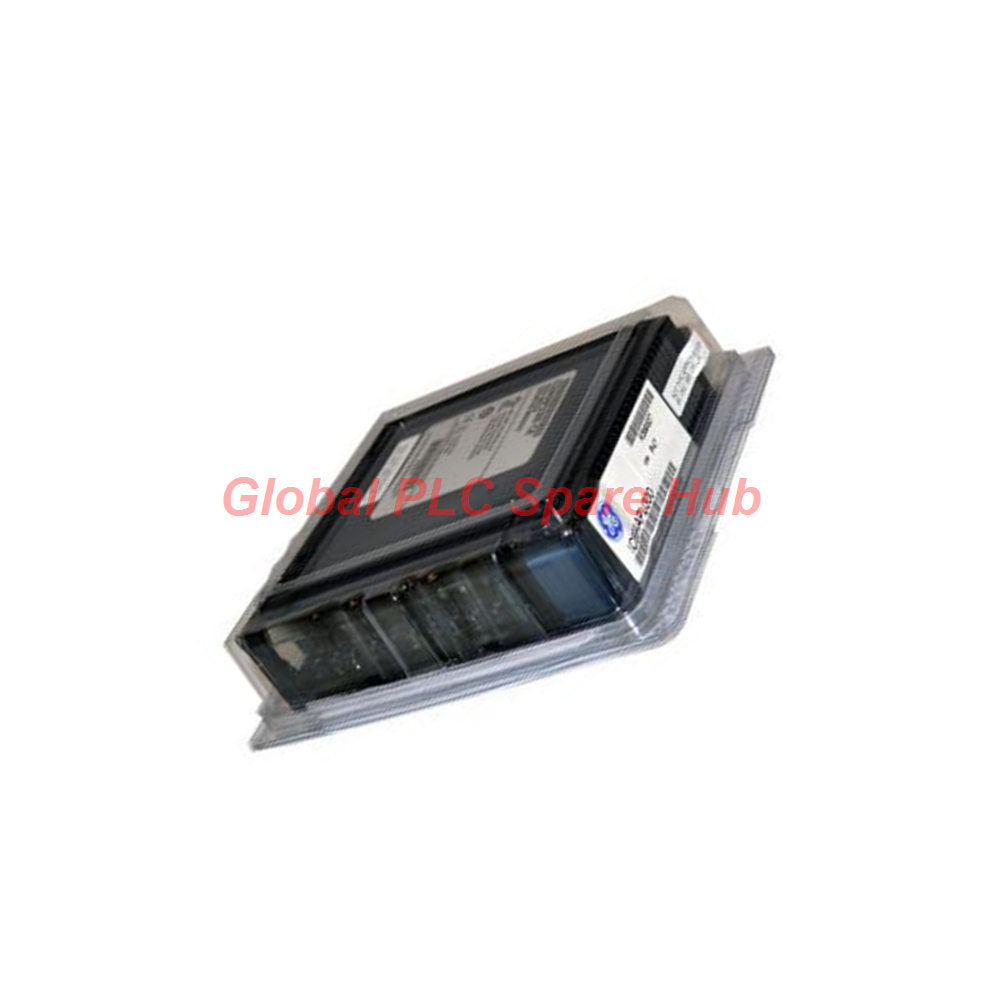

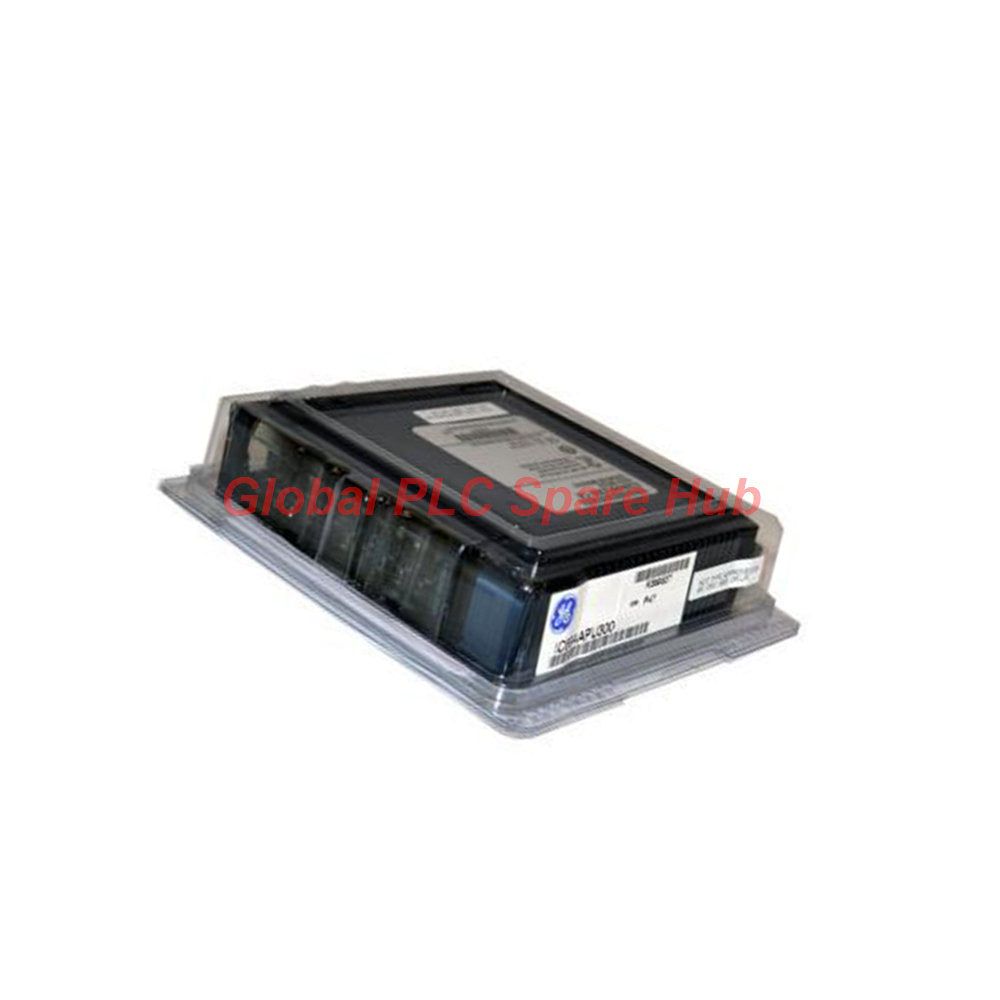

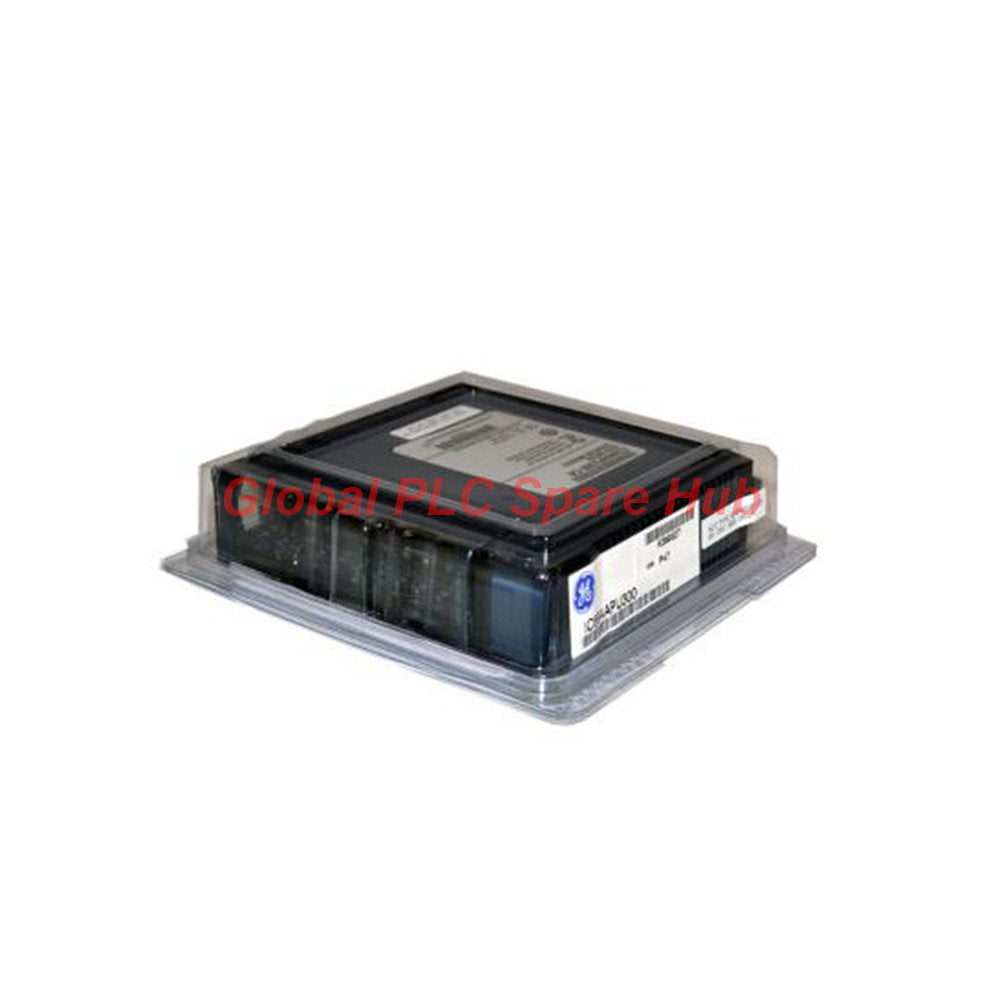

IC694APU300 GE Fanuc PACSystems RX3i Pulse Counter Module
Manufacturer: GE Fanuc
Product No.: IC694APU300
Condition： In stock
Product Type: Pulse Counter Module
Product Origin: USA
Payment: T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
Module Overview
The IC694APU300 high-speed counter module engineered by GE Fanuc processes pulse trains rapidly inside the RX3i system. It executes fast response routines autonomously without relying on a central processing unit.
Core Technical Metrics
| Manufacturer Brand | GE Fanuc |
| Product Series | RX3i PACSystems |
| Catalog Part Number | IC694APU300 |
| Max Pulse Frequency | 1 MHz (25% to 87% duty cycle) |
| Internal Power Draw | 250 mA at 5 VDC (1.25 Watts) |
| Discrete Input Channels | 12 Single-Ended or 6 Differential positive logic lines |
| Configurable Inputs | 5 VDC (TSEL jumpered) or 10-30 VDC (TSEL open) |
| Control Outputs | 4 Positive logic outputs (4.7 to 40 VDC) |
Compatible Equipment and Deployment Environments
This high-performance unit integrates cleanly into standard RX3i backplanes. Typical applications involve precision flow rate measurement, high-speed rotary encoder tracking, fast counting loops, and precise positioning stages in automated manufacturing plants.
Built-in Diagnostics and Operational Modes
The module features dual operating structures including classic and enhanced operational modes. Real-time diagnostic indicators track pulse stream interruptions, input voltage anomalies, and output short-circuit protection (ESCP) status.
