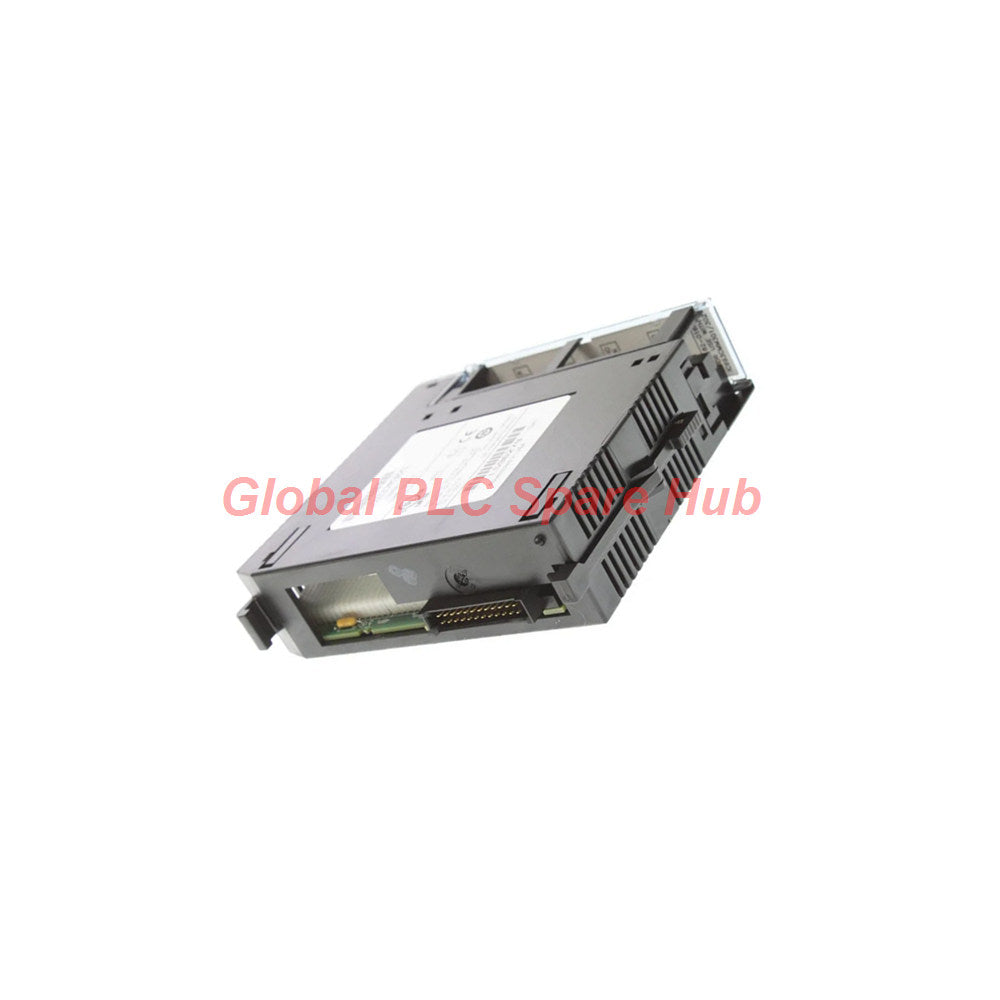

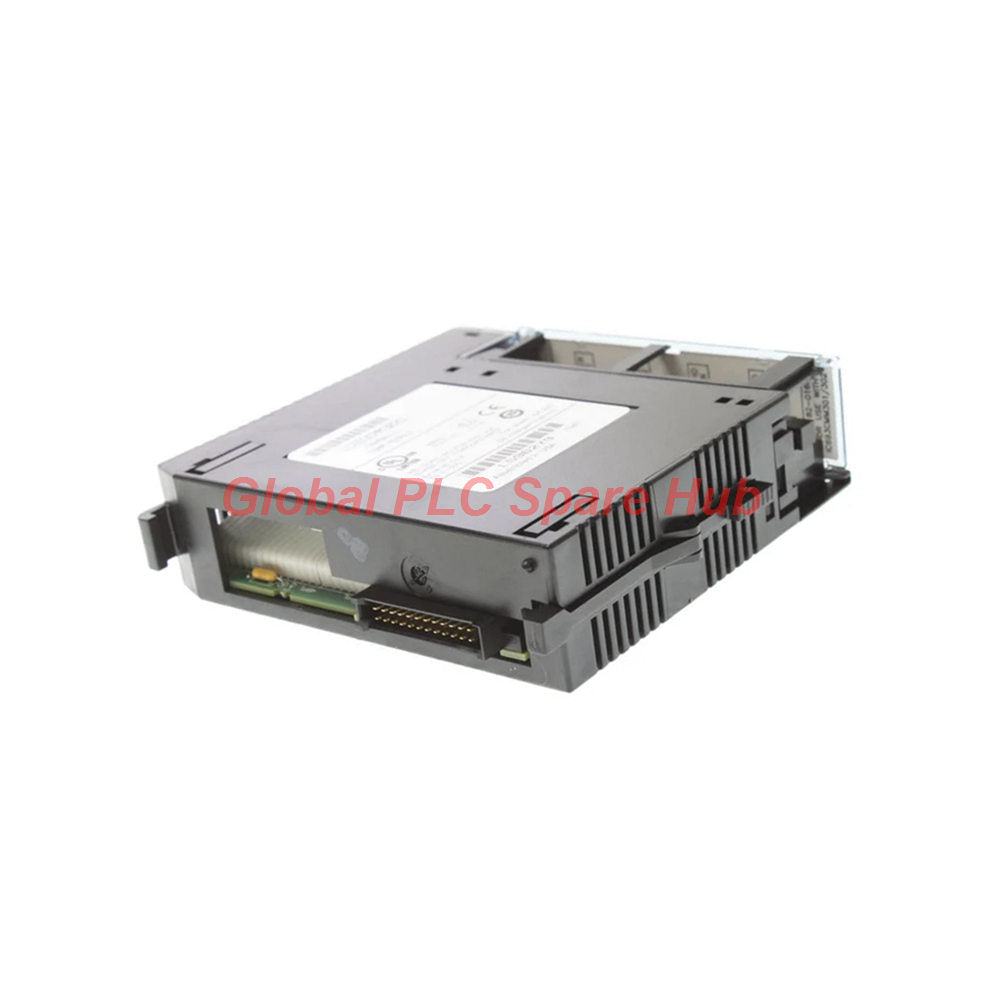

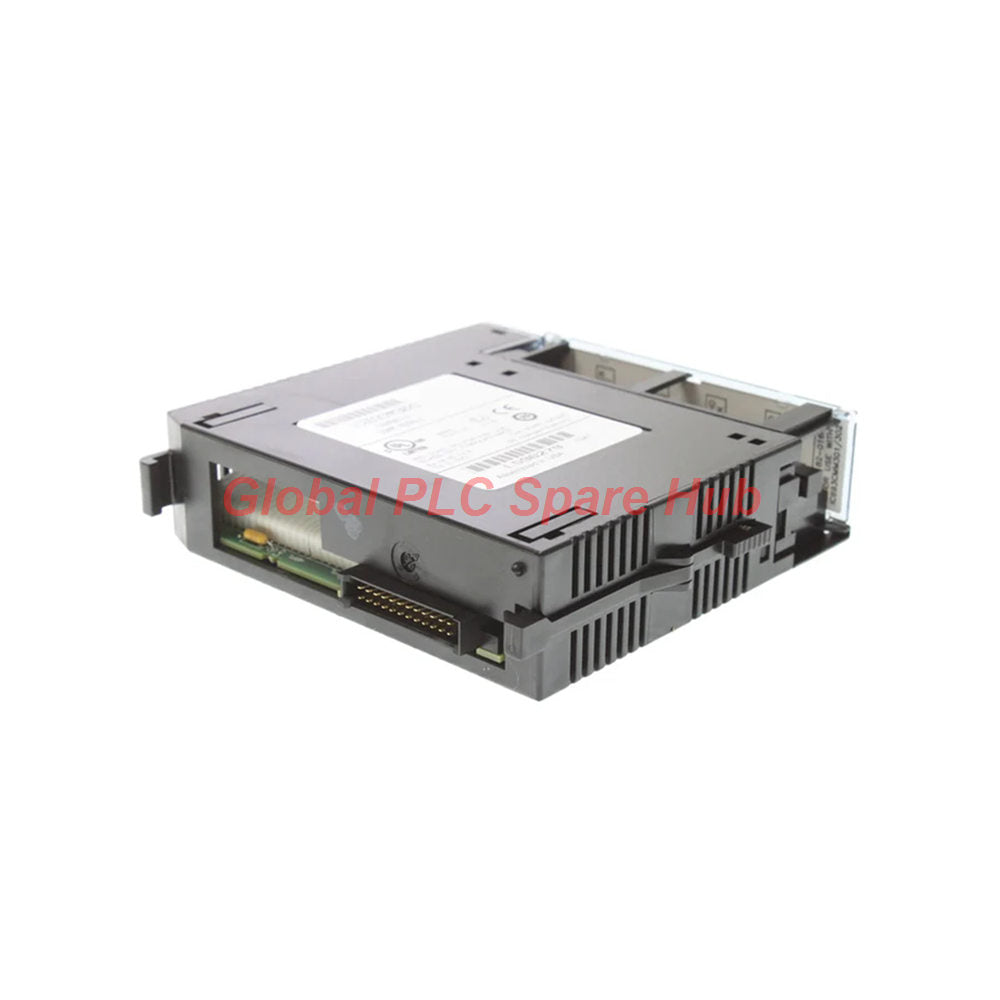

IC693CMM302 GE Fanuc Emerson Series 90-30 Communications Module

Engineering Architecture & Network Protocol

The GE Fanuc / Emerson Automation IC693CMM302 is an enhanced Genius Communications Module (GCM+) engineered for the Series 90-30 Programmable Logic Controller architecture. This single-slot module establishes high-performance distributed I/O networks by supporting bidirectional global data exchange of 128 bytes transmitted and 128 bytes received across up to 31 connected bus devices. Operating as a robust master-slave or peer-to-peer bridge, it natively interfaces with core PLC register banks including %G, %I, %Q, %AI, %AQ, and %R.

Core Technical Parameters

Hardware Diagnostics & Fault Reporting

System maintenance personnel benefit from embedded diagnostic tools and visual status monitoring integrated directly onto the faceplate:

• LED Indicator Array: Features two distinct diagnostic lights—an **OK LED** for internal module health and a **COMM LED** for Genius bus data traffic verification.
• Software-Based Diagnostics: Generates status bits and transmits real-time fault reports upstream to compatible host controllers.
• Local Configuration Interface: Fully compatible with Genius Hand-Held Monitors (HHM) and personal computers for on-site parameter tuning and network auditing.

Target Equipment & Application Scenarios

• Distributed I/O Architecture: Deployed across large plant floors to link remote I/O blocks over the high-speed Genius bus network.
• Multi-Controller Integration: Used in complex Series 90-30, Series 90-70, and Series Six installations requiring multi-node global data sharing.
• Data Monitoring Scenarios: Facilitates real-time process monitoring via connected engineering workstaions or industrial computers without direct control loop interference.
• Legacy System Expansion: Integrates secondary bus loops to double network capacity up to 62 total slave devices on a single controller rack.

Logistics, Shipping & Warranty Terms

• Fulfillment & Dispatch: Swift international dispatch within 24 to 48 hours following order verification.
• Enterprise Logistics: Secure, trackable global transit managed via elite carriers including FedEx, UPS, and DHL.
• Quality Assurance: Protected by a comprehensive 12-month warranty covering structural and operational reliability.

Global PLC Spare HUB's Insight

• Field Engineering Tip: Ensure you do not mix standard Genius communications modules (GCMs) and enhanced modules (GCM+) on the same PLC backplane, as mixed configurations will trigger bus communication errors.
• Preventative Practice: Periodically inspect terminal connections on your Genius bus drops to prevent high-resistance transmission faults caused by industrial machine vibration.

Frequently Asked Questions

• Q: How many total external devices can a single Series 90-30 PLC communicate with using these modules?
  A: A controller can host up to two IC693CMM302 modules, allowing communication with up to 62 total devices (31 devices per bus loop).
• Q: Can the IC693CMM302 module be installed directly into the CPU slot of a Series 90-30 baseplate?
  A: No, it can be mounted in any available single I/O slot across CPU, expansion, or remote baseplates, but it cannot occupy the dedicated CPU slot.
• Q: What specific memory registers are accessible for global data sharing through this interface?
  A: The module supports %G (global registers), %I (discrete inputs), %Q (discrete outputs), %AI (analog inputs), %AQ (analog outputs), and %R (register memory).
• Q: What key purchasing criteria should I keep in mind when sourcing a replacement communication module?
  A: Verify your backplane slot allocation, confirm compatibility with existing GCM+ network architecture, and purchase exclusively from certified suppliers backing units with a 12-month warranty.
• Q: What tool can technicians use locally to configure network parameters without a laptop?
  A: Maintenance crews can connect a Genius Hand-Held Monitor (HHM) directly to the system to configure node addresses and execute diagnostic checks.
