IC693BEM320 GE Fanuc Series 90-30 I/O Link Module

Overview

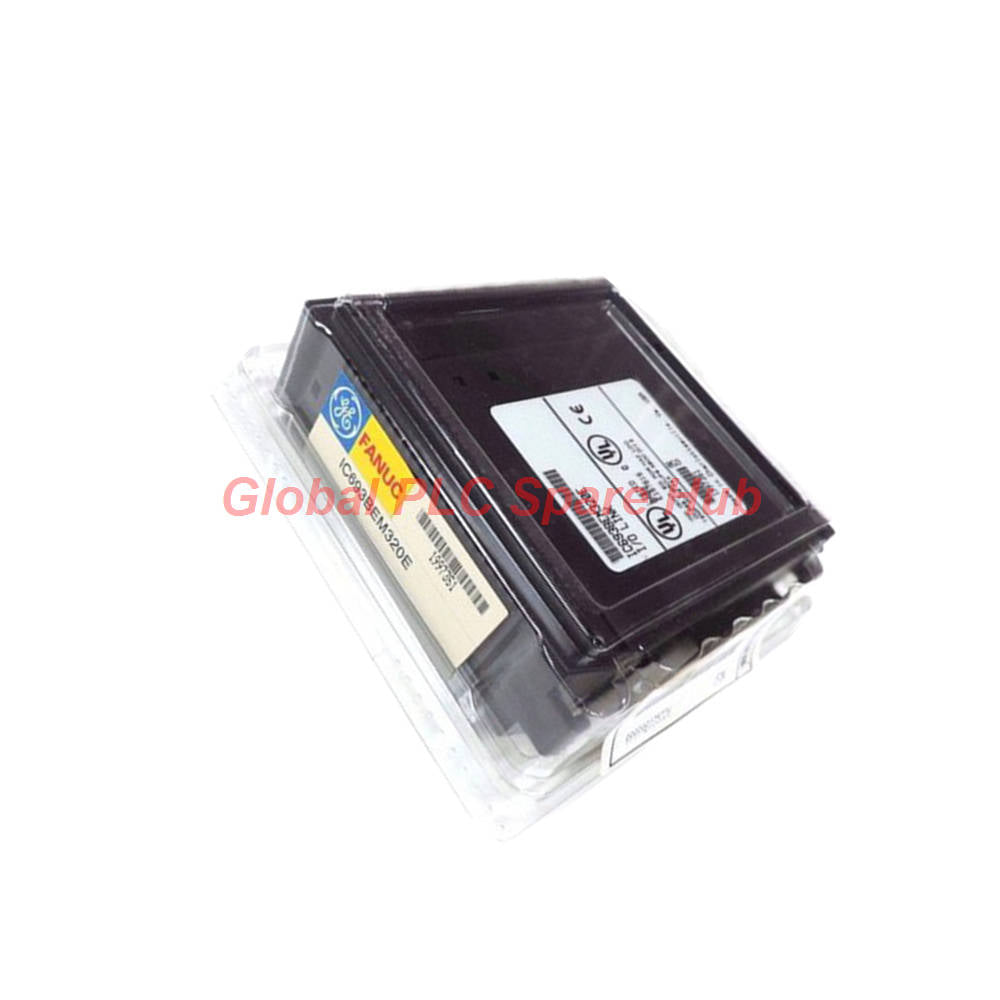

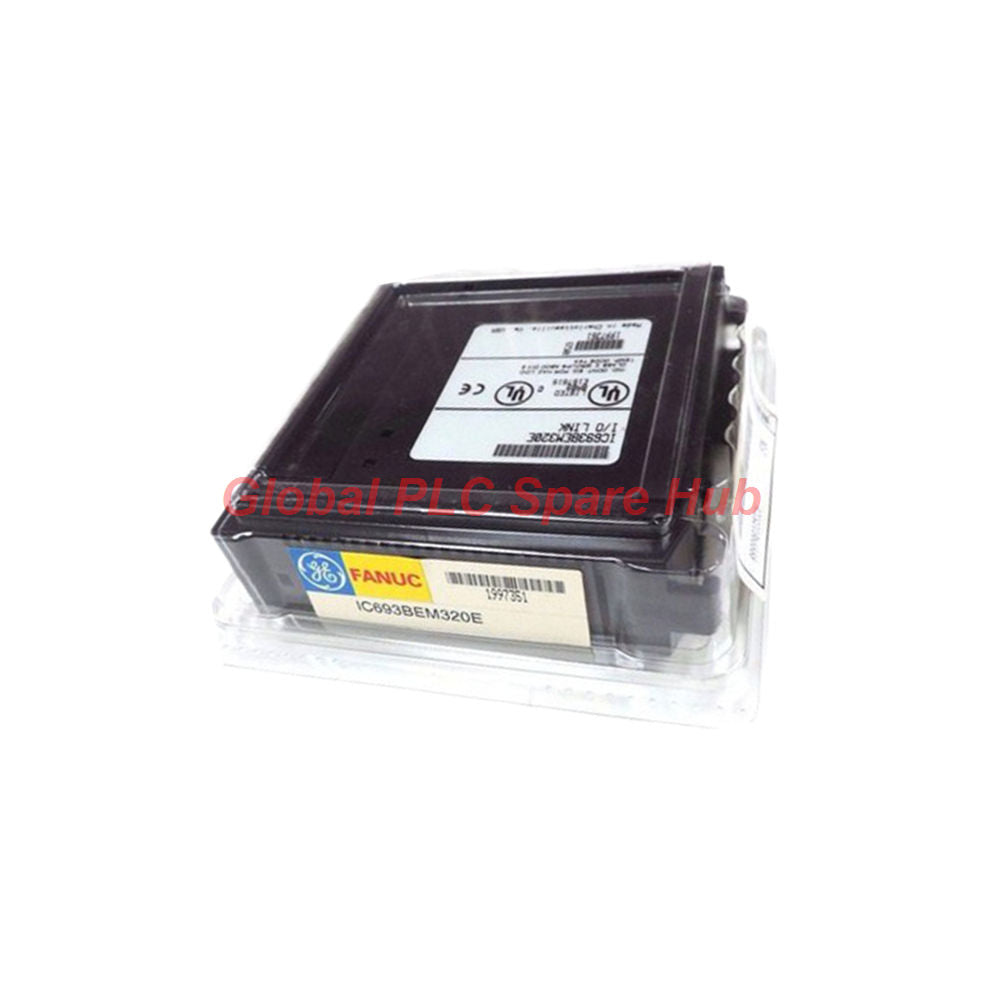

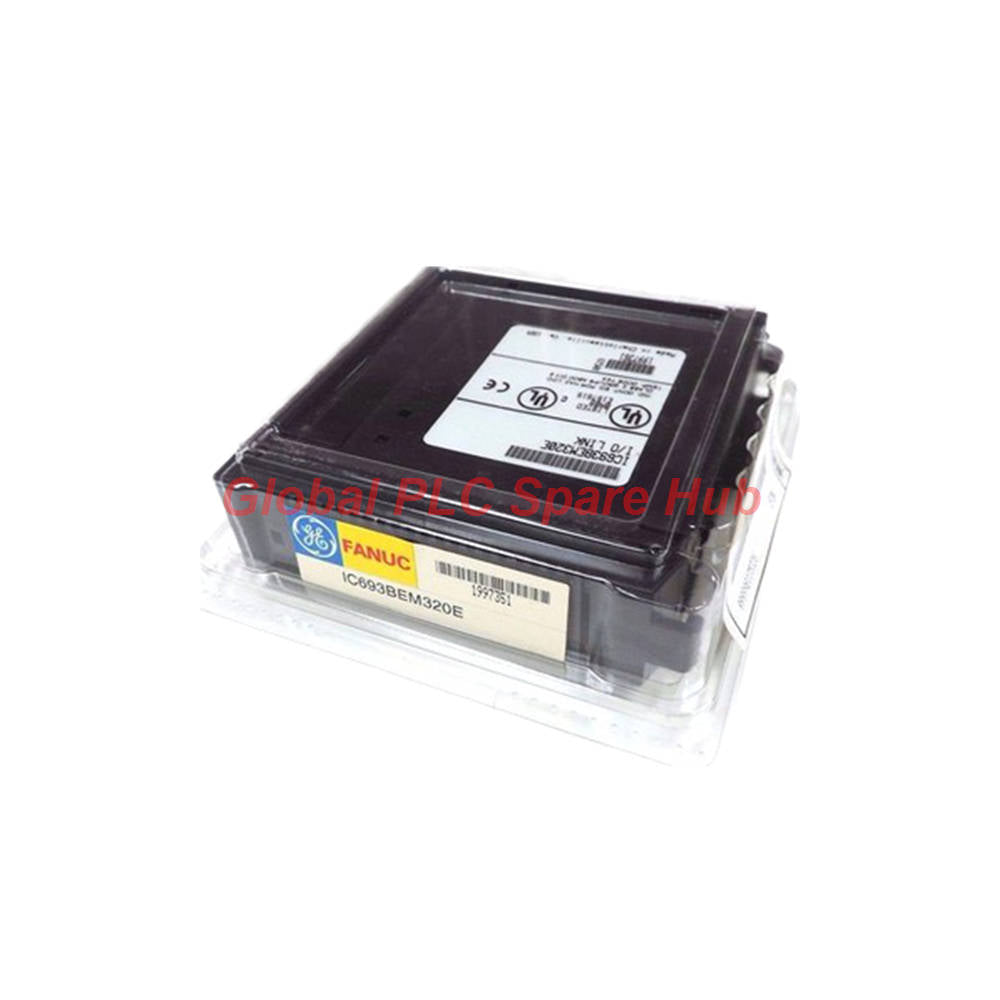

The IC693BEM320 GE Fanuc IC693BEM320 Series 90-30 I/O Link Module acts as a dedicated serial interface bridge for expanding distributed rack communication. Designed exclusively for slave node operation, this module connects GE Fanuc Series 90-30 and 90-70 programmable logic controllers to proprietary I/O Link networks supporting either 32 or 64 discrete points. Featuring dual physical communication ports supporting RS-485 and RS-422 protocols, it allows flexible multi-drop network integration. Global PLC Spare HUB provides rigorously tested industrial hardware to maintain seamless compatibility across your legacy control architectures.

Technical Performance Matrix

• Manufacturer & Brand: GE Fanuc / Rockwell-compatible legacy systems
• Product Line & Model: Series 90-30 / IC693BEM320
• Component Classification: Solid-State Serial I/O Link Interface Module
• Slot Requirement: Occupies exactly One (1) universal backplane slot
• Internal Power Draw: 5 Volts DC supplied directly from the PLC backplane
• Data Point Capacity: Jumper-selectable for 32 or 64 I/O points
• Operating Mode: Configured exclusively as a slave device (supports up to 16 slave modules per master PLC)
• Communication Ports: Two (2) ports dedicated to RS-485 and RS-422 serial protocols

Hardware Configuration & Deployment Parameters

• Jumper Selection: Internal jumpers located beneath the front cover must be physically reconfigured to set 32 or 64 point transmission modes.
• Physical Installation: Slides smoothly into any available slot on Series 90-30 or 90-70 universal backplanes by qualified maintenance personnel.
• Environmental Tolerances: Operates efficiently between 0 and 60 degrees Celsius with a 5% to 95% non-condensing relative humidity range.

Diagnostic Indicators & Health Monitoring

• Status Feedback Array: Equipped with two (2) prominent front-panel status LEDs labeled OK and RDY.
• Power & Operational Verification: The OK indicator confirms proper internal DC voltage delivery, while the RDY indicator verifies that the communication handshake and processing loops are functioning correctly.
• Network Troubleshooting: Instant visual validation allows technicians to quickly distinguish between backplane power failures and serial bus communication timeouts.

Global PLC Spare HUB's Insight & Industrial Application Scope

• Engineering Experience: When configuring multi-drop serial networks with up to 16 slave devices, always verify termination resistor settings on both ends of the RS-485 line to prevent signal reflection errors during high-speed polling.
• Target Equipment & Scenarios: Remote pumping stations, legacy material handling conveyors, discrete manufacturing assembly cells, and distributed municipal water treatment telemetry units.
• Express Global Shipping: Fast, secure dispatch via FedEx, UPS, and DHL to prevent extended production interruptions.
• Comprehensive Warranty: Backed by a full 12-month replacement warranty for absolute operational peace of mind.

Frequently Asked Questions (FAQ)

• Can the IC693BEM320 module be configured to operate as a master device on the I/O Link network?
  No, this module is strictly engineered to function as a slave module and can never act as a network master controller.
• How do I change the module's data transmission capacity between 32 and 64 I/O points?
  You must adjust the internal jumper settings located inside the front cover to match your specific application requirements prior to rack startup.
• What physical wiring differences exist between the two onboard serial communication ports?
  One port is dedicated to RS-485 serial communication protocols, while the second port supports RS-422 cabling standards for versatile network topologies.
• Global PLC Spare HUB's Buying Guide: How do I ensure seamless replacement when swapping out a faulty unit?
  Match the exact catalog number and verify that your replacement module's internal jumper settings replicate the configuration of the legacy unit before sliding it into the backplane slot.
• What enclosure precautions should be taken if the PLC rack operates in high-temperature environments?
  If ambient temperatures push past the 60 degrees Celsius ceiling, install external climate control systems or cabinet cooling fans to protect internal electronics.
