Product Overview

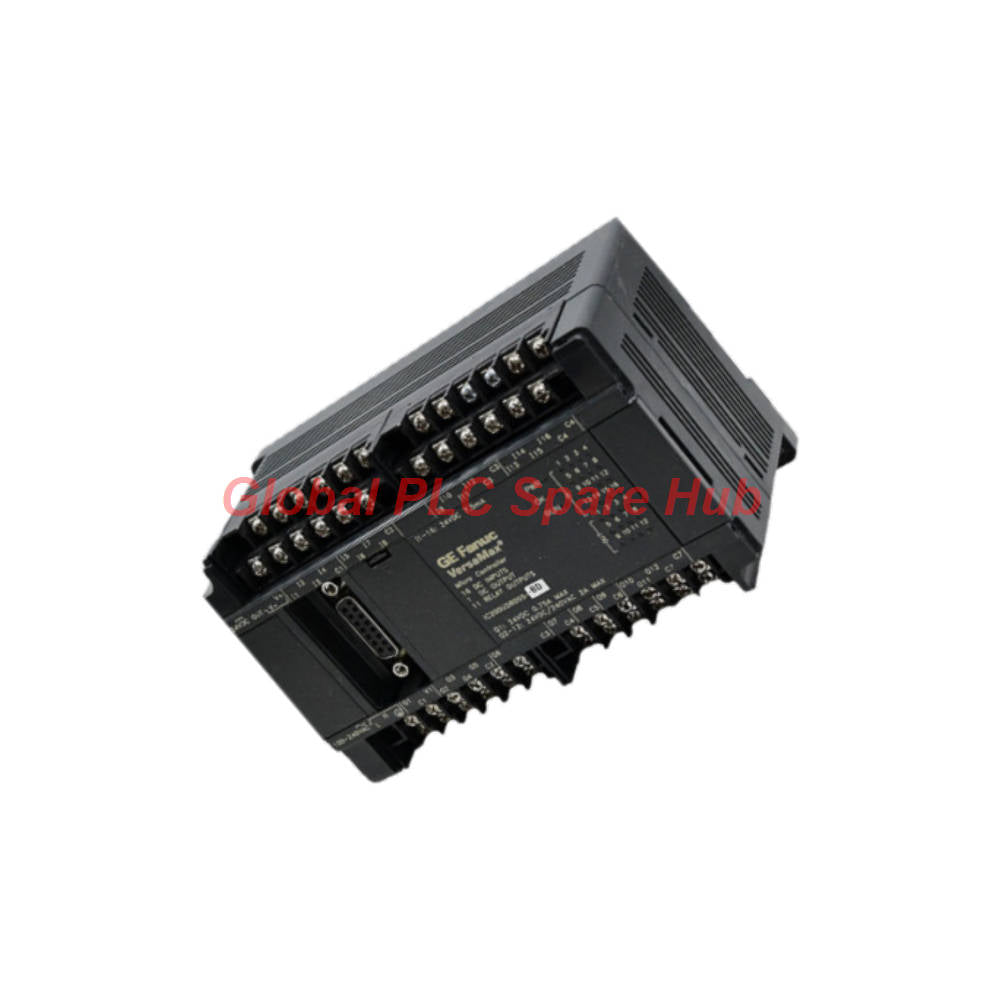

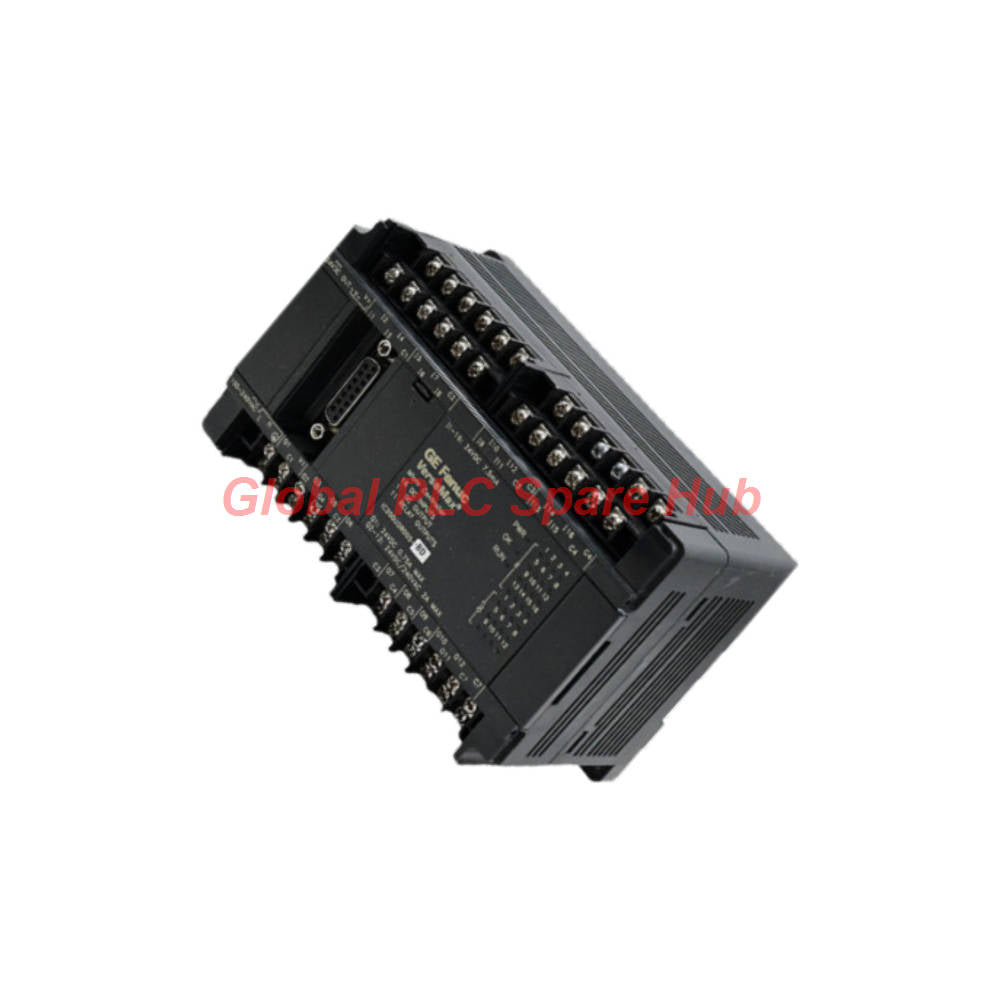

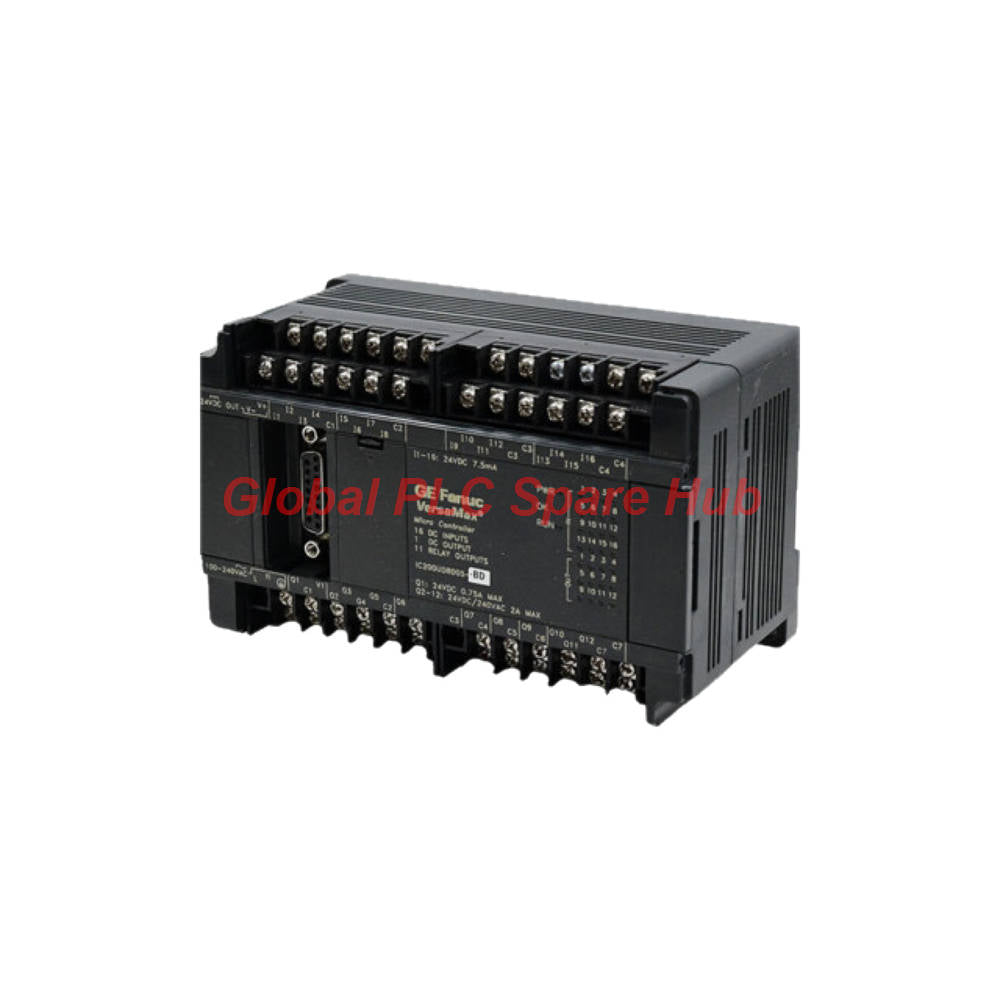

The GE Fanuc IC200UDR005 is a compact all-in-one programmable logic controller belonging to the VersaMax Micro PLC controller series. Featuring 28 integrated base I/O points, this unit combines 16 24VDC inputs, 11 relay outputs, and 1 dedicated 24VDC output into a space-saving housing. Powered by a 120/240 VAC supply, the IC200UDR005 incorporates dual serial ports, dual potentiometers, 9K words of logic execution memory, and support for up to 8 local expansion modules.

Technical Specifications (MECE Framework)

1. Basic System Identification

• Manufacturer: GE Fanuc / Emerson
• Model / Part Number: IC200UDR005
• Product Series: VersaMax Micro 28 Series
• Controller Type: Micro Programmable Logic Controller (PLC)

2. Processing, Memory & Electrical Characteristics

3. Communications & Networking Protocol Suite

• Port 1 Architecture: RJ-45 connector operating on RS-232 serial standards.
• Port 1 Protocol Support: SNP, breakless SNP-X slave protocols for programming and HMI interfacing.
• Port 2 Architecture: DB-15 connector operating on RS-485 serial standards.
• Port 2 Protocol Support: Modbus RTU Master/Slave (2-wire and 4-wire), SNP, SNP-X, SNP Master, Serial Read/Write capabilities.
• Software Engineering Suite: Configured via VersaPro 1.1 (or higher) and Proficy Machine Edition Logic Developer.

4. Physical Construction & Form Factor

• Physical Dimensions: 150 mm Width x 90 mm Height x 76 mm Depth.
• Unit Net Weight: 0.91 kg (2.00 lbs).
• Mounting Installation: Standard 35mm DIN-rail or direct panel mounting options.

System Diagnostics & Hardware Self-Monitoring

The IC200UDR005 features an array of status indicators and embedded self-diagnostic routines. Front-panel LEDs provide immediate visual state monitoring for logic power, CPU RUN status, and individual channel I/O logic states. System diagnostics continuously poll internal register memory parity, expansion bus integrity, and power supply levels. Any hardware fault or loop error is captured within the CPU fault table and transmitted to the engineering workstation via SNP or Modbus protocols.

Target Machinery & Application Scenarios

• Automated packaging machinery, cartooning lines, and conveyor sorting stations.
• Pumping station lift control, small wastewater dosing units, and valve sequencing.
• OEM machine tool automation, parts feeders, and rotary indexing tables.
• HVAC air handling unit (AHU) control and local facility management systems.

Installation & Wiring Guidelines

Mount the IC200UDR005 controller onto a grounded 35mm DIN rail inside a protective enclosure. Ensure power leads are disconnected before connecting 120/240 VAC to the main supply terminals. Route 24VDC discrete input wiring separately from relay output load lines to prevent inductive coupling. When utilizing the DB-15 RS-485 port over long cable runs, install proper terminal termination resistors to preserve signal integrity across Modbus networks.

Packaging, Logistics & Warranty Terms

• Package Scope: 1x Factory Sealed GE Fanuc IC200UDR005 VersaMax Micro 28 Main Unit, 1x Installation Datasheet.
• Warranty Protection: 12-Month comprehensive warranty covering all functional and mechanical defects.
• Handling Time: Express order processing within 24 to 48 hours of order confirmation.
• Global Carriers: Worldwide door-to-door express delivery managed via FedEx, UPS, or DHL.

Global PLC Spare HUB's Insight & Field Experience

Our automation engineering team frequently services legacy VersaMax Micro units installed in high-duty cycle packaging plants. On a recent service call, an engineer reported intermittent relay output failure on channel Q3 of an IC200UDR005 controller. Diagnostic evaluation showed high inductive back-EMF from an un-suppressed 120VAC solenoid valve welded the relay contacts over time. Installing an external RC surge suppressor across the solenoid coil and re-assigning the load to an unused relay channel fully restored operational reliability. Field Tip: Always install flywheel diodes on DC inductive loads or RC snubbers on AC loads driven by the internal relay outputs of the module to maximize contact lifespan.

Selection & Buyer's Guide

When selecting the IC200UDR005 micro controller, confirm that your project requires an AC power supply (120/240 VAC) rather than a 24VDC main power input. Verify that 16 DC inputs and 11 relay outputs match your field actuator count. If your system exceeds 28 local points, calculate total expansion needs: this base unit allows up to 4 discrete expansion blocks and 4 analog expansion blocks, scaling up to a maximum physical footprint of 140 I/O points.

Frequently Asked Questions (FAQ)

Q1: What programming software versions are required to configure the IC200UDR005 controller?

A: The controller requires VersaPro version 1.1 or higher, or any standard release of Proficy Machine Edition Logic Developer PLC.

Q2: Can Port 2 on the IC200UDR005 act as a Modbus RTU Master simultaneously with Port 1 programming?

A: Yes. Port 1 (RJ-45) can handle local SNP programming while Port 2 (DB-15) runs Modbus RTU Master protocol to communicate with downstream VFDs or meters.

Q3: How do the two integrated analog potentiometers function within user programs?

A: The onboard pots adjust internal system registers (0 to 255 byte values), enabling operators to manually tune timer presets or counter limits without software tools.

Q4: What is the maximum physical expansion limit supported by this base controller?

A: The base unit supports up to 4 discrete I/O modules and 4 analog I/O modules, reaching a maximum system ceiling of 140 physical I/O points.

Q5: What electrical protection precautions should be taken when using the 11 relay outputs?

A: External inductive loads require suppressor devices (diodes for DC, varistors/RC snubbers for AC) to prevent contact degradation and noise feedback into the CPU.
