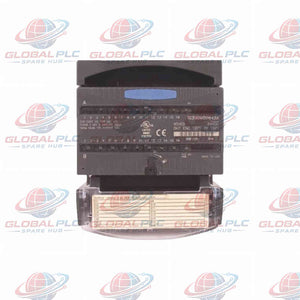

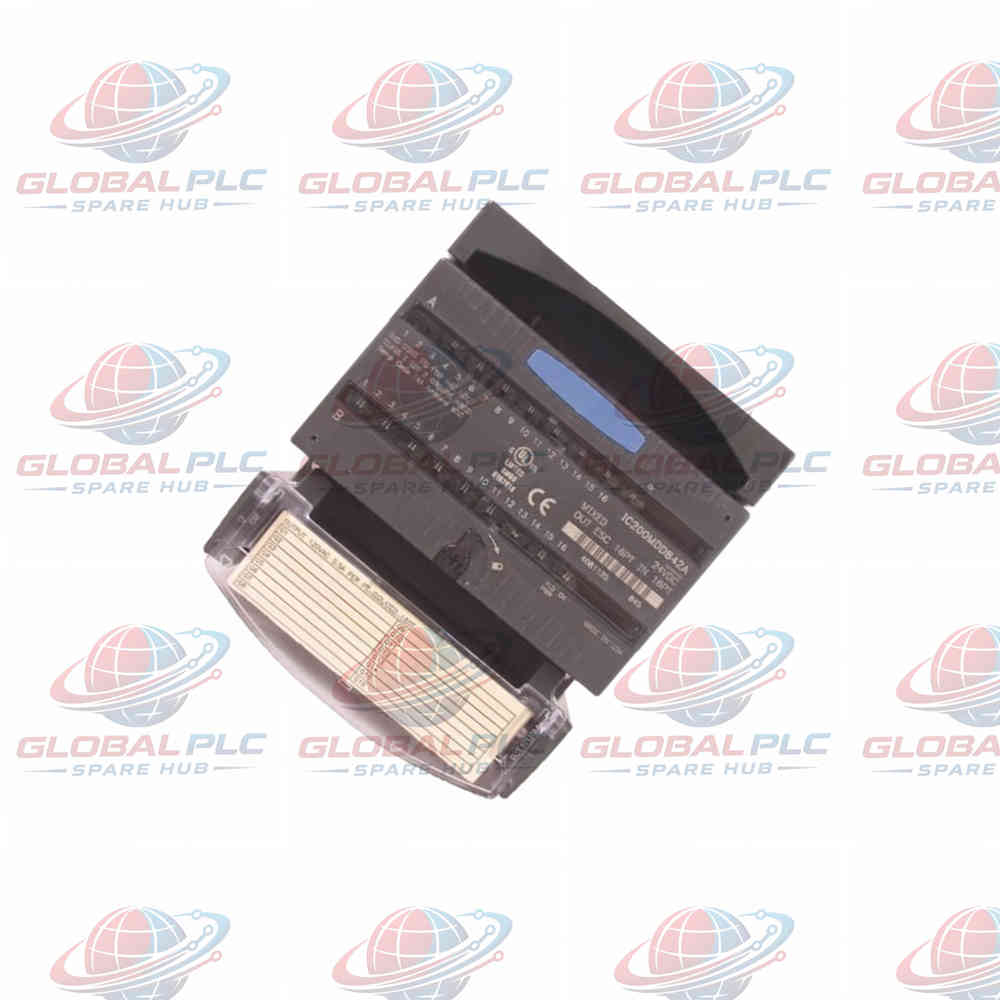

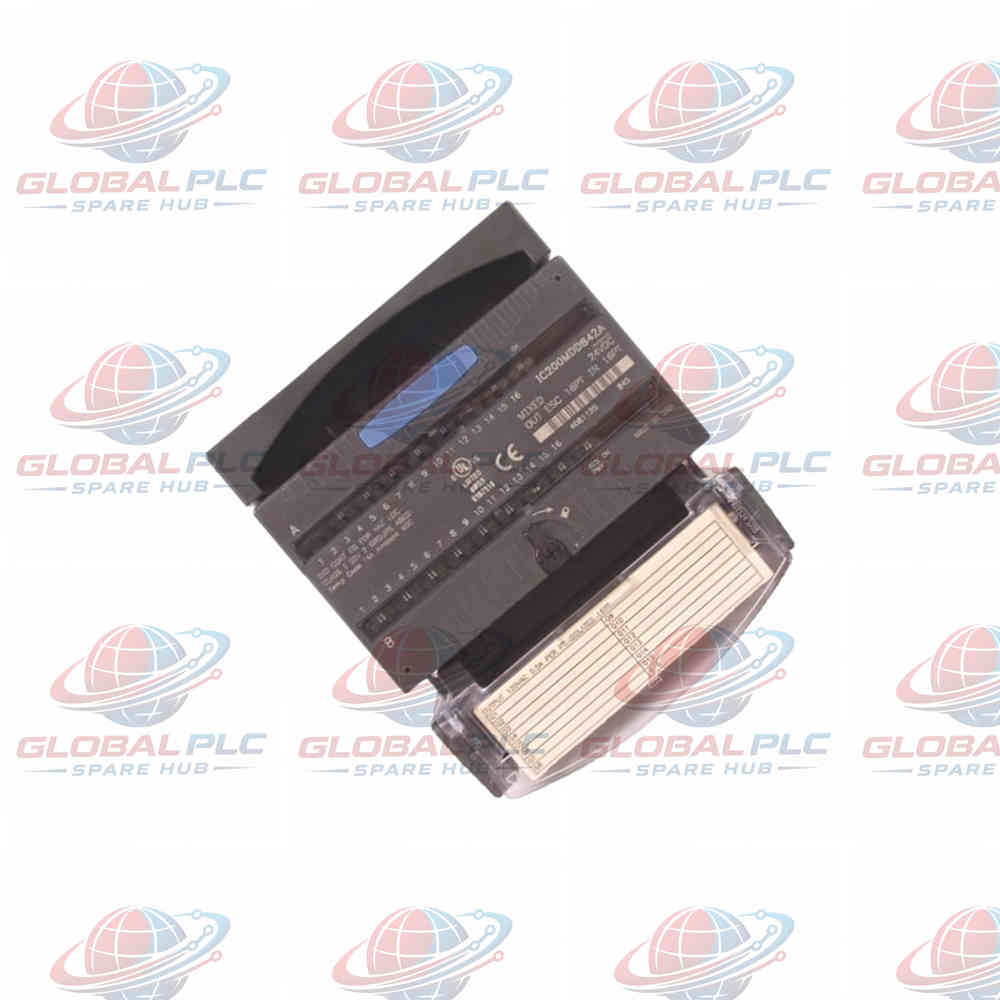

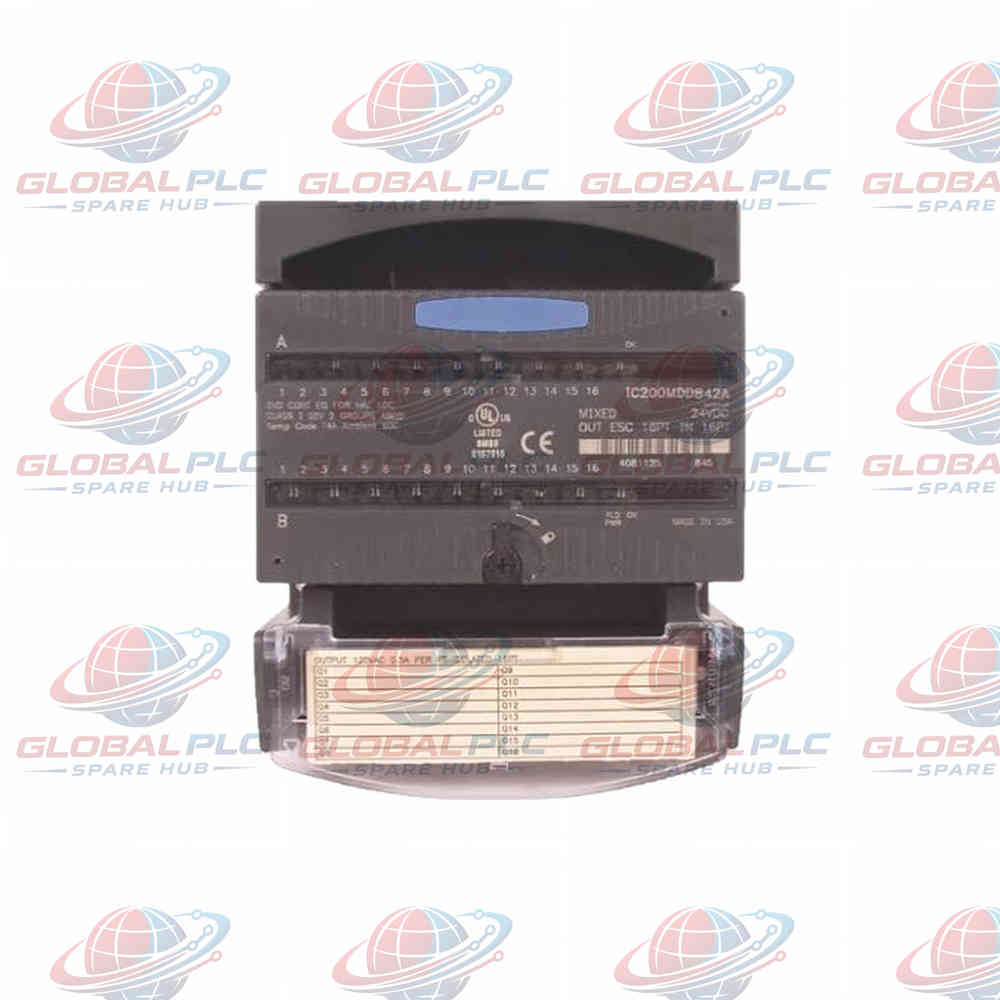

IC200MDD842 GE VersaMax 32-Point Discrete I/O Module

IC200MDD842 GE Fanuc VersaMax 32-Point Mixed Discrete I/O Module

The IC200MDD842 is a high-density Discrete Mixed I/O Module developed by GE Fanuc (GE Intelligent Platforms) for the versatile VersaMax automation architecture. This compact device integrates both input and output control into a single modular unit, delivering a total of thirty-two (32) I/O points split into three distinct functional groups. It features sixteen (16) discrete output points and sixteen (16) discrete input points configured across two separate 8-point input groups.

Engineered for streamlined panel layouts and flexible control schemes, the IC200MDD842 supports both positive and negative logic input configurations (requiring version IC200MDD842B for full negative logic support). With built-in electronic short-circuit protection, free-wheeling diodes for inductive loads, and rapid millisecond-level response times, this module ensures reliable signal processing in rigorous industrial control environments.

MECE Technical Specifications

• Brand / Manufacturer: GE Fanuc / GE Intelligent Platforms / Emerson
• Product Series: VersaMax automation platform
• Model / Part Number: IC200MDD842 (VersaMax Mixed I/O Module)
• Bulletin Number: IC200 series hardware standard
• Total I/O Capacity: 32 points total per physical module
• Input Point Configuration: 16 discrete inputs arranged in two groups of 8 points
• Output Point Configuration: 16 discrete outputs arranged in one group
• Logic Compatibility: Positive or negative logic inputs (requires revision IC200MDD842B for negative logic)
• Nominal Operating Voltage: 24 VDC system standard
• Load Current Rating: 0.5 A per point at up to 30 VDC
• Response Speed: 0.5 milliseconds nominal update time for inputs and outputs
• Group Isolation: Non-isolated channel design with shared group commons
• Electronic Protections: Built-in overcurrent protection, short-circuit detection, and inductive free-wheeling diodes
• Diagnostic Indicators: Multi-color green and amber status LEDs for every individual input and output point
• Product Lifecycle Status: Mature industrial automation component

Installation & Mechanical Setup

• Ensure all rack power and field supply voltages are completely switched off before mounting or dismounting the IC200MDD842 module.
• Slide the unit securely onto the standard VersaMax carrier base, ensuring proper backplane pin alignment.
• Connect 24 VDC auxiliary power supplies to the appropriate terminal blocks to energize field load devices.
• Verify that field wiring polarity matches your configured positive or negative sinking/sourcing logic requirements.
• Check firmware or hardware revision tags if implementing negative logic functions to confirm compatibility with revision B units.

Maintenance & Diagnostic Troubleshooting

• Observe individual front-panel green and amber LEDs to instantly verify real-time status of specific input and output points.
• Utilize built-in diagnostic routines to automatically flag and report overcurrent conditions or short circuits on output channels.
• Inspect field wiring terminals periodically to prevent loose wire terminations from causing intermittent signal drops.
• Monitor module temperature and power distribution rails if operating near maximum 0.5 A load current thresholds per point.

System Compatibility & Integration

• Rack Architecture: Fully compatible with standard VersaMax snap-together carriers and CPU backplane assemblies.
• Programming Software: Configured seamlessly through Proficy Machine Edition or legacy GE programming environments.
• Load Profiles: Ideal for interfacing with 24 VDC sensors, proximity switches, indicator lights, and small solenoid actuators.

Logistics, Certification & Warranty

• Quality Guarantee: Fully inspected, tested, and backed by a comprehensive 12-month replacement warranty.
• Global Shipping Partners: Expedited worldwide delivery via FedEx, UPS, and DHL.
• Dispatch Window: Fast order processing with guaranteed dispatch within 24 to 48 hours of purchase confirmation.
• Protective Packaging: Securely packed in anti-static shielding and heavy-duty industrial shipping cartons to prevent transit damage.

Typical Industrial Application Scenarios

• Discrete automated assembly cells requiring dense I/O packaging within tight control cabinet spaces.
• Material handling conveyor systems managing mixed photo-eye sensors and pneumatic valve solenoids.
• Small packaging machines needing combined 24VDC sensor inputs and actuator outputs on a single node.
• OEM machine building applications utilizing modular VersaMax distributed control architectures.

Global PLC Spare HUB's Insight & Field Experience

Automation engineers deploying the IC200MDD842 mixed I/O module in legacy VersaMax nodes frequently overlook the subtle hardware revision requirement when shifting from standard sinking sensors to sourcing configurations. Because negative logic functions demand revision IC200MDD842B or later, attempting to configure negative logic on older base hardware can result in unflagged input reading failures.

For example, a packaging machine retrofit experienced persistent logic mismatch errors after field technicians rewired optical sensors to common-positive lines. Verifying the module hardware stamp confirmed an older non-B revision was installed. Upgrading the module to the proper revision variant immediately resolved the sinking/sourcing logic conflict and restored stable input polling across all 16 channels.

Frequently Asked Questions

Why are my input points failing to register signals after rewiring my sensors?

Check whether your application utilizes negative logic; negative logic configurations require the updated IC200MDD842B module revision to process signals correctly.

Does this module provide complete channel-to-channel electrical isolation?

No, the module does not support channel isolation; inputs and outputs operate in shared groups with common power distribution rails.

What happens when an output experiences an overcurrent or short-circuit event?

The module features built-in electronic short-circuit and overcurrent protection that trips to prevent permanent board damage while generating diagnostic fault messages.

Can I mix 12VDC and 24VDC devices on the same input group?

No, all input and output points on this module operate strictly on a nominal system voltage of 24 VDC.

How do I interpret the dual green and amber LED status indicator colors?

The LEDs use distinct green and amber states to visually differentiate between active input logic levels and output energized conditions across the 32 points.
