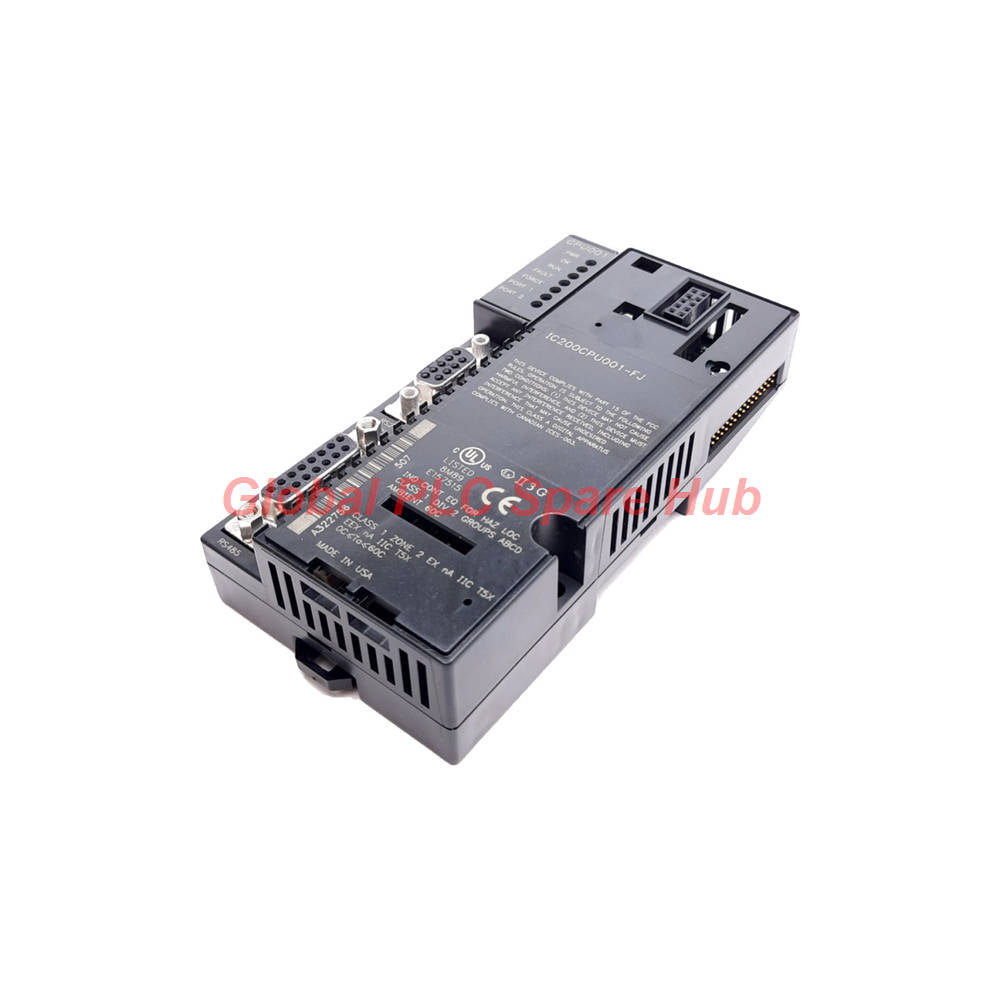

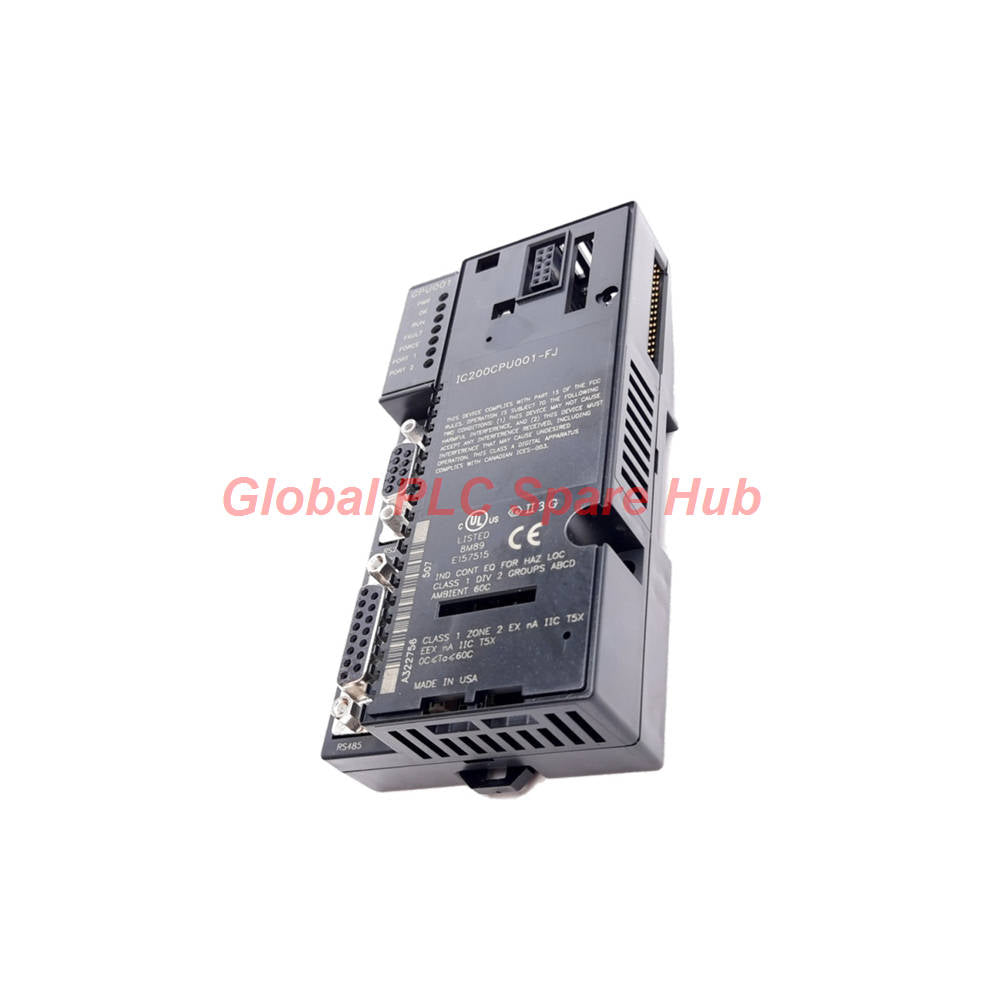

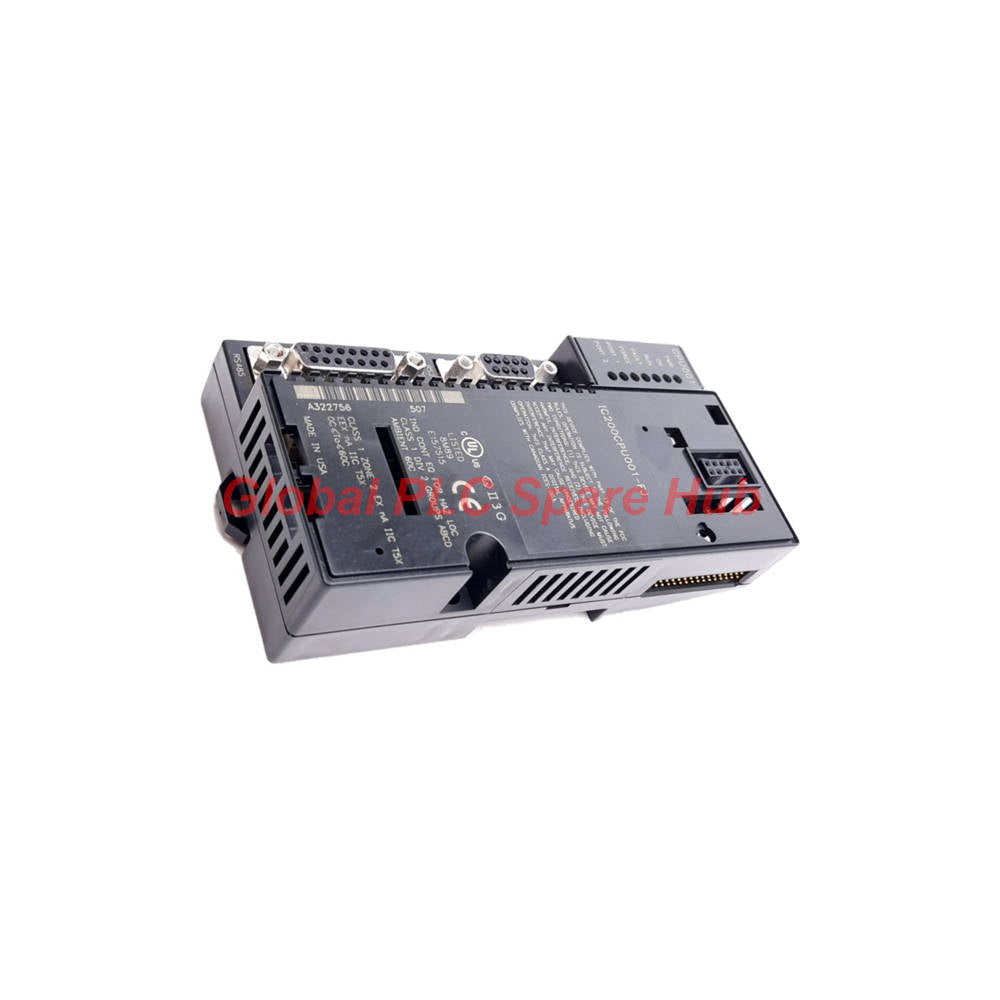

IC200CPU001 GE Fanuc Versamax Central Processing Unit | Controller Module
Manufacturer: GE Fanuc
Product No.: IC200CPU001
Condition： In stock
Product Type: CPU Module
Product Origin: USA
Payment: T/T, Western Union
Weight: 200g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
Core Architecture Overview
The IC200CPU001 is a robust central processing unit engineered by GE Fanuc (Emerson Automation / GE Intelligent Platforms) for the Versamax automation platform. This compact controller manages up to 2048 discrete inputs and 2048 discrete outputs with 34 KB of configurable user program and register memory. Global PLC Spare HUB's Insight reveals that maintaining proper battery backup voltage prevents volatile register clearing during unexpected plant power cycles.
Configuration Tree Structure
-
Base Controller: IC200CPU001
- User Memory Capacity: 34K Bytes configurable for logic, registers, and analog words
- Discrete I/O Handling: Up to 2048 inputs and 2048 outputs supported
- Internal Memory Registers: 1024 internal bits, 256 temporary bits, and 1280 global discrete bits
- Communication Interfaces: Dual ports featuring one RS232 and one RS485 serial connection
Technical Specification Matrix
| Performance Parameter | Engineering Specification Detail |
|---|---|
| Brand and Model | GE Fanuc / Emerson Automation IC200CPU001 |
| Product Series & Type | Versamax Central Processing Unit (CPU) Module |
| Boolean Execution Speed | 1.8 milliseconds per 1K of logic instructions |
| Real-Time Clock Accuracy | 100 ppm ($\pm$9 sec/day) across full operating temperature range |
| Backplane Power Load | 140 mA at 5V DC, 100 mA at 3.3V DC |
| Supported Protocols | Modbus RTU Slave, SNP Slave, and Serial I/O |
Diagnostic Capabilities
- Front-panel LED status indicators track hardware operating state, fault conditions, and run/stop modes.
- Real-time clock timestamps critical alarm events and scheduled sequence logic transitions.
- Automatic serial port mode switching between RTU and SNP slave protocols during communication handshakes.
Installation and Commissioning Guidelines
- Mount the CPU module directly onto standard DIN rail alongside the system power supply.
- Access the physical Run/Stop mode toggle switch positioned behind the front module access door.
- Configure communication parameters and logic blocks using CIMPLICITY Machine Edition or VersaPro software.
Equipment Compatibility and Application Scenarios
- Distributed industrial automation nodes requiring multi-rack discrete and analog data acquisition.
- SCADA and HMI data exchange networks utilizing Modbus RTU slave communication structures.
- OEM machinery control panels built on the GE Fanuc Versamax hardware architecture.
Logistics and Warranty Terms
- Rapid 24 to 48-hour order dispatch via secure global carriers: FedEx, UPS, and DHL.
Frequently Asked Questions
Q: What programming environments support configuration of the IC200CPU001 CPU?
A: Engineers configure this processor using CIMPLICITY Machine Edition Logic Developer, VersaPro, or Control Programmer software.
Q: How does the real-time clock maintain timekeeping accuracy during temperature shifts?
A: The battery-backed RTC maintains a calibrated accuracy of 100 ppm across the full operating temperature range to ensure reliable logic scheduling.
Q: What is the purpose of the built-in Modbus registers on this controller?
A: The controller features 32 dedicated Modbus registers to streamline data mapping with third-party operator interfaces and supervisory software.
Q: How do technicians perform firmware updates or local diagnostics on site?
A: Technicians utilize the configurable RS232 and RS485 communication ports linked to programming software workstations for diagnostics and program transfers.
Q: What buying considerations are important when upgrading legacy Versamax racks?
A: Verify that backplane power supply capacity can support the 140 mA (5V) and 100 mA (3.3V) current draw of the CPU alongside existing I/O modules.
