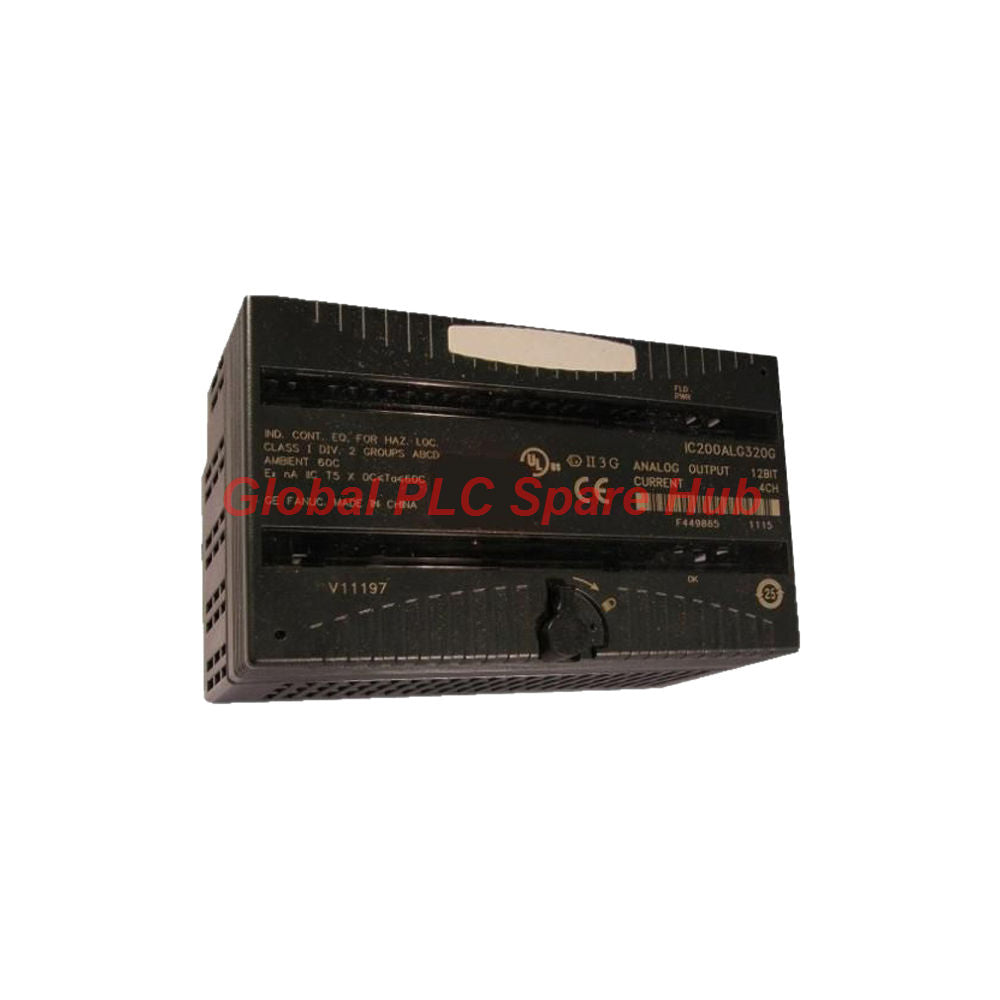

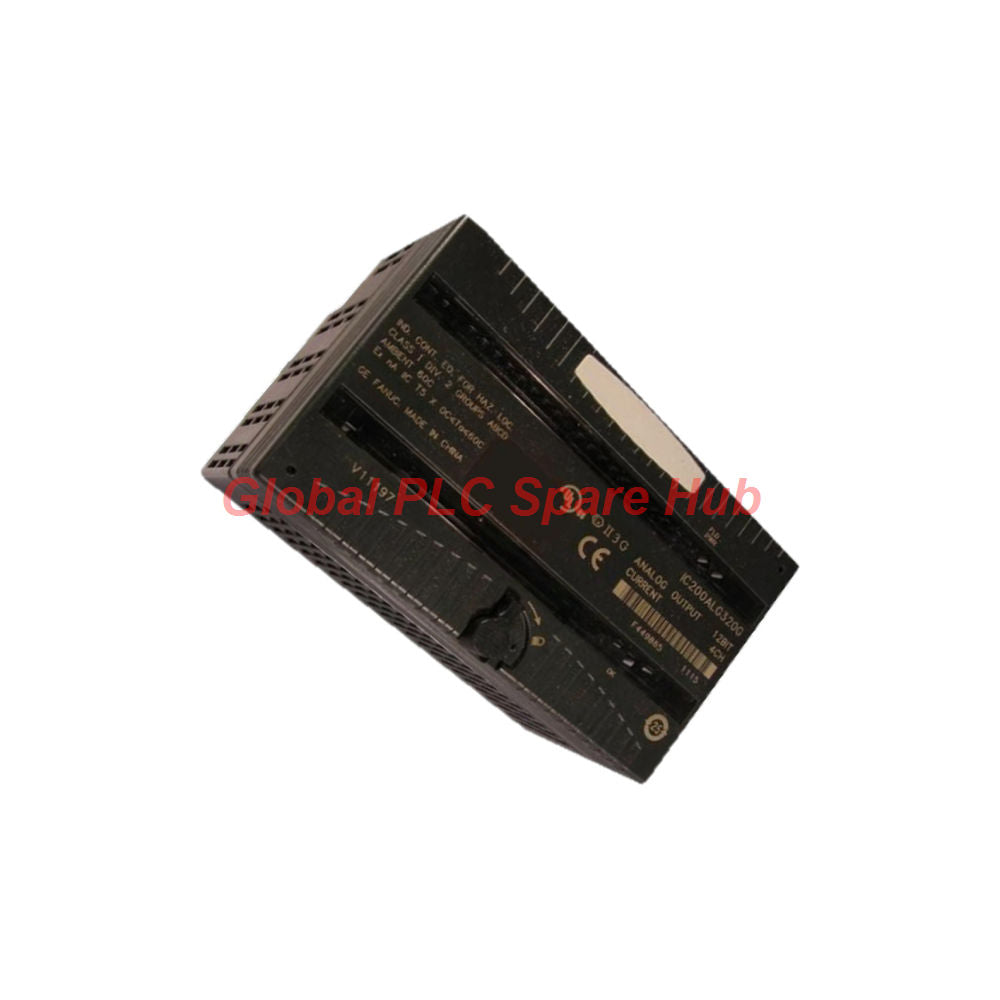

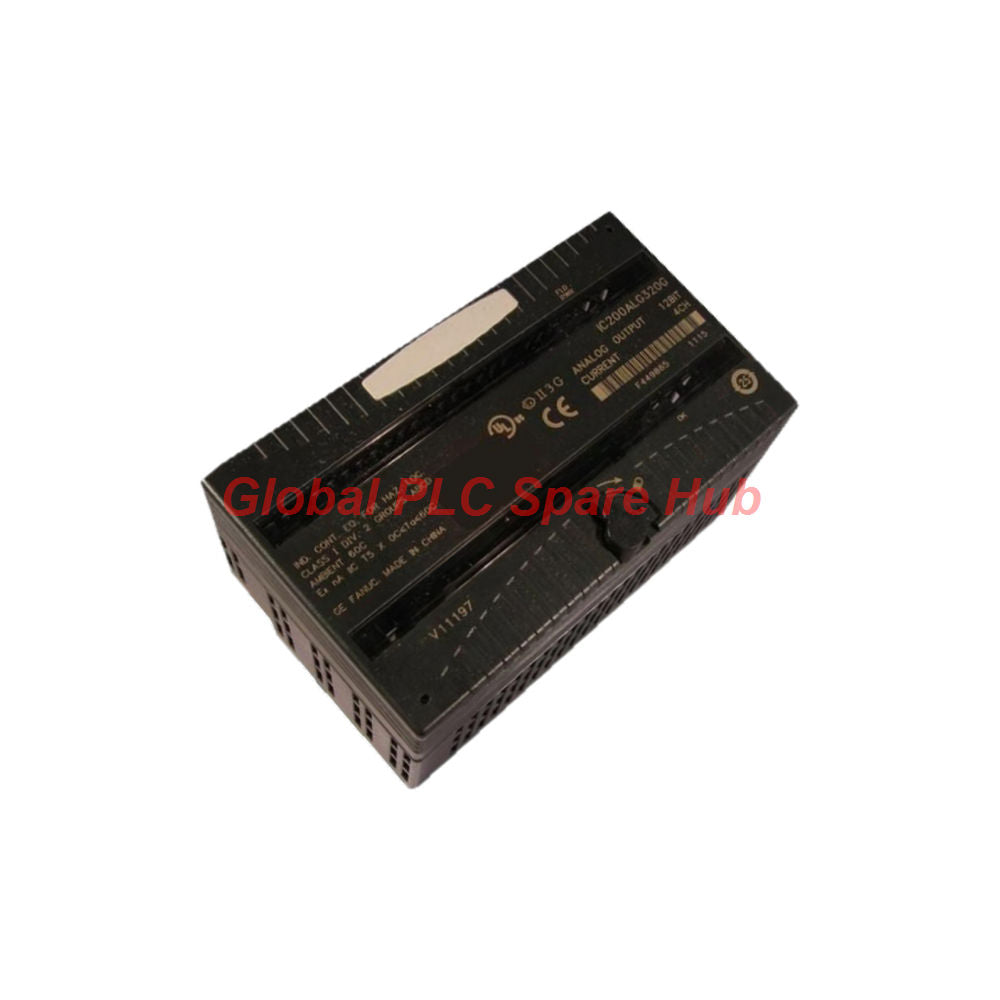

IC200ALG320 GE Fanuc VersaMax Analog Current Output Module

Product Overview

The IC200ALG320 is a precision 4-Point Analog Current Output Module engineered by GE Fanuc (formerly GE Intelligent Platforms, now Emerson Automation) within the VersaMax series. This module drives 4 to 20 mA current-sourcing signals to control industrial final elements. Global PLC Spare HUB's Insight highlights that utilizing configurable output defaults (Hold Last State or fallback to 4 mA) during CPU interruptions prevents catastrophic actuator snapping in high-pressure modulating valve loops.

Technical Specifications

• Brand / Manufacturer: GE Fanuc / Emerson Automation
• Series: VersaMax
• Part Number: IC200ALG320
• Output Channels: 4 single-ended, current-sourcing analog outputs
• Nominal Output Signal: 4 to 20 mA (average current rating 20.38 mA)
• Resolution & Accuracy: 12 bits (4 µA resolution); Accuracy 0.3% typical (±1% max)
• Update Rate: 0.3 ms maximum response time
• External Power Supply: 18 to 30 VDC or 9.6 to 15 VDC (Nominal 12/24 VDC)
• Electrical Ratings: Max current draw 240 mA from user supply; 50 mA from backplane
• Isolation Ratings: 250 VAC continuous / 1500 VAC for 1 min (Logic to Frame Ground)

Installation Guide

• Backplane Seating: Align the module connector carefully onto the VersaMax rack backplane, securing physical locking tabs without applying lateral force.
• External Power Wiring: Connect a clean 18-30 VDC or 9.6-15 VDC external supply to the field-side terminals to energize the current-loop circuitry.
• Load Termination: Wire single-ended output loops directly to modulating actuators or signal isolators, ensuring loop impedance stays within drive capability.

Debugging and Maintenance Convenience

• Status Indicators: Check the two front panel LEDs: the OK LED confirms backplane power status, while the FLD PWR LED verifies active user-side field power.
• Power Loss Detection: Built-in diagnostics immediately flag loss of user-side field power faults to the main CPU interface.
• Jumper Configuration: Inspect hardware jumper settings to ensure output fallback behavior matches safety specifications for sudden power drops.

Compatibility & Diagnostics

• System Compatibility: Fully compatible with VersaMax distributed I/O racks, CPU controllers, and remote network interface units.
• Diagnostic Capability: Generates real-time diagnostic reports for user-side power failures, enabling rapid troubleshooting in remote instrument enclosures.
• Global PLC Spare HUB Review: Instrumentation technicians report that the rapid 0.3 ms update rate eliminates lag in closed-loop servo and damper control loops.

Typical Application Scenarios

• Modulating Valve Control: Positioning pneumatic control valves and louvers in chemical processing plants.
• Variable Frequency Drives (VFD): Transmitting precise speed reference signals to industrial motor speed controllers.
• Data Historization: Providing re-transmitted analog signals to local panel meters, chart recorders, and single-loop backup controllers.

Certifications, Logistics, and Warranty

• Certifications: Built in accordance with industrial electrical safety and isolation compliance standards.
• Logistics & Dispatch: Fast 24-48 hour dispatch window utilizing reliable international carriers including FedEx, UPS, and DHL.
• Warranty Terms: Covered by a comprehensive 12-month warranty from the purchase date.
• Packing List: One IC200ALG320 output module and technical data sheet.

Frequently Asked Questions (FAQ)

Q: What causes the FLD PWR LED to remain unlit on the IC200ALG320 module?

A: This indicates a total loss of external power or a tripped fuse on the 18-30 VDC / 9.6-15 VDC field supply circuit powering the analog loops.

Q: How do the outputs behave if the main CPU unexpectedly halts communication?

A: Outputs can be configured to either hold their last commanded state or scale down to a safe 4 mA fallback value depending on application safety requirements.

Q: Can this module drive loads requiring voltage instead of current signals?

A: No, this is strictly a 4 to 20 mA current-sourcing output module; voltage-driven devices require external precision dropping resistors or signal converters.

Q: Why is backplane power required if external power is already supplied to the module?

A: Backplane power energizes the internal logic processor and digital isolation barriers, while the external supply powers the analog output driver circuits.

Q: Purchasing Guidance: How do I select between Hold Last State and 4 mA default modes?

A: Choose Hold Last State for processes where sudden valve movement causes hydraulic shock, and choose 4 mA fallback for safety-critical loops requiring immediate shutdown.
