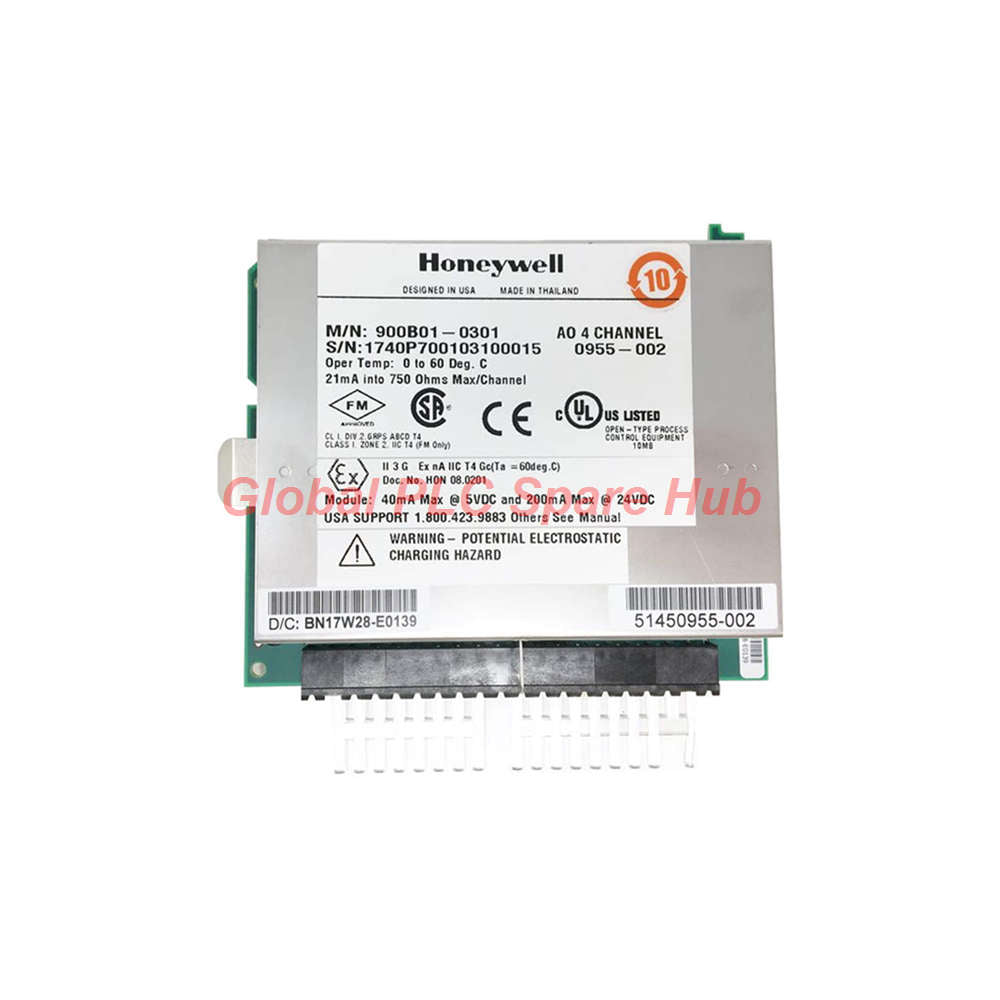

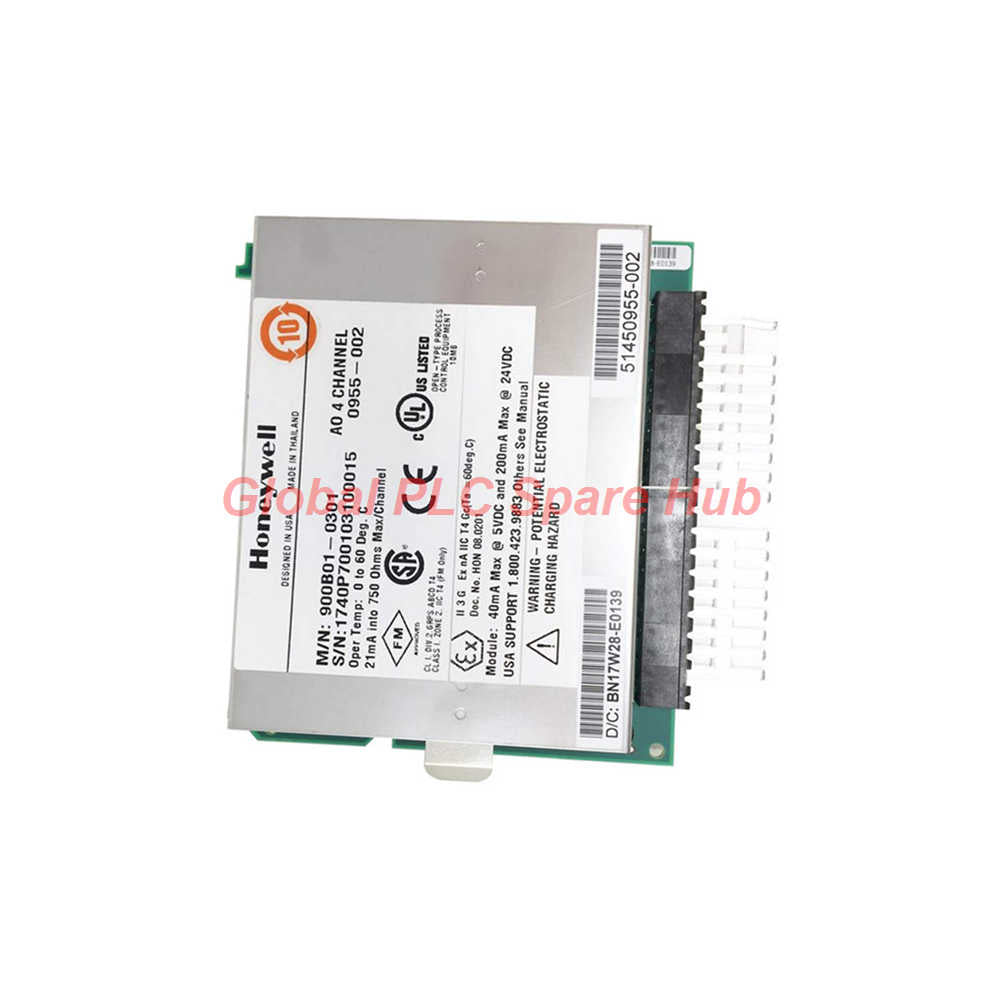

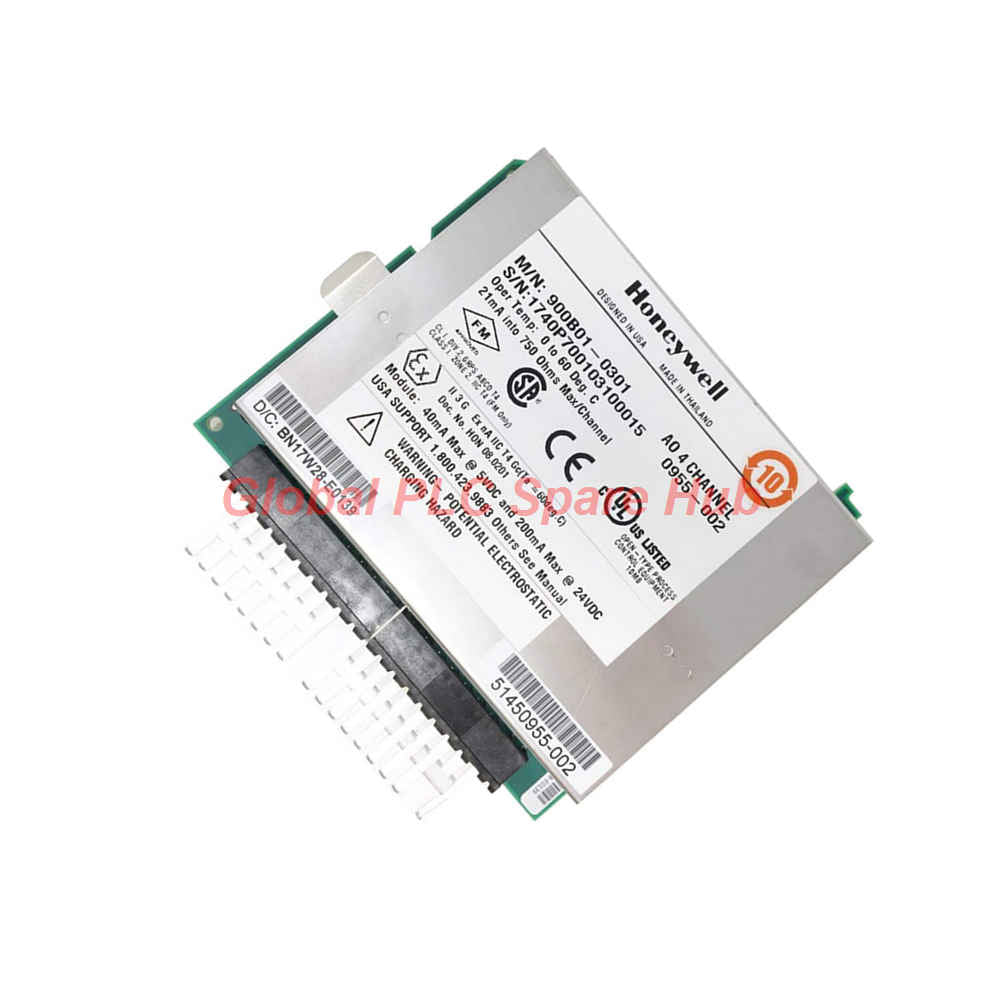

Honeywell 900B01-0301 Analog Output Module | 4-Channel AO

Product Overview

The Honeywell 900B01-0301 is a high-performance 4-channel analog output module designed for demanding industrial control environments. This unit provides precise 0 to 21.8 mA current signals with 12-bit resolution for superior process accuracy. Engineered for reliability, it features channel-to-channel galvanic isolation and advanced diagnostic feedback to ensure system integrity. It supports user-defined failsafe states and configurable slew rates to maintain seamless operation during controller communication interruptions.

Technical Specifications

• Brand: Honeywell
• Model: 900B01-0301
• Output Channels: 4 isolated channels
• Output Range: 0 to 21.8 mA (user-selectable)
• Resolution: 12-bit D/A conversion
• Accuracy: 0.1% of full scale under reference conditions
• Load Resistance: 750 ohms maximum
• Isolation: 500VDC channel-to-channel; 600VDC logic-to-channel
• Minimum Current Sensing: > 3.5 mA per output
• Update Rate: Synchronous with IOM scan (minimum 500ms)
• Operating Temperature: Factory-rated with de-rating curves for high-density configurations
• Environment: Designed for industrial electromagnetic compatibility and harsh conditions

Advanced Diagnostics and Reliability

• Diagnostic Capability: Monitors factory calibration, internal configuration, and +24 VDC power supply health.
• Output Verification: Provides active feedback to the controller confirming actual output current flow.
• Failsafe Protection: Configurable "Hold Last Value" or user-defined "Failsafe Value" ensures predictable behavior during faults.
• Calibration Integrity: Non-volatile memory stores redundant factory calibration data with automatic bad-version rejection.

Installation, Compatibility, and Maintenance

• System Compatibility: Fully integrated with standard Honeywell 900 Series controller architecture.
• Installation Guide: Mount in compatible racks, observing thermal de-rating for configurations exceeding 10 modules.
• Maintenance: Modular design facilitates rapid replacement and simplified loop checking through diagnostic LEDs.
• Certification: Built to meet rigorous industrial safety and performance standards.

Shipping and Warranty

• Logistics: We utilize global carriers including FedEx, UPS, and DHL.
• Lead Time: Orders are processed and dispatched within 24-48 hours.
• Warranty: All units include a comprehensive 12-month quality assurance warranty.
• Package Contents: Includes 900B01-0301 module and standard documentation.

Typical Application Scenarios

• Process control loops requiring high-precision valve positioning.
• Variable frequency drive (VFD) speed command signals.
• Analog signal retransmission for remote telemetry systems.
• Critical alarm annunciation and instrumentation feedback loops.

Global PLC Spare HUB Insight

The Honeywell 900B01-0301 excels in high-density process automation applications where isolation is critical to prevent ground loops. Global PLC Spare HUB recommends this module for systems requiring stable, long-term output accuracy. It is ideal for petrochemical, power generation, and water treatment infrastructure where signal integrity defines process safety.

Frequently Asked Questions

How do I handle a module status LED displaying a solid red light?
A red status LED indicates internal diagnostics have identified a fault such as a power supply error, calibration loss, or output channel failure. Please verify your +24VDC source and check the controller software for specific error codes.

Can the output range be limited to 4-20mA?
Yes, the 0 to 21.8 mA range is fully scalable. You can configure the module in your control software to map your specific process variables to a 4-20mA output span.

How should I choose between Hold Last Value and a Failsafe Value?
Use "Hold Last Value" for processes where temporary communication loss should not cause an immediate mechanical state change. Use "Failsafe Value" for critical safety applications that require the output to move to a known "safe" state upon link loss.

What is the purpose of the slew rate function block?
The slew rate limits the maximum change in output current per cycle, preventing damaging mechanical stress on actuators or sudden surges in high-inertia process loops.
